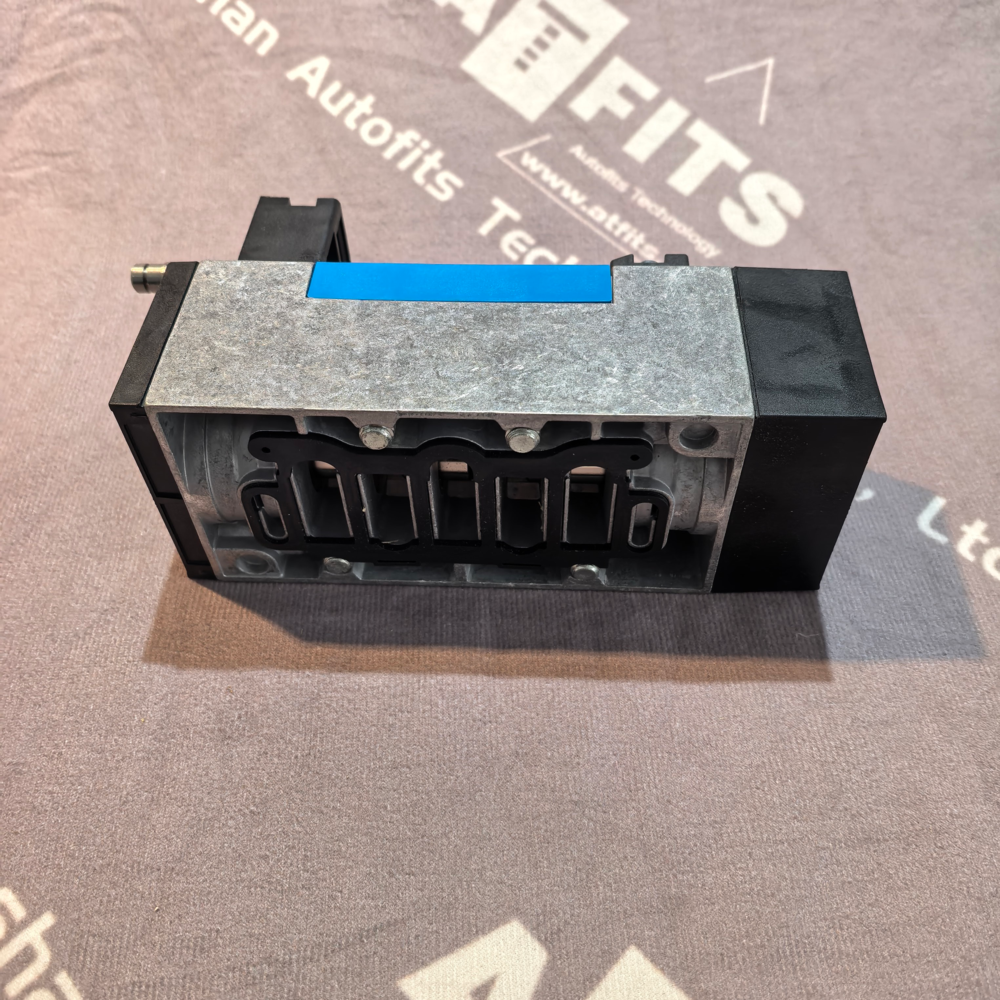

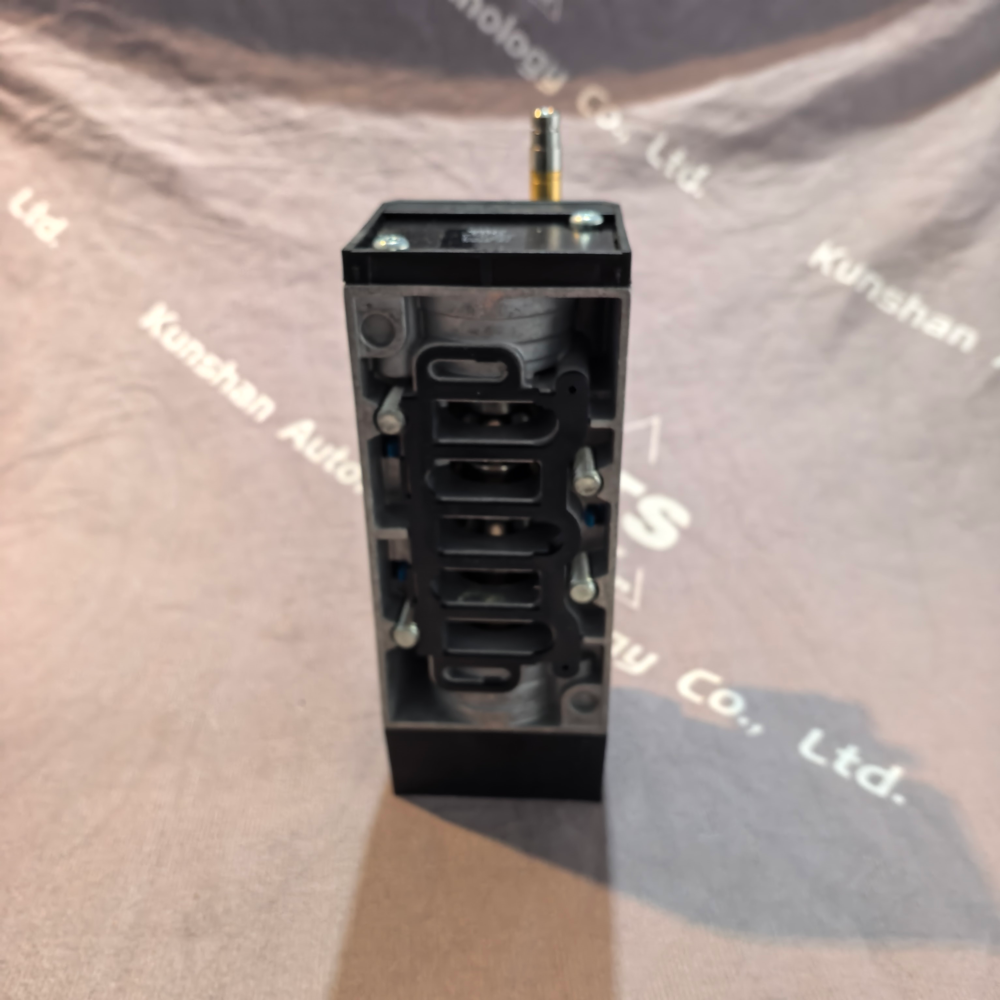

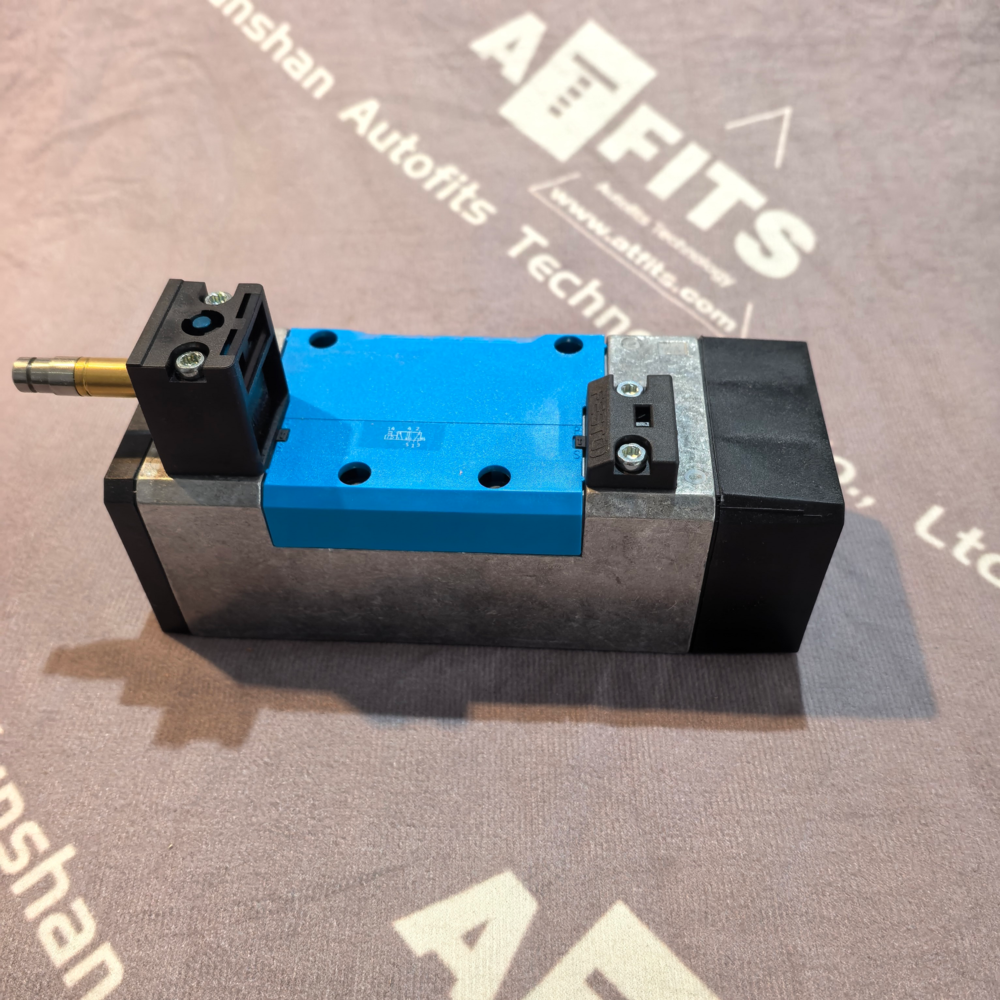

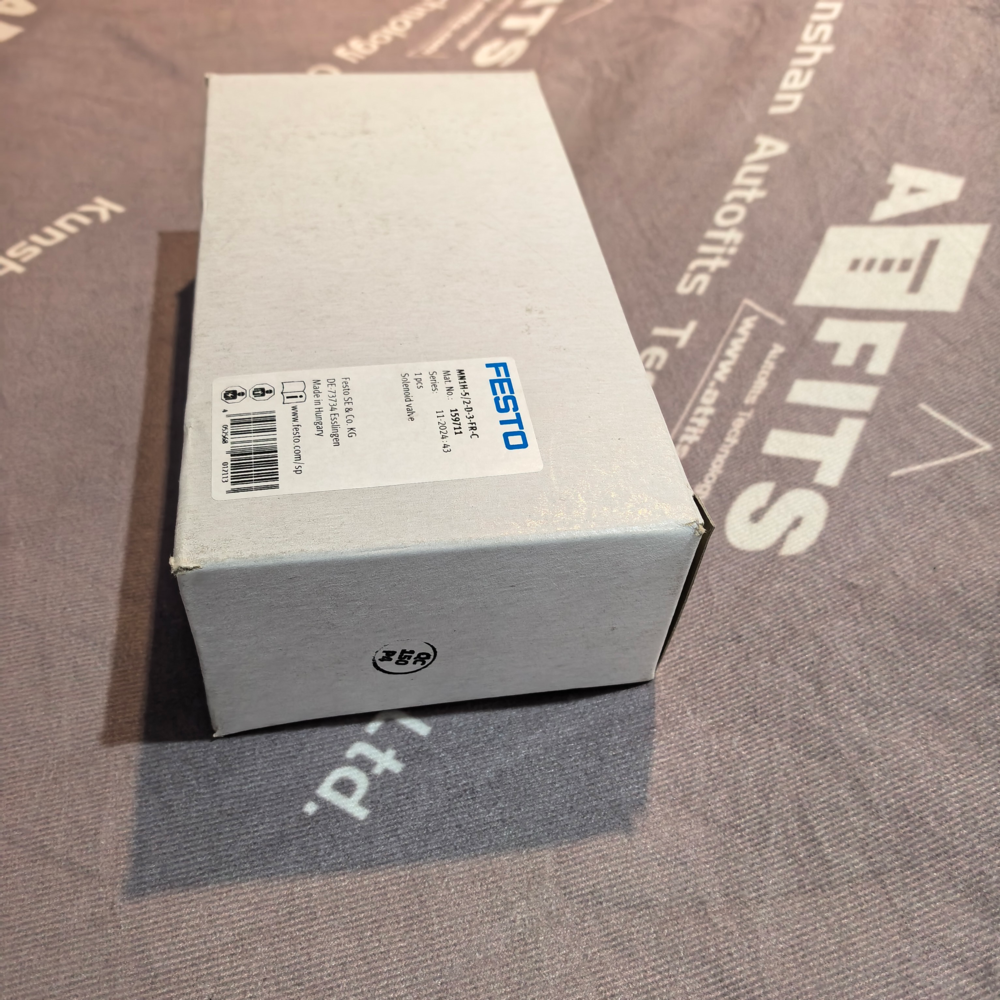

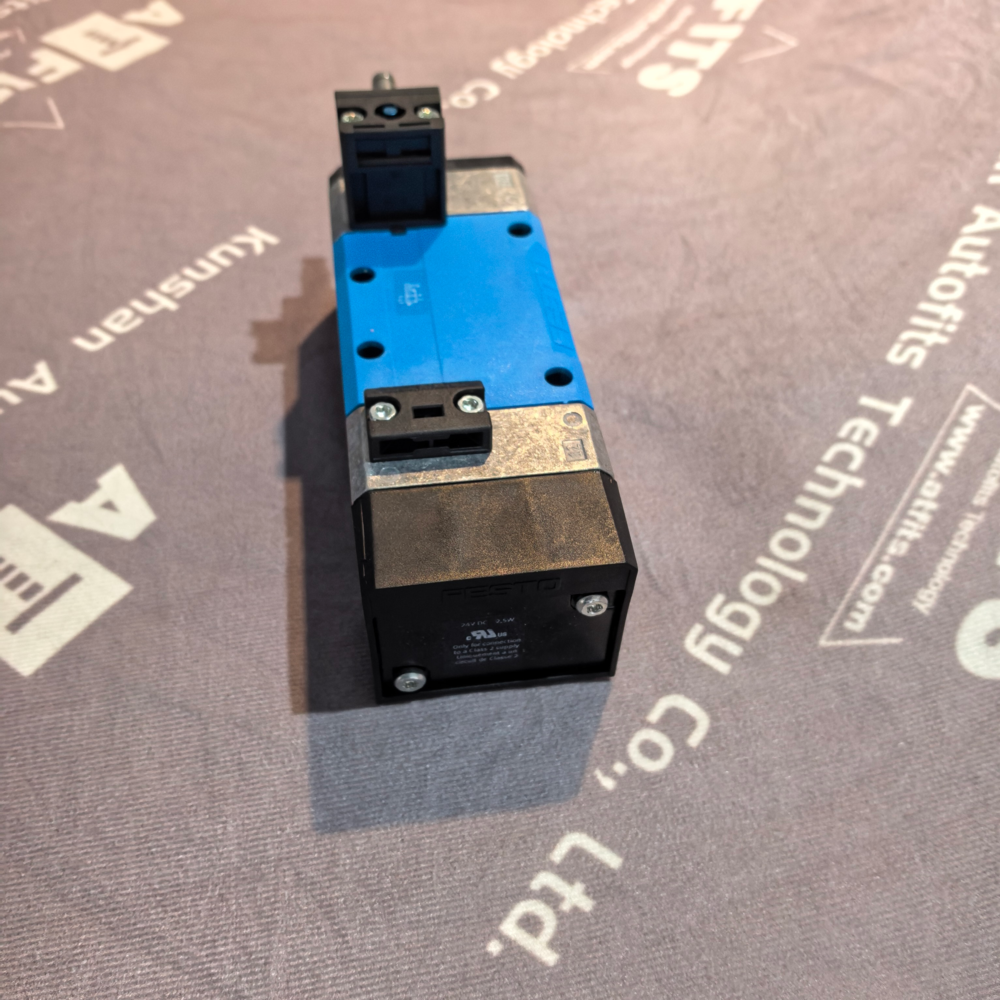

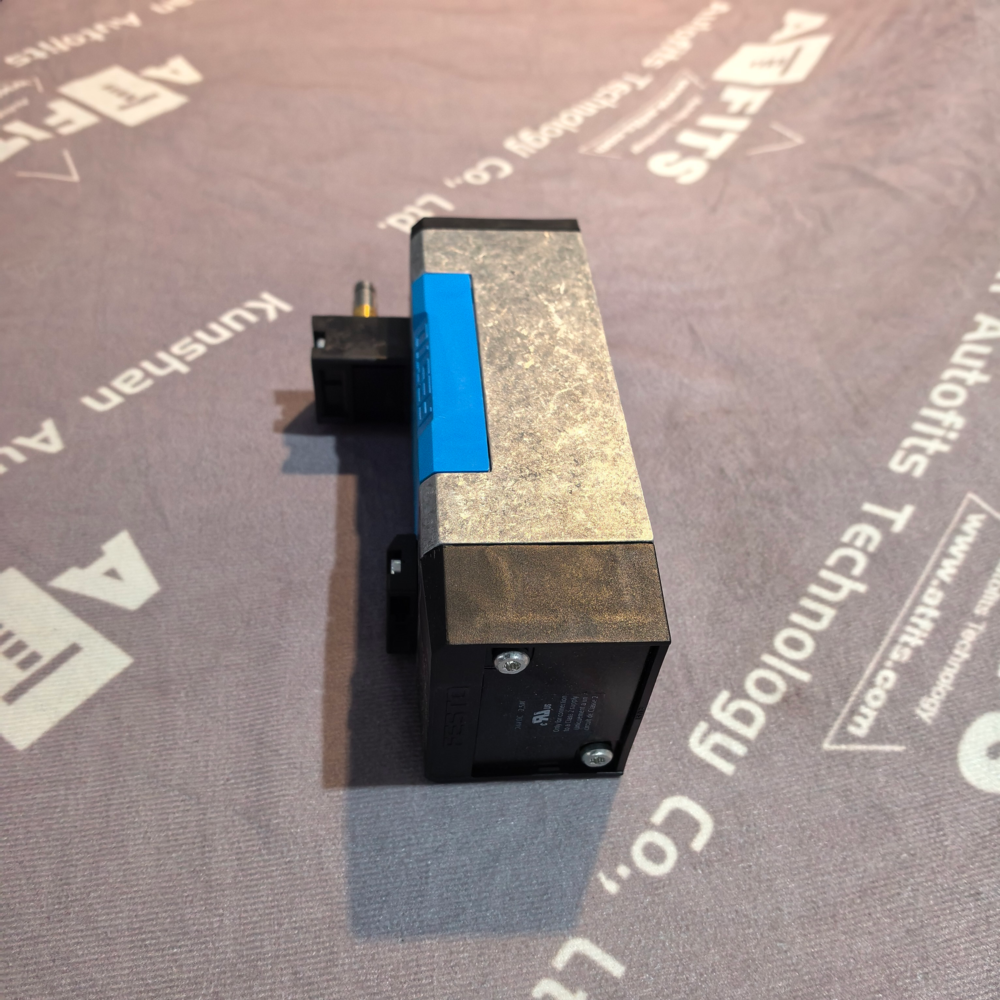

Festo MN1H-5/2-D-3-FR-C Air Solenoid Valve (Order Code: 159711)
Product Overview
The Festo MN1H-5/2-D-3-FR-C (Order Code: 159711) is a 5/2-way monostable piston gate solenoid valve from the MN1H series, designed for precise pneumatic circuit control in industrial automation. It adopts internal pilot actuation and mechanical spring reset, with a sub-base size 3 compliant to ISO 5599-1 for easy manifold mounting. Boasting a standard nominal flow rate of 4500 l/min (per DIN 1343), it operates at 3–10 bar, offering reliable on/off control for cylinders, grippers, and other pneumatic actuators. The valve features soft sealing, optional flow – controlled exhaust, and a non – detenting manual override, along with IP65 protection and RoHS compliance, making it suitable for diverse applications like packaging machinery, assembly lines, and material handling systems, and it allows flexible installation in any orientation.
Main Functions
| Function | Description |
|---|---|
| 5/2-Way Pneumatic Circuit Control | Controls air flow to two working ports (A/B) with one supply (1) and two exhaust ports (3/5), enabling single – acting actuator cycling via spring – return reset. |
| High – Flow Air Distribution | Delivers 4500 l/min nominal flow at 6 bar to meet the air demand of mid – to large – size pneumatic components, reducing pressure drops in the system. |
| Mechanical Spring Reset | Monostable operation ensures the valve returns to the default position reliably when the solenoid is de – energized, guaranteeing consistent cycle repeatability. |
| Adjustable Exhaust Flow | FR – configured exhaust with flow control allows adjustment of actuator speed for smooth motion and minimized impact. |
| Manual Override Function | Non – detenting manual override enables manual actuation for setup, testing, or emergency operation without altering the valve’s normal electrical control. |
Technical Features
| Characteristic | Specification |
|---|---|
| Order Code | 159711 |
| Series | MN1H |
| Valve Function | 5/2 – way, monostable |
| Actuation Type | Electric (solenoid – driven, coil sold separately) |
| Valve Design | Piston gate valve |
| Reset Mechanism | Mechanical spring |
| Operating Pressure Range | 3 – 10 bar (0.3 – 1.0 MPa) |
| Standard Nominal Flow Rate (DIN 1343) | 4500 l/min |
| Sub – base Size | 3 (ISO 5599-1), G1/2 working ports |
| Nominal Size | 14.5 mm |
| Grid Dimension | 71 mm |
| Sealing Principle | Soft sealing |
| Exhaust Function | With flow control option (FR) |
| Manual Override | Non – detenting (via accessory) |
| Piloting Type | Internal pilot |
| Flow Direction | Non – reversible |
| Protection Class | IP65 |
| Compliance | RoHS, ISO 5599-1 |
| Media Temperature | -10 °C to +60 °C |
| Mounting Position | Any orientation |
Product Dimensions (mm)
| Dimension | Value |
|---|---|
| Construction Width | 65 |
| Grid Dimension | 71 |
| Nominal Size | 14.5 |
| Pneumatic Port Size (Working Ports) | G1/2 (ISO 5599-1 size 3) |
| Pilot Exhaust Port Size | M5 |
| Mounting Hole Spacing | 71 (grid – matched) |
| Valve Body Height (Excl. Coil) | 48 |
| Valve Body Depth | 92 |
