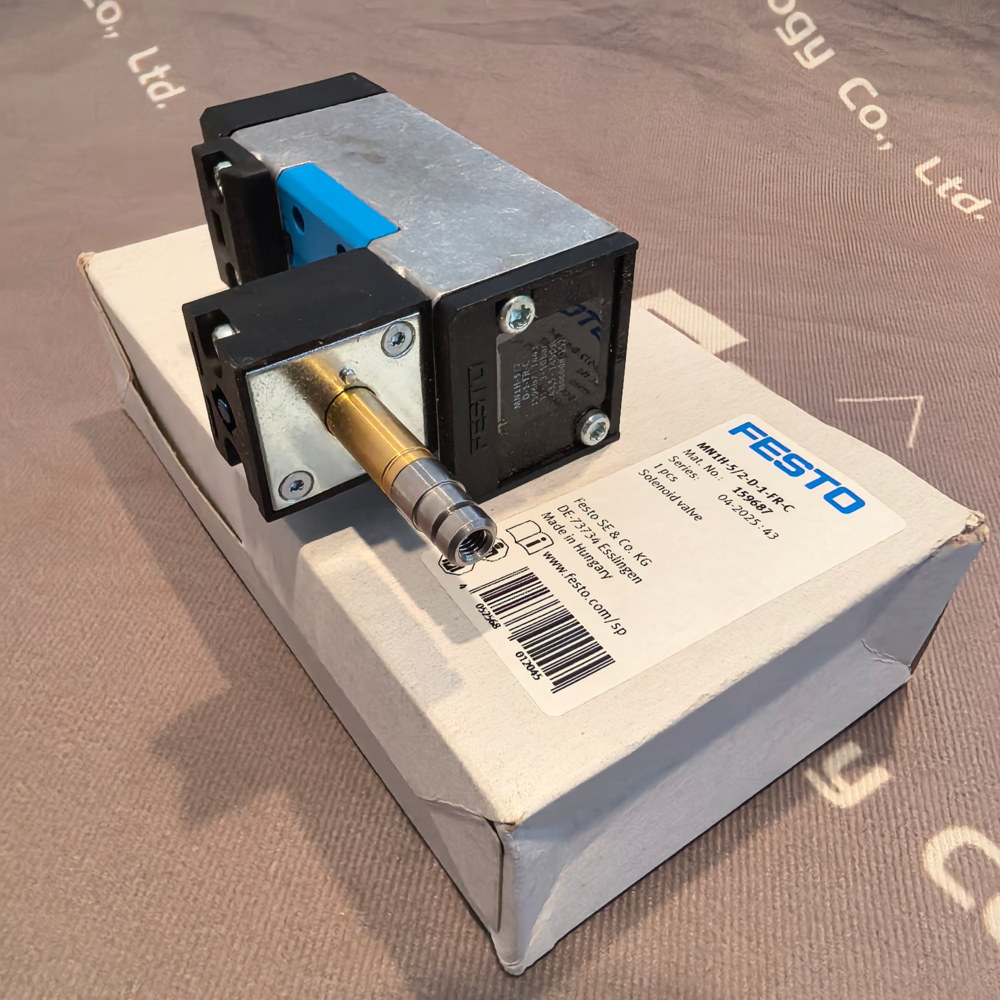

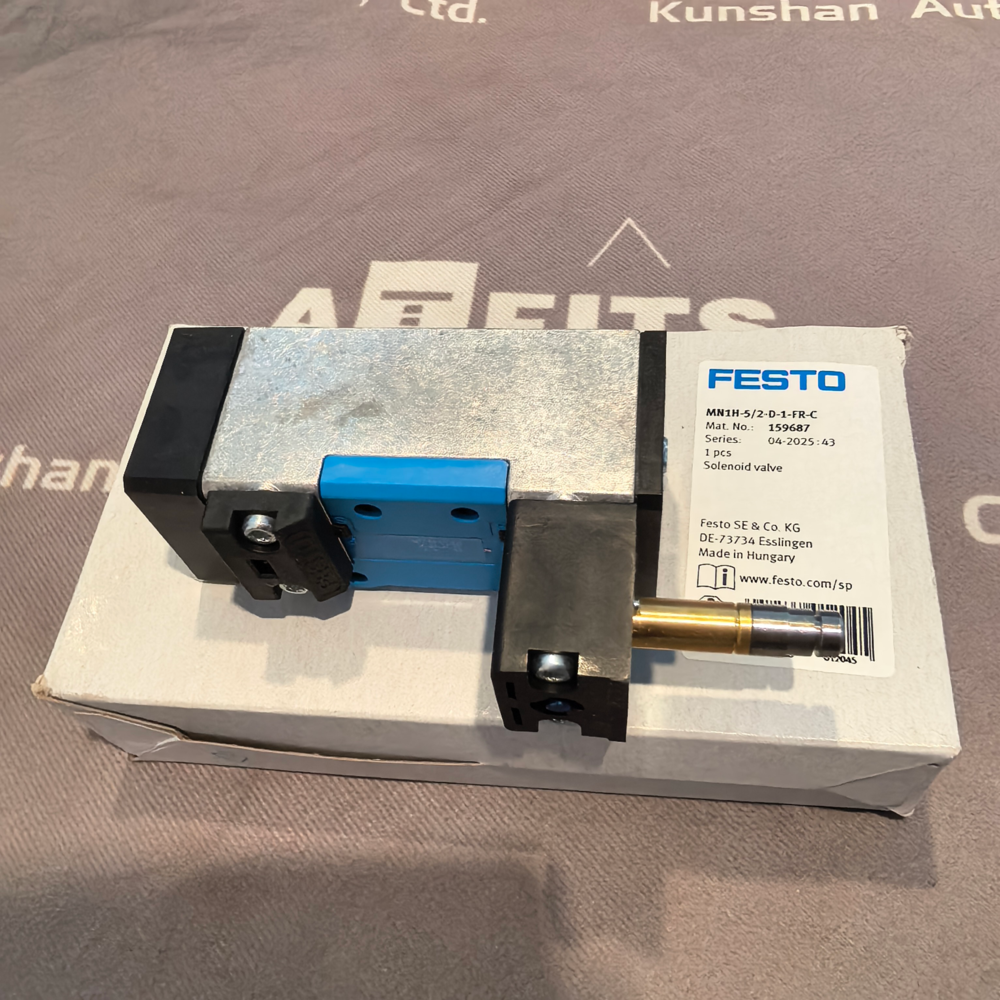

Festo MN1H-5/2-D-1-FR-C Air Solenoid Valve (Order Code: 159687) - Image 1

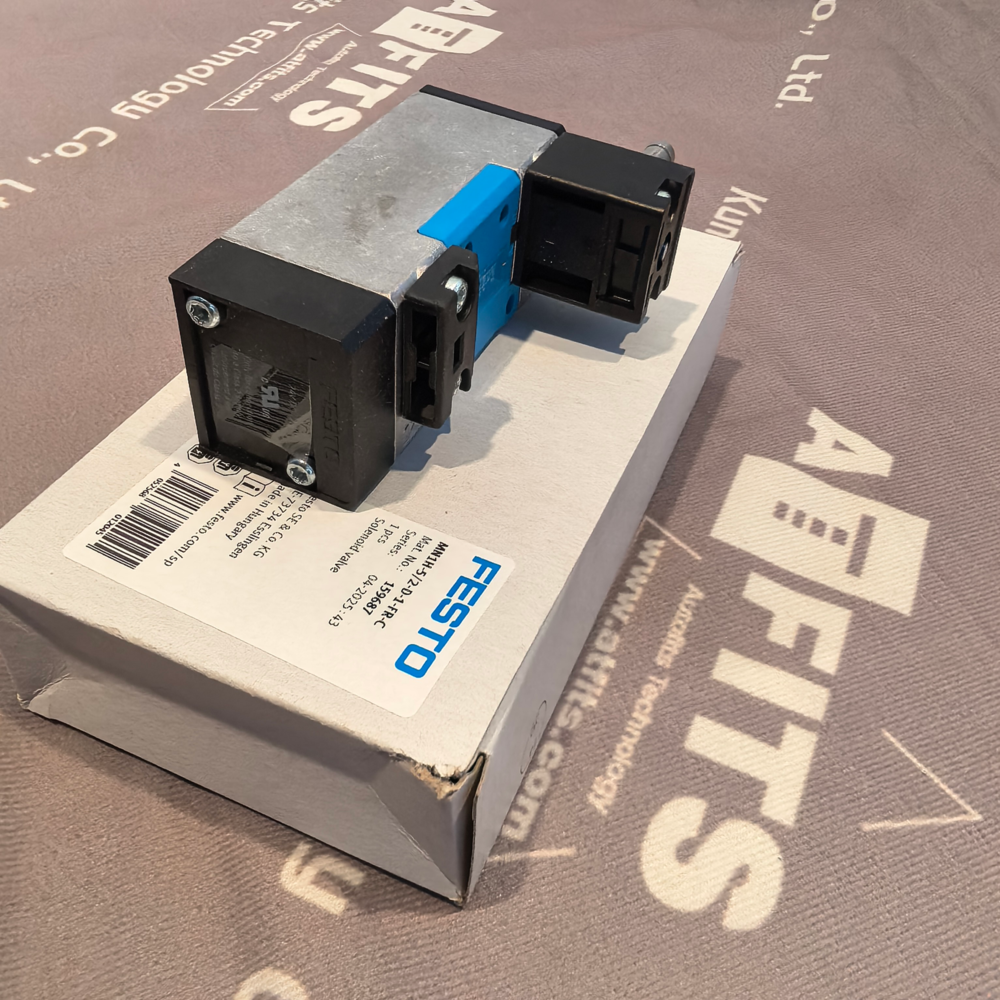

Festo MN1H-5/2-D-1-FR-C Air Solenoid Valve (Order Code: 159687) - Image 2

Festo MN1H-5/2-D-1-FR-C Air Solenoid Valve (Order Code: 159687)

Festo MN1H-5/2-D-1-FR-C Air Solenoid Valve (Order Code: 159687) - Image 3

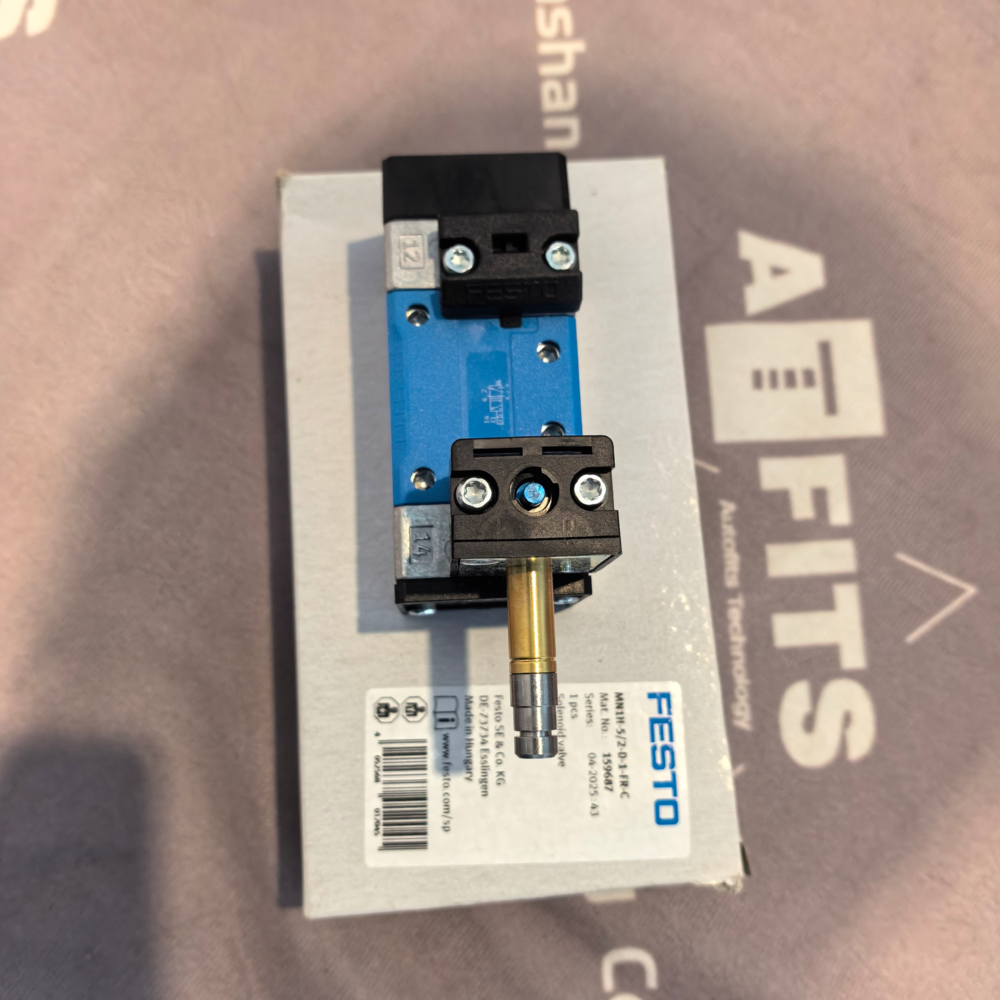

Festo MN1H-5/2-D-1-FR-C Air Solenoid Valve (Order Code: 159687) - Image 4

Festo MN1H-5/2-D-1-FR-C Air Solenoid Valve (Order Code: 159687)

"*" indicates required fields

Category: FESTO

Festo MN1H-5/2-D-1-FR-C Air Solenoid Valve (Order Code: 159687)

Product Overview

The Festo MN1H-5/2-D-1-FR-C is a heavy-duty 5/2-way solenoid valve engineered for high-flow pneumatic control in industrial automation systems. Part of Festo’s MN1H series, this valve is optimized to regulate compressed air direction for large-diameter double-acting cylinders, grippers, and heavy-load actuators in applications such as automotive body assembly, material handling conveyors, and packaging machinery. Its robust metal construction, high flow capacity, and standardized interface ensure reliable operation in harsh environments, while its modular design supports seamless integration into centralized pneumatic control stations.

Product Dimensions

Parameter	Specification
Overall Width	45 mm
Overall Height	142 mm
Overall Depth	110 mm
Pneumatic Port Size	G1/4
Electrical Connector Type	Plug-in (3-pin, A-code)
Mounting Hole Pitch	35 mm (widthwise) × 95 mm (depthwise)
Mounting Compatibility	Direct panel mounting; compatible with Festo valve manifolds

Main Functions

5/2-Way High-Flow Directional Control
- Operates as a monostable directional control valve, switching compressed air supply between two output ports (A and B) to drive bidirectional motion in double-acting pneumatic actuators. When de-energized, the valve returns to its default position (spring return), ensuring fail-safe operation during power outages.
- Delivers a maximum flow rate of 1200 L/min (at 6 bar pressure), enabling fast actuation of large-bore cylinders and heavy-load devices—critical for high-cycle production lines requiring minimal downtime.
- Supports a wide operating pressure range, making it suitable for both low-pressure (1 bar) and high-pressure (10 bar) pneumatic systems.
Electrical Control & Status Monitoring
- Accepts a 24 VDC control signal, compatible with standard PLC digital output modules for direct integration into automated control systems. The plug-in electrical connector enables tool-free, secure wiring, reducing installation time and human error.
- Features a built-in LED status indicator that clearly displays the solenoid’s energization state, allowing maintenance personnel to quickly diagnose valve faults or control signal issues on-site.
Modular System Expansion
- Can be installed as a standalone unit or integrated into Festo valve manifolds to create multi-valve control stations, eliminating redundant piping and simplifying pneumatic system design.
- Compatible with Festo’s full range of pneumatic accessories, including flow regulators, pressure sensors, and exhaust mufflers, to customize performance for specific application requirements.

Technical Features

Heavy-Duty Construction & Durability
- Housing Material: Die-cast aluminum alloy with a corrosion-resistant coating, providing exceptional mechanical strength to withstand industrial vibration, shock, and impact. Internal components are made of nickel-plated brass and stainless steel to resist wear and contamination from compressed air impurities.
- Protection Class: IP65 (front side), protecting the valve from dust, water spray, and oil mist in harsh manufacturing environments such as welding cells and machining workshops.
- Service Life: Up to 50 million switching cycles under standard operating conditions, minimizing replacement frequency and reducing long-term maintenance costs.
High Performance & Operational Flexibility
- Fast Switching Speed: Achieves a response time of ≤ 20 ms for both valve opening and closing, ensuring precise synchronization of actuators in automated production processes.
- Temperature Resistance: Operates reliably in a temperature range of -10 °C to +50 °C; optional low-temperature seals extend the range to -20 °C for cold-storage applications.
- Low Power Consumption: The solenoid coil consumes only 2.5 W of power, reducing energy usage in continuous operation scenarios and lowering overall system operating costs.
Compliance & Certification
- Fully compliant with international standards including ISO 15407-2 (pneumatic directional control valves), CE, and RoHS, ensuring global market compatibility and adherence to environmental regulations.
- Meets Festo’s strict quality control standards, with each unit undergoing rigorous testing for pressure tightness, flow performance, and electrical safety before leaving the factory.

Weight

The net weight of the Festo MN1H-5/2-D-1-FR-C air solenoid valve (order code 159687) is approximately 0.85 kg, balancing robust construction with ease of handling during installation and maintenance.
