Festo DSBC-63-125-C-PPVA (1463475) ISO Cylinder – Detailed English Introduction
Product Overview

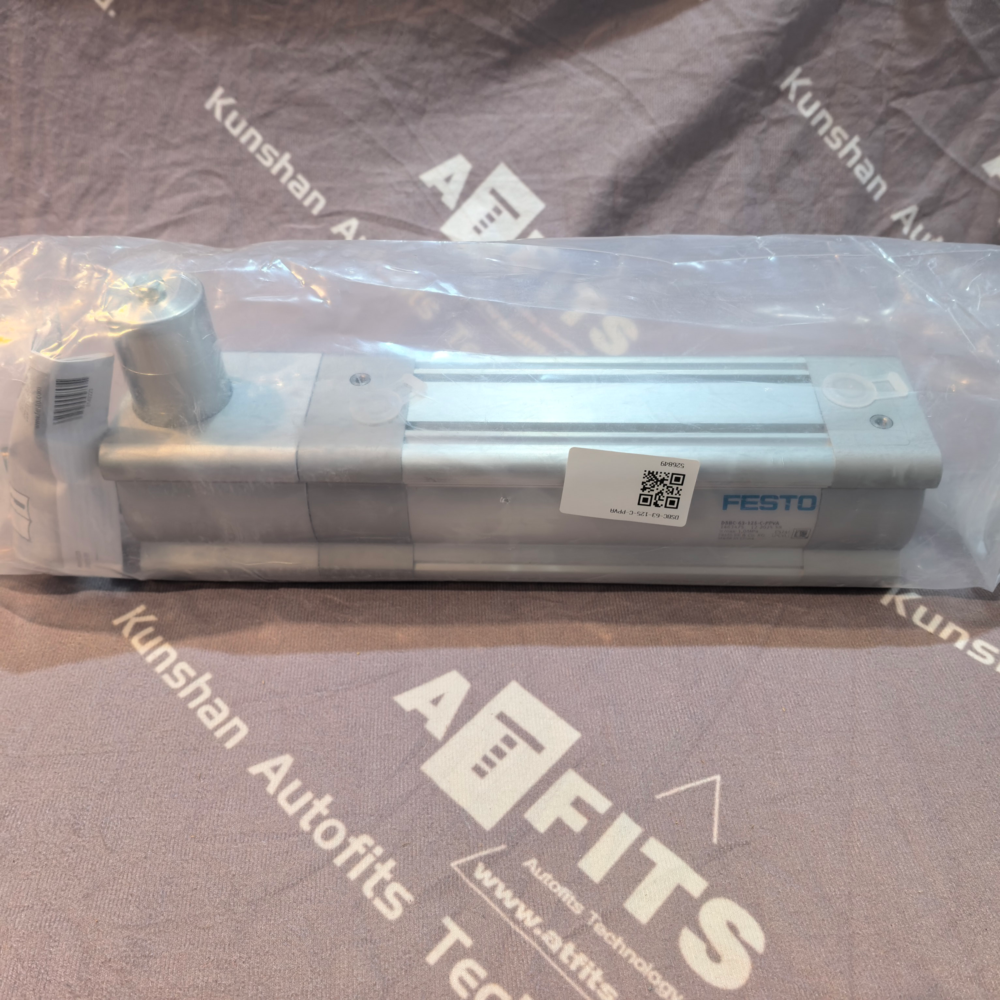

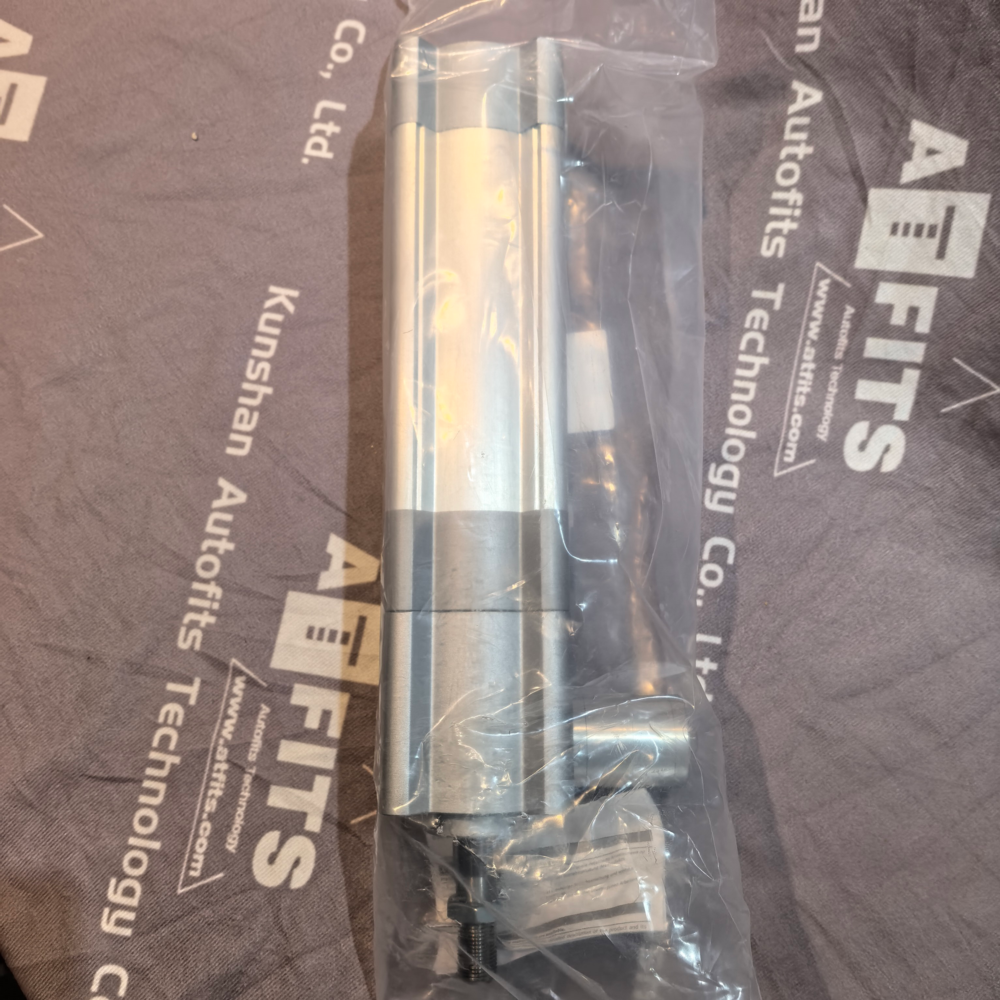

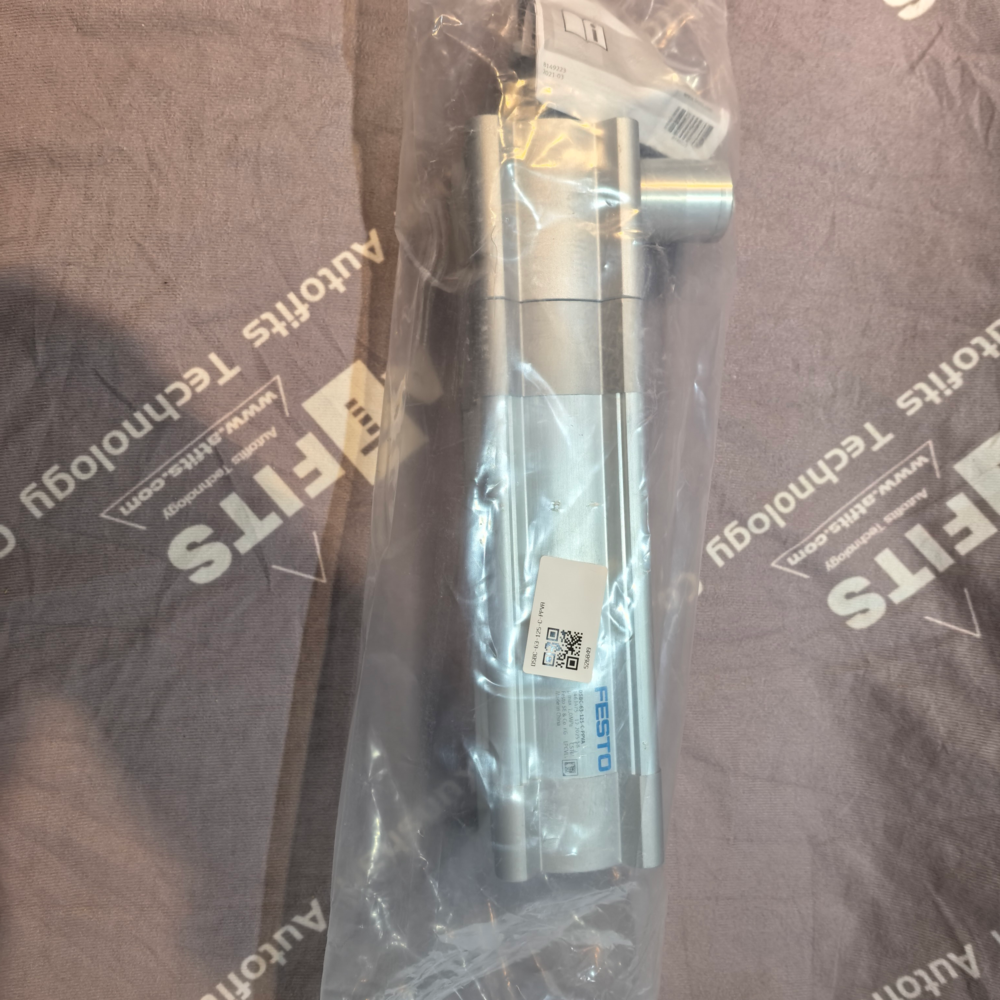

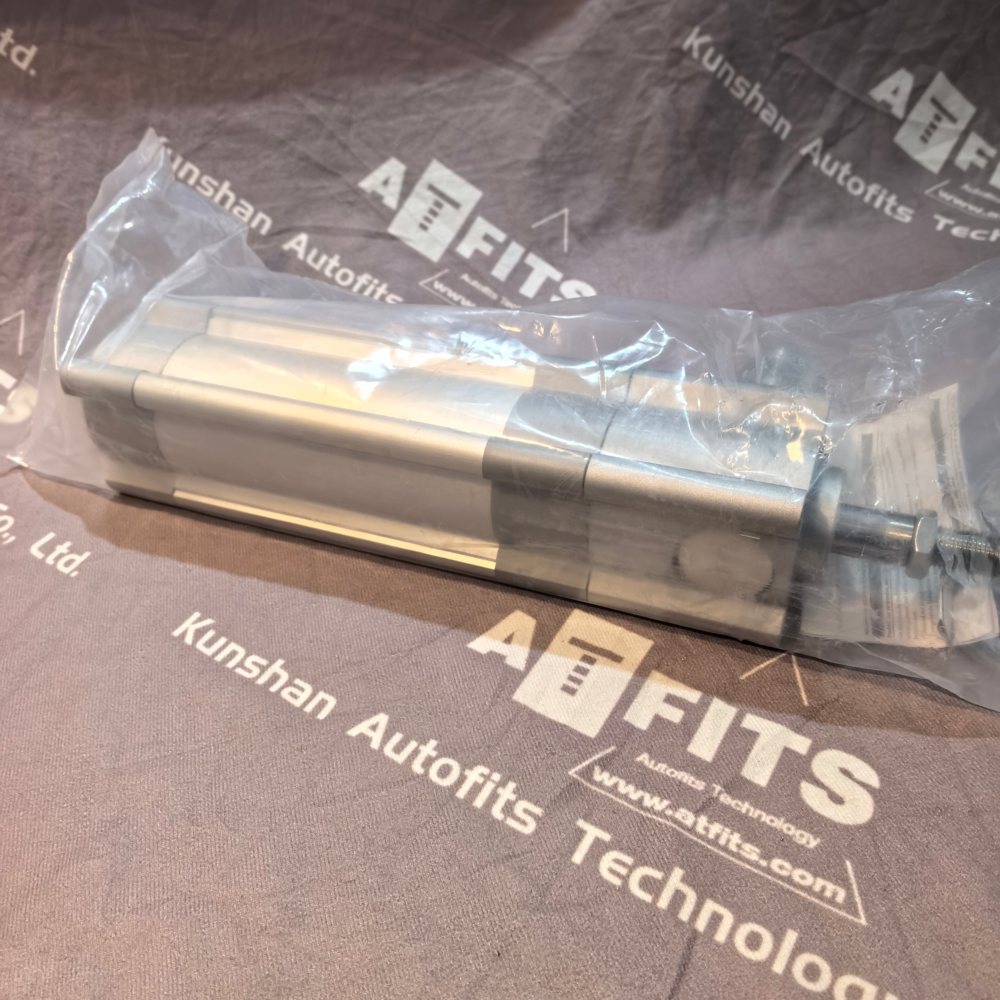

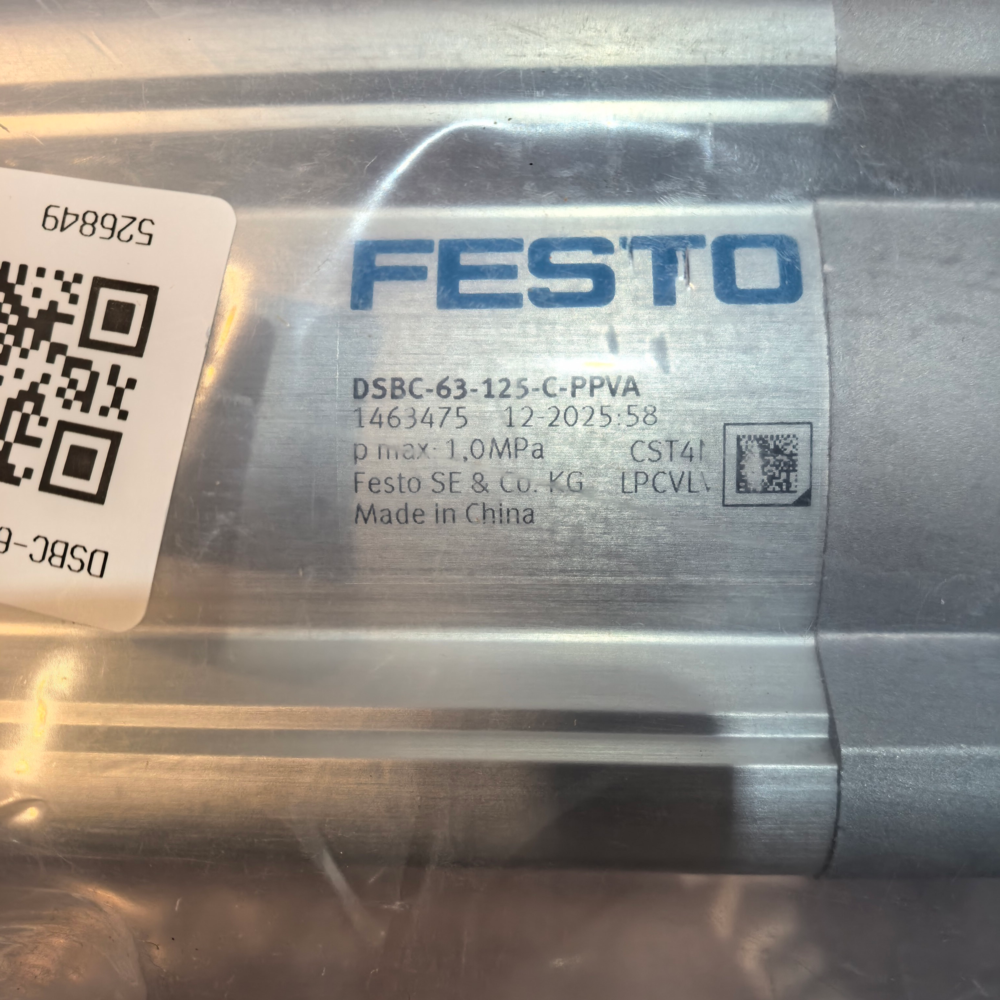

The Festo DSBC-63-125-C-PPVA (Order Code: 1463475) is a double-acting ISO 15552-compliant pneumatic piston rod cylinder in the DSBC series, boasting a 63 mm piston diameter and 125 mm strokefesto.com. The “PPVA” designation denotes adjustable pneumatic cushioning at both ends, and the “C” variant features a profile barrel with integrated slots for proximity switches, facilitating position detection integration. It is tailored for material handling, assembly, and packaging in general industrial settings, capable of withstanding moderate corrosion stress (CRC 2), and is CE/UKCA marked, RoHS compliant, and suitable for an ambient temperature range of -20 °C to +80 °C. Its robust construction and standardized dimensions ensure seamless interchangeability with other ISO 15552 cylindersfesto.com.
Main Functions
- Precise Linear Actuation: Delivers double-acting linear motion with a 125 mm stroke, generating consistent force for tasks like part transfer, pressing, and clamping that demand reliable positioning.
- Adjustable End-Position Cushioning: PPVA adjustable pneumatic cushioning (22 mm cushioning length) curbs impact, noise, and component wear at stroke ends, enhancing operational stability and extending service life.
- Position Monitoring Readiness: The profile barrel’s integrated slots support proximity switch installation, enabling real-time position feedback for seamless automation system integration.
- Universal Mounting Flexibility: Can be installed in any orientation, with compatibility with standard ISO 15552 mounting accessories, adapting to diverse machine layouts.
- Corrosion-Resistant Performance: Engineered for moderate corrosion stress (CRC 2), it is suitable for typical factory environments with exposure to oils, coolants, and humidity.
Technical Features
| Feature | Specification |
|---|---|
| Order Code | 1463475 |
| Series | DSBC (ISO 15552 Standard Cylinder) |
| Piston Diameter | 63 mm |
| Stroke Length | 125 mm |
| Mode of Operation | Double-acting |
| Operating Pressure Range | 0.4 bar – 12 bar (0.04 MPa – 1.2 MPa) |
| Theoretical Force (6 bar, Advance/Retract) | 1870 N / 1682 N |
| Cushioning Type | PPVA adjustable pneumatic cushioning (both ends), 22 mm cushioning length |
| Position Detection | Profile barrel with slots for proximity switches |
| Piston Rod Thread | M16x1.5 (external thread) |
| Corrosion Resistance Class | CRC 2 (Moderate corrosion stress) |
| Ambient Temperature | -20 °C to +80 °C |
| Operating Medium | Compressed air (ISO 8573-1:2010 [7:4:4]); oil lubrication optional |
| Max. Speed | 0.5 m/s (cushioned); 1.0 m/s (uncushioned) |
| Moving Mass | 743 g |
| Pneumatic Connection | G3/8 (standard port size) |
| Impact Energy at End Positions | 1.3 J |
Product Dimensions (mm)
| Dimension | Value |
|---|---|
| Piston Diameter | 63 |
| Stroke Length | 125 |
| Cushioning Length (PPVA) | 22 |
| Cylinder Barrel Outer Diameter | 90 |
| Piston Rod Diameter | 20 |
| Piston Rod Thread | M16x1.5 |
| Mounting Hole Spacing (Flange, Standard) | 130 × 70 (length × width) |
| Overall Length (Including Cushioning) | Approx. 380 |
| Cushion Adjustment Screw Diameter | 5 |
Weight
| Item | Value |
|---|---|
| Total Product Weight (125 mm stroke) | Approx. 2.5 kg (5.51 lbs) |
| Basic Weight (0 mm stroke) | 1.74 kg |
| Additional Weight per 10 mm Stroke | 62 g |
| Moving Mass | 743 g |
| Packaging Weight (Typical) | 40 – 60 g |
