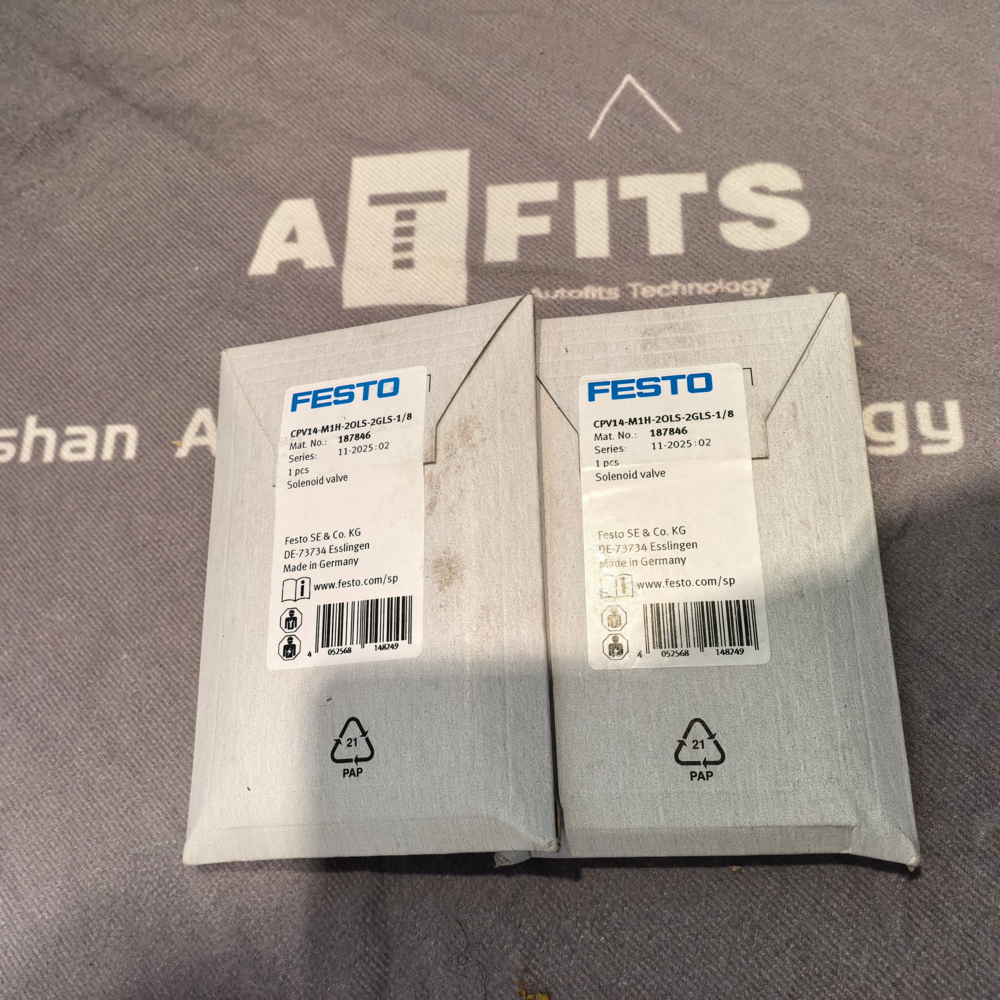

Festo CPV14-M1H-2OLS-2GLS-1/8 (Order Code: 187846) Solenoid Valve - Image 1

Festo CPV14-M1H-2OLS-2GLS-1/8 (Order Code: 187846) Solenoid Valve - Image 2

Festo CPV14-M1H-2OLS-2GLS-1/8 (Order Code: 187846) Solenoid Valve

Festo CPV14-M1H-2OLS-2GLS-1/8 (Order Code: 187846) Solenoid Valve - Image 3

Festo CPV14-M1H-2OLS-2GLS-1/8 (Order Code: 187846) Solenoid Valve - Image 4

Festo CPV14-M1H-2OLS-2GLS-1/8 (Order Code: 187846) Solenoid Valve

"*" indicates required fields

Category: FESTO

Festo CPV14-M1H-2OLS-2GLS-1/8 (Order Code: 187846) Solenoid Valve

Product Overview

The Festo CPV14-M1H-2OLS-2GLS-1/8 (order code 187846) is a compact, high-performance valve terminal belonging to Festo’s CPV series, designed for pneumatic control in industrial automation systems. It integrates 2 open/close valves (OLS) and 2 double solenoid valves (GLS) in a single modular unit, making it ideal for controlling small to medium-sized pneumatic actuators (e.g., cylinders, grippers) in applications such as assembly lines, packaging machinery, and material handling equipment. With its standardized interface and reliable operation, this solenoid valve ensures precise, fast switching of compressed air to optimize production efficiency and system flexibility.

Product Dimensions

Overall Dimensions: Width = 40 mm, Height = 100 mm, Depth = 120 mm. The compact footprint allows dense installation in control cabinets or on machine frames, saving valuable space in automated setups.
Mounting Specifications: Compatible with Festo’s CPV14 valve terminal mounting rails; supports both DIN rail mounting and direct panel mounting via threaded holes (M4 thread size, hole pitch 30 mm).
Port Dimensions: Equipped with 1/8″ NPT pneumatic ports for air supply and actuator connection, and a 2-pin electrical connector for solenoid power supply. The port layout follows Festo’s standardized design for seamless integration with CPV series accessories.

Main Functions

Pneumatic Actuator Control
- The 2 OLS (open/close single solenoid valves) are designed for on/off control of single-acting pneumatic cylinders, providing one-way air supply to extend or retract the cylinder piston.
- The 2 GLS (double solenoid valves) enable bidirectional control of double-acting cylinders, alternating air supply to the rod and cap sides of the cylinder to achieve linear reciprocating motion.
- Supports air flow rates up to 400 L/min (at 6 bar pressure), meeting the demand for fast actuator response in high-speed automation processes.
System Integration & Signal Transmission
- Features a centralized air supply interface, allowing multiple valve terminals to be connected in series for multi-axis control without additional piping.
- The electrical interface supports 24 VDC power supply, compatible with standard PLC digital output signals for direct control and status feedback (via built-in position sensors).
Diagnostic & Maintenance Functions
- Built-in LED status indicators for each solenoid valve, displaying power-on and valve switching status to facilitate quick troubleshooting of system faults.
- Modular design enables tool-free replacement of individual valve units, minimizing downtime during maintenance or system upgrades.

Technical Features

High-Speed & Reliable Switching
- Achieves a valve switching time of ≤ 10 ms for both opening and closing, ensuring rapid response of pneumatic actuators to meet the requirements of high-cycle automation tasks.
- Adopts Festo’s proprietary pilot valve technology, which reduces the minimum operating pressure to 1 bar, enabling stable operation even with low air supply pressure.
Robust Industrial Design
- Protection Class: IP65 (front side), protecting the valve from dust, water spray, and oil contamination in harsh industrial environments. The housing is made of high-strength polymer material with flame-retardant properties (UL94 V-0).
- Operating Temperature Range: -10 °C to +50 °C, suitable for use in temperature-variable production environments such as food processing plants and automotive assembly lines.
- Service Life: Up to 100 million switching cycles, ensuring long-term reliable operation and reducing replacement costs.
Energy Efficiency & Compliance
- Low power consumption: each solenoid coil consumes only 1.5 W of power, minimizing energy usage in continuous operation scenarios.
- Complies with international standards including ISO 15407-2 (pneumatic valve terminals), CE, and RoHS, ensuring global market compatibility and environmental friendliness.

Weight

The net weight of the Festo CPV14-M1H-2OLS-2GLS-1/8 (187846) solenoid valve is approximately 0.65 kg, making it lightweight and easy to handle during installation and system configuration.
