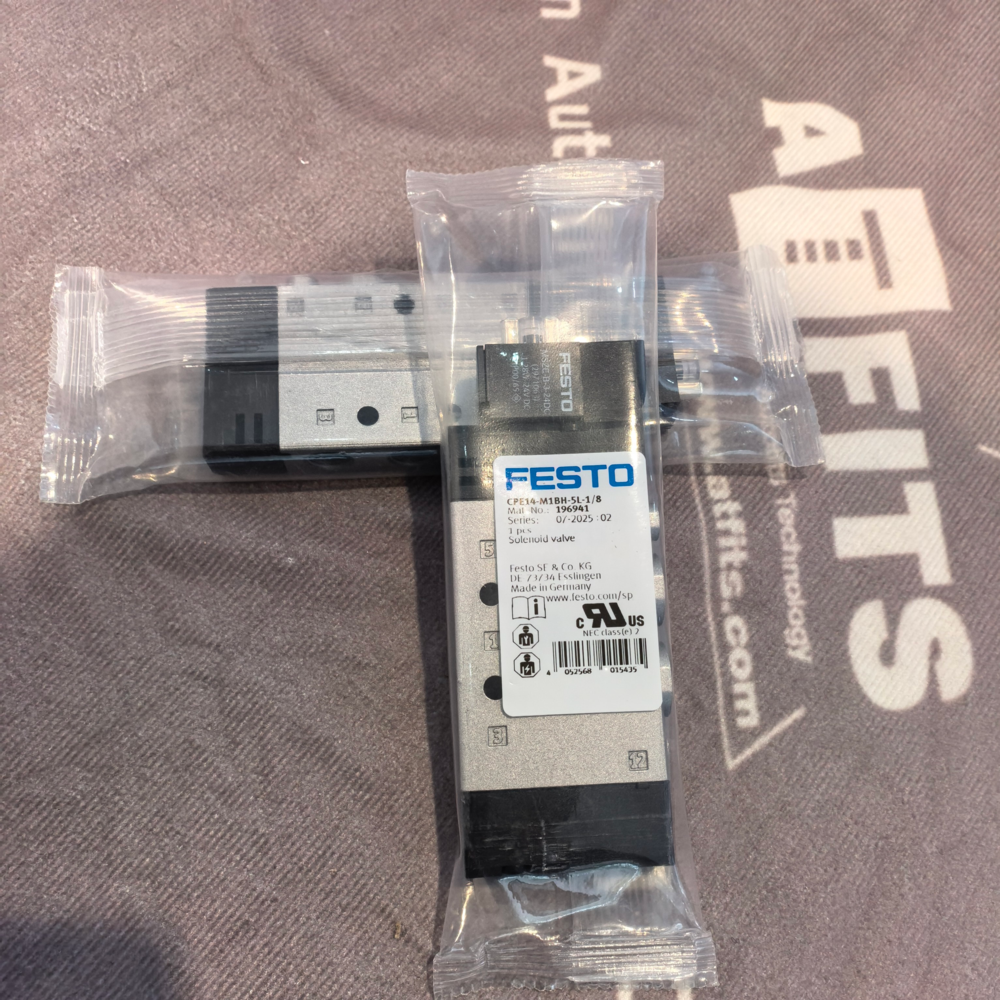

Festo CPE14-M1BH-5L-1/8 Solenoid Valve (Order No. 196941)
Product Overview
The Festo CPE14-M1BH-5L-1/8 is a compact, high-performance 5/2-way monostable solenoid valve engineered for precision pneumatic control in industrial automation systems. Designed with a piston gate structure and internal pilot air supply, this valve delivers reliable flow direction regulation for pneumatic actuators such as cylinders and grippers. Its lightweight design and standardized mounting compatibility make it ideal for space-constrained applications in automotive manufacturing, packaging machinery, and material handling systems.
Main Functions
- Pneumatic Flow Direction Control
As a 5/2-way valve, it switches between two flow paths to control the extension and retraction of double-acting pneumatic actuators, supporting automated motion sequences in production lines.
- Electric Actuation with Pneumatic Reset
The valve is activated by a 24V DC solenoid coil; when de-energized, a built-in pneumatic spring resets the valve to its default position, ensuring safe system shutdown in case of power loss.
- Adjustable Exhaust Performance
Equipped with an optional exhaust flow control function, it enables fine-tuning of actuator movement speed, reducing mechanical shock and improving operational stability.
- Manual Override Capability
A detachable manual override accessory allows for manual valve operation during system debugging, maintenance, or emergency troubleshooting.
Technical Characteristics
| Parameter | Specification |
|---|---|
| Valve Function | 5/2-way monostable |
| Actuation Method | Electric solenoid (24V DC) + pneumatic spring reset |
| Nominal Flow Rate (DIN 1343 Standardized) | 800 l/min |
| Operating Pressure Range | 0.3 MPa – 0.8 MPa (3 bar – 8 bar) |
| Sealing Principle | Soft sealing (low leakage, high reliability) |
| Pilot Air Supply | Internal pilot (no external pilot air required) |
| Degree of Protection | IP65 (with plug socket, compliant with IEC 60529) |
| Switching Time | 24 ms (energization) / 32 ms (de-energization) |
| Duty Cycle | 100% (compatible with holding current reduction circuits) |
| Medium Compatibility | Compressed air (ISO 8573-1:2010 Class 7:4:4); lubricated air acceptable (continuous lubrication required once initiated) |
| Approvals | c UL us Recognized (OL); DNV-TAA000032X UL MH19482 (maritime certification available) |
| Flow Direction | Non-reversible |
| Nominal Size | 6 mm |
Product Dimensions and Weight
| Dimension Parameter | Value |
|---|---|
| Construction Width | 14 mm |
| Port Size (Inlet/Outlet/Exhaust) | G1/8 (BSPP thread) |
| Mounting Interface | Standardized for Festo valve manifolds |
| Weight | 95 g |
