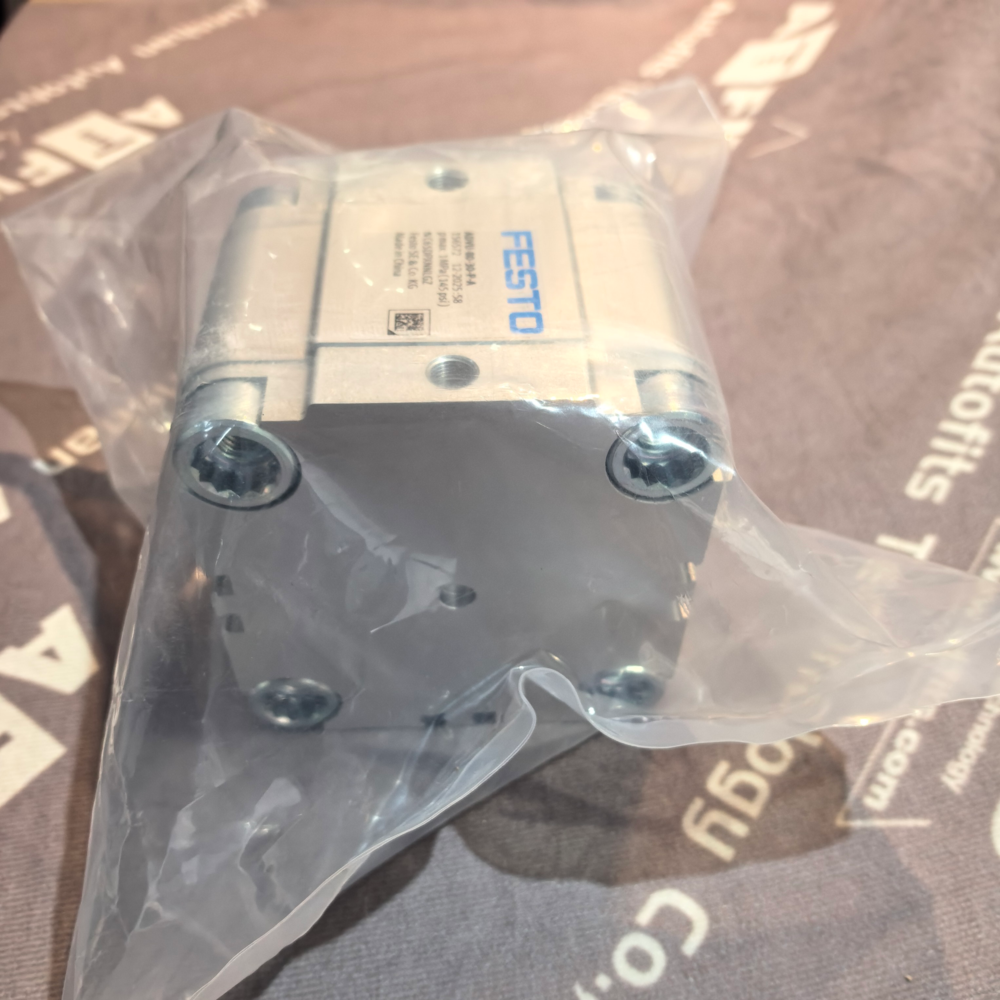

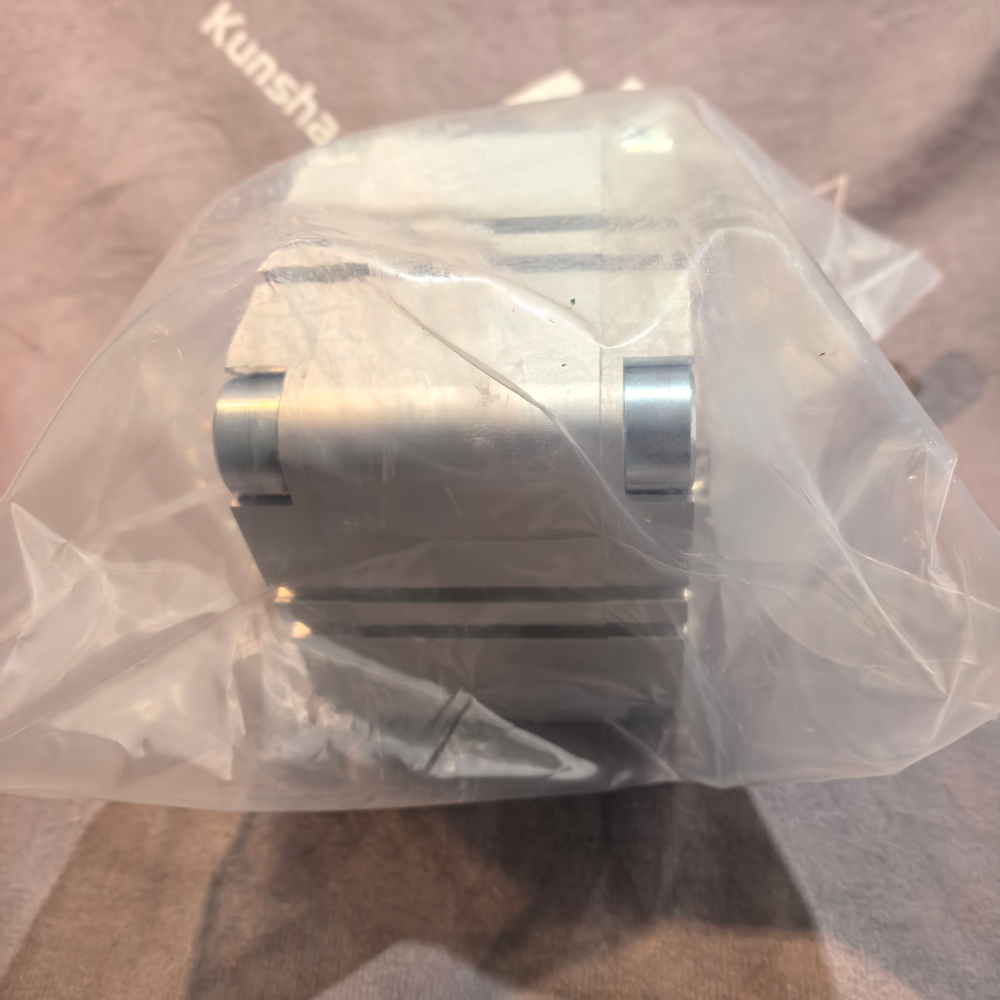

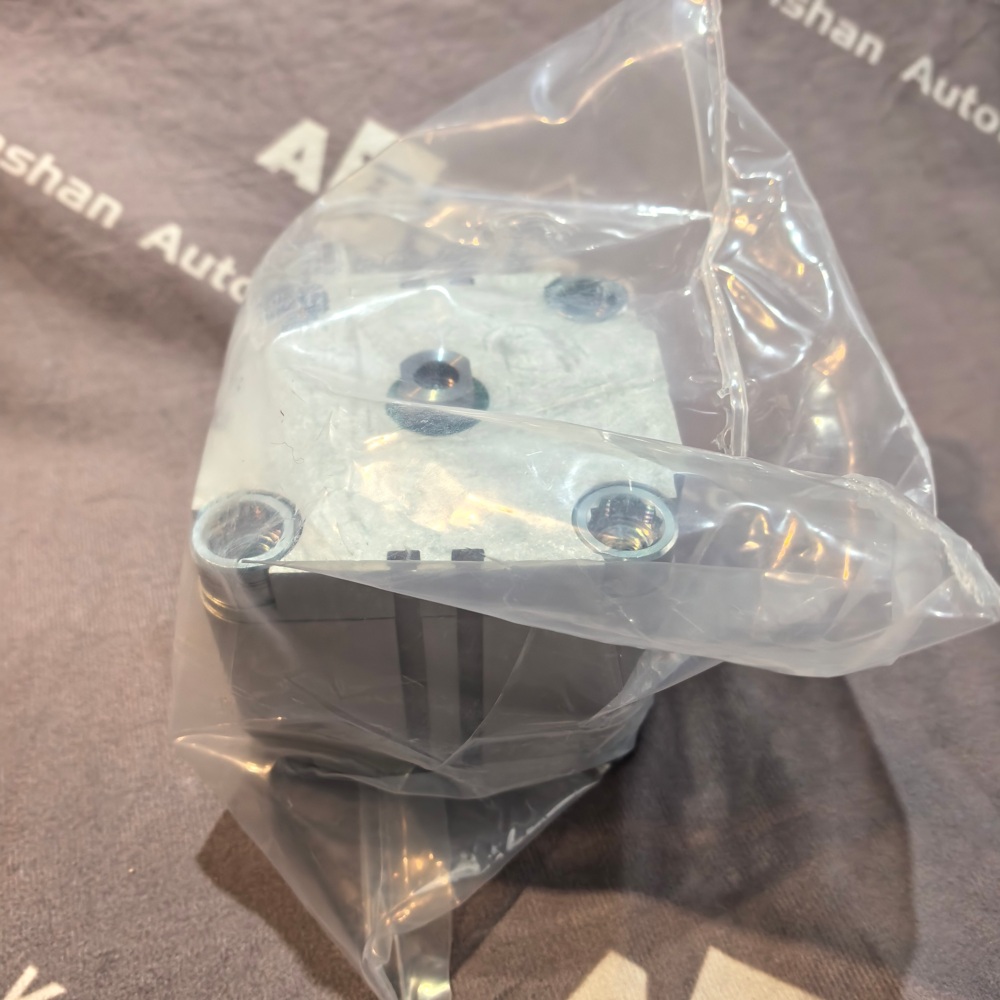

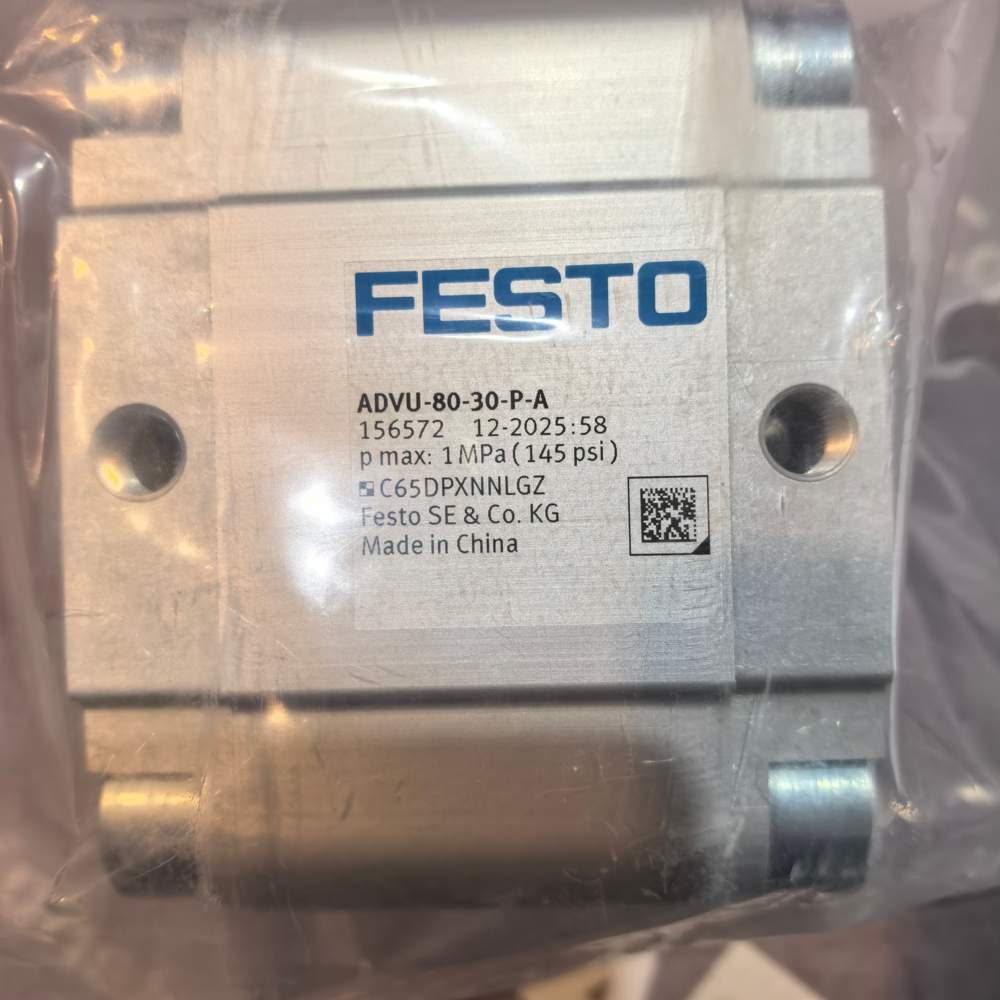

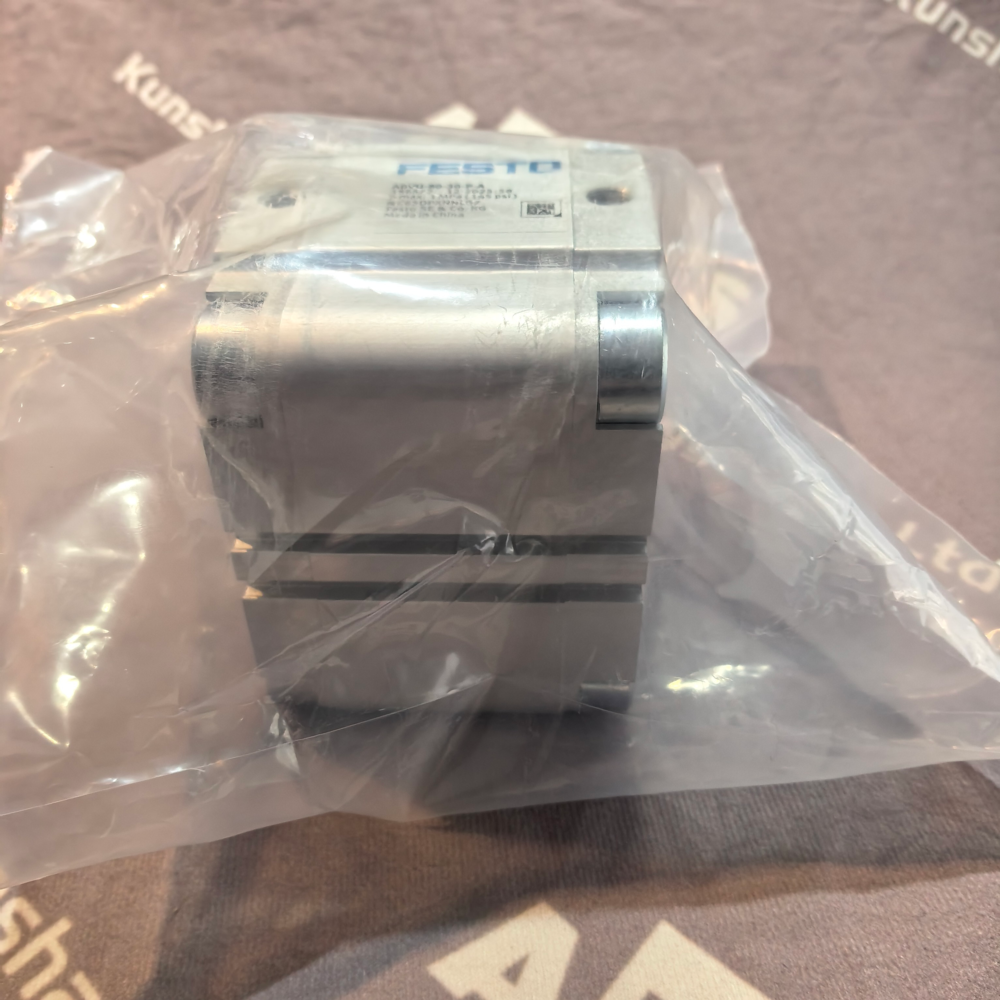

Festo ADVU-80-30-P-A Compact Cylinder (Order No. 156572)
1. Product Overview
The Festo ADVU-80-30-P-A (Order No. 156572) is a double-acting compact pneumatic cylinder from Festo’s ADVU series, engineered for high-performance linear actuation in space-constrained industrial automation applications. With an 80 mm bore diameter and a 30 mm stroke length, this cylinder delivers robust pushing and pulling forces while adhering to a compact design, making it ideal for material handling, assembly line positioning, machine tool actuation, and packaging equipment. It features integrated pneumatic end-position cushioning for smooth, low-noise operation, eliminating the need for external shock absorbers and simplifying system integration. Constructed with corrosion-resistant anodized aluminum alloy and high-grade steel components, it operates reliably across a wide pressure and temperature range, and is compatible with Festo’s proximity sensors for real-time position detection. Fully optimized for industrial durability and cost-effectiveness, the ADVU-80-30-P-A is a versatile solution for automated processes requiring precise, repeatable linear motion with minimal installation space.
2. Main Functions
| Function | Detailed Description |
|---|---|
| Double-Acting Bidirectional Actuation | Converts compressed air into linear mechanical force for both advance and return strokes, enabling continuous cyclic motion to drive loads, actuate clamps, or position workpieces with consistent precision. |
| Integrated Pneumatic Cushioning | Pneumatic end-position cushioning at both piston stroke ends absorbs kinetic energy, minimizing impact, vibration, and noise during stroke termination; cushioning is adjustable for optimal performance with varying loads. |
| High-Force Compact Operation | Delivers substantial theoretical actuation forces in a slim profile, addressing the demand for powerful linear motion in machinery with limited installation space (e.g., compact automated workstations). |
| Position Detection Compatibility | Designed with a T-slot for easy mounting of Festo proximity sensors (e.g., SMT, SME series), enabling real-time stroke position monitoring and seamless synchronization with PLC-based control systems. |
| Corrosion-Resistant Industrial Operation | Resists mild industrial corrosion and environmental wear, ensuring stable performance in factory settings with dust, moisture, and temperature fluctuations. |
| Lubrication-Free Compatibility | Operates efficiently with dry, filtered compressed air (or lubricated air), eliminating the need for continuous oil supply and reducing maintenance while avoiding workpiece contamination in clean applications. |
| Universal Mounting Flexibility | Supports multiple standard mounting methods (flange, foot, clevis, through-hole) via compatible Festo accessories, enabling flexible integration into diverse automation system layouts without custom fabrication. |
3. Technical Features
- Optimized Compact Design: ADVU series slim profile with a reduced overall length-to-stroke ratio maximizes space utilization, a key advantage over standard ISO cylinders in compact machinery designs.
- Adjustable Pneumatic Cushioning: Precision-adjustable pneumatic end cushions allow fine-tuning for different load and speed conditions, ensuring smooth stroke termination and extending component service life by reducing mechanical stress.
- High-Strength Material Construction: Anodized aluminum alloy barrel and end caps for lightweight corrosion resistance; high-alloy steel piston rod with hard chrome plating for exceptional wear and scratch resistance; TPE-U (PUR) seals for reliable airtightness and long-term durability.
- Wide Operational Range: Operates at a pressure range of 0.6–10 bar (0.06–1.0 MPa) and ambient temperature range of -20°C to +80°C, compatible with standard industrial compressed air systems and suitable for diverse factory environments.
- T-Slot for Sensor Integration: Integrated T-slot along the cylinder barrel enables tool-free mounting of position sensors, simplifying the addition of process feedback and enhancing automation control precision.
- PWIS-Compliant Manufacturing: Free of paint wetting impairment substances (PWIS), complying with VDMA 24364 standards, making it suitable for use in automotive and painting processes where surface contamination must be avoided.
- High Repeatability and Precision: Machined internal components and tight tolerances ensure consistent stroke positioning and repeatable force output, critical for high-precision assembly and positioning tasks.
- Low-Maintenance Operation: Sealed internal components and lubrication-free compatibility reduce routine maintenance requirements, minimizing downtime and operational costs in continuous production lines.
4. Product Dimensions (Unit: mm)
| Dimension Parameter | Value |
|---|---|
| Bore Diameter (D) | 80 |
| Nominal Stroke Length | 30 |
| Overall Length (Incl. Cushions) | 208 |
| Barrel Outer Diameter | 80 |
| Piston Rod Diameter | 25 |
| Piston Rod Thread (External) | M16 × 1.5 |
| Pneumatic Port Type | G1/4 (Ports A/B) |
| Pneumatic Port Position | Rear end cap (axial) |
| Mounting Hole Diameter (Through-Hole) | 12 |
| Mounting Hole Spacing (Center-to-Center) | 110 × 110 |
| T-Slot Width (Sensor Mount) | 6 |
| Cushion Adjustment Screw Diameter | 4 |
5. Weight and Material Specifications
| Component | Material | Weight (g) |
|---|---|---|
| Cylinder Barrel | Anodized Wrought Aluminum Alloy | 1450 |
| Front/ Rear End Caps | Anodized Wrought Aluminum Alloy | 420 |
| Piston Rod | Hard Chrome-Plated High-Alloy Steel | 210 |
| Piston Assembly | Aluminum Alloy + Reinforced Seals | 95 |
| Seals & O-Rings | TPE-U (PUR) + NBR | 35 |
| Cushioning Components | Brass + Elastomer | 40 |
| Fasteners | Zinc-Plated Steel | 25 |
| Total Weight (Assembly) | – | 2275 |
6. Key Performance Parameters
| Parameter | Value |
|---|---|
| Mode of Operation | Double-Acting |
| Bore Diameter | 80 mm |
| Stroke Length | 30 mm |
| Operating Pressure Range | 0.6 – 10 bar (0.06 – 1.0 MPa) |
| Theoretical Force (Advance, 6 bar) | 3016 N |
| Theoretical Force (Return, 6 bar) | 2843 N |
| Maximum Operating Speed | 1 m/s |
| Ambient Temperature Range | -20°C to +80°C (No Condensation) |
| Working Fluid | Filtered Compressed Air (ISO 8573-1:2010 [7:4:4]) |
| Lubrication | Optional (Lubrication-Free Compatible) |
| Piston Rod Protection | Hard Chrome Plating |
| Corrosion Resistance Class | CRC 2 (Moderate Corrosion Stress) |
| PWIS Compliance | Yes (VDMA 24364) |
| Sensor Compatibility | Festo SMT/SME Series Proximity Sensors |
| Order Number | 156572 |
