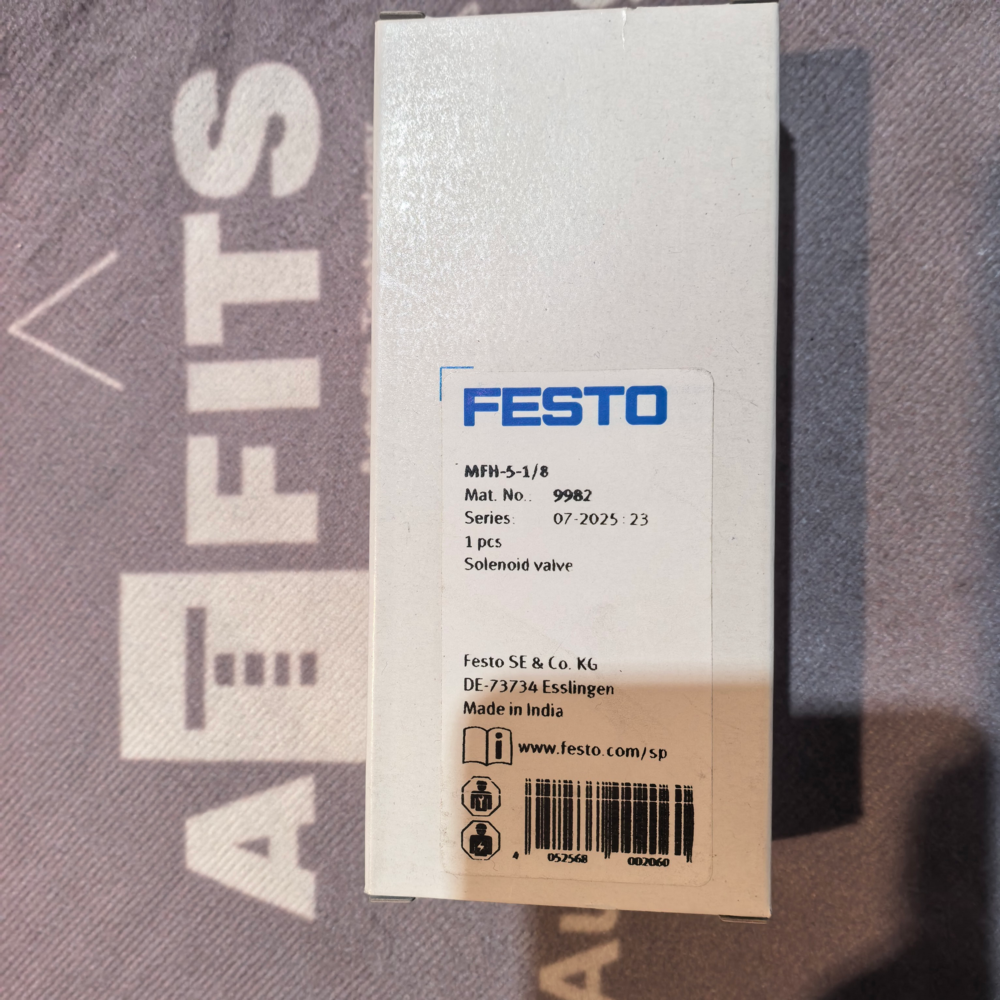

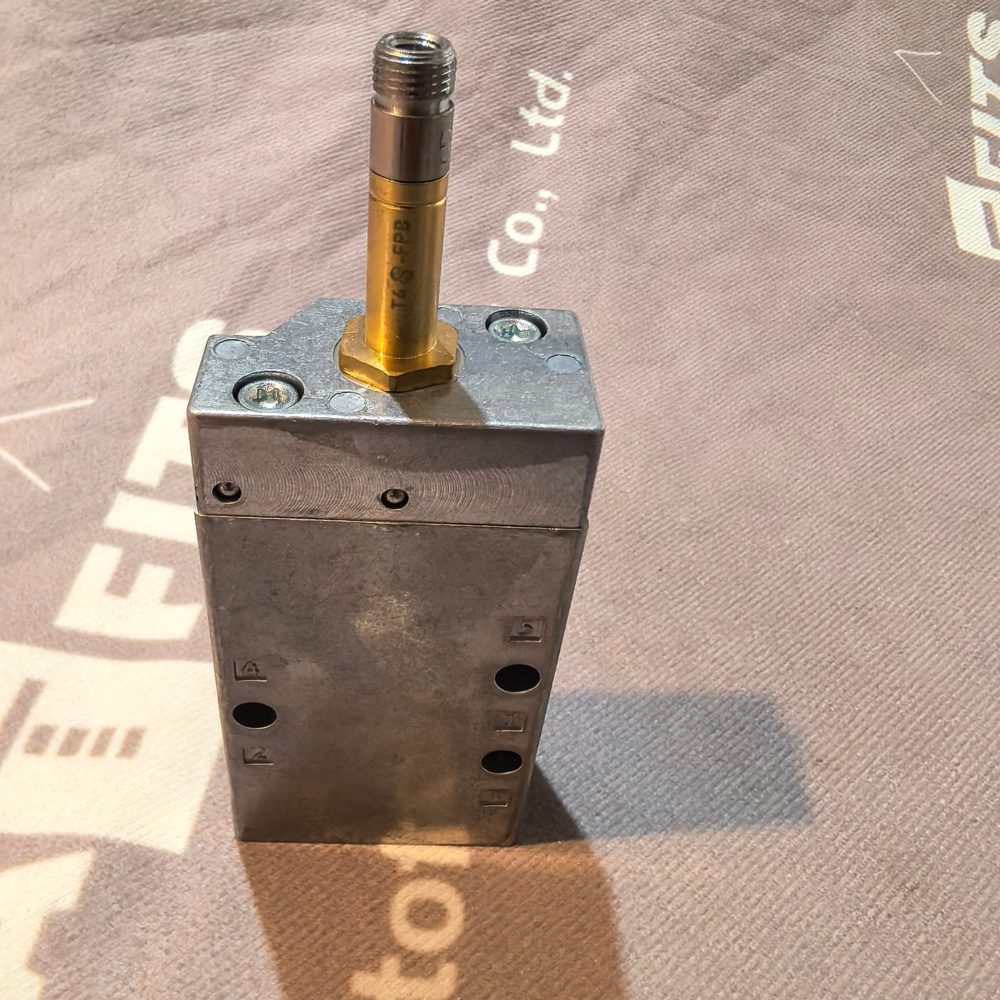

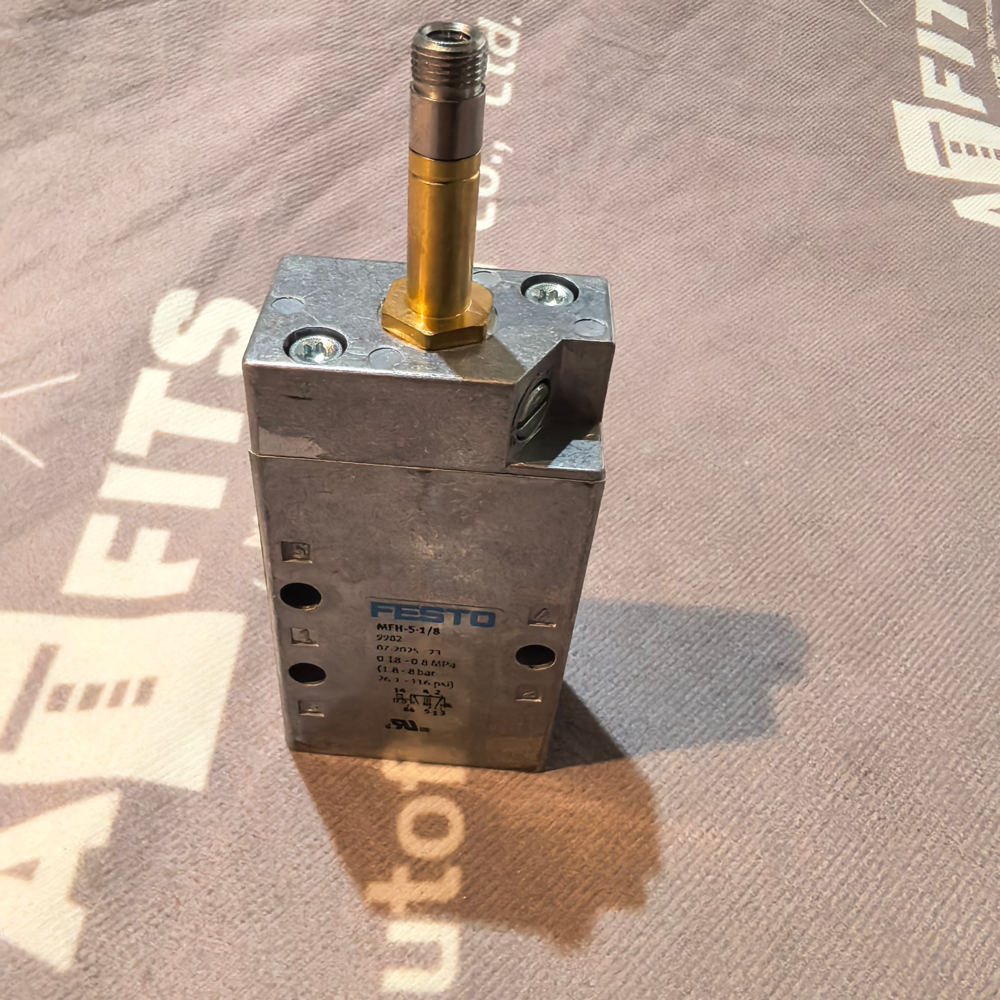

Festo 9982 MFH-5-1/8 Air Solenoid Valve
Product Overview
The Festo 9982 MFH-5-1/8 is a robust, single‑solenoid, 5/2‑way (5‑port, 2‑position) pilot‑operated air solenoid valve from Festo’s Tiger Classic series. Designed for industrial pneumatic control systems, it features a poppet‑seat design with mechanical spring return and is engineered for reliable actuation of cylinders, actuators, and other pneumatic components. This valve is widely used in factory automation, machinery control, and process equipment, offering stable performance in harsh industrial environments.
Main Functions
- 5/2‑Way Directional Control

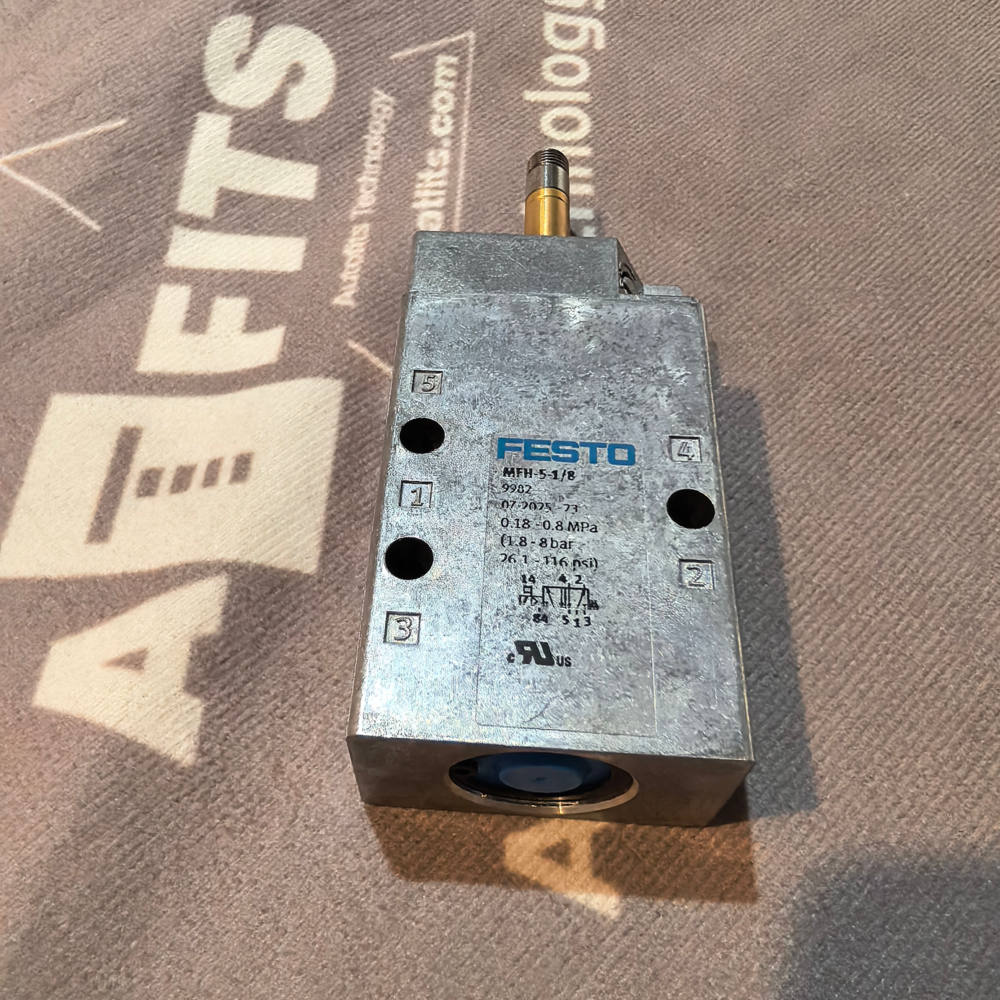

Provides two distinct flow states: in the de‑energized state, port 1 connects to port 4, and port 2 exhausts through port 3; when energized, port 1 connects to port 2, and port 4 exhausts through port 5, enabling bidirectional pneumatic actuation.
- Pilot‑Operated Actuation
Uses internal pilot air to drive the main valve, ensuring reliable switching even at low operating pressures.
- Mechanical Spring Return
Automatically resets to the initial position when the solenoid is de‑energized, ensuring fail‑safe operation.

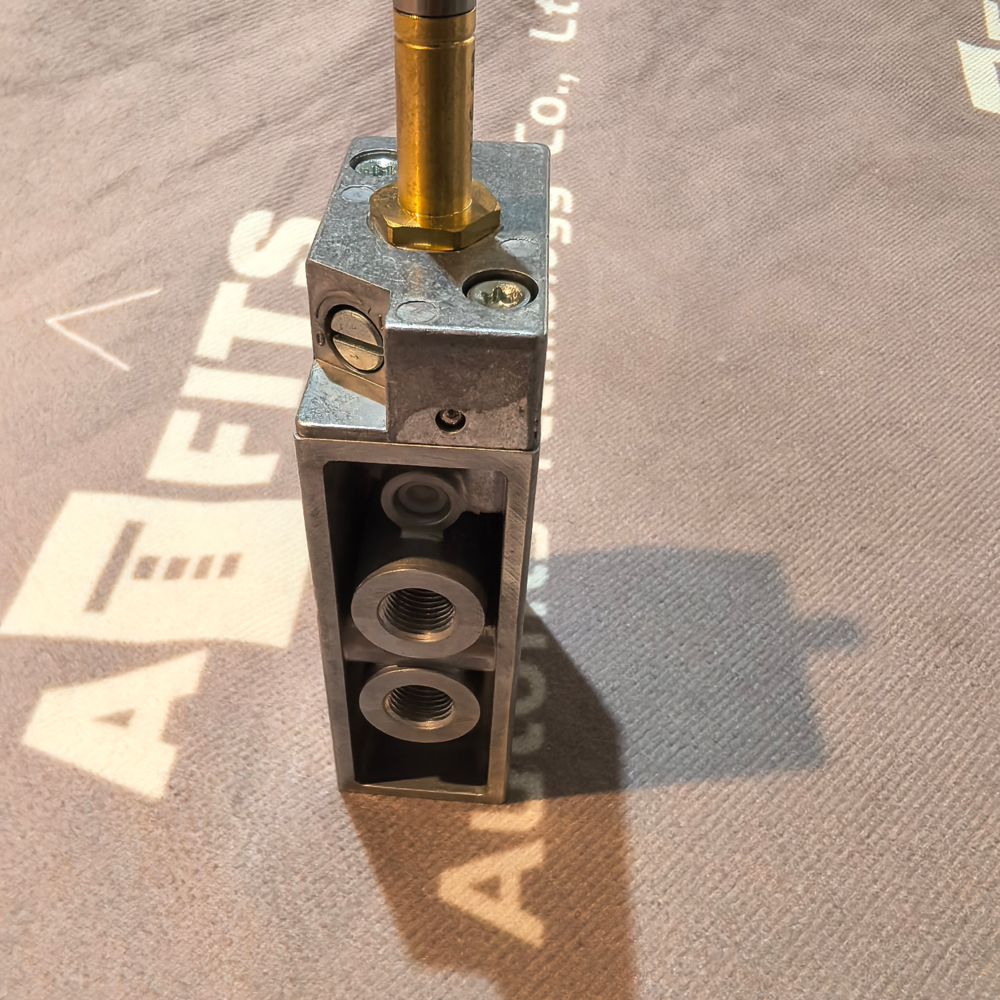

- Manual Override
Equipped with a detenting manual override for commissioning, maintenance, and emergency operation without electrical power.
- Flexible Installation
Supports both sub‑base mounting and direct in‑line installation, with compatibility for standard pneumatic manifolds.
- IP65 Protection
Offers dust‑tight and water‑jet resistant protection, suitable for industrial environments with moisture and contaminants.
Technical Features
表格
| Parameter | Specification |
|---|---|
| Part Number | 9982 |
| Model | MFH-5-1/8 |
| Valve Function | 5/2‑way, single solenoid, spring return |
| Nominal Size | 5 mm |

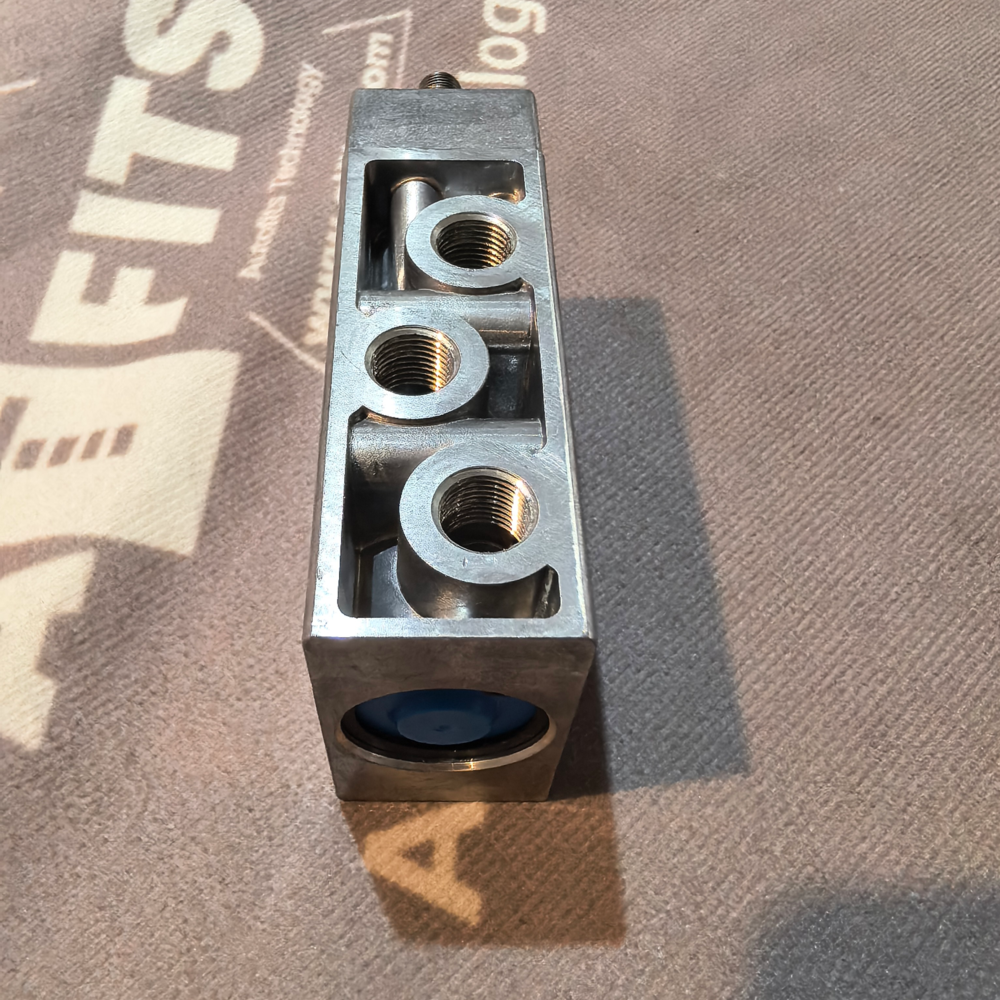

| Port Size | G1/8 (all ports) |
| Operating Pressure | 1.8–8 bar (0.18–0.8 MPa) |
| Flow Rate | 500 l/min (standard rated flow) |
| Switching Time | On: 8 ms; Off: 36 ms |
| Maximum Switching Frequency | 25 Hz |
| Operating Medium | Filtered compressed air (ISO 8573‑1:2010 [7:4:4]), lubricated or non‑lubricated |
| Ambient Temperature | -5 °C to +40 °C |
| Media Temperature | -10 °C to +60 °C |
| Sealing Material | NBR (Nitrile Butadiene Rubber) |
| Body Material | Die‑cast aluminum |
| Protection Class | IP65 |
| Approvals | c UL us Recognized (OL), CSA |
| Electrical Connection | Via F‑series solenoid coils (ordered separately) |
| Manual Override | Detenting type |
| Mounting | Sub‑base or direct in‑line |
Product Dimensions
- Width: 27 mm
- Height: 115 mm (approximate, including solenoid coil)
- Depth: 60 mm (approximate)
- Port Pitch: Standard manifold compatible
- Mounting Holes: 2 × M4 (for sub‑base mounting)
Weight
- Net Weight: 270 grams (valve body only; solenoid coil weight varies by voltage)
