Festo 8030811 VACF-B-C1-1 Solenoid coil
"*" indicates required fields

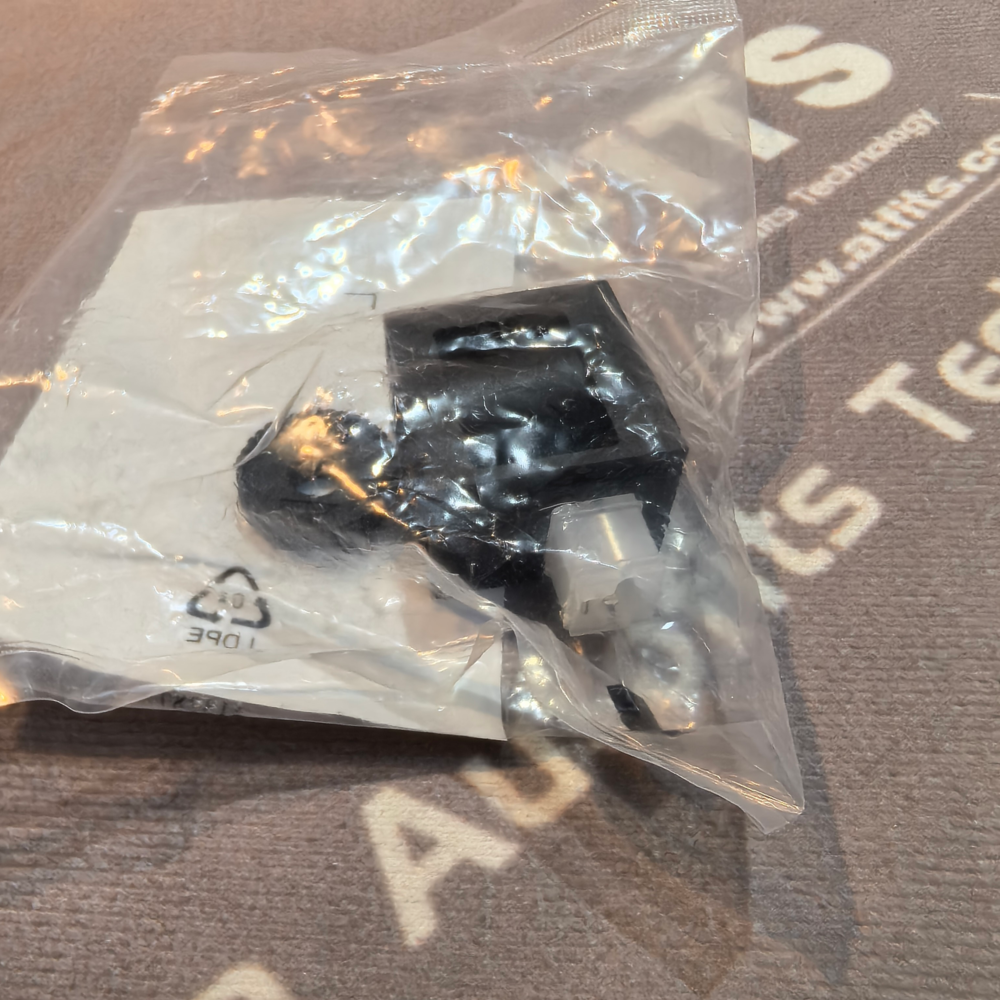

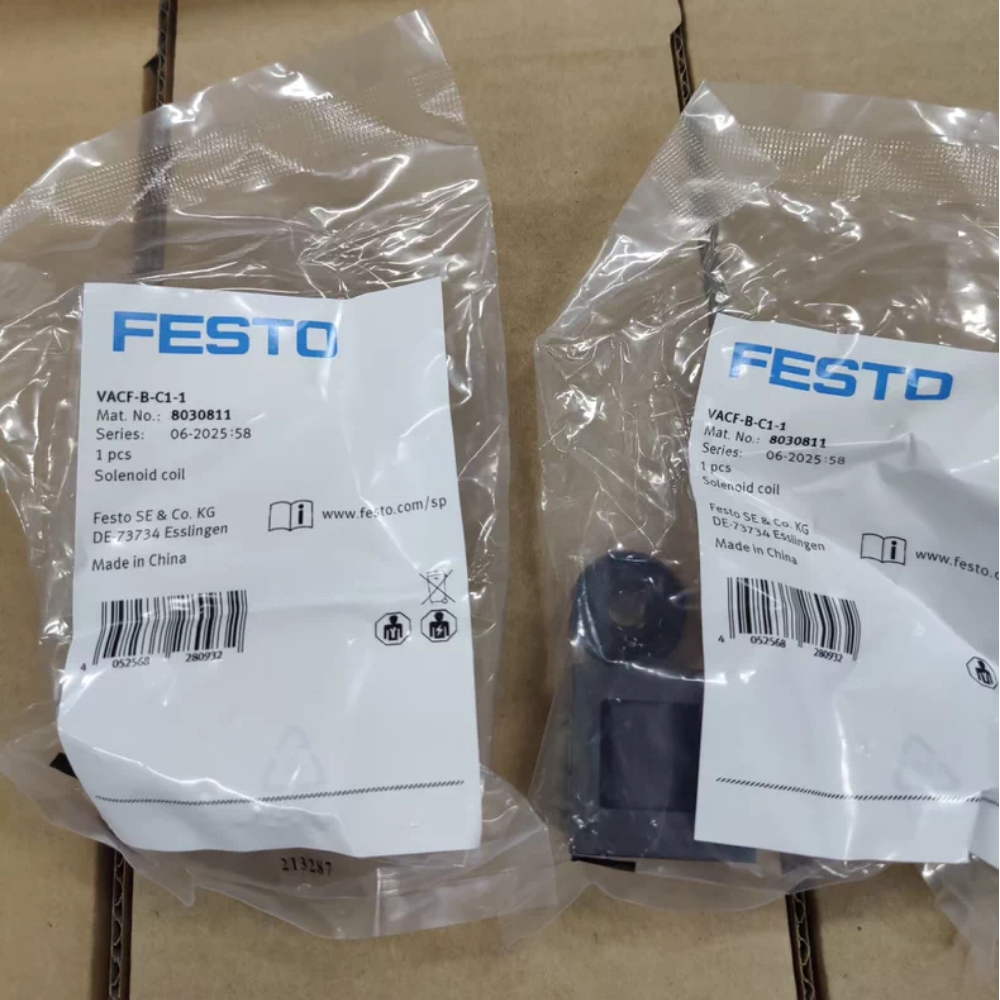

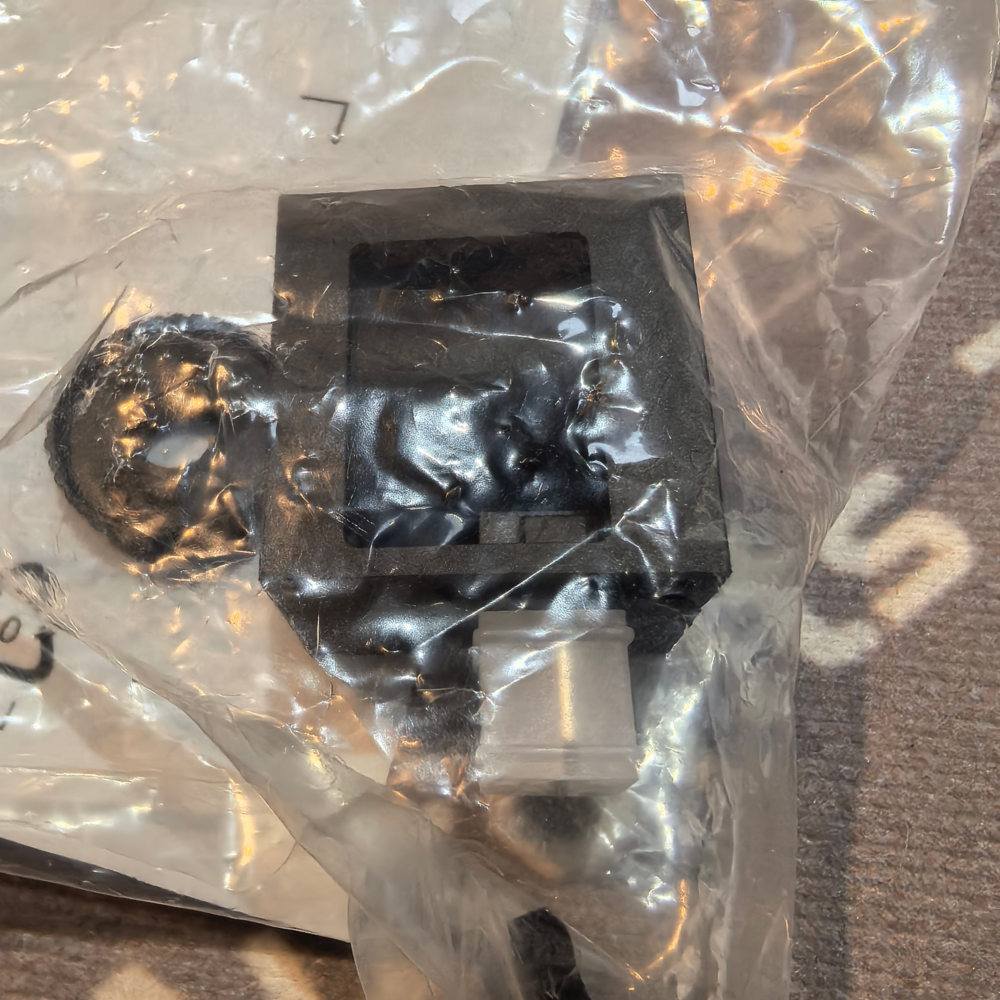

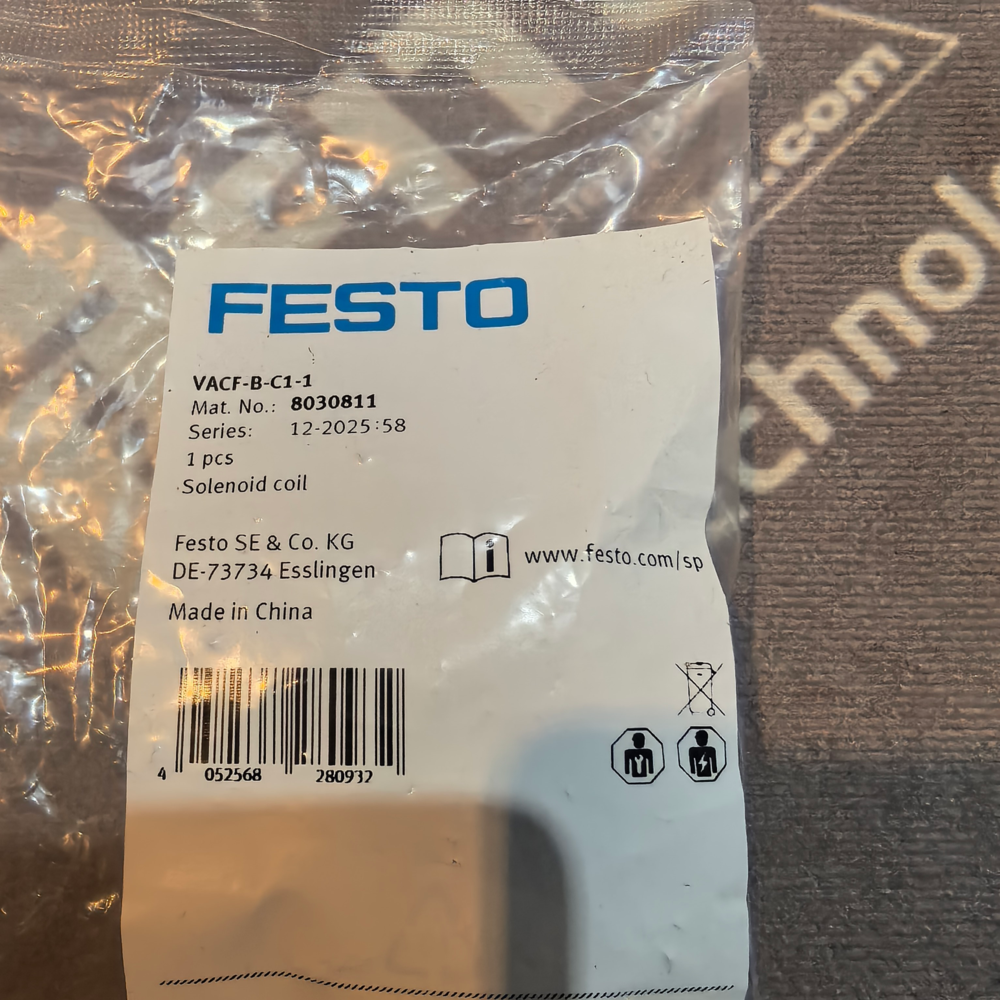

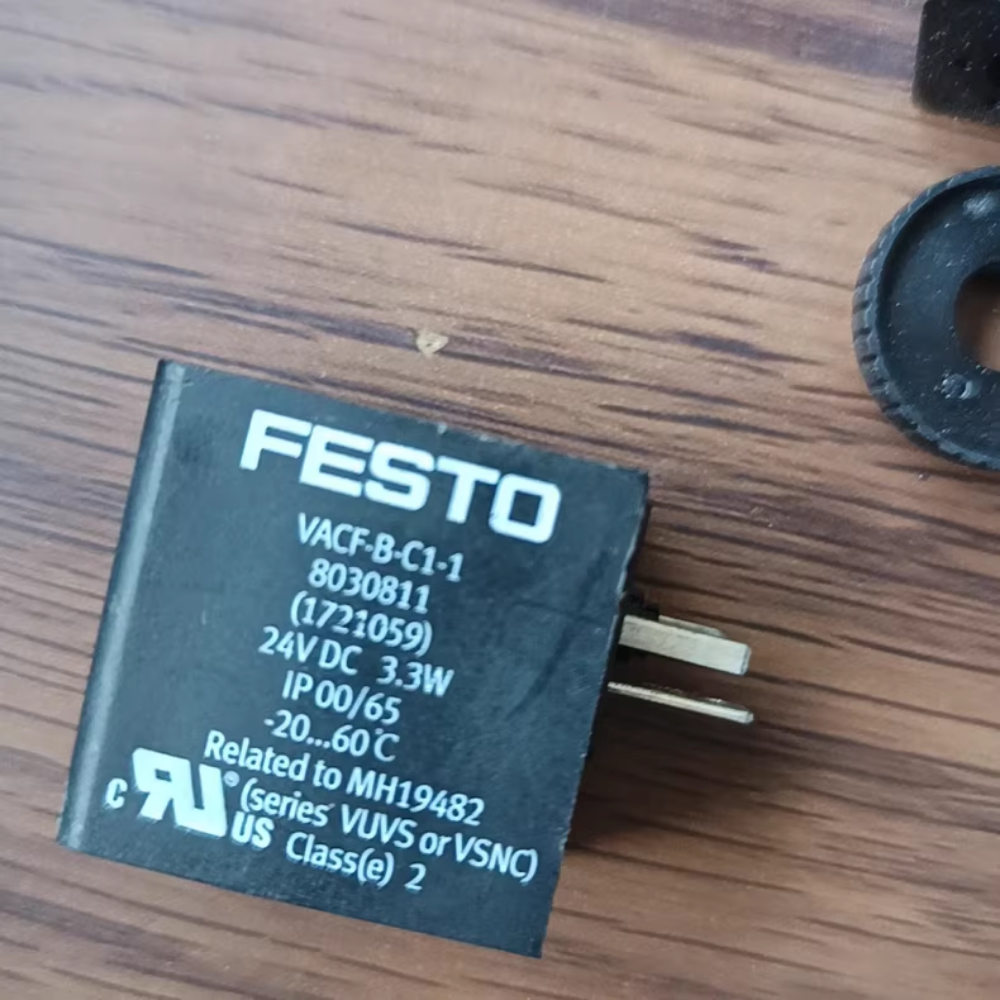

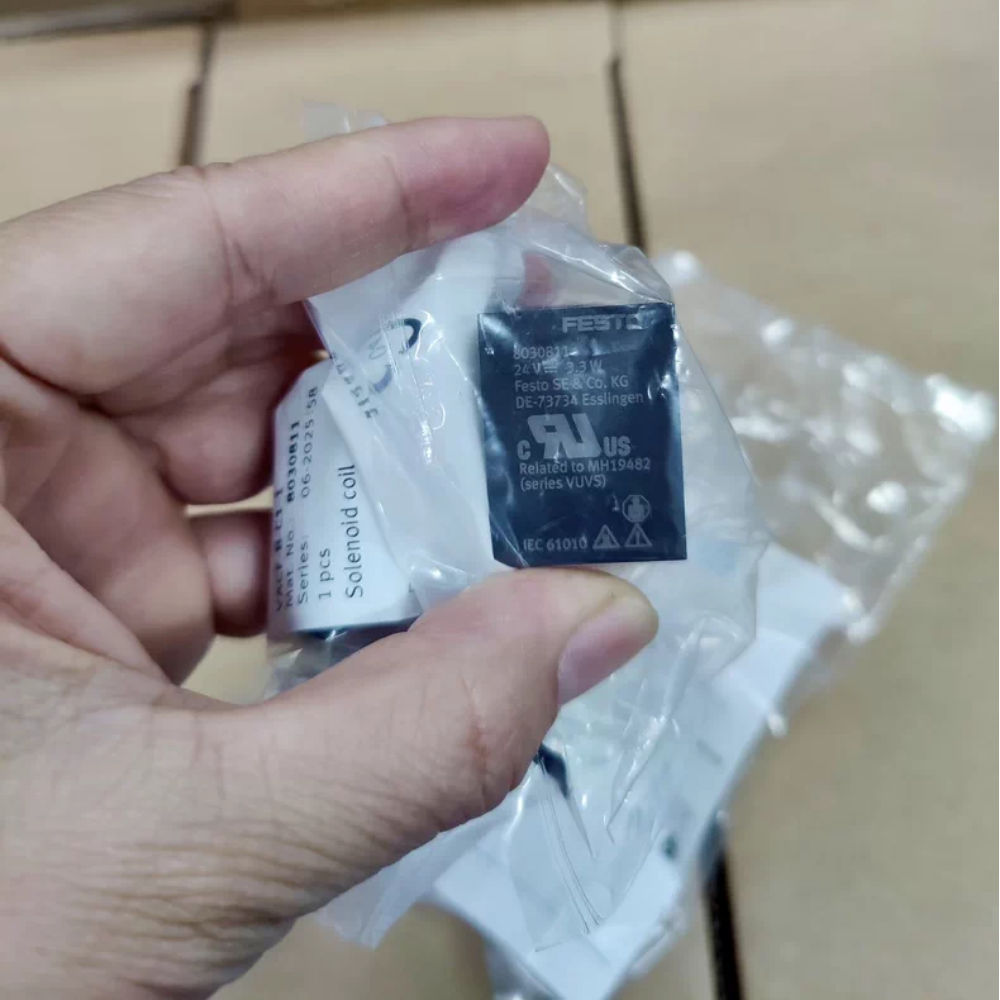

Festo VACF-B-C1-1 Solenoid Coil (Order Code: 8030811)
Product Overview
The Festo VACF-B-C1-1 (Order Code: 8030811) is a compact, high-performance solenoid coil designed for direct actuation of Festo pneumatic solenoid valves. Engineered for 24 V DC operation with a 3.3 W power rating, it delivers reliable electromagnetic force for fast valve switching in industrial automation systemsFesto. Featuring a Type C electrical connection conforming to EN 175301-803 standards and IP65 protection, this coil ensures robust performance in harsh industrial environmentsFesto. Its knurled nut mounting design enables quick, secure installation on compatible valve bodies, making it ideal for replacement, maintenance, and new system integration in assembly lines, packaging machinery, and material handling equipmentFesto. Compliant with global safety standards and RoHS directives, it offers consistent performance and long service life.
Main Functions
表格
| Function | Description |
|---|---|
| Electromagnetic Actuation | Converts 24 V DC electrical energy into linear magnetic force to actuate pneumatic valve spools, enabling precise control of compressed air flowFesto. |
| Fast Switching Response | Delivers rapid magnetic field generation for quick valve opening/closing, supporting high-cycle automation applicationsFesto. |
| IP65 Environmental Protection | Provides complete protection against dust ingress and low-pressure water jets, ensuring reliable operation in industrial settingsFesto. |
| Universal Mounting | Installable in any orientation via a knurled nut, offering flexible integration into diverse pneumatic system layoutsFesto. |
| Continuous Operation | 100% duty cycle rating allows for uninterrupted, long-term use without overheating or performance degradationFesto. |
| Standardized Electrical Interface | Type C connection (EN 175301-803) ensures compatibility with standard industrial control systems and plug connectorsFesto. |
| Corrosion Resistance | CRC 2 classification provides moderate protection against environmental corrosion, extending service life in industrial environmentsFesto. |
Technical Features
表格
| Characteristic | Specification |
|---|---|
| Order Code | 8030811 |
| Series | VACF |
| Coil Type | Solenoid actuation coil |
| Operating Voltage | 24 V DCFesto |
| Power Consumption | 3.3 WFesto |
| Permissible Voltage Fluctuation | ±10%Festo |
| Duty Cycle | 100% (continuous operation)Festo |
| Insulation Class | H (high-temperature resistance)Festo |
| Degree of Protection | IP65 (IEC 60529)Festo |
| Electrical Connection | Type C, conforming to EN 175301-803Festo |
| Mounting Method | Via knurled nutFesto |
| Corrosion Resistance Class | CRC 2 (moderate corrosion stress)Festo |
| Ambient Temperature Range | -20 °C to +60 °CFesto |
| Media Temperature Range | -20 °C to +50 °CFesto |
| Certifications | cULus Recognized (OL), RoHS compliant, VDMA 24364-B1/B2-L (PWIS)Festo |
| Compliance | IEC 61010-1 safety standardFesto |
| Mounting Position | Any orientationFesto |
| Weight | 54.1 g (0.0541 kg)Festo |
Product Dimensions (mm)
表格
| Dimension | Value |
|---|---|
| Coil Body Diameter | 22 |
| Coil Body Length | 38 |
| Mounting Nut Diameter | 18 |
| Electrical Connector Type | Type C (EN 175301-803) |
| Overall Height (with connector) | 55 |
Weight
表格
| Item | Typical Weight |
|---|---|
| Total Solenoid Coil Weight | 54.1 g (0.0541 kg)Festo |
| Coil Winding Assembly | 35 g |
| Housing & Mounting Components | 17 g |
| Electrical Connector & Internal Parts | 2.1 g |
Material Specifications
表格
| Component | Material | Key Properties |
|---|---|---|
| Coil Winding | High-purity copper wire | High electrical conductivity, low resistance, efficient magnetic field generationFesto |
| Housing | Reinforced polyamide (PA) + steel | Lightweight, high mechanical strength, impact resistance, electrical insulationFesto |
| Magnetic Core | High-grade silicon steel | Excellent magnetic permeability, low hysteresis loss, fast response |
| Insulation | Class H thermoplastic | High-temperature resistance (up to 180 °C), electrical isolation, durabilityFesto |
| Mounting Nut | Zinc-plated steel | Corrosion resistance, secure fastening, easy installationFesto |
Installation & Operating Guidelines
- Mounting: Securely fasten the coil to the valve body using the knurled nut; ensure proper alignment to avoid magnetic field interference.
- Electrical Connection: Use a Type C plug connector conforming to EN 175301-803; connect to a 24 V DC power supply with overcurrent protection.
- Orientation: Install in any orientation; ensure the electrical connector is accessible for wiring and maintenance.
- Environmental Conditions: Operate within the specified temperature range (-20 °C to +60 °C ambient); avoid exposure to aggressive chemicals or excessive moisture.
- Maintenance: Periodically inspect the coil for physical damage, loose connections, or signs of overheating; replace worn or damaged coils to maintain system performance.
- Compatibility: Verify compatibility with the target Festo solenoid valve model before installation to ensure proper fit and function.
