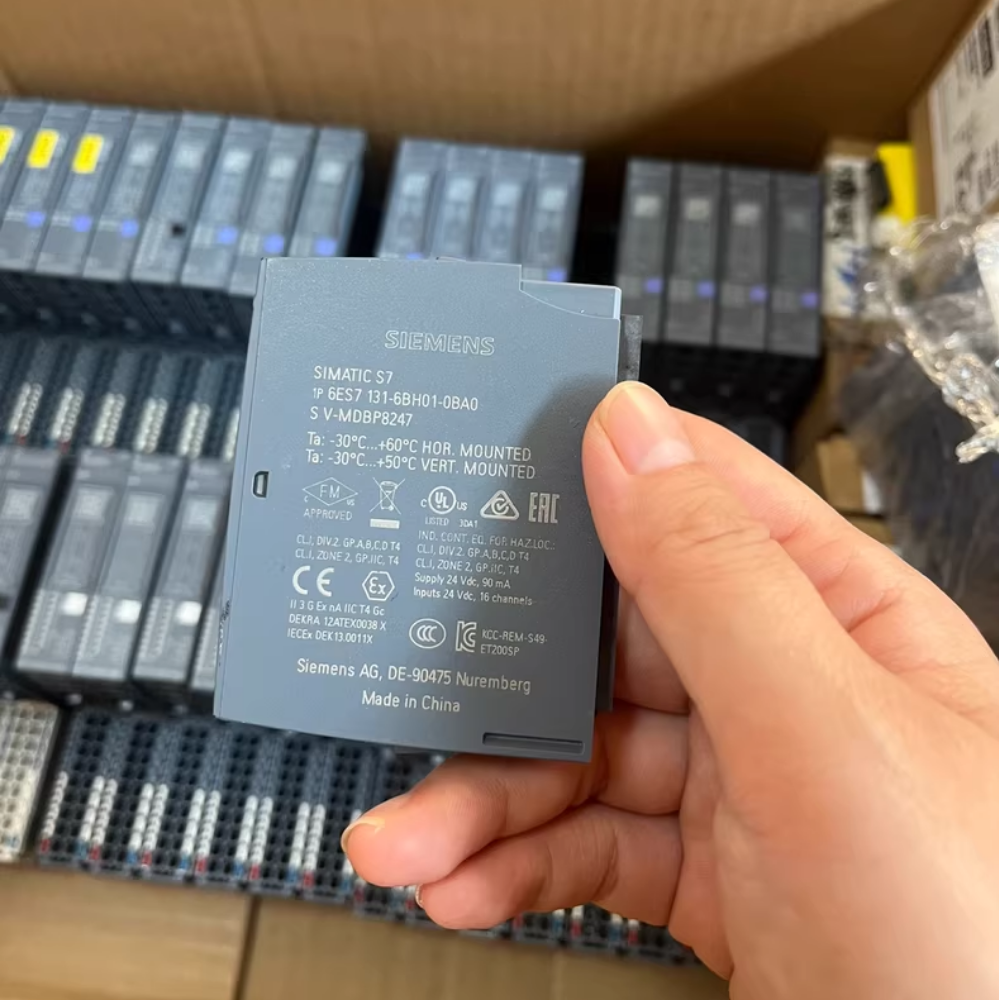

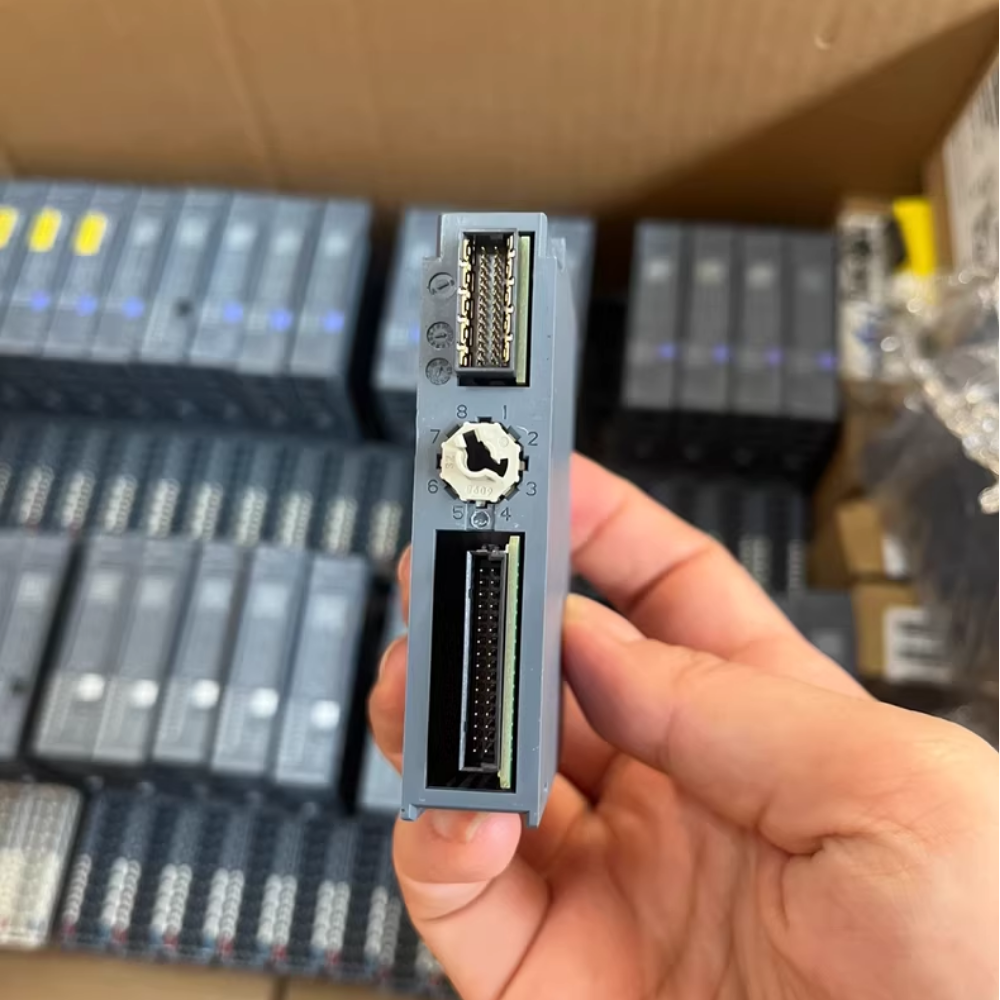

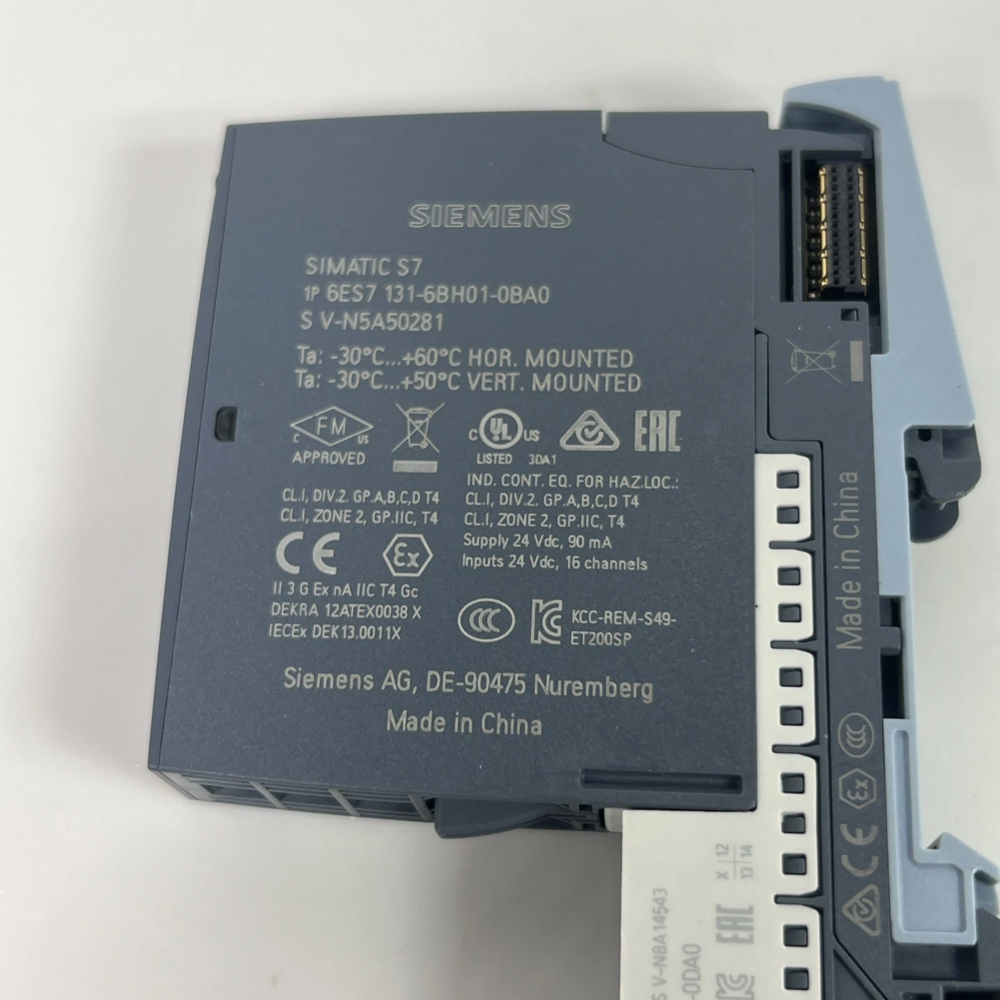

Siemens 6ES7 131-6BH01-0BA0 | SIMATIC ET 200SP Digital Input Module
Product Overview
The 6ES7 131-6BH01-0BA0 is a digital input module from the SIMATIC ET 200SP series, designed for distributed automation systems. It serves as a core component to collect discrete on/off signals from industrial sensors (e.g., proximity switches, pushbuttons, limit switches) and transmit them to a central PLC, enabling reliable control and monitoring of machinery and production lines.
As a Type 3 (IEC 61131) sink input module (PNP, P-reading), it is compatible with the ET 200SP system’s modular, space-saving design, making it ideal for confined control cabinets and flexible system expansion. It supports configuration via STEP 7 TIA Portal (V14+) and legacy STEP 7 (V5.5 SP3+), simplifying integration into existing automation architectures.
Key Functions
- Discrete Signal Acquisition: 16 digital input channels capture 24 V DC binary signals from industrial sensors, ensuring accurate transmission to the PLC for logic processing.
- Parameterizable Input Delay: Adjustable response time (0.05–20 ms) optimizes signal stability for high-speed or noise-prone applications, with an additional 30–500 µs delay dependent on cable length.
- Comprehensive Diagnostics: Built-in diagnostics for wire breakage and supply voltage monitoring (via green/red DIAG LED) accelerate fault troubleshooting and reduce downtime.

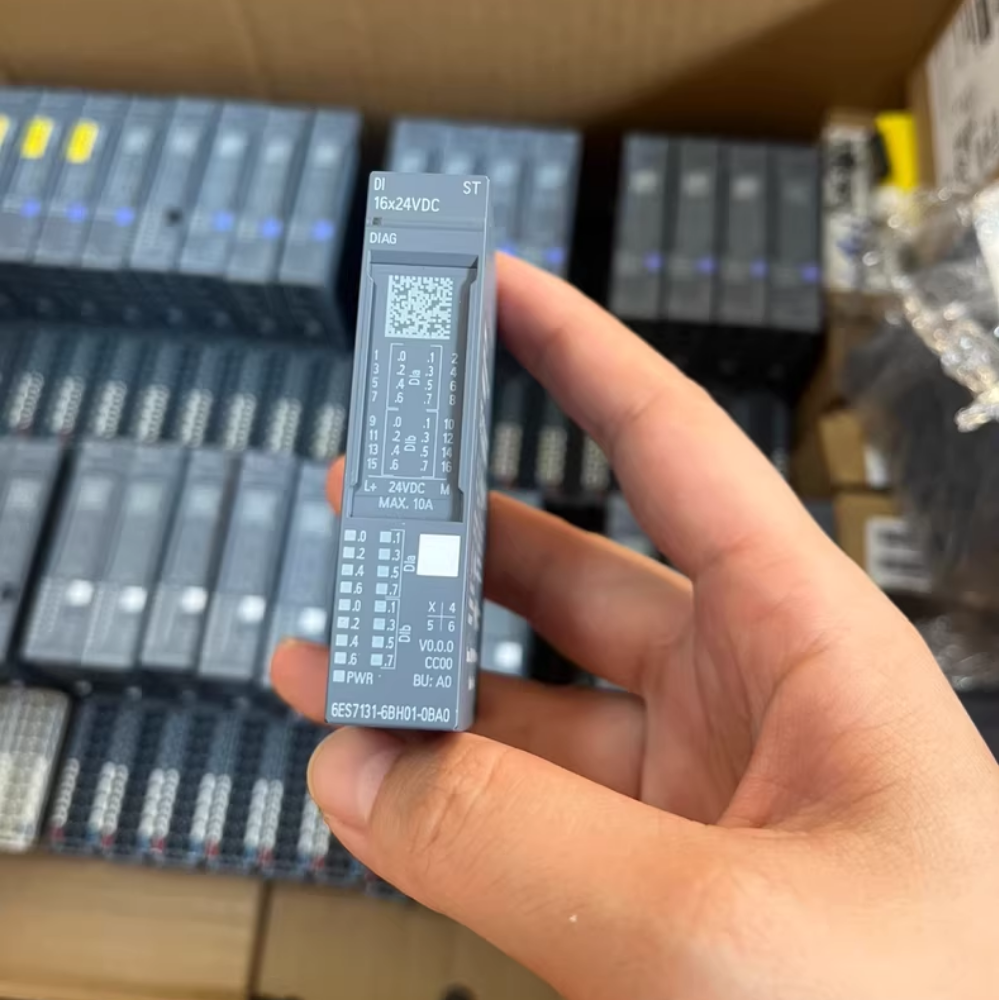

- Channel Status Indication: Green LEDs for individual channels provide real-time visual feedback of signal states, simplifying on-site inspection.
- Reverse Polarity Protection: Safeguards the module from damage due to incorrect wiring, enhancing operational reliability.
Technical Features
表格
| Category | Specifications |
|---|---|
| Electrical Ratings | – Supply Voltage: 24 V DC (range: 19.2–28.8 V DC)
– Input Voltage: 24 V DC (signal “0”: -30 to +5 V; signal “1”: +11 to +30 V) – Input Current (signal “1”): Typical 2.5 mA – Max. Current Consumption: 90 mA – Typical Power Loss: 1.7 W |
| Input Configuration | – 16 × Digital Inputs (sink input, PNP, P-reading)
– Input Characteristic: IEC 61131, Type 3 – Parameterizable: Yes (input delay, diagnostics) – No encoder supply – No channel-to-channel isolation; isolation between channels and backplane bus/electronics power (707 V DC test) |
| Diagnostics | – Supply voltage monitoring
– Wire-break detection (25–45 kΩ threshold for simple contacts) – Alarms & diagnostic information readable via TIA Portal – LEDs: PWR (green, power), Channel (green, status), DIAG (green/red, module fault) |

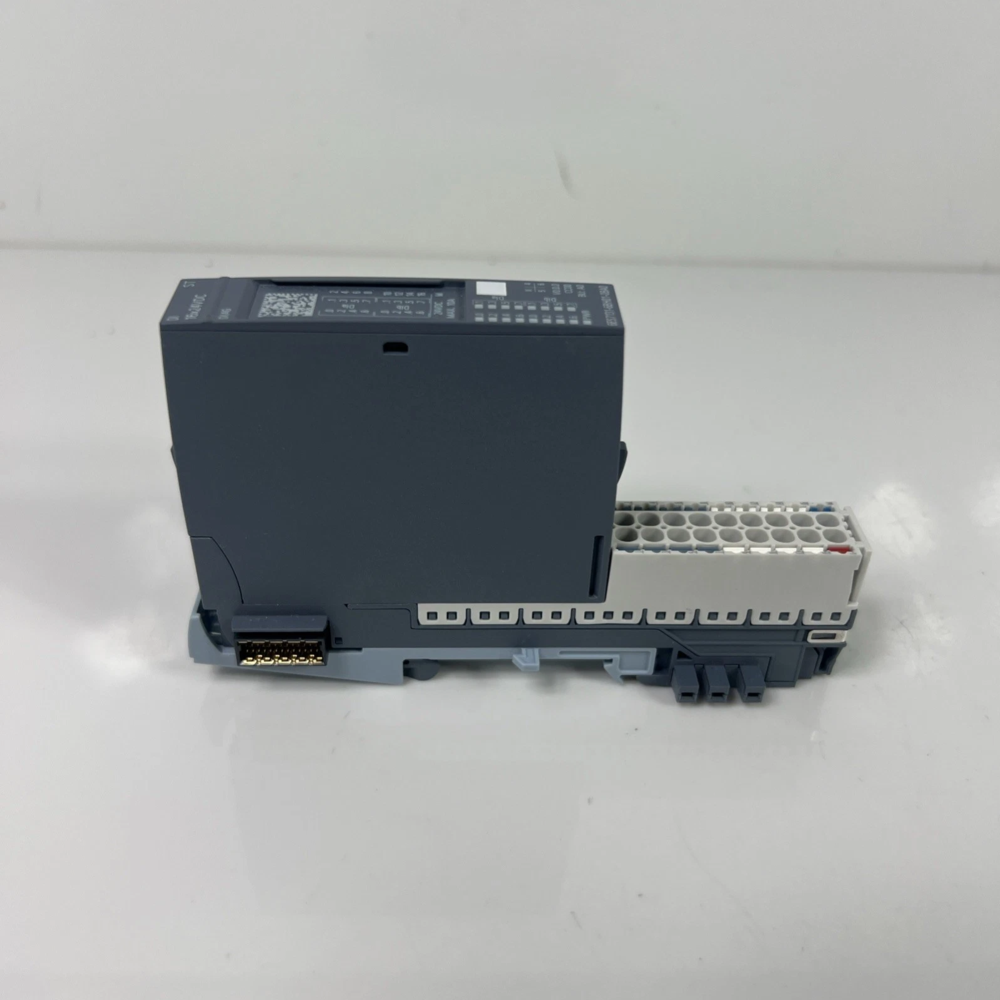

| Mechanical Compatibility | – Base Unit: Type A0 (BU type A0)
– Color Code: CC00 (module identification) – Mounting: DIN rail (front installation possible) – Dimensions: 15 mm (width) × 73 mm (height) × 58 mm (depth) – Weight: Approx. 28 g (module); 36 g (packed) – Packing Unit: 1 piece |
| Environmental Limits | – Operating Temperature: Horizontal (-30 °C to +60 °C); Vertical (-30 °C to +50 °C)
– Max. Installation Altitude: 5,000 m (restrictions >2,000 m; refer to manual) – RoHS Compliant – Origin: Germany |
| System Integration | – Configurable in STEP 7 TIA Portal (V14+), STEP 7 (V5.5 SP3+), PCS 7 (V8.1 SP1+)
– PROFINET (GSDML V2.3) & PROFIBUS (GSD Rev. 3+) support – Address Space: 2 bytes inputs + 2 bytes QI information |
| Cable Length | – Unshielded: Max. 600 m
– Shielded: Max. 1,000 m |
Physical Dimensions & Weight
表格
| Parameter | Value |
|---|---|
| Width | 15 mm |
| Height | 73 mm |
| Depth | 58 mm |
| Module Weight | Approx. 28 g |
| Packed Weight | Approx. 36 g |
| Packed Dimensions | 69 mm × 75 mm × 24 mm |
Applications
Ideal for industrial automation scenarios including:
- Manufacturing lines (automotive, packaging, machinery)
- Process control (valve/pump status monitoring)
- Building automation (HVAC, security systems)
- Energy infrastructure (power plant equipment)
- Material handling (conveyor systems, robotics)
Compliance & Certifications
- RoHS Compliant (since 15/09/17)
- REACH (contains lead >0.1% w/w; safe for intended use)
- Product Life Cycle: PM300 (active)
- Commodity Code (HS): 85389091
