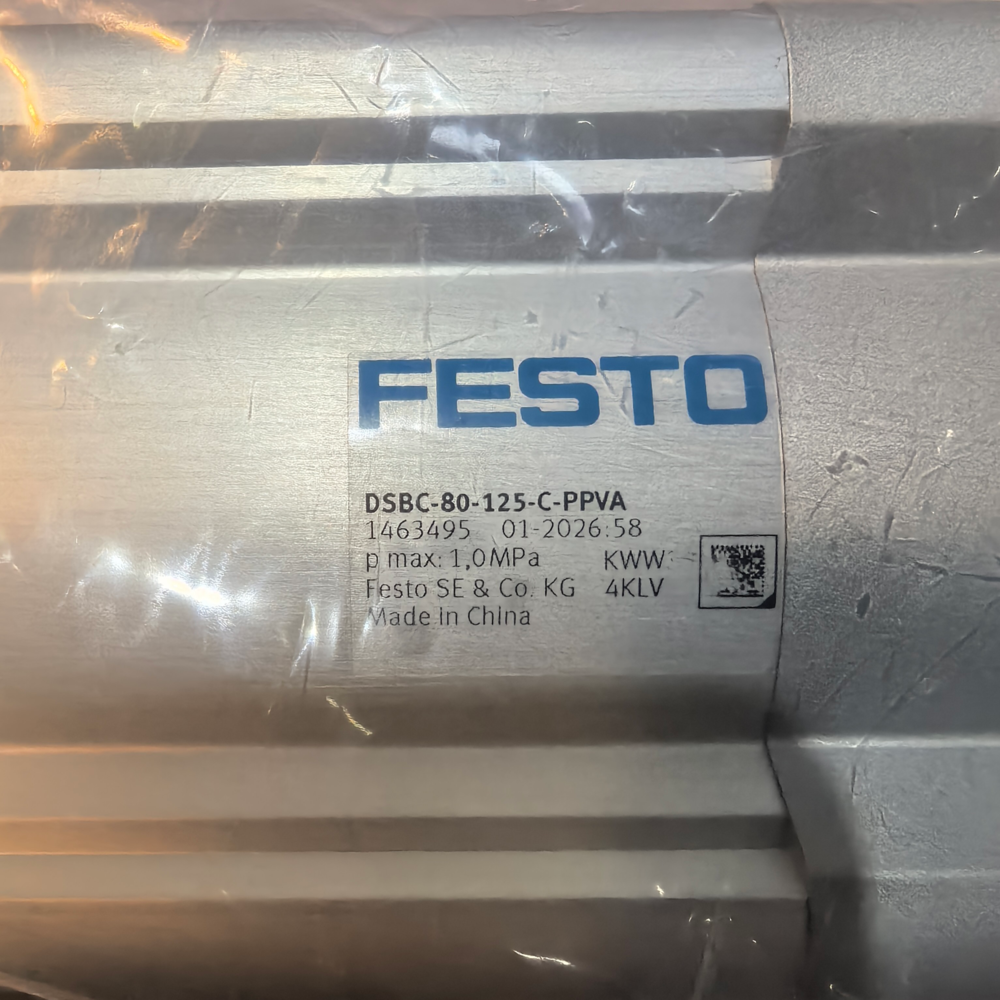

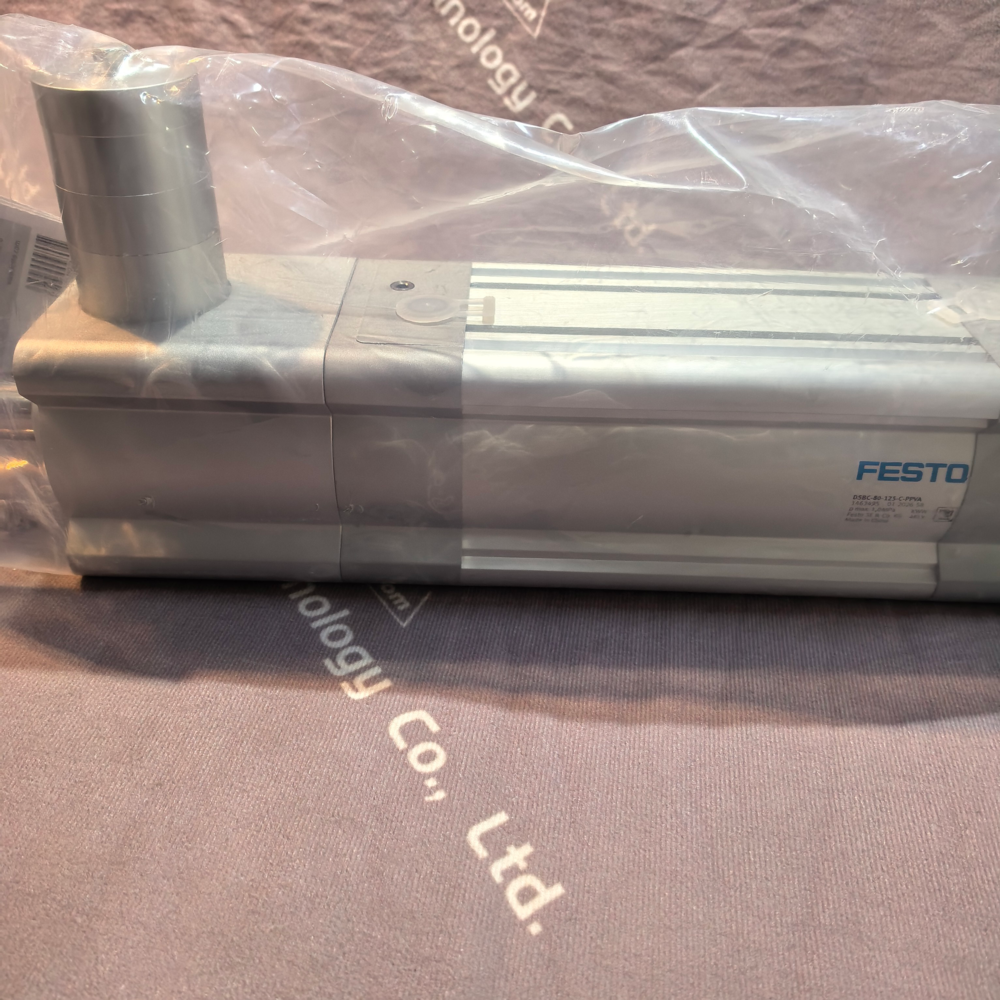

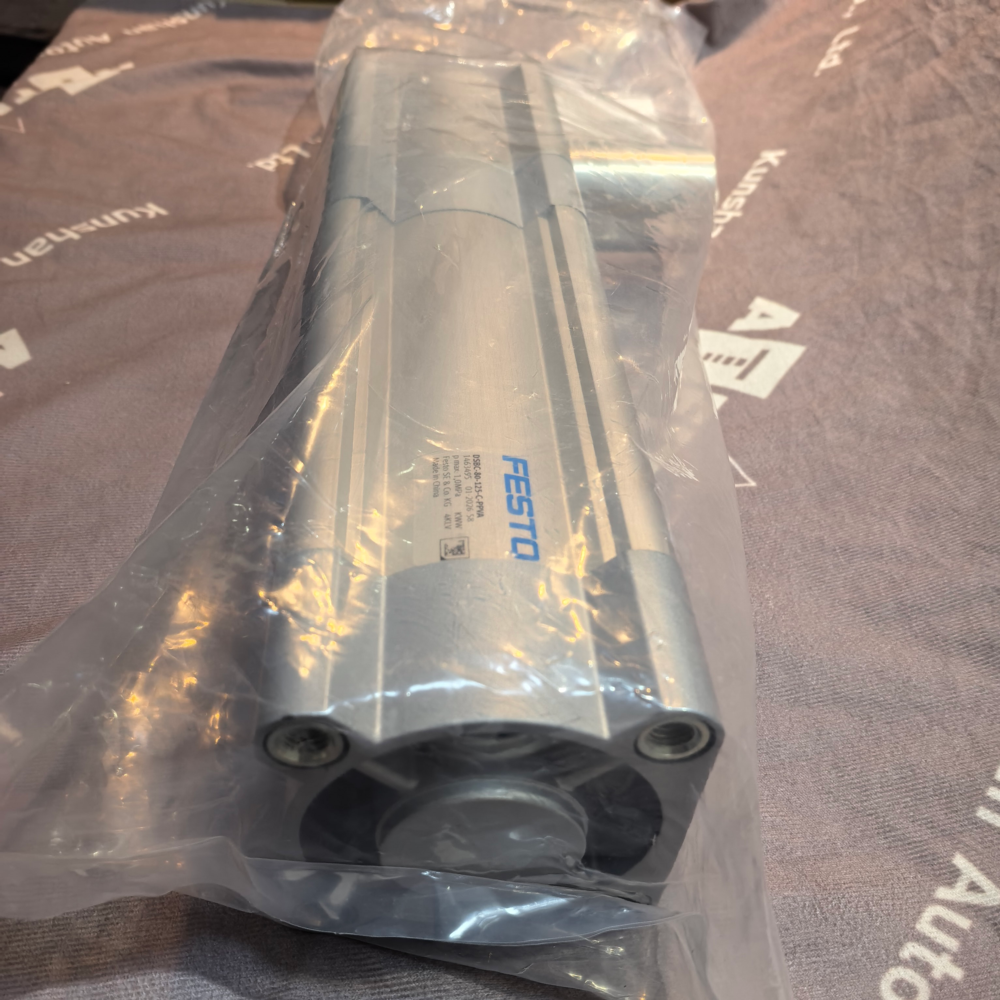

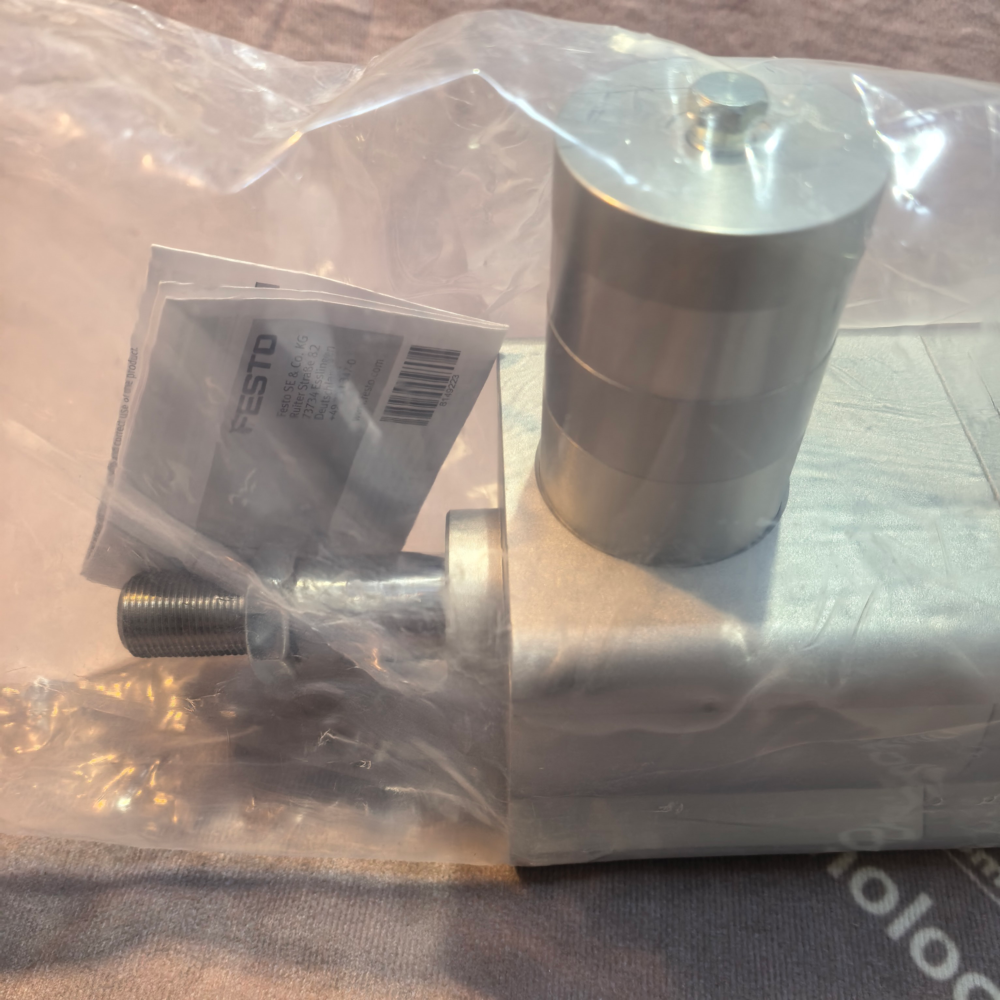

Festo DSBC-80-125-C-PPVA ISO Cylinder (Order Code: 1463495)
Product Overview
The Festo DSBC-80-125-C-PPVA (Order Code: 1463495) is a robust, double‑acting ISO 15552 standard pneumatic cylinder designed for heavy‑duty industrial automation applicationsFesto. Featuring an 80 mm piston diameter and 125 mm stroke, it delivers high thrust forces with precise linear motion control. Equipped with adjustable pneumatic end‑position cushioning (PPVA) and a corrosion‑resistant profile barrel, this cylinder ensures smooth, low‑friction operation and long service lifeFesto. It supports position sensing via proximity sensors and offers flexible mounting options, making it ideal for material handling, assembly lines, packaging machinery, and heavy machinery actuation systemsFesto. Compliant with RoHS and VDMA standards, it operates reliably in moderate to harsh industrial environmentsFesto.
Main Functions
表格
| Function | Description |
|---|---|
| Double‑Acting Linear Motion | Bidirectional force generation via compressed air, enabling precise extension and retraction of the piston rodFesto. |
| Adjustable Pneumatic Cushioning | Fine‑tunable end‑position cushioning at both ends to absorb impact energy (up to 1.8 J), reducing noise and mechanical wearFesto. |
| High‑Thrust Force Output | Delivers theoretical forces of 3016 N (advance) and 2721 N (return) at 6 bar, suitable for heavy‑load applications. |
| Position Sensing Compatibility | Integrated sensor slots on three profile sides for easy mounting of proximity switches to detect piston end positionsFesto. |
| Flexible Mounting | Installable in any orientation with multiple mounting interfaces (internal threads, standard ISO accessories) for versatile system integration. |
| Corrosion Resistance | CRC 2 classification for moderate corrosion stress, with coated die‑cast aluminum end caps and anodized barrel for durabilityFesto. |
| Smooth, Low‑Friction Operation | Precision‑machined piston and high‑quality seals minimize friction, ensuring consistent performance and extended service lifeFesto. |
| Lubricated/Unlubricated Operation | Compatible with both lubricated and non‑lubricated compressed air, offering operational flexibilityFesto. |
Technical Features
表格
| Characteristic | Specification |
|---|---|
| Order Code | 1463495 |
| Series | DSBC |
| Cylinder Type | Double‑acting, ISO 15552 standard |
| Piston Diameter | 80 mm |
| Stroke Length | 125 mm |
| Cushioning Type | Pneumatic, adjustable at both ends (PPVA) |
| Operating Pressure | 0.4 – 12 bar (0.04 – 1.2 MPa) |
| Theoretical Force (6 bar) | Advance: 3016 N; Return: 2721 N |
| Piston Rod Thread | M20x1.5 (external male thread) |
| Pneumatic Connection | G3/8 female threaded ports |
| Operating Medium | Filtered compressed air (ISO 8573‑1:2010 [7:4:4]); lubricated air optional |
| Ambient Temperature | -20 °C to +80 °C |
| Corrosion Resistance Class | CRC 2 (moderate corrosion stress) |
| Compliance | RoHS compliant, VDMA 24364‑B1/B2‑L |
| Position Detection | Via proximity sensors (mountable on profile slots) |
| Mounting Position | Any orientation |
| Impact Energy Absorption | 1.8 J (end positions) |
| Cushioning Length | 31 mm |
| Moving Mass (at 0 mm stroke) | 810 g |
| Additional Moving Mass | 39 g per 10 mm stroke extension |
Product Dimensions (mm)
表格
| Dimension | Value |
|---|---|
| Piston Diameter | 80 |
| Stroke Length | 125 |
| Overall Length (retracted) | 320 |
| Overall Length (extended) | 445 |
| Barrel Profile Width | 80 |
| Piston Rod Diameter | 36 |
| Piston Rod Thread | M20x1.5 |
| Port Thread Size | G3/8 female |
| End Cap Thickness | 30 |
| Sensor Slot Width | 8 |
Weight
表格
| Item | Typical Weight |
|---|---|
| Total Product Weight | 3810 g (3.81 kg) |
| Basic Weight (0 mm stroke) | 2660 g |
| Additional Weight (125 mm stroke) | 1150 g |
| Piston & Rod Assembly | 810 g |
| Barrel & End Caps | 2800 g |
| Seals & Internal Components | 200 g |
Material Specifications
表格
| Component | Material | Key Properties |
|---|---|---|
| Cylinder Barrel | Anodized precision aluminum | Smooth surface, low friction, corrosion resistance |
| End Caps | Coated die‑cast aluminum | High structural strength, impact resistance |
| Piston | Precision‑machined aluminum | Lightweight, low friction, stable performance |
| Piston Rod | Hard‑chromed high‑alloy stainless steel | High wear resistance, corrosion protection, precise guidance |
| Seals | FPM/HNBR/TPE‑U (Polyurethane) | Excellent sealing, temperature resistance, long service life |
| Wear Bands | Low‑friction polymer | Reduces metal‑to‑metal contact, minimizes wear |
| Cushioning Components | High‑strength thermoplastic | Impact absorption, adjustable damping |
Installation & Operating Guidelines
- Mounting: Securely mount using ISO standard accessories or internal threads; ensure alignment to prevent side loading on the piston rod.
- Pneumatic Connections: Use G3/8 fittings with thread sealant; connect supply air to the appropriate ports for extension/retraction.
- Cushioning Adjustment: Fine‑tune cushioning screws at both ends to optimize end‑position damping; avoid over‑tightening to prevent seal damage.
- Position Sensing: Mount proximity sensors in the profile slots; align with piston magnets for reliable position detection.
- Air Supply: Use clean, dry compressed air (0.4–12 bar); install filters and regulators to protect internal components.
- Lubrication: If using lubricated air, maintain consistent lubrication; do not mix lubricant types.
- Maintenance: Periodically inspect seals and connections for leaks; replace worn components to ensure performance. Operate within the specified temperature range for optimal durability.
