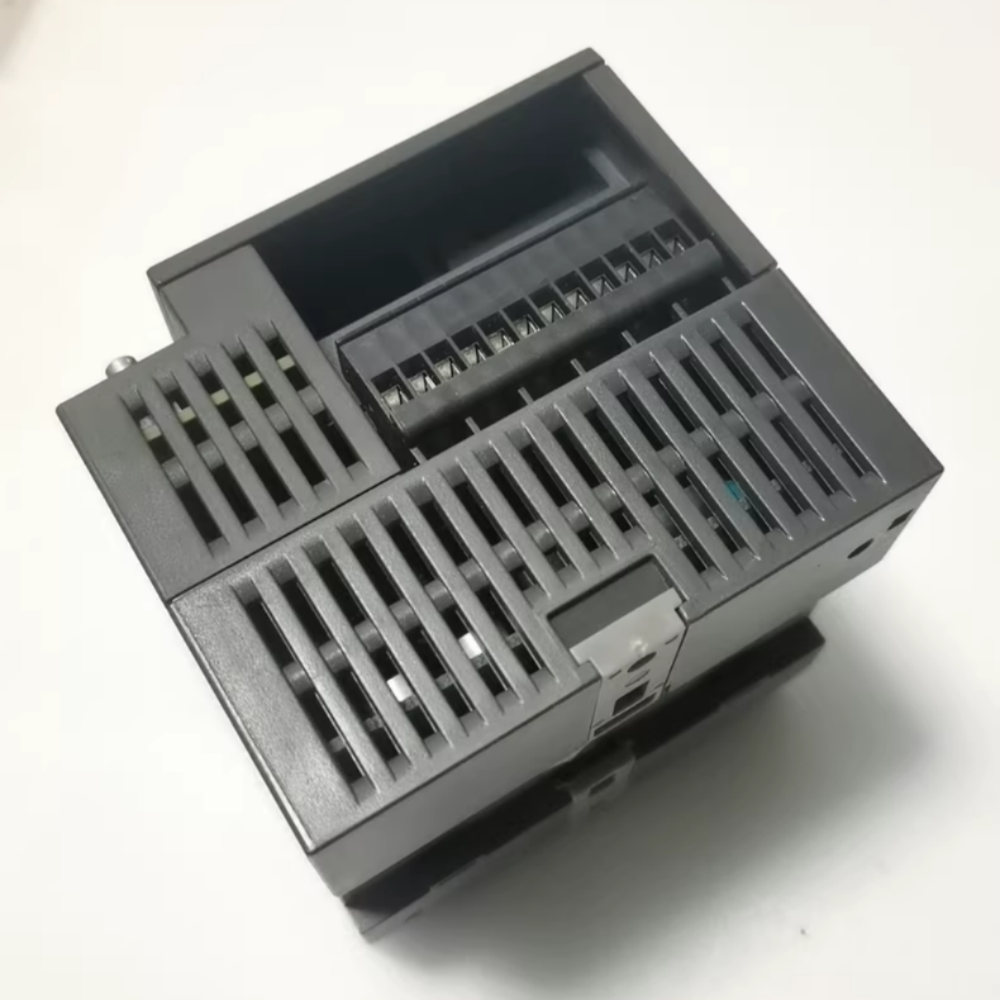

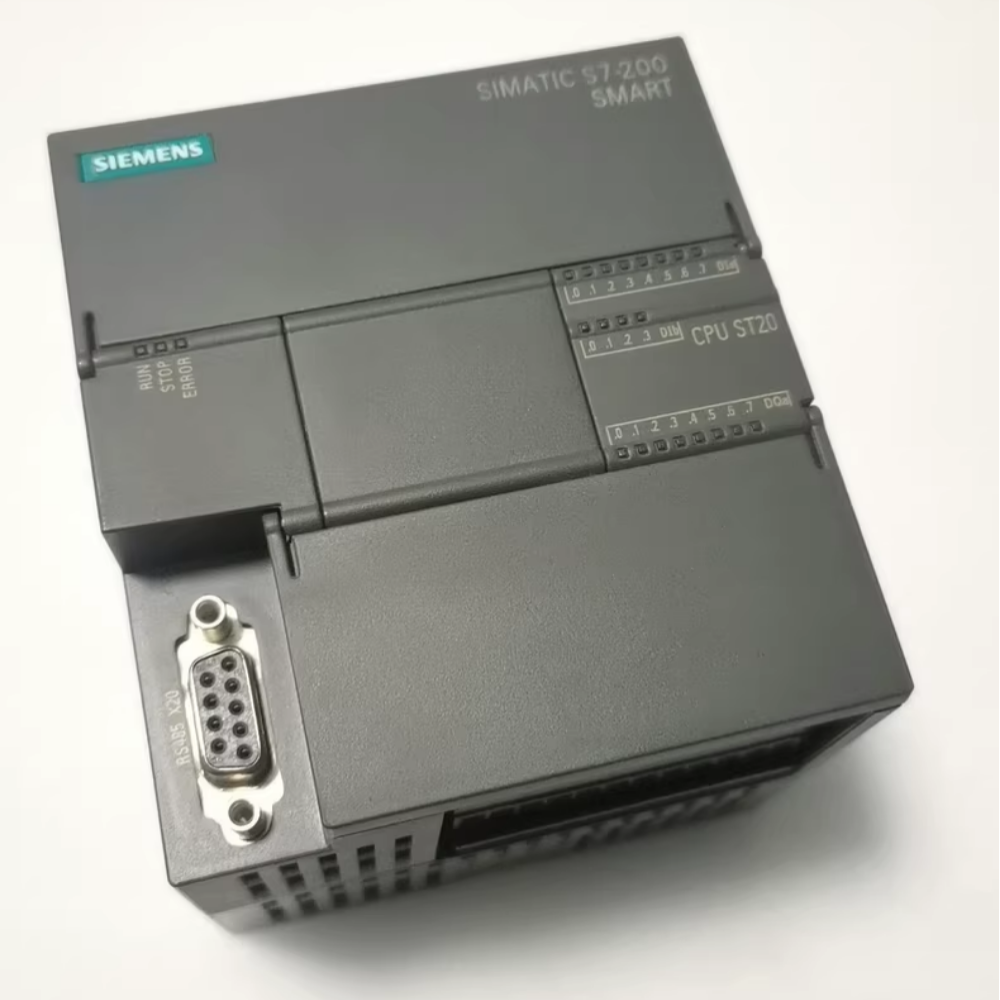

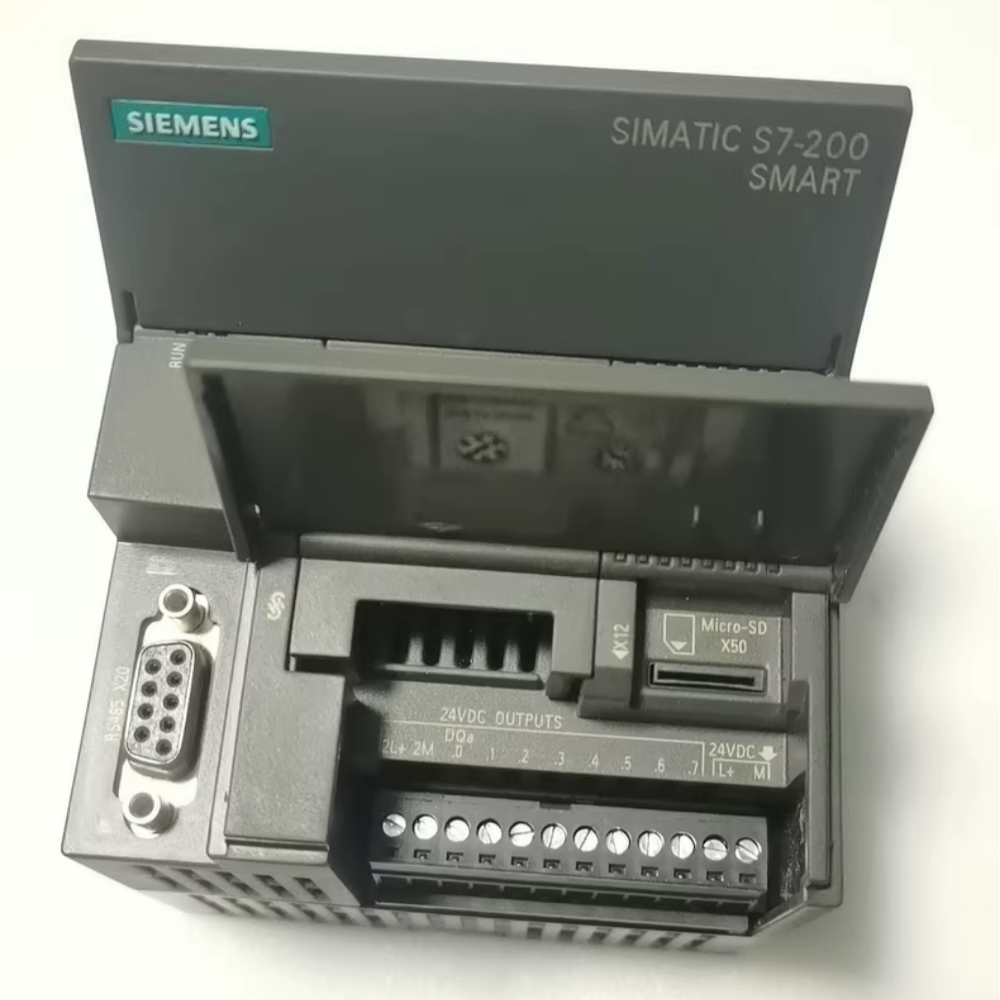

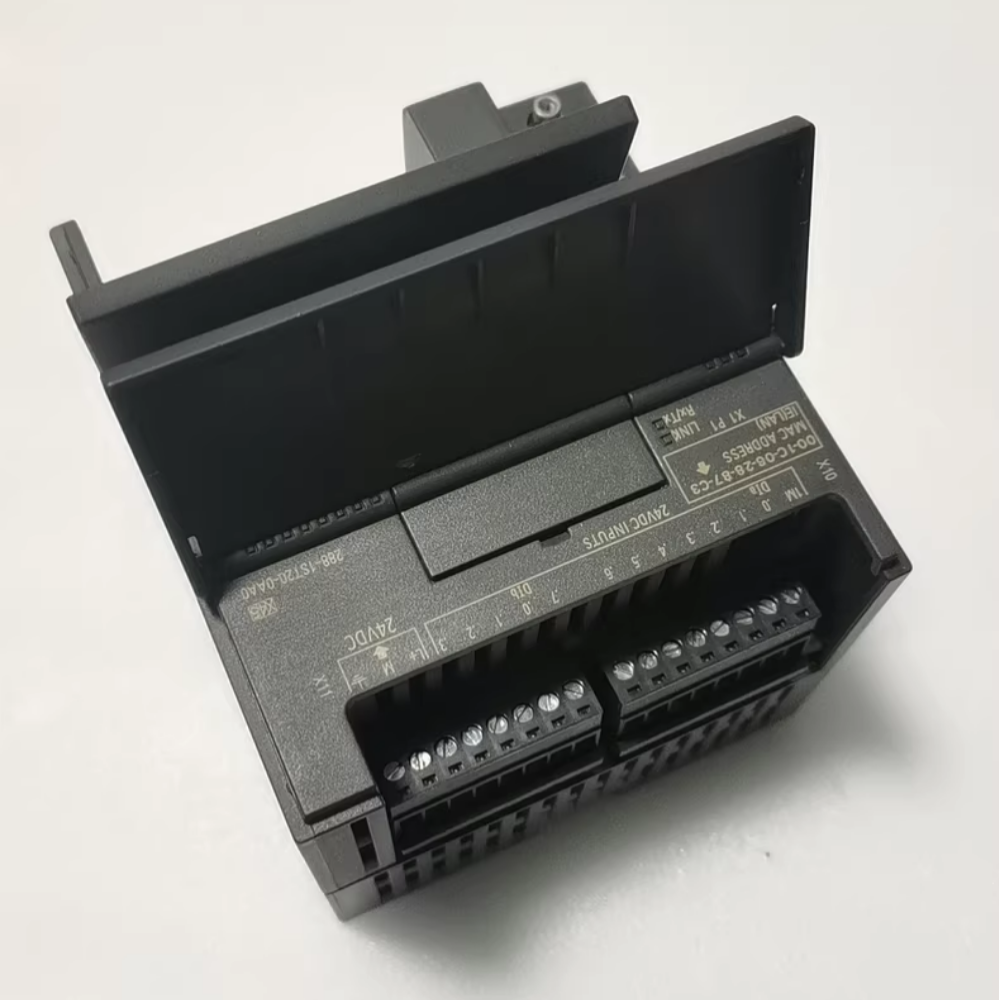

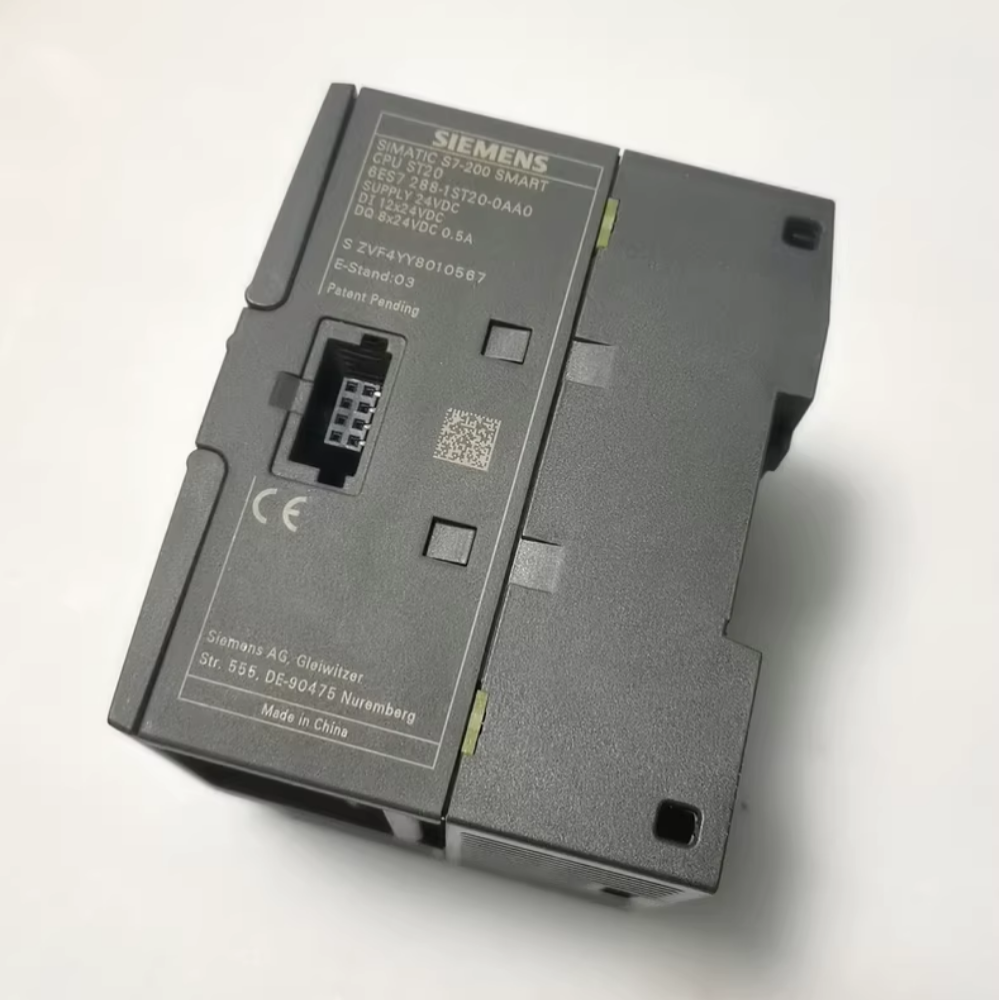

Siemens 6ES7 288-1ST20-0AA0 | SIMATIC S7-200 SMART CPU ST20
Product Overview
The Siemens 6ES7 288-1ST20-0AA0 is a DC/DC/DC configuration standard CPU module belonging to the SIMATIC S7-200 SMART series, designed for compact automation control scenarios. It integrates rich I/O interfaces, high-speed processing capabilities, and reliable communication functions, making it suitable for small and medium-sized automated control systems in industrial fields such as intelligent manufacturing, equipment automation, and process control. The module supports programming via STEP 7 Micro/WIN SMART software and enables flexible expansion to meet diverse control needs[14].
Key Functions
- Integrated High-Density I/O: Equips 12-channel 24V DC digital inputs (DI) and 8-channel 24V DC digital outputs (DO), reducing external expansion needs and simplifying system wiring[14].
- Efficient Processing Performance: Provides fast instruction execution speed, supporting bit operations, word operations, and floating-point operations to ensure real-time response of control tasks[17].
- Diverse Communication Interfaces: Integrates Ethernet interface (PROFINET) and RS-485 interface (PPI/MPI/Free Port), enabling seamless connection with HMI, SCADA, and other controllers, and supporting multi-protocol communication[14].
- Reliable Data Storage: Equips program memory, data memory, and hold memory to ensure non-volatile storage of key programs and data during power failure[19].
- Built-in Real-Time Clock (RTC): Supports time synchronization and timed task execution without additional battery configuration[14].
Technical Features
Core Performance Parameters
表格
| Parameter | Specification |
|---|---|
| CPU Configuration | DC/DC/DC (24V DC power supply, 24V DC input, 24V DC transistor output)[6] |
| Program/ Data Memory | 12 KB program memory / 8 KB data memory / 10 KB hold memory[19] |
| Instruction Execution Speed | Bit operation: 150 ns/step; Word operation: 1.2 μs/step; Floating-point operation: 3.6 μs/step |
| Integrated I/O | 12 × 24V DC DI; 8 × 24V DC DO (transistor)[14] |
| High-Speed Counter (HSC) | 6-channel HSC support (4-channel 200 kHz, 2-channel 30 kHz); 2-channel AB phase 100 kHz |
| Power Supply Range | 20.4 – 28.8 V DC (wide voltage adaptation for industrial field power supply)[13] |
| Communication Interfaces | 1 × Ethernet (PROFINET, 100 Mbps); 1 × RS-485 (PPI/MPI/Free Port)[14] |
| Sensor Power Supply | 24V DC, max 300 mA (for field sensor power supply)[22] |
| Programming Software | STEP 7 Micro/WIN SMART (supports online programming, monitoring, and debugging)[14] |
| Installation Method | Standard DIN rail mounting (space-saving for control cabinets)[12] |
Environmental Adaptability
- Operating Temperature: 0 – 60 ℃ (adapted to industrial field environment temperature changes)
- Storage Temperature: -40 – 85 ℃ (convenient for long-term storage and transportation)
- Relative Humidity: 5 – 95% (non-condensing, suitable for humid industrial environments)
- Shock/Vibration Resistance: Complies with IEC 60068-2-6/2-27 standards, adapting to harsh industrial site vibration conditions
Physical Dimensions & Weight
表格
| Parameter | Specification |
|---|---|
| Dimensions (W × H × D) | 90 × 100 × 81 mm (compact size, suitable for small control cabinets)西门子工业支持中心[10][21] |
| Net Weight | Approx. 320 g (lightweight, convenient for handling and installation)[10][22] |
| Mounting Hole Spacing | Matches standard DIN rail (width 35 mm), easy to install and maintain[17] |
