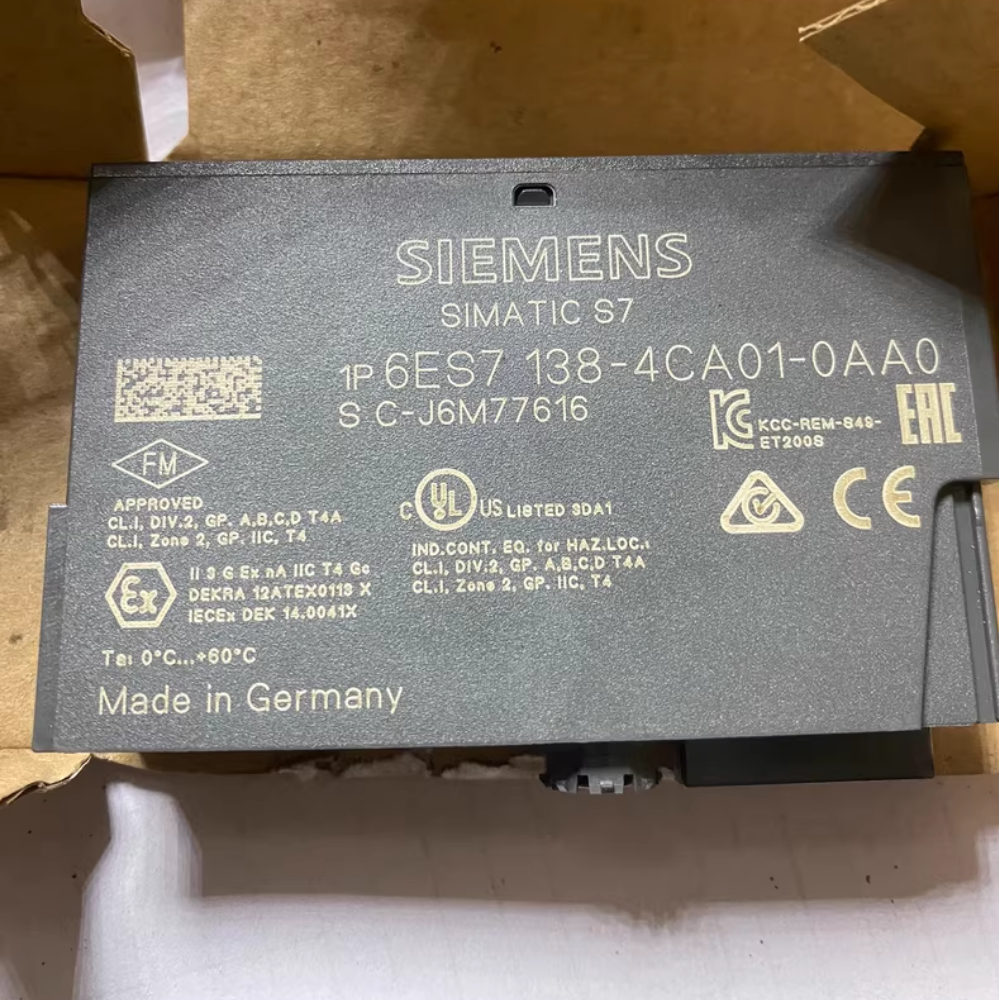

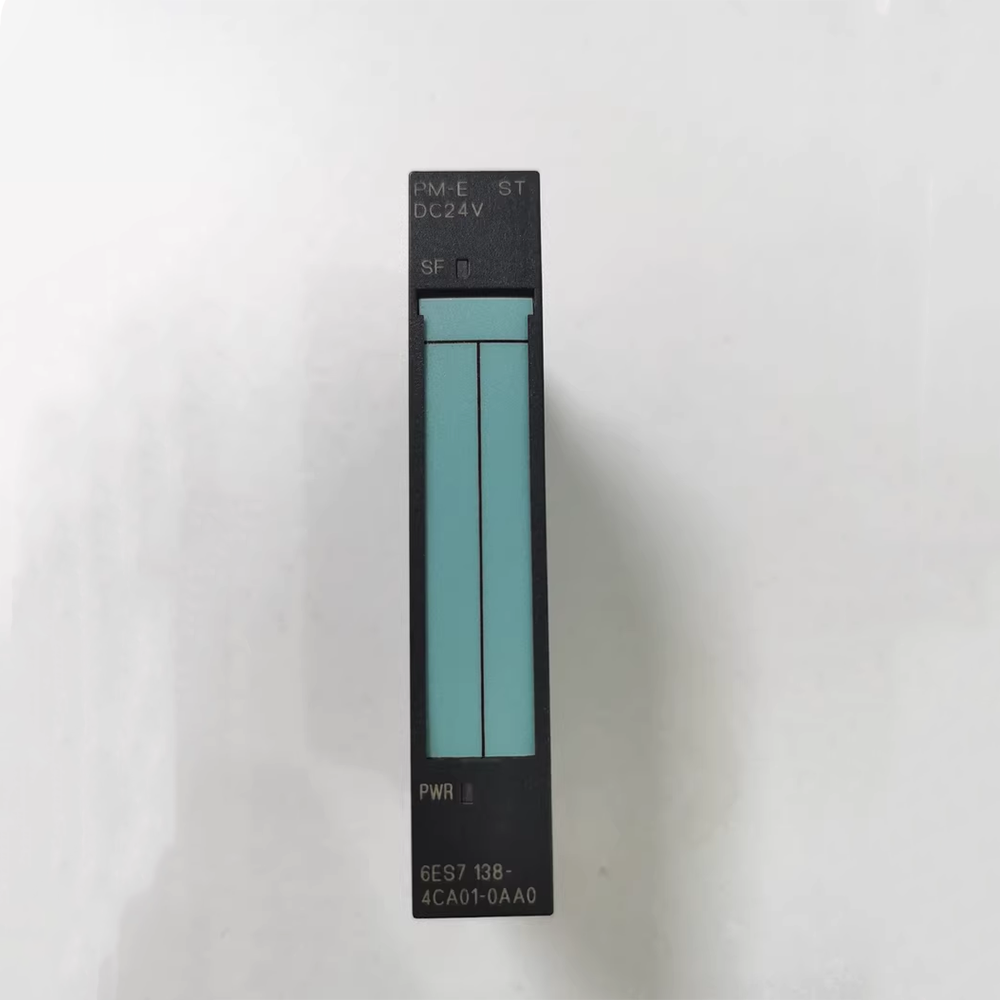

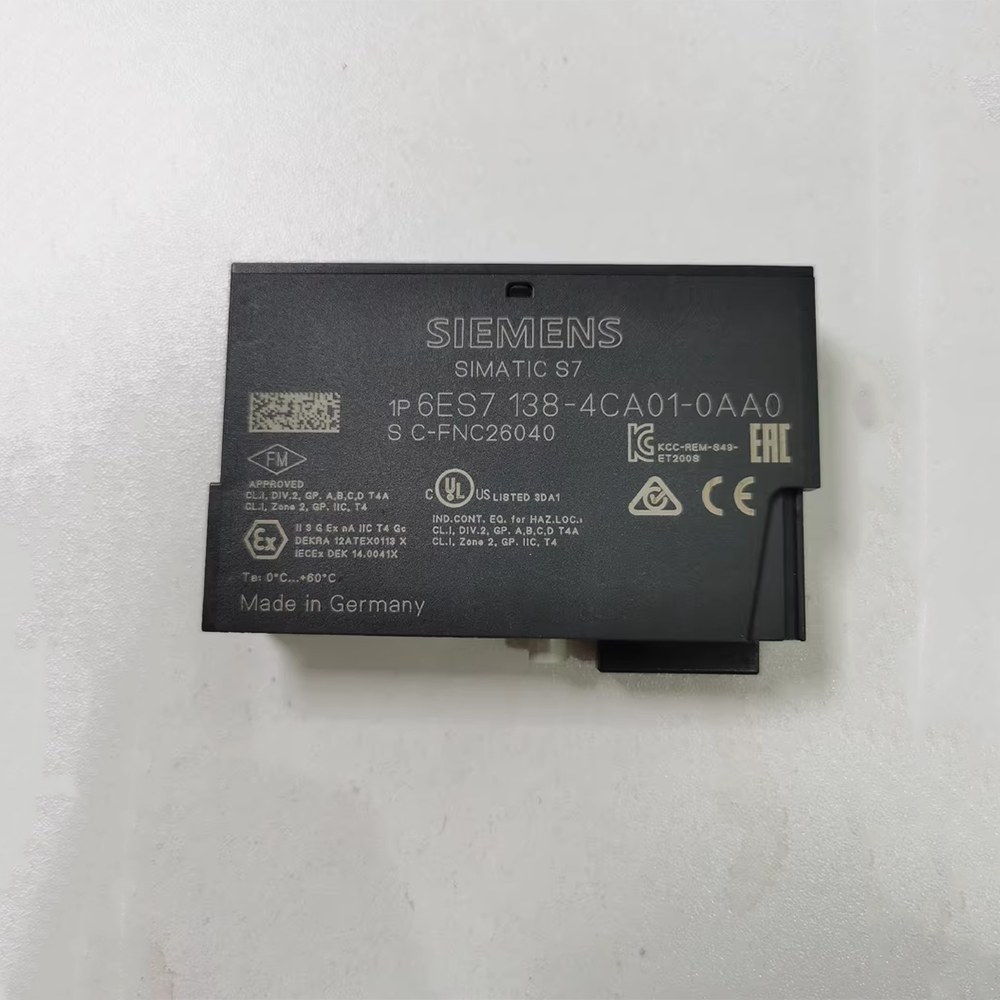

Siemens 6ES7 138-4CA01-0AA0 Power Module

Siemens 6ES7 138-4CA01-0AA0 Power Module: An Overview

The Siemens 6ES7 138-4CA01-0AA0 is a specific unit known as a Power Module (PM) within the SIMATIC ET 200S distributed I/O system. Unlike input or output modules, this module does not directly interface with field sensors or actuators. Instead, it serves the vital role of supplying and conditioning power for the connected electronic modules and potentially the sensors.

Key Features and Specifications

This component is essential for the operation of any ET 200S station that uses load power separation.

• Module Type: Power Module (PM)

• System: SIMATIC ET 200S

• Function: Its primary function is to feed the load current (L+) needed for the digital output modules and connected actuators/devices. It also separates the internal 24 V DC backplane power (for the electronics) from the external load power.

• Voltage Input: It typically accepts a standard industrial supply of 24 V DC.

• Current Capacity: The module is designed to handle and distribute a specific maximum current, which is essential for determining how many high-current digital output modules can be placed downstream.

• Diagnostics: It usually incorporates basic diagnostic functions, most importantly monitoring the supply voltage. If the load voltage drops below an acceptable level, the module can signal this fault to the PLC.

• Segmentation: A crucial application is grouping load power segments. By inserting this power module, you can create a new load power group. This allows you to selectively switch off or isolate a portion of the outputs without affecting the entire station.

Role in the ET 200S Architecture

In the modular ET 200S setup, the 6ES7 138-4CA01-0AA0 is inserted between the interface module and the standard electronic modules (like the Digital Output modules). Its placement ensures that the I/O electronics are always powered by the communications module, while the outputs themselves draw their operating power from the supply fed through this Power Module.

Summary

The 6ES7 138-4CA01-0AA0 is an essential 24 V DC Power Module for the Siemens ET 200S I/O system. It ensures the reliable supply and electrical segmentation of the load current for the output modules and connected field devices, and provides necessary voltage monitoring for system stability.
