Siemens 6EP1434-2BA20 SITOP PSU300S Switched Mode DIN Rail Power Supply
Product Overview
The Siemens 6EP1434-2BA20 is a high-performance switched-mode power supply belonging to the SITOP PSU300S series, designed for reliable and efficient power conversion in industrial automation environments. It converts alternating current (AC) input into stable direct current (DC) output, providing a clean and consistent power source for a wide range of industrial components such as PLCs, sensors, actuators, relays, and communication modules. As a DIN rail-mounted unit, it offers easy installation and integration into standard industrial control cabinets, making it an ideal choice for factory automation, machine building, and process control applications.
Main Functions
- AC-DC Power Conversion
- Converts universal AC input voltage to a regulated 24 V DC output, delivering a stable power supply for industrial loads.
- Provides a rated output current of 10 A, with sufficient power capacity to support multiple connected devices simultaneously.
- Voltage Regulation & Stability
- Maintains precise output voltage regulation under varying load conditions, ensuring consistent performance of connected industrial equipment.
- Offers excellent transient response to handle sudden load changes without significant voltage fluctuations.
- Comprehensive Protection Mechanisms
- Integrates overvoltage protection (OVP), overcurrent protection (OCP), and overtemperature protection (OTP) to safeguard both the power supply and connected loads from damage.
- Features short-circuit protection with automatic recovery, preventing system downtime caused by accidental short circuits.
- Wide Input Voltage Compatibility
- Accepts a broad range of AC input voltages, enabling operation in different regions with varying power grid standards without additional configuration.
- Diagnostic & Status Indication

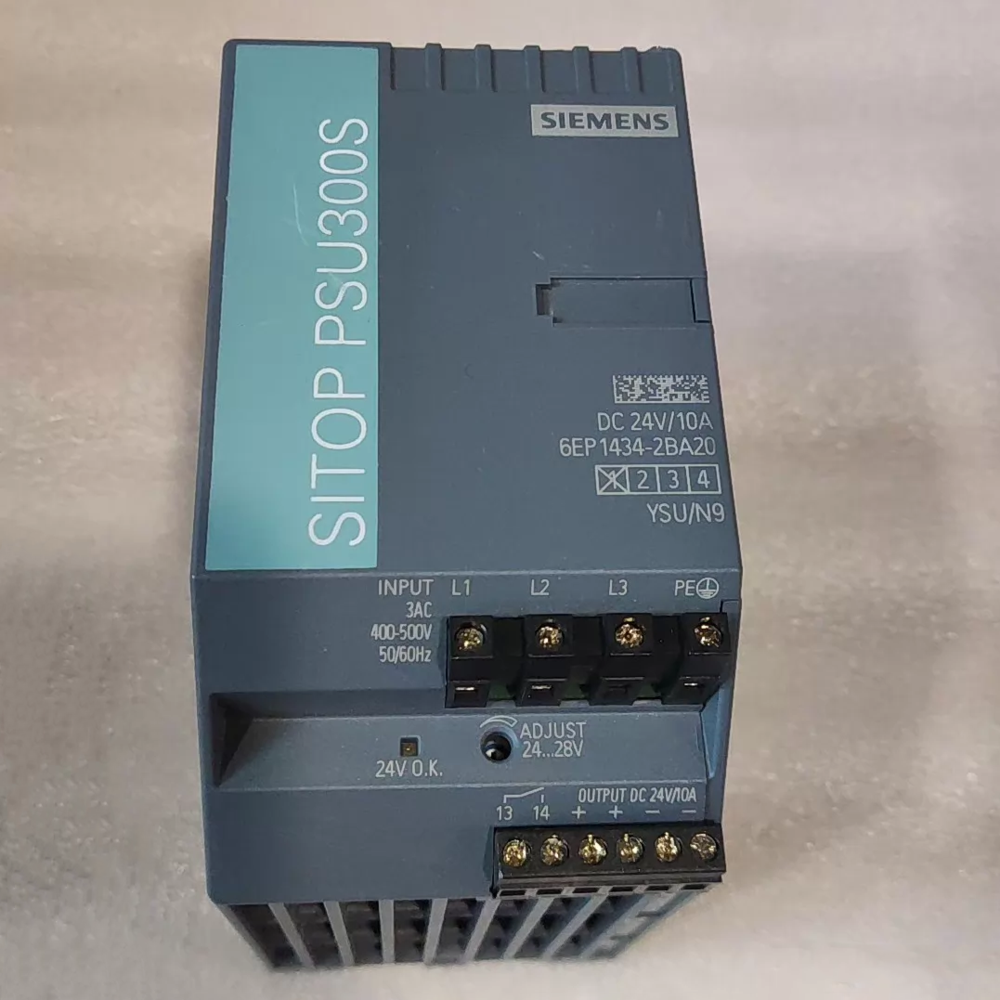

- Equipped with LED indicators to display operational status (power on, output normal) and fault conditions (overload, short circuit, over-temperature), facilitating quick troubleshooting and system monitoring.
- DIN Rail Mounting & Easy Integration
- Designed for standard 35 mm DIN rail mounting, allowing quick and secure installation in control panels.
- Compact form factor optimizes cabinet space utilization, supporting dense industrial control system layouts.
Technical Features
表格
| Parameter | Specification |
|---|---|
| Product Model | 6EP1434-2BA20 |
| Product Series | SITOP PSU300S |
| Input Voltage | 120/230 V AC (universal input, 85–264 V AC, 47–63 Hz) |
| Output Voltage | 24 V DC (regulated) |
| Output Current | 10 A (rated) |
| Output Power | 240 W |
| Efficiency | Up to 91% |
| Output Ripple | ≤ 120 mVpp |
| Operating Temperature Range | -25 °C to +70 °C |
| Storage Temperature Range | -40 °C to +85 °C |
| Relative Humidity | 5–95% (non-condensing) |
| Protection Class | IP20 (enclosure) |
| Isolation Voltage | 4 kV AC (input to output) |
| Electromagnetic Compatibility | Complies with EN 61000-6-2, EN 61000-6-4 |
| Safety Standards | IEC 60950-1, UL 60950-1, CSA C22.2 No. 60950-1 |
| MTBF | > 500,000 hours (at 25 °C, full load) |
| Mounting | 35 mm DIN rail (EN 50022) |
| Cooling | Convection cooling |
Product Dimensions & Weight
- Dimensions (W × H × D): 70 mm × 125 mm × 127 mm
- Net Weight: Approximately 0.9 kg
- Gross Weight (with packaging): Approximately 1.1 kg
Key Advantages
- High Efficiency: Up to 91% efficiency reduces energy consumption and heat generation, lowering operational costs and extending service life.
- Robust Industrial Design: Operates reliably in extreme temperatures (-25 °C to +70 °C) and harsh industrial environments, with high resistance to shock and vibration.
- Comprehensive Protection: Multi-level protection features ensure safe operation and prevent damage to connected equipment, enhancing system reliability.
- Easy Installation & Maintenance: DIN rail mounting and clear LED indicators simplify installation, commissioning, and troubleshooting.
- Long Service Life: High MTBF and durable construction minimize maintenance requirements and downtime, supporting continuous industrial operation.
- Global Compatibility: Universal input voltage and compliance with international safety and EMC standards enable worldwide deployment.
