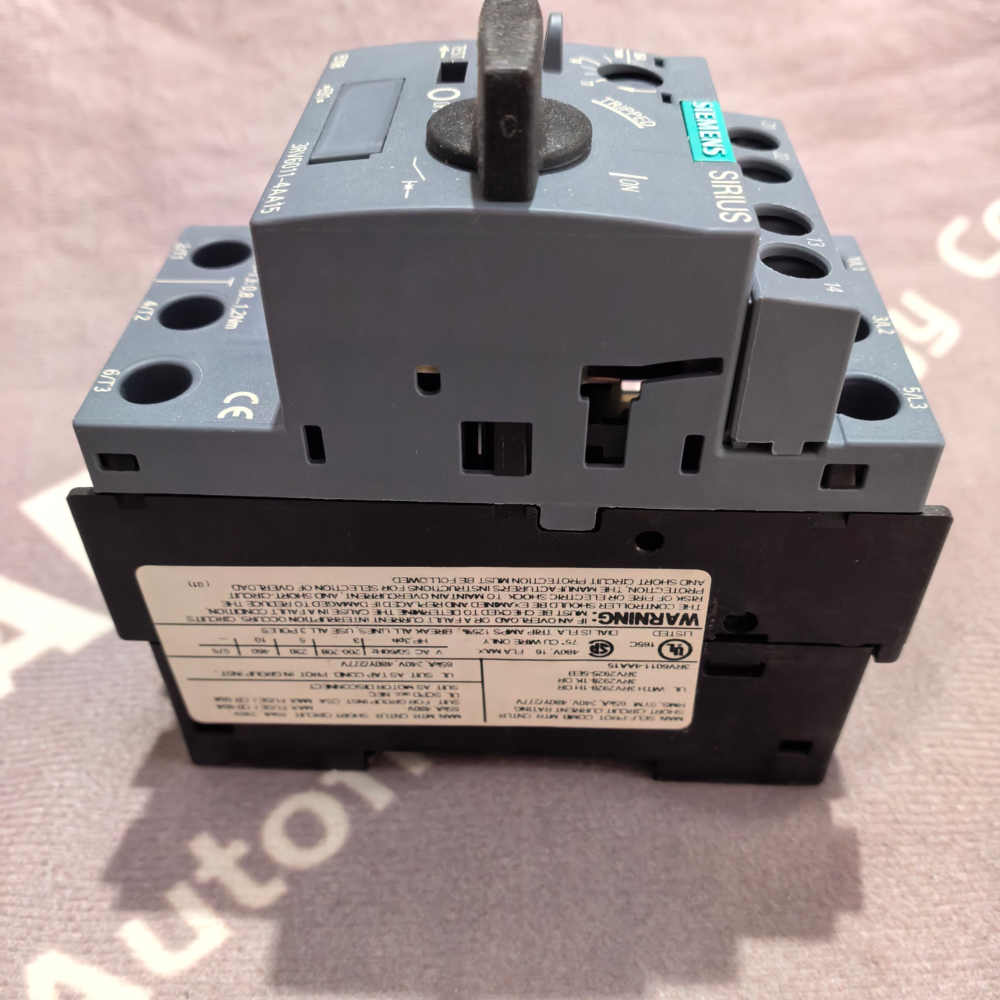

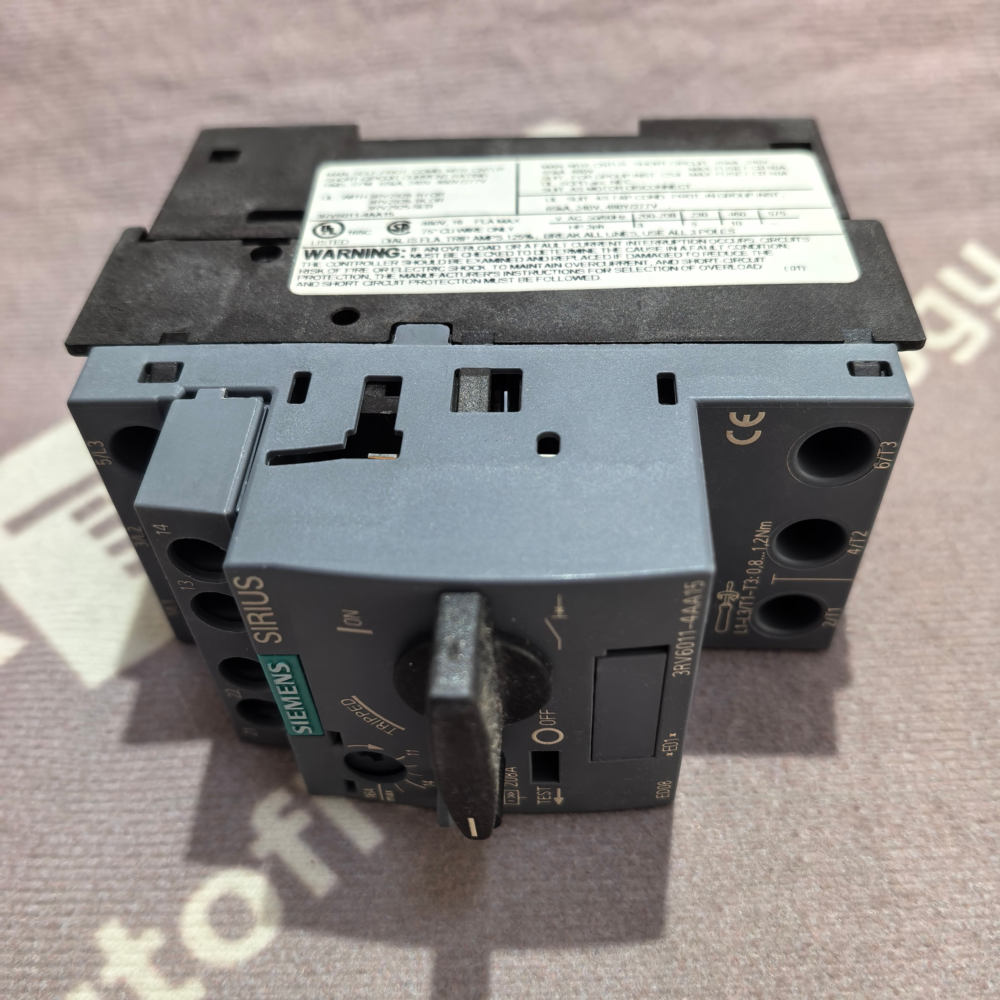

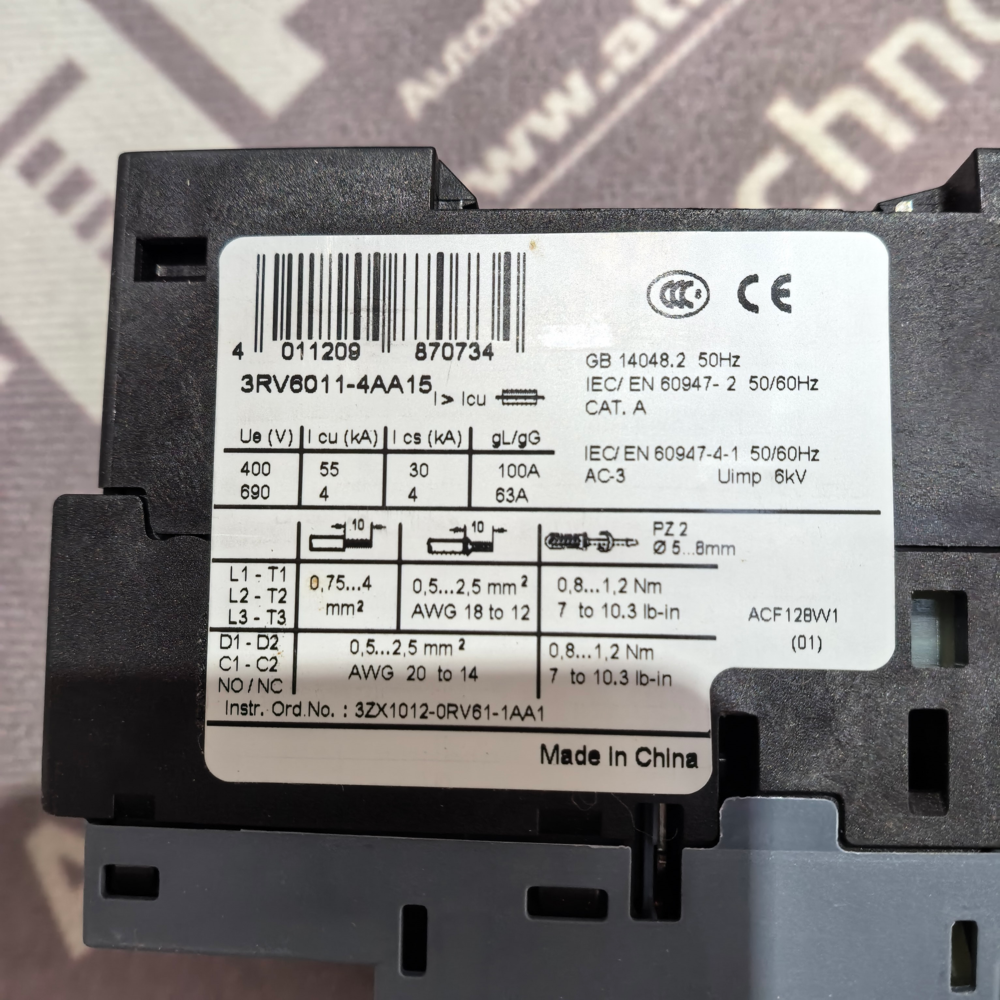

Siemens 3RV6011-4AA15 Motor Protection Circuit Breaker
Product Overview
The Siemens 3RV6011-4AA15 is a high-performance thermal-magnetic motor protection circuit breaker (MPCB) belonging to the SIRIUS 3RV6 series. It is engineered for reliable protection and control of three-phase induction motors and general electrical loads in low-voltage industrial power systems. This model is optimized for motors up to 7.5 kW (at 400 V AC) and features an adjustable overload current range of 11–16 A. It integrates overload, short-circuit, and phase-failure protection in a single compact unit, making it ideal for applications such as conveyor systems, pumps, fans, compressors, and small-to-medium industrial machinery.
Main Functions
- Overload Protection
- Equipped with a Class 10 thermal tripping mechanism, providing time-delayed, anti-time-limit protection against sustained overcurrents, motor stalling, and excessive starting currents.
- Adjustable overload current setting range: 11–16 A, allowing precise matching to the rated current of the protected motor.
- Phase-failure detection: Monitors for unbalanced phase currents and trips to prevent single-phasing damage to motor windings.
- Short-Circuit Protection
- Instantaneous magnetic tripping for short-circuit events, with a high breaking capacity of 55 kA at 400 V AC, ensuring rapid fault isolation.
- Current-limiting design minimizes arc energy and reduces stress on downstream electrical equipment during short-circuit conditions.
- Manual Operation & Status Indication

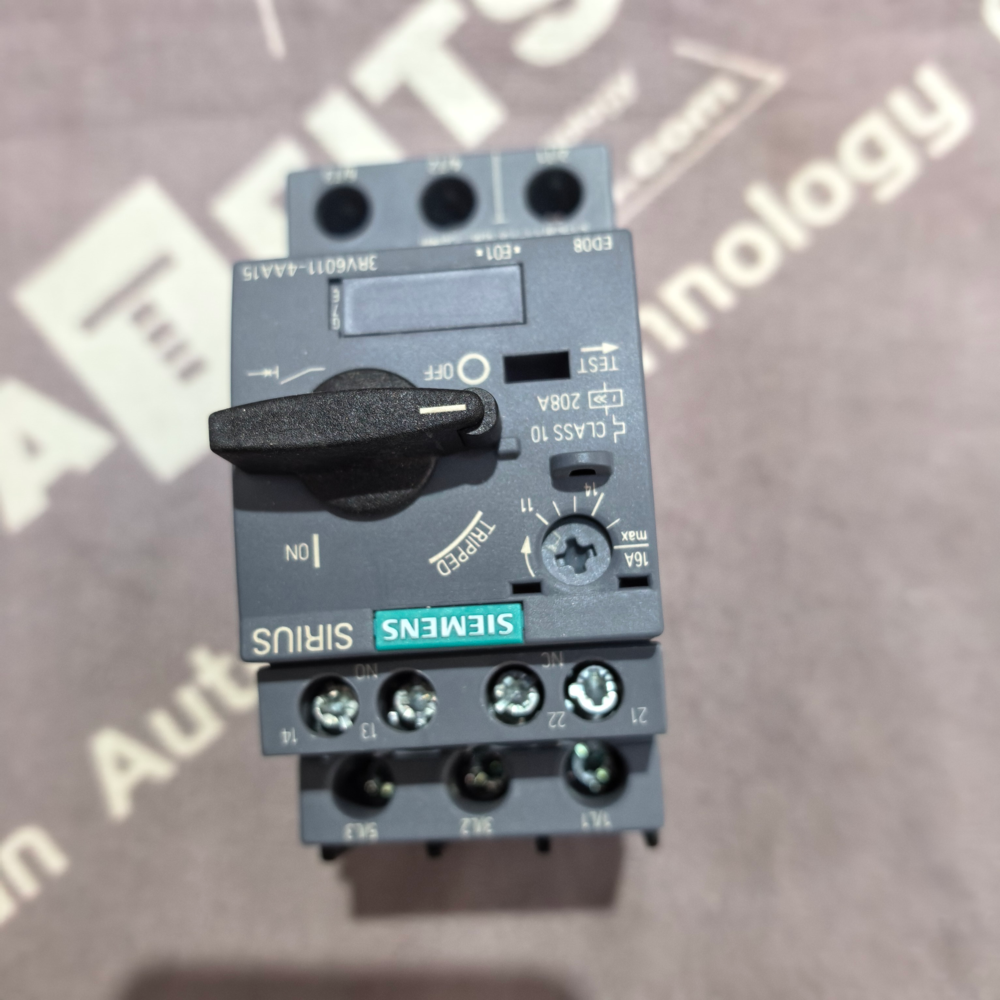

- Front-mounted rotary operating knob for manual ON/OFF switching and local control.

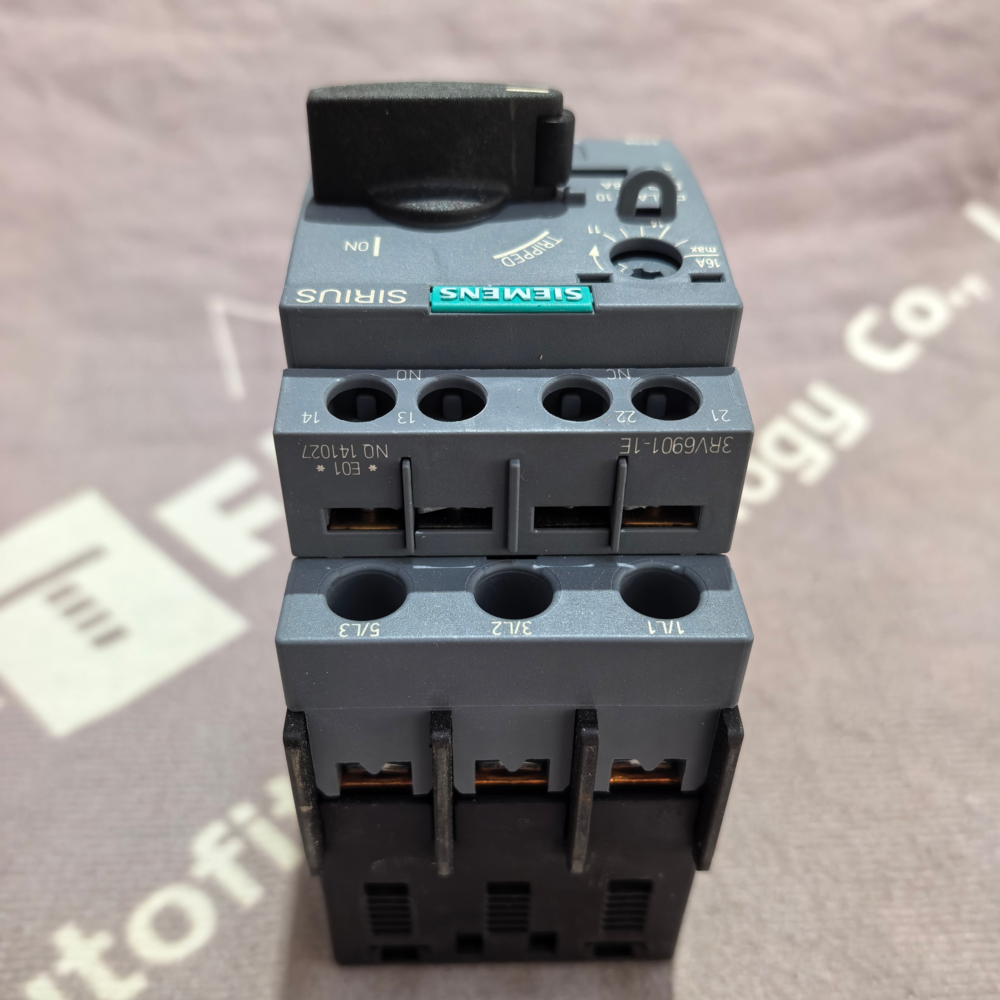

- Integrated 1 NO + 1 NC side-mounted auxiliary contact block for remote status signaling, interlocking, and integration with control circuits.
- System Compatibility
- Suitable for use in TN, TT, and IT power distribution systems (with appropriate considerations for IT network characteristics).
- Complies with international standards IEC 60947-4-1 and VDE 0660 for motor control and protection devices.
Technical Features
表格
| Parameter | Specification |
|---|---|
| Product Series | SIRIUS 3RV6 |
| Frame Size | S00 (45 mm width) |
| Rated Operational Voltage (Ue) | Up to 690 V AC |
| Insulation Voltage (Ui) | 690 V AC |
| Impulse Withstand Voltage (Uimp) | 6 kV |
| Rated Current (In) | 16 A |
| Overload Setting Range | 11–16 A |
| Short-Circuit Breaking Capacity (Icu) | 55 kA at 400 V AC |
| Tripping Class | Class 10 (thermal overload) |
| Number of Poles | 3-pole (3P) |
| Auxiliary Contacts | 1 NO + 1 NC (side-mounted) |
| Terminal Type | Screw terminals |
| Ambient Temperature Range | -25°C to +60°C |
| Protection Degree | IP20 (front), IP00 (terminals) |
| Compliance | IEC 60947-4-1, VDE 0660, RoHS |
| Motor Power Rating (400 V AC) | Up to 7.5 kW |
Product Dimensions
- Width: 45 mm
- Height: 82 mm
- Depth: 70 mm
- Mounting: Standard 35 mm DIN rail mounting (EN 50022)
Weight
- Net weight: Approximately 0.22 kg
- Gross weight (including packaging): Approximately 0.25 kg
Key Advantages
- Compact S00 Frame: The 45 mm width saves valuable space in control cabinets, ideal for space-constrained industrial installations.
- High Breaking Capacity: 55 kA short-circuit protection ensures robust performance and safety in demanding industrial environments.
- Flexible Current Adjustment: The 11–16 A overload setting range accommodates a wide variety of small-to-medium motor ratings.
- All-In-One Protection: Combines overload, short-circuit, and phase-failure protection, reducing component count and simplifying wiring.
- Fast and Reliable Tripping: Class 10 tripping provides rapid, accurate protection for motors with high starting inertia or frequent start-stop cycles.
- Easy Integration: Standard screw terminals and auxiliary contacts facilitate seamless integration into existing control systems.
