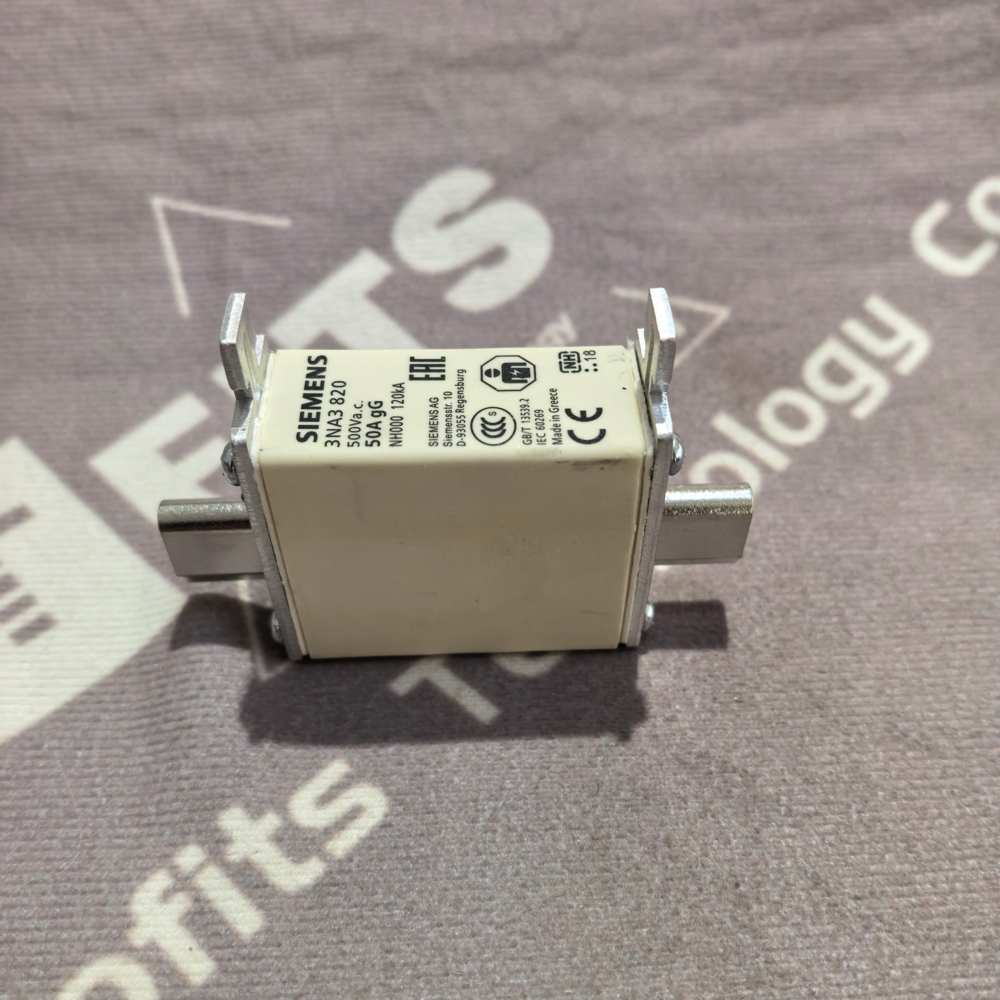

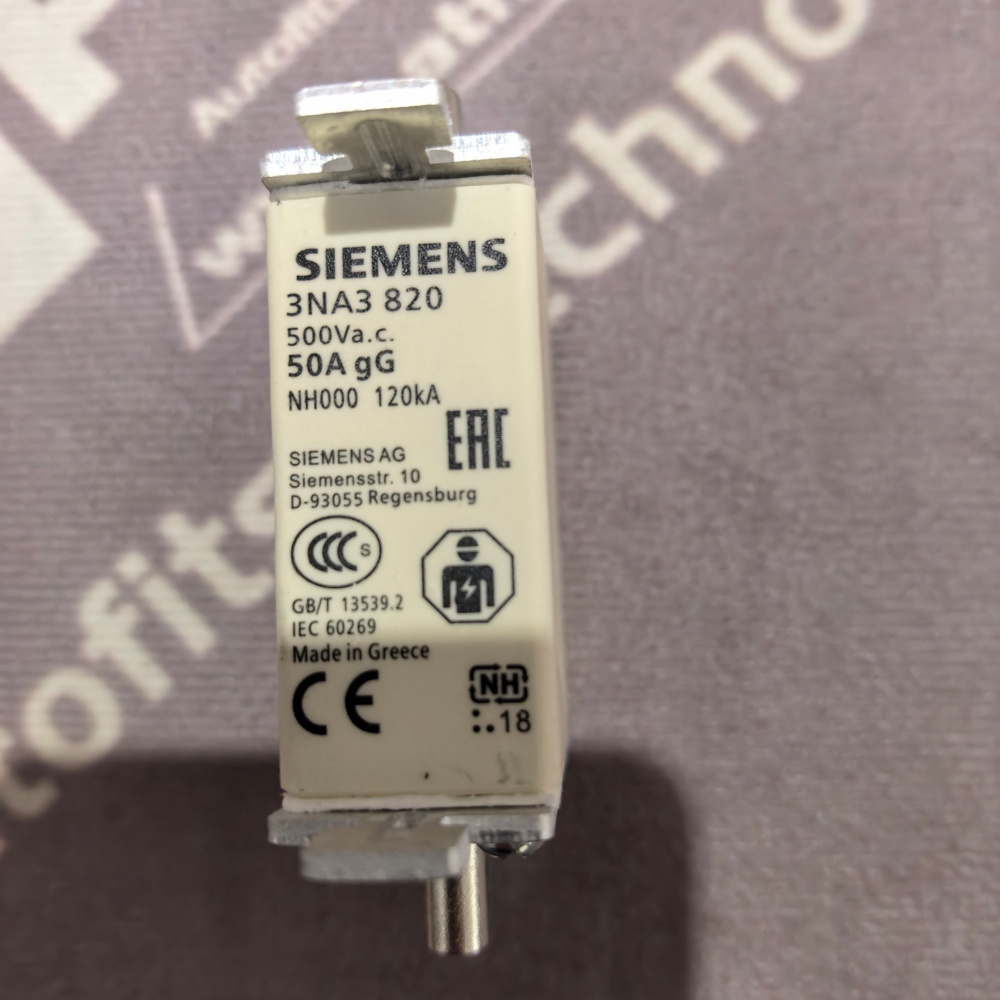

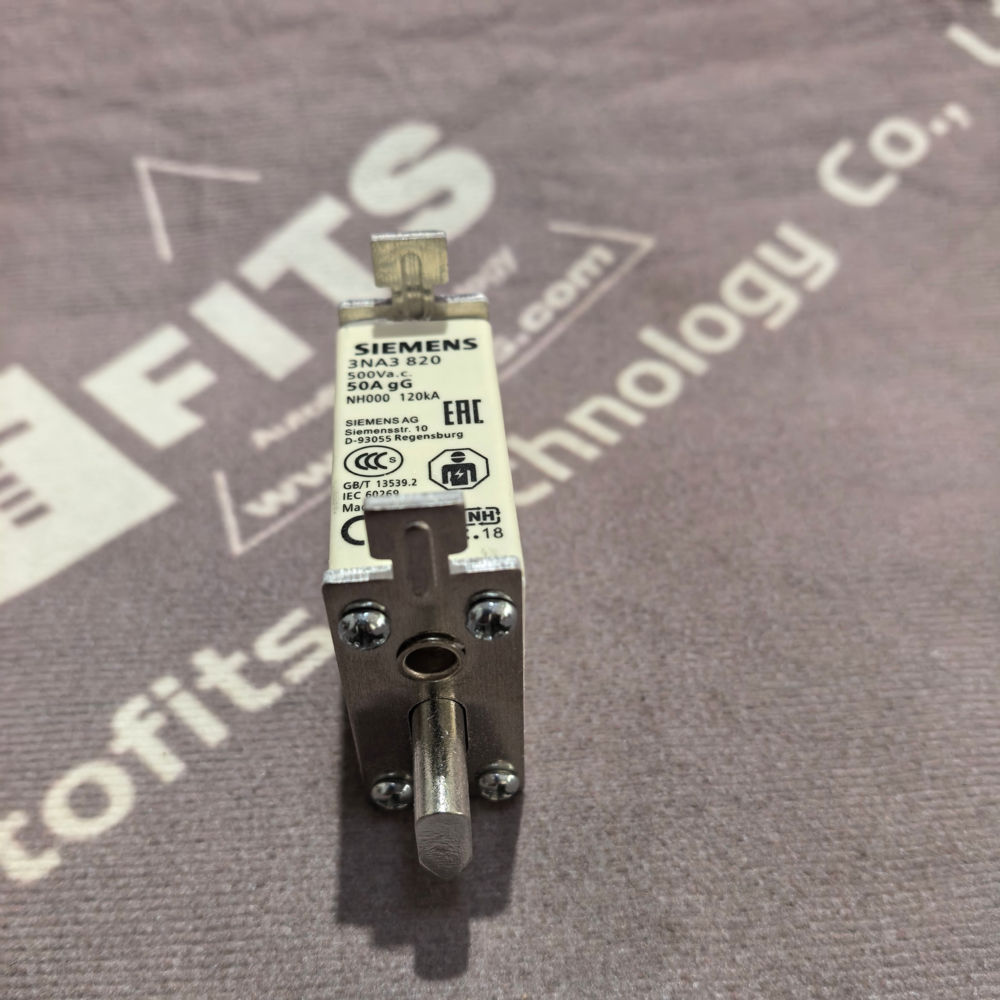

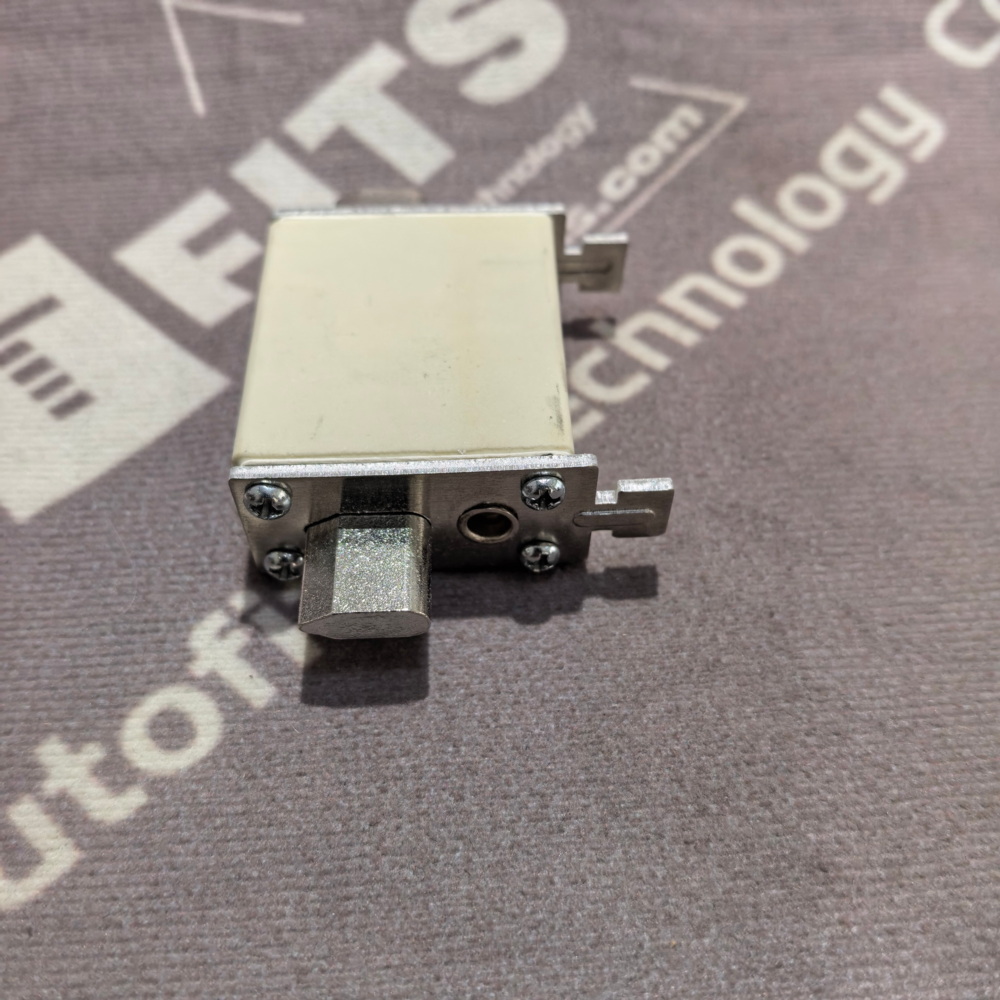

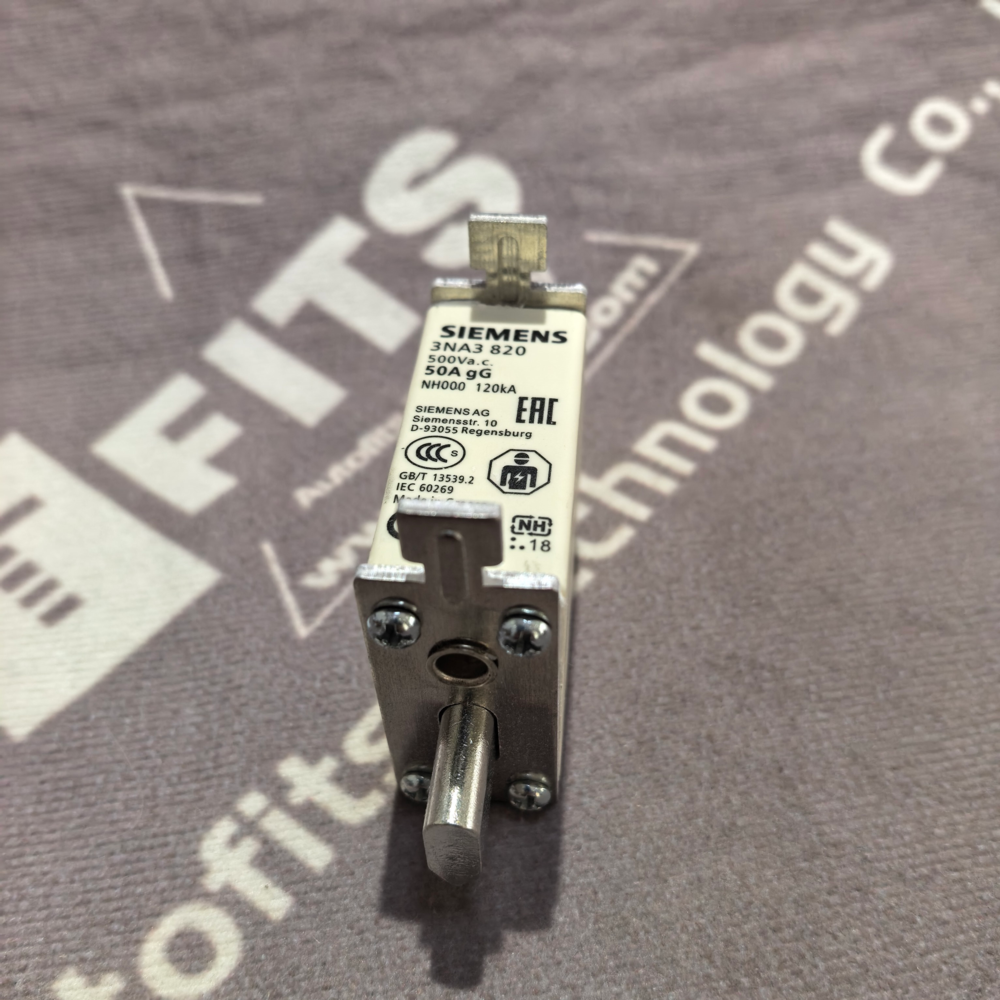

Siemens 3NA3820 LV HRC Fuse Element (50A, 500V, NH000)
Product Overview
The Siemens 3NA3820 is a high-performance, low-voltage (LV) high-rupturing-capacity (HRC) fuse link belonging to the Sentron™ 3NA3 series. Designed for general-purpose circuit protection, it conforms to the NH000 miniature size standard and is classified as a gG-type fuse, making it ideal for safeguarding cables, lines, and electrical equipment in industrial, commercial, and power distribution systems. This fuse provides reliable overcurrent and short-circuit protection with a compact form factor, suitable for installation in standard NH fuse bases and switchgear assemblies.
Main Functions
- Overcurrent & Short-Circuit Protection: Safeguards electrical circuits, cables, motors, transformers, and distribution equipment from damage caused by excessive current or short circuits.
- Visual Fault Indication: Equipped with a front-mounted red indicator that clearly signals when the fuse has operated (blown), enabling quick visual inspection and maintenance.
- Safe Replacement: Features live grip lugs for safe handling and installation, even under live conditions, enhancing operator safety.
- Selective Coordination: Supports selective protection schemes in power distribution networks, minimizing outage areas by isolating only the faulty circuit.
- Dual Voltage Compatibility: Operates effectively in both AC (up to 500V) and DC (up to 250V) systems, offering broad application flexibility.
Technical Characteristics
表格
| Parameter | Specification |
|---|---|
| Manufacturer | Siemens (Sentron™ Series) |
| Part Number | 3NA3820 |
| Fuse Type | LV HRC Fuse Element |
| Rated Current (In) | 50 A |
| Rated Voltage (Un) | 500 V AC / 250 V DC |
| Fuse Size | NH000 (per DIN EN 60269-1) |
| Operating Class | gG (General Purpose, Cable & Line Protection) |
| Breaking Capacity | 120 kA (High Rupture Capacity) |
| Contact Type | Centered blade contacts, silver-plated for corrosion resistance |
| Indicator | Front-face visual trip indicator (red) |
| Mounting | Non-insulated live grip lugs |
| Protection Class | IP20 (with connected conductors) |
| Operating Temperature | -20°C to +50°C |
| Material | Ceramic body, copper/silver-plated contacts |
| Compliance | IEC 60269, EN 60269, VDE 0636, CSA 22.2 |
| Product Lifecycle | Active (PM300) |
Product Dimensions
- Overall Length: 80 mm
- Body Length: 54 mm
- Body Width: 21 mm

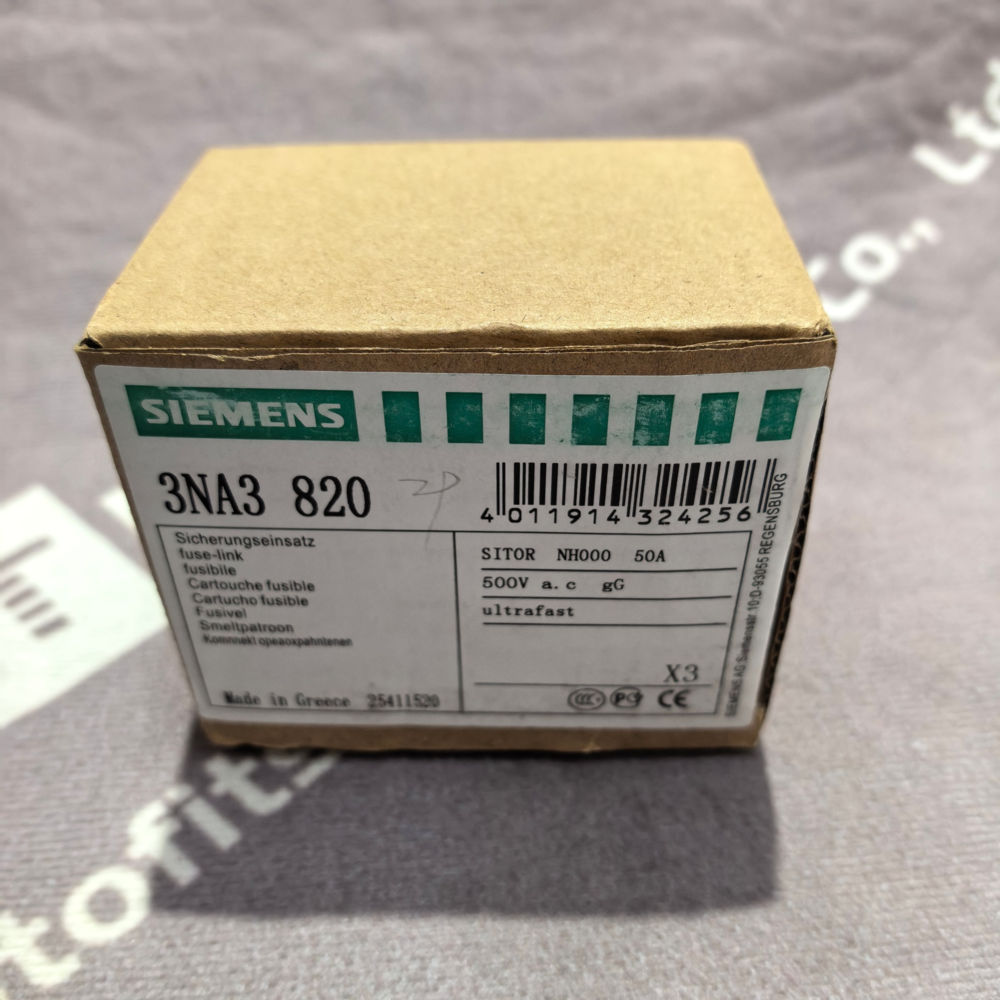

- Packaging Dimensions (Single Unit): 65.00 × 84.00 × 62.00 mm
Weight
- Net Weight: 0.130 kg
