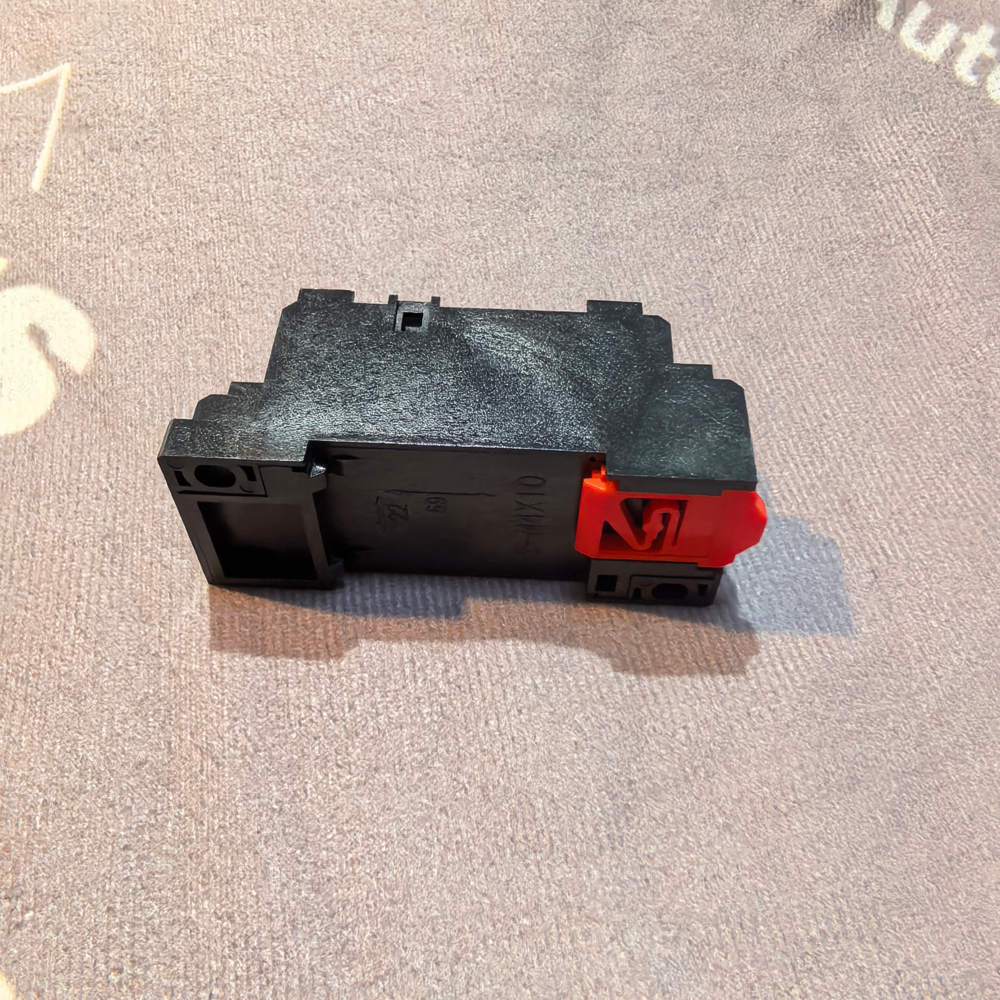

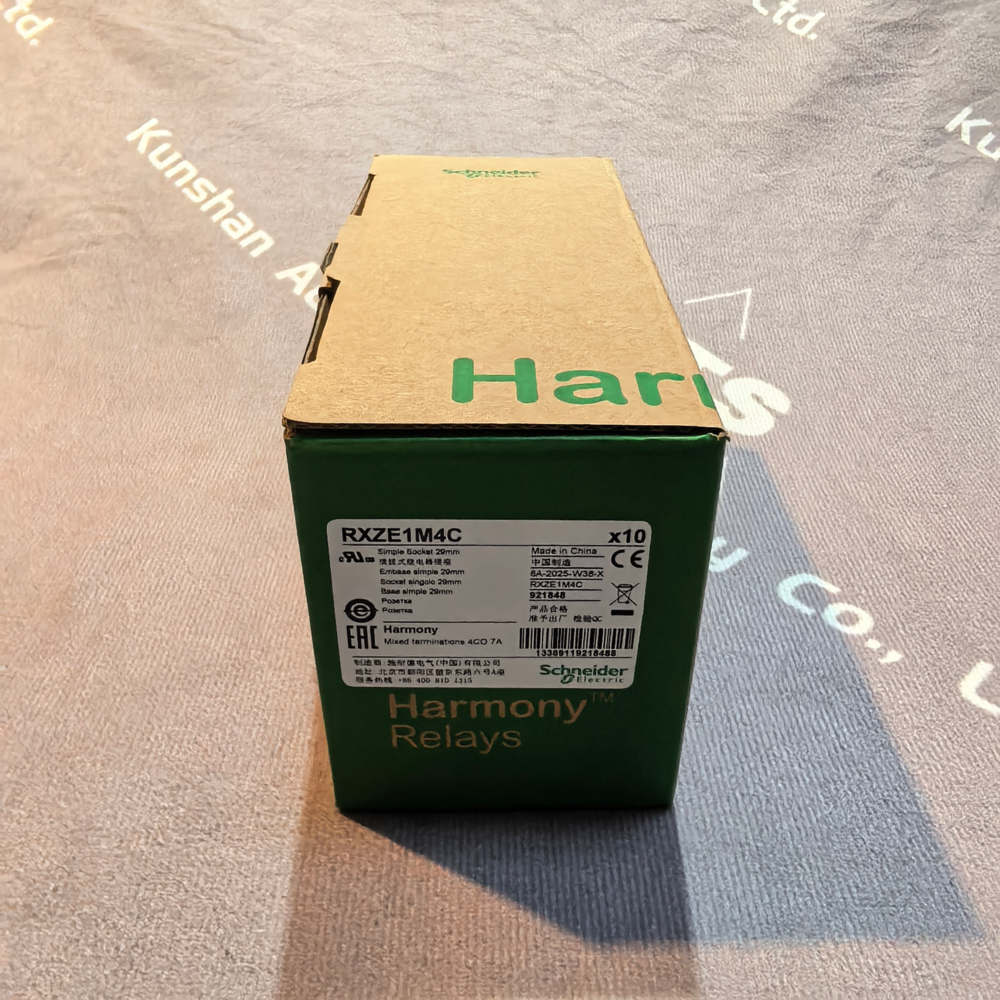

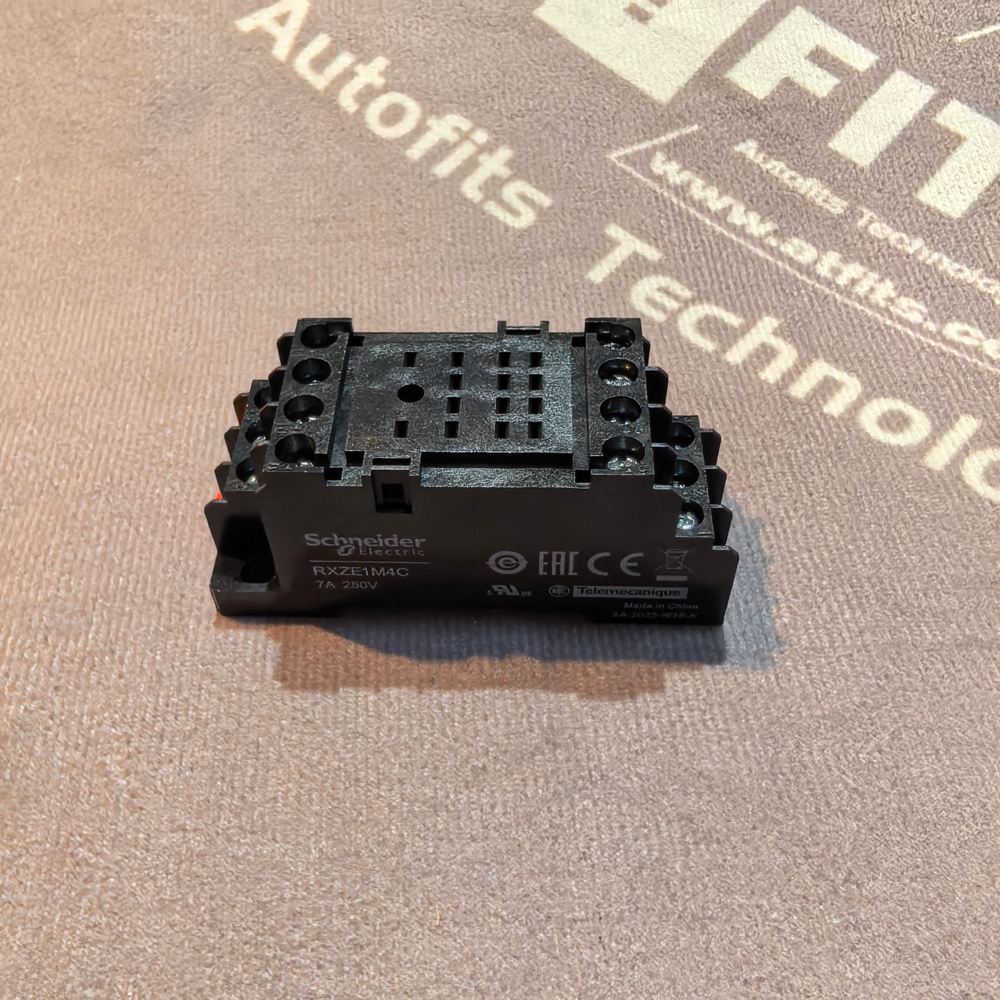

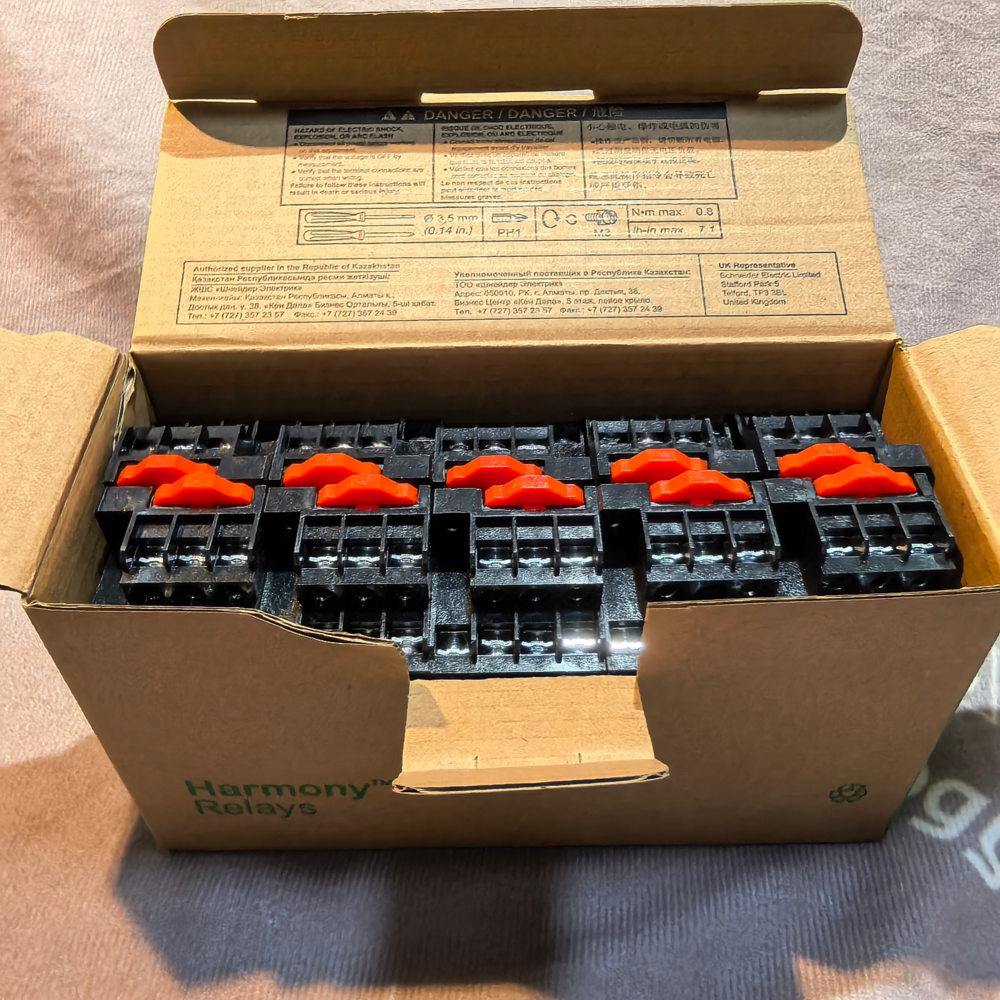

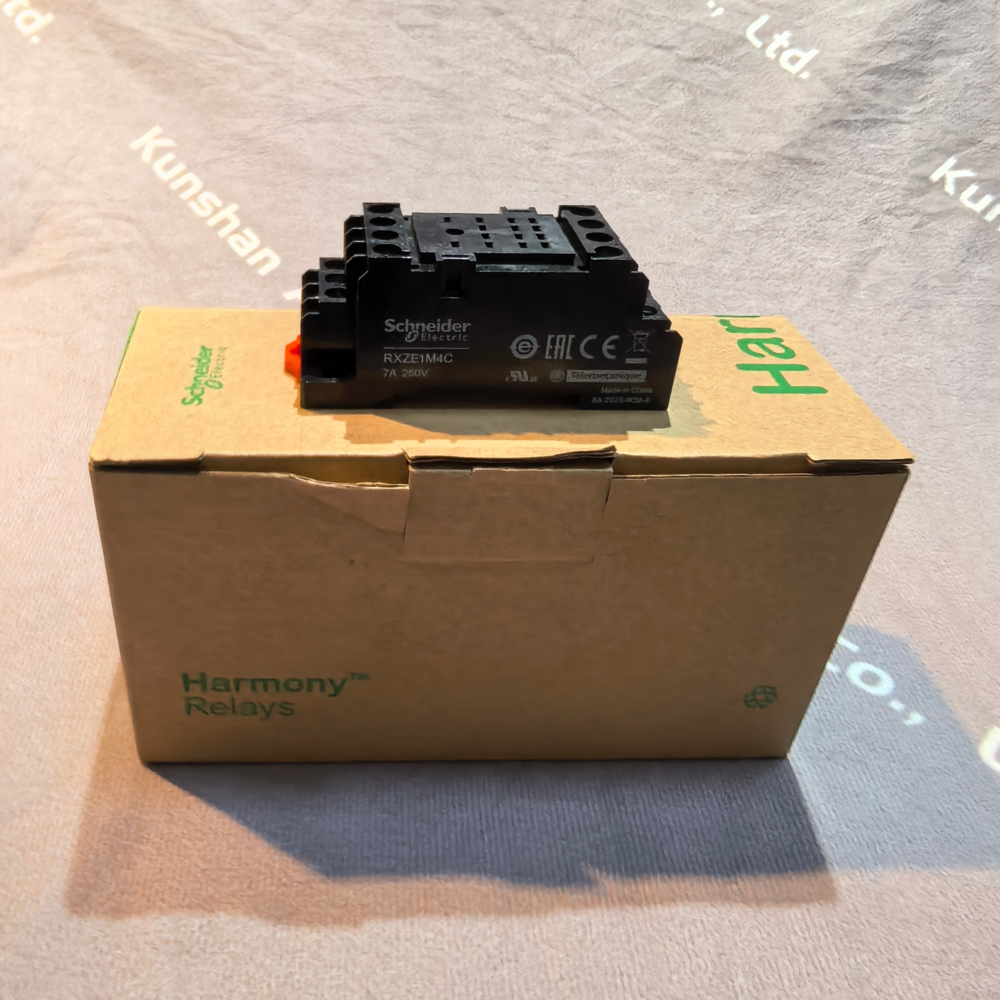

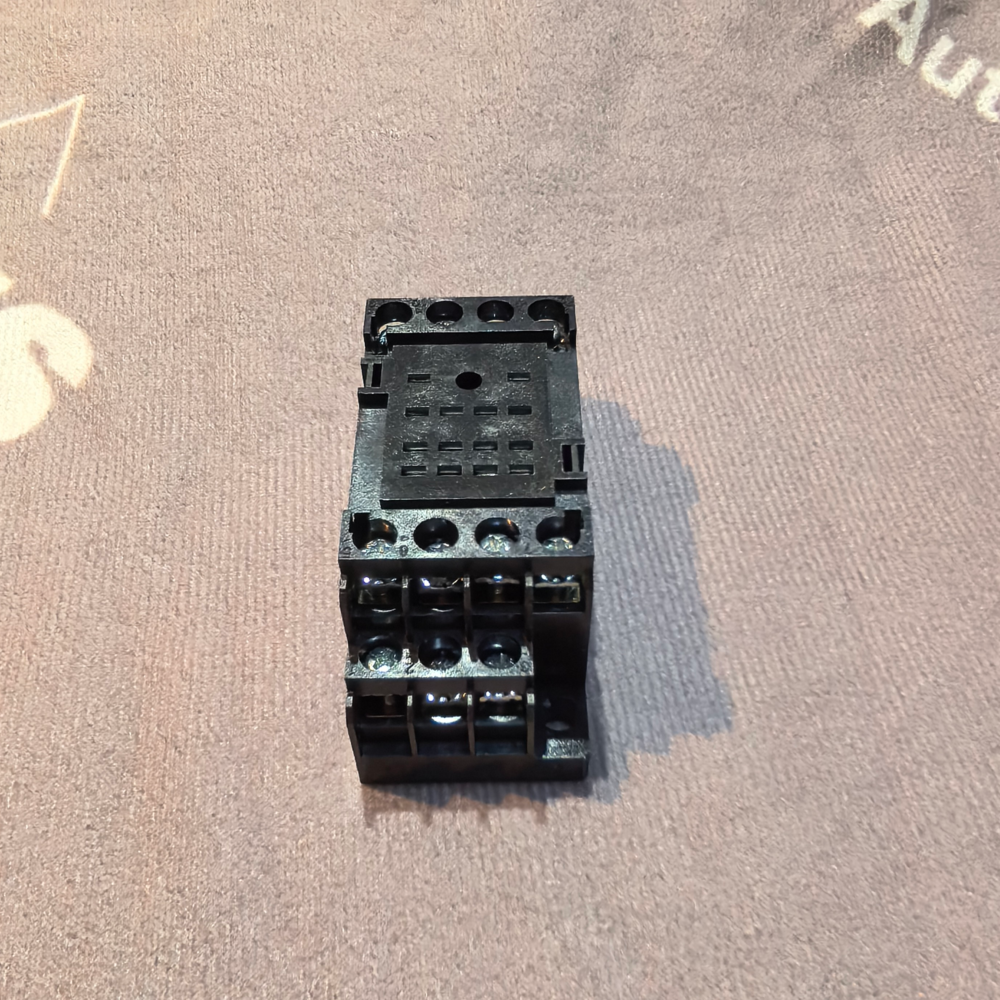

Schneider RXZE1M4C Plug-in Relay Socket
Product Overview
The Schneider RXZE1M4C is an optimized 14-pin plug-in relay socket designed for use with Schneider Electric’s Zelio Relay RXM series 4-pole (4NO+4NC) miniature relays. It serves as a robust interface for mounting and connecting relays in industrial control panels, enabling reliable electrical connections and facilitating easy installation, replacement, and maintenance of relay components. This socket is part of Schneider’s RXZ family, engineered for high performance and compatibility in automation and control systems.
Main Functions
- Relay Mounting & Connection: Provides a secure, plug-in interface for 14-pin RXM series relays, ensuring stable mechanical and electrical contact.
- Wiring Interface: Features screw terminals for secure, tool-assisted wiring of control and load circuits.
- System Integration: Enables integration of relays into control panels, supporting switching and isolation functions in automation circuits.
- Maintenance Convenience: Allows quick, tool-free replacement of relays without rewiring, minimizing system downtime.
- Accessory Compatibility: Compatible with optional protection modules (e.g., diode, RC circuit, varistor) for surge suppression and coil protection (excluding economy sockets).
Technical Specifications
表格
| Parameter | Value |
|---|---|
| Model | RXZE1M4C |
| Series | Zelio Relay RXM / RXZ |
| Pin Configuration | 14-pin (4NO+4NC) |
| Rated Current | 7 A |
| Rated Voltage | 250 V AC/DC |
| Terminal Type | Screw terminals |
| Mounting | DIN rail mounting (standard) |
| Compatible Relays | RXM4 series (4-pole, 14-pin) relays |
| Protection Class | IP20 (front) |
| Operating Temperature | -20°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Material | Flame-retardant thermoplastic (UL 94 V-0) |
Technical Features
- Optimized Design: Compact form factor for space-efficient panel layout.
- Secure Contact: Precision-engineered pin sockets ensure low contact resistance and high connection stability.
- Tool-Free Relay Insertion/Removal: Toothed surface for easy, secure plug-and-play operation.
- DIN Rail Compatibility: Standard 35 mm DIN rail mounting for quick installation.
- Labeling Slot: Integrated slot for identification labels to aid circuit management.
- High Durability: Robust construction for long service life in industrial environments.
- Universal Compatibility: Works with all standard 14-pin RXM4 relays (e.g., RXM4LB1JD, RXM4AB2BD).
Product Dimensions
- Length: 45 mm
- Width: 22.5 mm
- Height: 50 mm (including terminal height)
Weight
- Net Weight: Approximately 25 g (0.025 kg)
