Schneider GV3P65 Motor Circuit Breaker
1. Product Overview

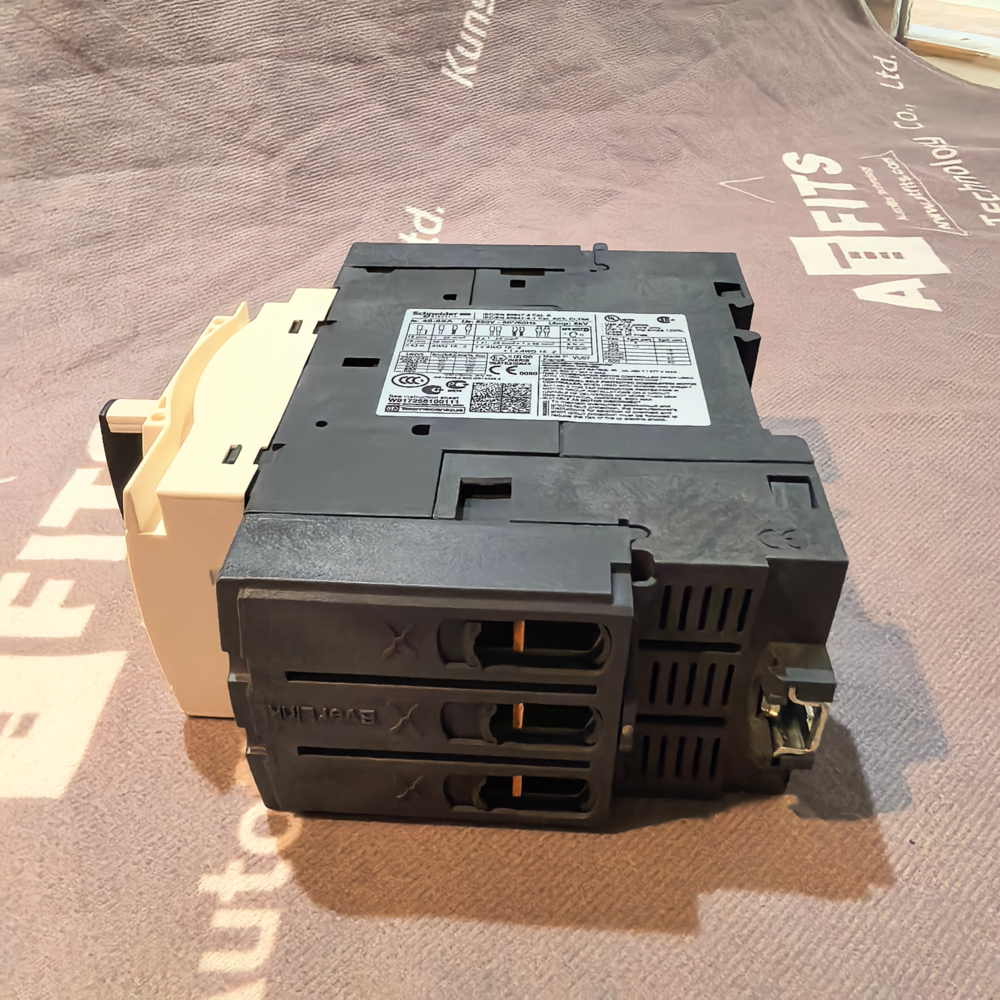

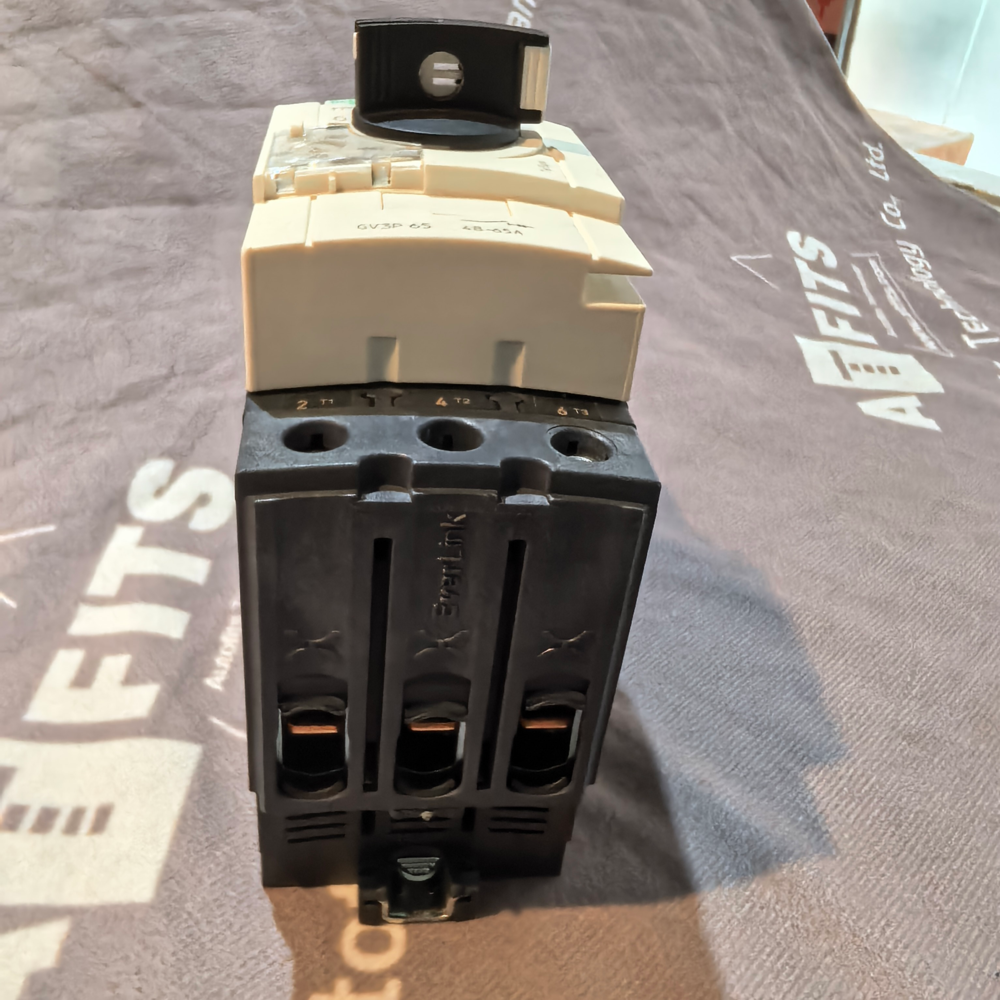

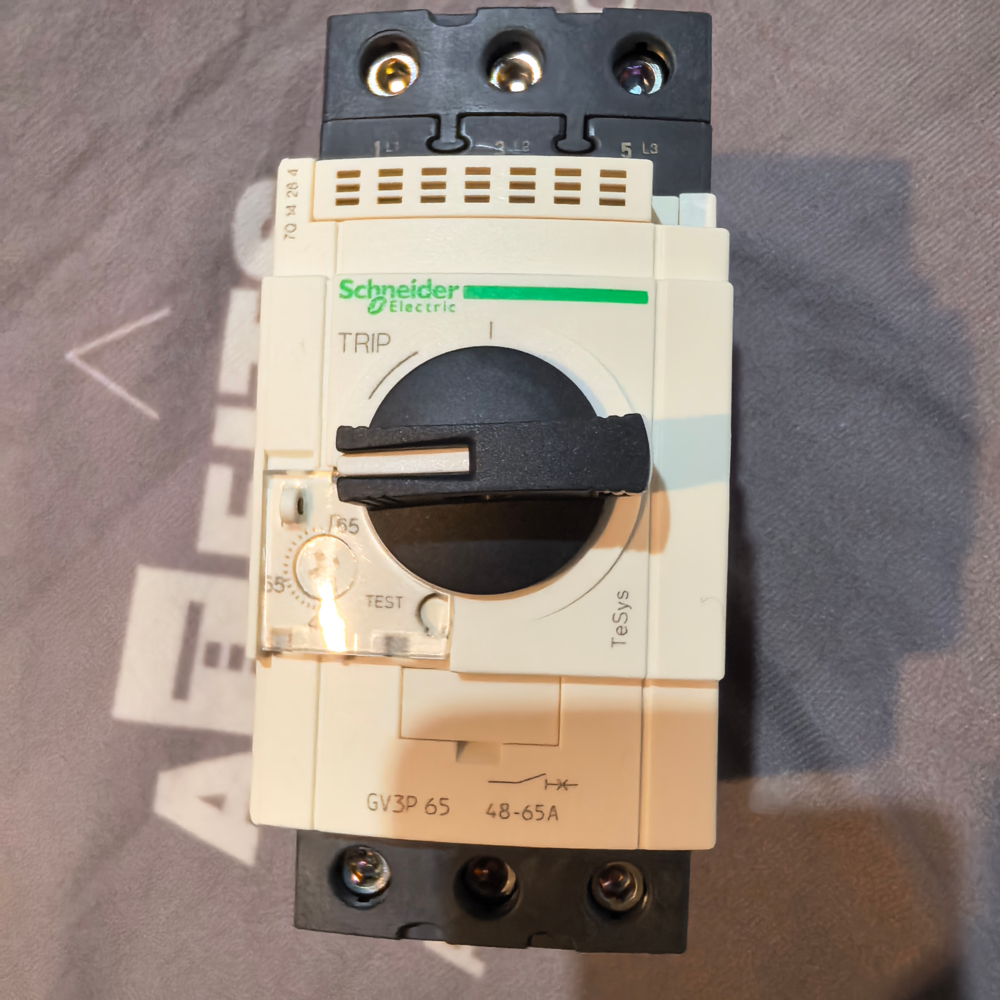

The Schneider Electric GV3P65 is a 3‑pole thermal‑magnetic motor circuit breaker from the TeSys GV3 series, engineered for the control and comprehensive protection of medium‑power three‑phase motors. It features an adjustable thermal current setting range of 48 A to 65 A and is rated for a maximum operational voltage of 690 V AC (50/60 Hz), making it ideal for motors up to 30 kW in standard 400 V AC industrial systems.
This robust, DIN‑rail mountable device integrates overload protection, short‑circuit protection, phase‑loss detection, and manual motor control in one unit. Compliant with IEC 60947‑2 and IEC 60947‑4‑1 standards, it is widely used in industrial automation, heavy machinery, conveyor systems, pumps, fans, and other equipment requiring reliable motor protection and high‑performance fault clearing.
2. Main Functions
表格
| Function | Detailed Description |
|---|---|
| Precision Overload Protection | Adjustable thermal trip unit (48–65 A) provides time‑delayed tripping for sustained overloads, preventing motor overheating and insulation damage. |
| High‑Speed Short‑Circuit Protection | Fast‑acting magnetic trip mechanism (instantaneous at 12 × In) rapidly clears short‑circuit faults up to 100 kA at 400 V AC, protecting motor windings and connected components. |
| Phase‑Loss & Unbalance Protection | Built‑in phase sensitivity detects single‑phase operation and current imbalance, triggering a trip to avoid motor burnout. |
| Manual Motor Control & Isolation | Ergonomic rotary knob operation enables direct ON/OFF switching and provides positive isolation for safe maintenance. |
| Lockable Safety Feature | The OFF position accepts up to 3 padlocks, preventing unauthorized re‑energization during servicing. |
| Modular Accessory Compatibility | Supports integration with auxiliary contacts, alarm contacts, shunt trips, and undervoltage releases for remote control and monitoring. |
| Visual Status Indication | Clear mechanical indicators show ON/OFF/tripped status, ensuring safe maintenance and troubleshooting. |
| Fault Memory Function | Retains trip cause indication (overload/short‑circuit) for quick diagnostics after a fault event. |
3. Technical Features
-

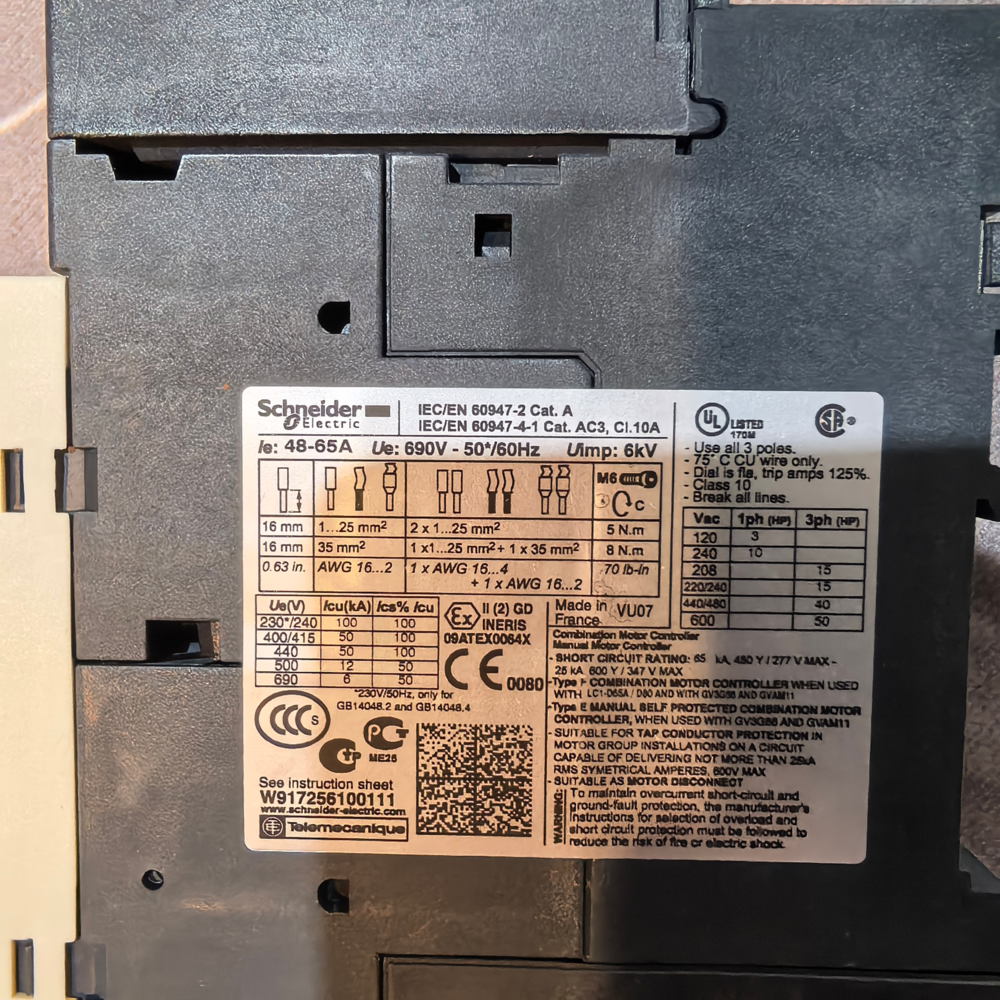

Core Electrical Ratings
- Poles: 3‑pole (3P) for three‑phase motor circuits.
- Adjustable Thermal Current Range: 48 A – 65 A.
- Short‑Circuit Breaking Capacity (Icu): 100 kA at 400 V AC, 50 kA at 690 V AC.
- Rated Insulation Voltage (Ui): 690 V AC.
- Rated Impulse Withstand Voltage (Uimp): 6 kV.
- Instantaneous Magnetic Trip Threshold: 12 × In (nominal current).
-
Trip Mechanism
- Integrated thermal‑magnetic trip unit: thermal for overloads, magnetic for short‑circuits.
- Non‑interchangeable trip settings for tamper‑proof and consistent protection.
- Conforms to IEC 60947‑4‑1 for motor‑specific protection requirements.
-
Mechanical & Environmental Robustness
- Mechanical Life: 100,000 operations; Electrical Life: 10,000 operations (AC‑3, 440 V).
- Operating Temperature: -20°C to +60°C (derating applies above 40°C).
- Storage Temperature: -40°C to +80°C.
- Protection Class: IP20 (front) against direct finger contact with live parts.
- Vibration/Shock Resistance: Withstands up to 5 Gn vibration and 30 Gn shock, suitable for harsh industrial environments.
-
Installation & Termination
- Dual mounting: 35 mm standard DIN rail or direct screw fixing.
- Secure screw‑type terminals for reliable wire connections (solid/stranded copper).
- Compact width of 55 mm for high‑density panel mounting.
4. Product Dimensions (Unit: mm)
表格
| Dimension Parameter | Value |
|---|---|
| Width (3 Poles) | 55 |
| Height | 132 |
| Depth | 136 |
| Mounting Interface | 35 mm DIN Rail (EN 60715) |
| Terminal Screw Size | M6 |
| Front Panel Cutout (Optional) | 55 × 132 |
5. Weight and Material Specifications
表格
| Component | Material | Weight (g) |
|---|---|---|
| Main Housing | Flame‑Retardant Thermoplastic (UL94 V0) | 520 |
| Current‑Carrying Parts | Tin‑Plated Copper Alloy | 220 |
| Trip Mechanism | Steel & Brass Alloy | 130 |
| Operating Knob | Reinforced Thermoplastic | 40 |
| Arc Chute | Ceramic & Steel | 40 |
| Terminal Screws | Zinc‑Plated Steel | 10 |
| Total Weight (Complete Unit) | – | 960 |
6. Key Performance Parameters
表格
| Parameter | Value |
|---|---|
| Product Type | 3‑Pole Thermal‑Magnetic Motor Circuit Breaker |
| Model Number | GV3P65 |
| Poles | 3 |
| Adjustable Current Range | 48 A – 65 A |
| Rated Operational Voltage (Ue) | 690 V AC (50/60 Hz) |
| Short‑Circuit Breaking Capacity (Icu) | 100 kA (400 V AC) |
| Instantaneous Trip Setting | 12 × In |
| Standards Compliance | IEC 60947‑2, IEC 60947‑4‑1, CE, CCC, CSA |
| Operating Temperature Range | -20°C to +60°C |
| Protection Class | IP20 |
| Mounting Type | 35 mm DIN Rail / Screw Fixing |
| Mechanical Life | 100,000 Operations |
| Electrical Life | 10,000 Operations (AC‑3) |
| Approximate Total Weight | 960 g |
