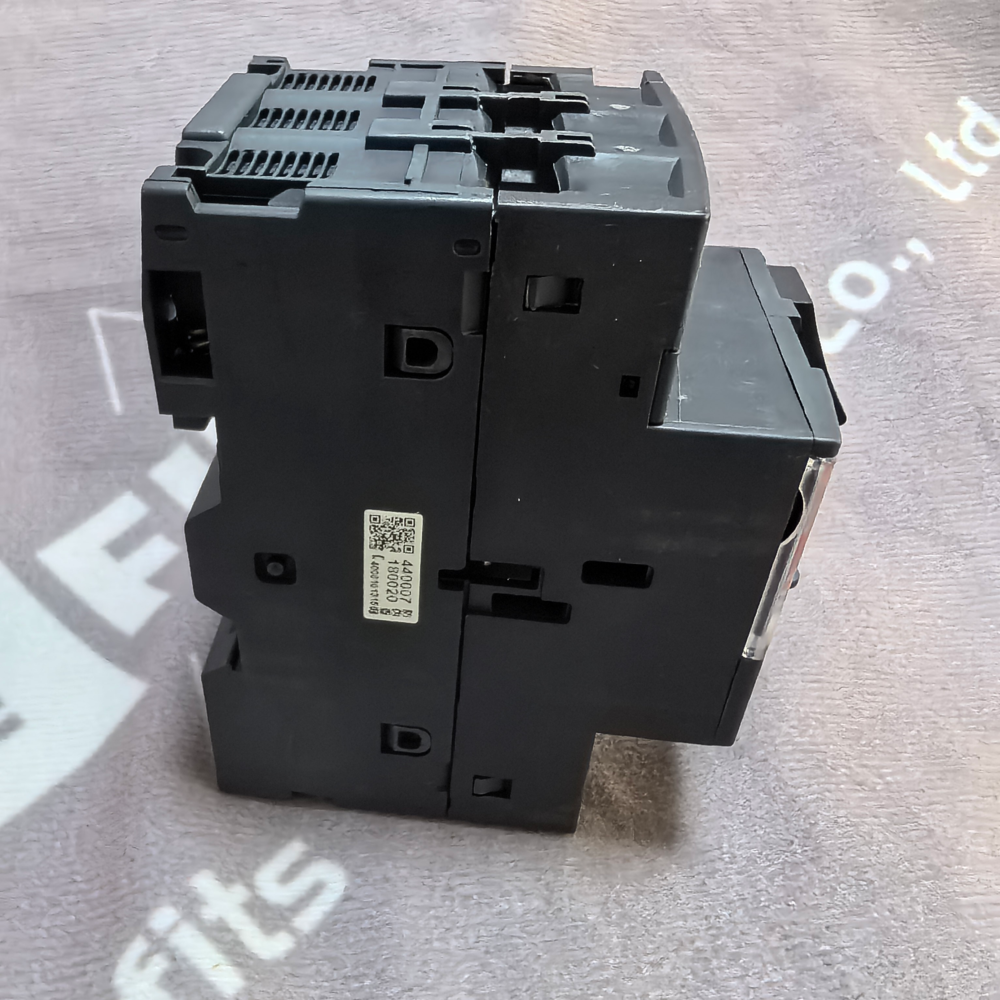

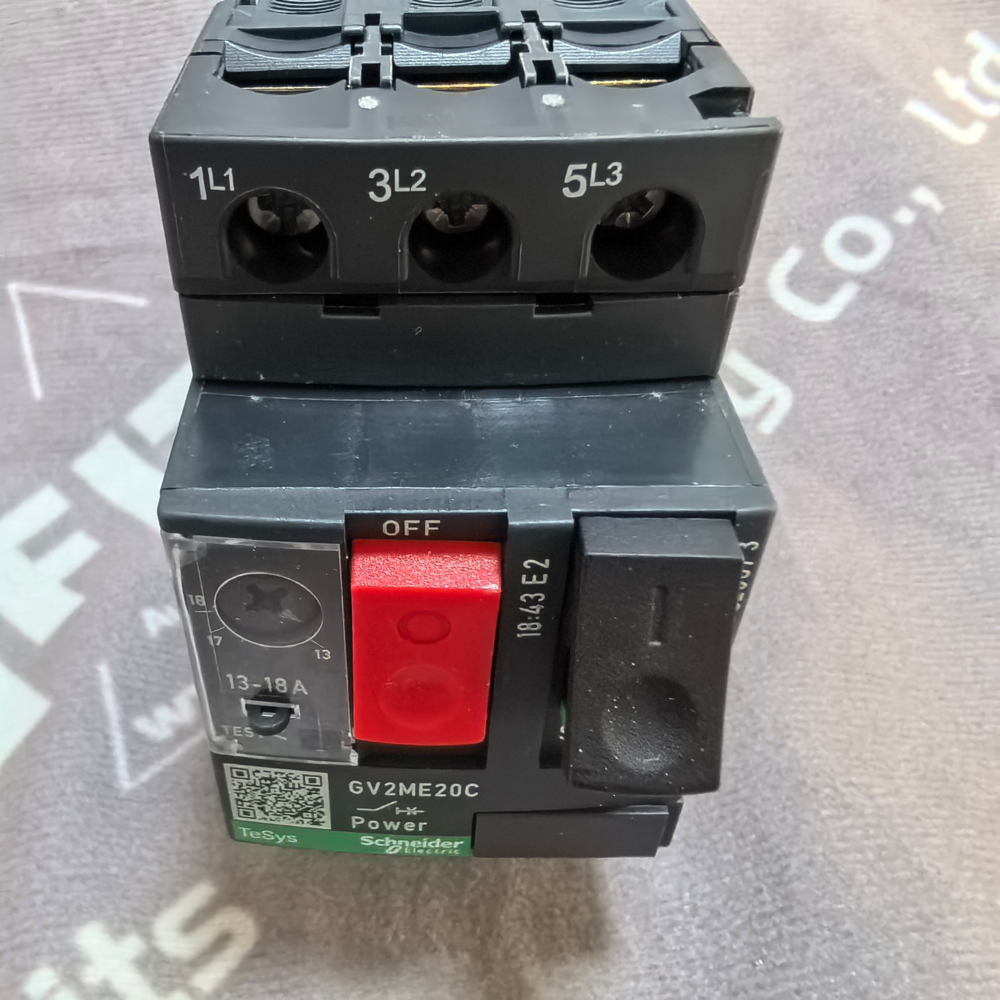

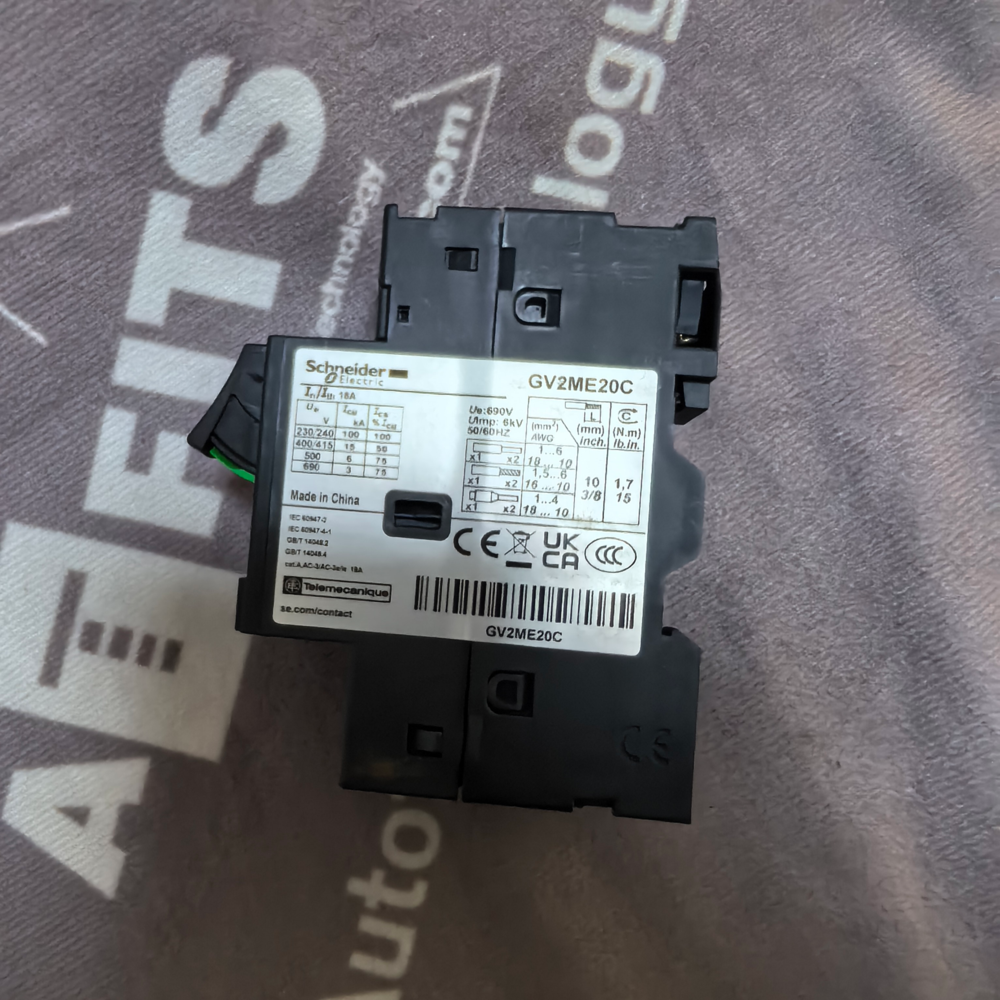

Schneider GV2ME20C Motor Circuit Breaker
1. Product Overview
The Schneider Electric GV2ME20C is a 3‑pole thermal‑magnetic motor circuit breaker belonging to the TeSys GV2 series, designed for the control and comprehensive protection of three‑phase motors. It features an adjustable thermal current setting range of 13 A to 18 A and is rated for a maximum operational voltage of 690 V AC (50/60 Hz), making it suitable for motors up to 7.5 kW in standard 400 V AC industrial systems.
This compact, DIN‑rail mountable device integrates overload protection, short‑circuit protection, phase‑loss detection, and manual motor control in one unit. Compliant with IEC 60947‑2 and IEC 60947‑4‑1 standards, it is widely used in industrial automation, conveyor systems, pumps, fans, and other equipment requiring reliable motor protection and space‑saving installation.
2. Main Functions
表格
| Function | Detailed Description |
|---|---|
| Overload Protection | Adjustable thermal trip unit (13–18 A) provides time‑delayed tripping for sustained overloads, preventing motor overheating and insulation damage. |
| Short‑Circuit Protection | Fast‑acting magnetic trip mechanism (instantaneous at 12 × In) rapidly clears short‑circuit faults up to 100 kA at 400 V AC, protecting motor windings and connected components. |
| Phase‑Loss & Unbalance Protection | Built‑in phase sensitivity detects single‑phase operation and current imbalance, triggering a trip to avoid motor burnout. |
| Manual Motor Control | Ergonomic push‑button operation enables direct ON/OFF switching for motor starting and stopping. |
| Visible Isolation Indication | Clear mechanical indicators show ON/OFF/tripped status, ensuring safe maintenance and troubleshooting. |
| Lockable Safety Feature | The OFF position can be locked with up to 3 padlocks, preventing unauthorized operation during servicing. |
| Modular Accessory Compatibility | Supports integration with auxiliary contacts, alarm contacts, shunt trips, and undervoltage releases for remote control and monitoring. |
| Safe Isolation Function | Acts as a reliable disconnecting device, providing complete circuit isolation for equipment maintenance. |
3. Technical Features
-
Core Electrical Ratings
- Poles: 3‑pole (3P) for three‑phase motor circuits.
- Adjustable Thermal Current Range: 13 A – 18 A.
- Short‑Circuit Breaking Capacity (Icu): 100 kA at 400 V AC, 50 kA at 690 V AC.
- Rated Insulation Voltage (Ui): 690 V AC.
- Rated Impulse Withstand Voltage (Uimp): 6 kV.
- Instantaneous Magnetic Trip Threshold: 12 × In (nominal current).
-
Trip Mechanism
- Integrated thermal‑magnetic trip unit: thermal for overloads, magnetic for short‑circuits.
- Non‑interchangeable trip settings for tamper‑proof and consistent protection.
- Conforms to IEC 60947‑4‑1 for motor‑specific protection requirements.
-
Mechanical & Environmental Robustness
- Mechanical Life: 100,000 operations; Electrical Life: 10,000 operations (AC‑3, 440 V).
- Operating
