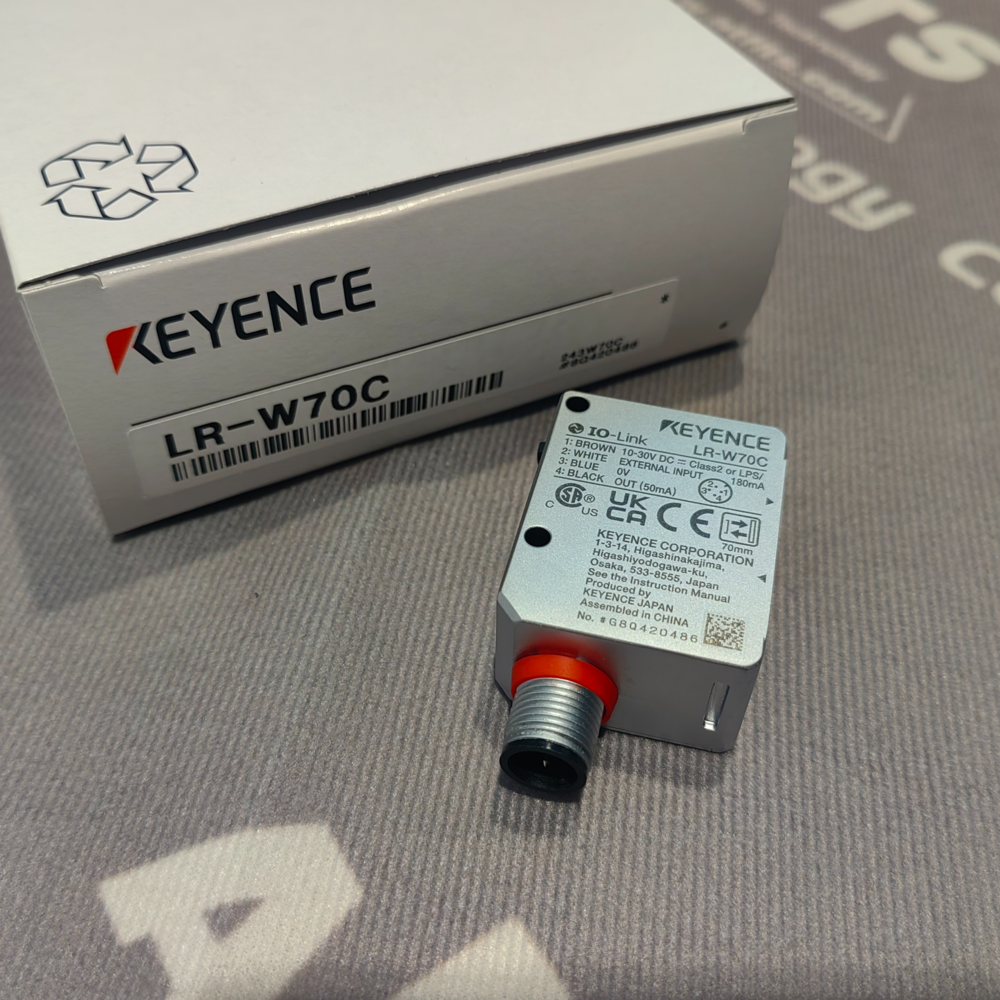

Keyence LR-W70C Optic Sensor LRW70C - Imagen 2

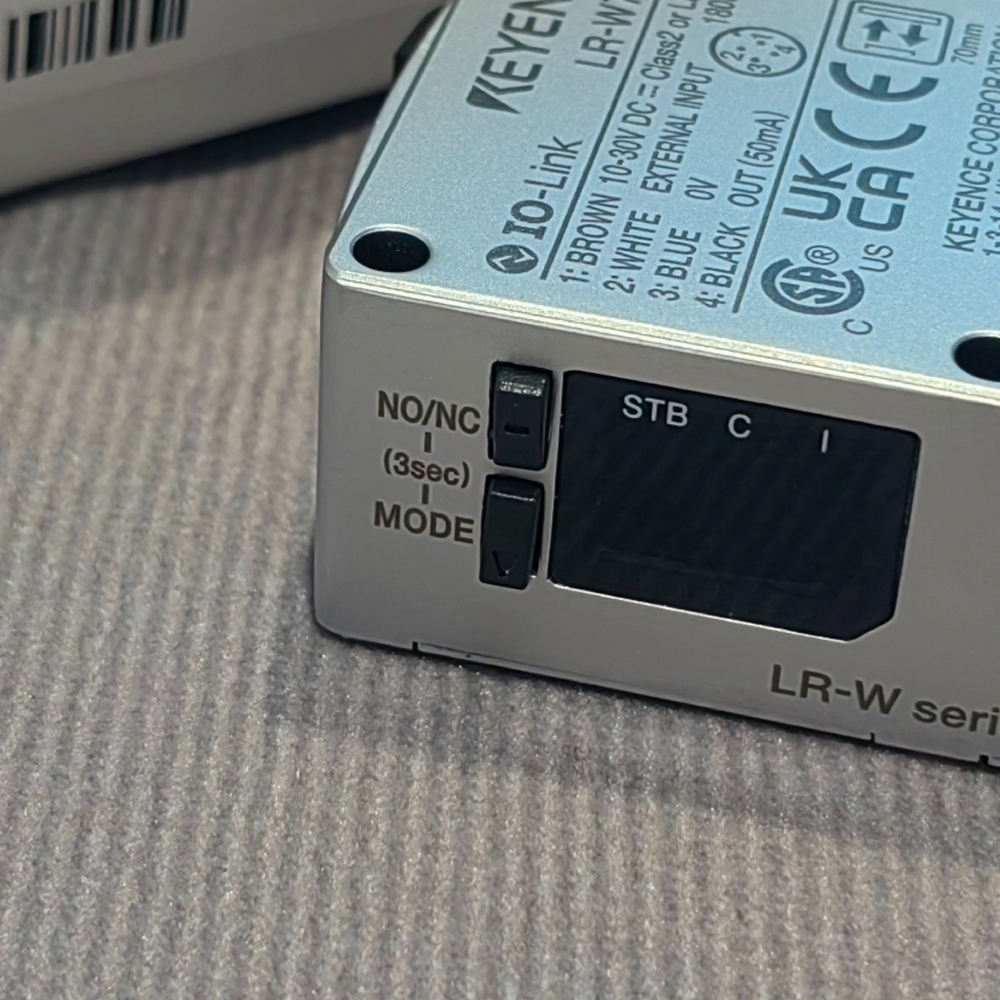

Keyence LR-W70C Optic Sensor LRW70C - Imagen 3

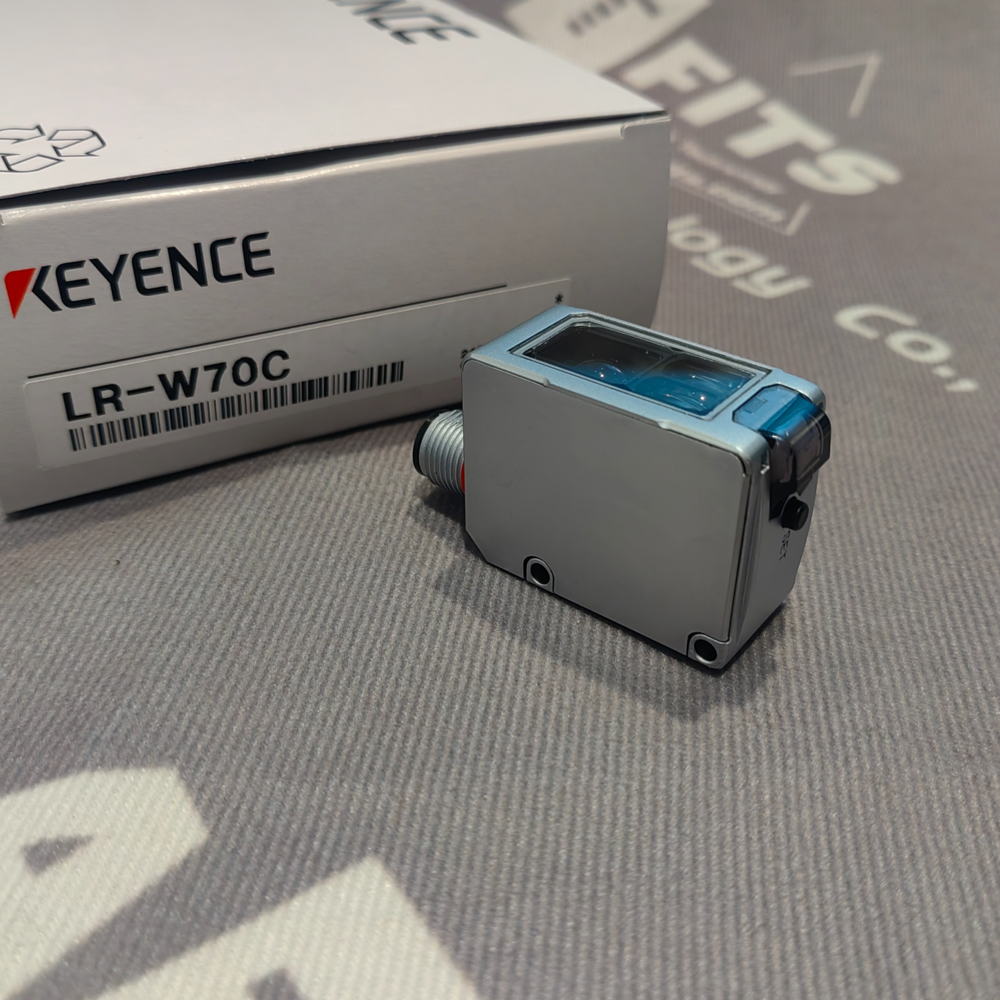

Keyence LR-W70C Optic Sensor LRW70C - Imagen 4

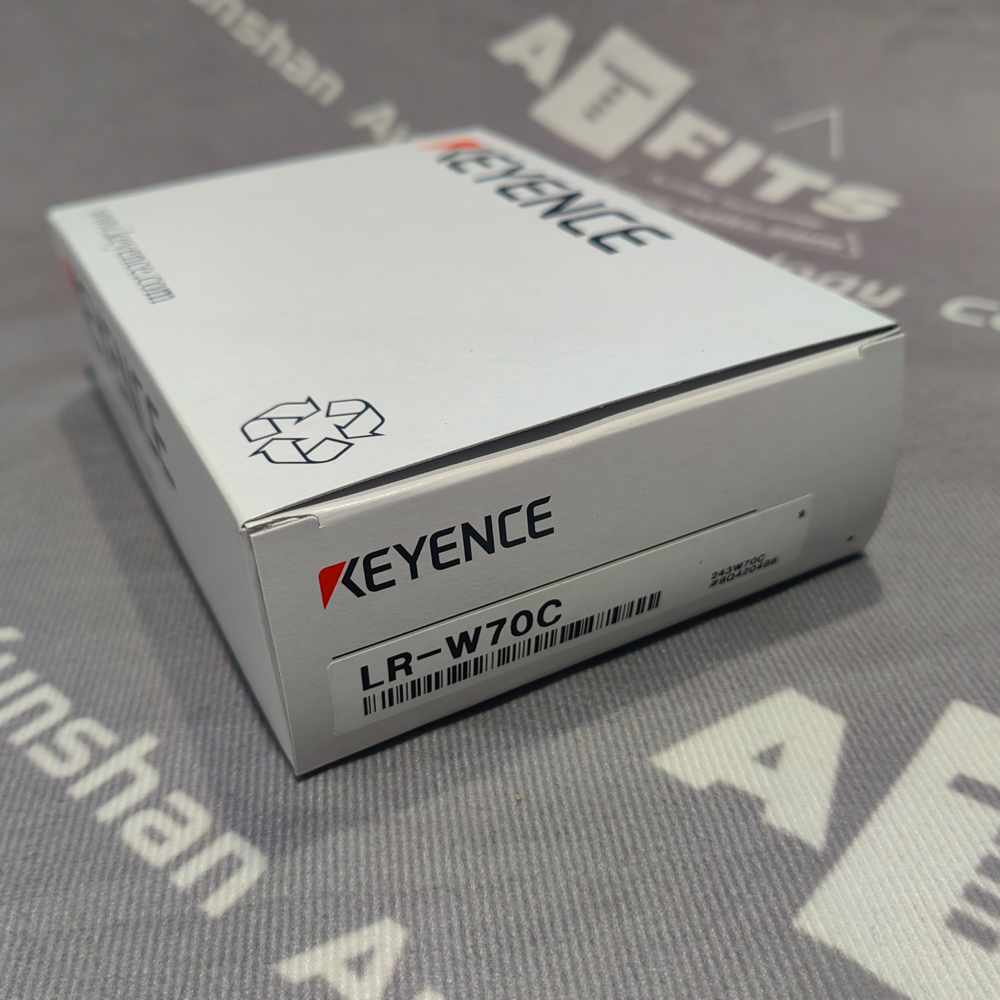

Keyence LR-W70C Optic Sensor LRW70C

"*" señala los campos obligatorios

Categoría: Keyence

Keyence LR – W70C Optic Sensor (LRW70C)

Product Overview

The Keyence LR – W70C is a small, dual – spot type self – contained full – spectrum photoelectric sensor with an M12 4 – pin connector, designed for precise object detection, positioning, and quality inspection in industrial automation scenarios like electronics assembly, packaging, and automotive component manufacturingKEYENCE SINGAPORE PTE LTD.. It features a white LED light source, a 30–70 mm detecting distance, and a minimum spot diameter of 1.6 × 2.9 mm at 50 mm, enabling accurate detection of small parts or subtle surface changesKEYENCE SINGAPORE PTE LTD.. With selectable NPN/PNP open – collector outputs, multiple response time settings, and IP65/IP67 protection, it works stably in harsh industrial environments (- 20 to + 50 °C, dust, water exposure)KEYENCE DEUTSCHLAND GmbH. Its 75 g lightweight zinc die – cast housing and compact size allow flexible mounting, and it supports mutual interference reduction (up to 2 units with alternate frequencies) and timer functions, making it a reliable choice for diverse inline automation tasks to enhance production accuracy and efficiencyKEYENCE SINGAPORE PTE LTD..

Main Functions

Precise Small – Object Detection

With a 30–70 mm detecting distance and a small spot size (1.6 × 2.9 mm at 50 mm), it accurately detects tiny components (e.g., electronic chips, small fasteners) and identifies subtle surface variations, ensuring no missed detections or false triggers in high – precision assembly linesKEYENCE SINGAPORE PTE LTD..
Dual – Spot and Multi – Mode Detection

It offers 1 – spot, 2 – spot difference monitoring, and 2 – point matching modes, suitable for applications such as checking part alignment, detecting surface defects, and verifying assembly completeness, adapting to various inspection requirements in different industrial processesKEYENCE SINGAPORE PTE LTD..
Flexible Response and Timer Settings

Response time is selectable (200 µs–999 ms based on mode), and timer functions (OFF/ON delay/OFF delay/one – shot) are available, enabling synchronization with production line speeds and precise control of output signals for process optimizationKEYENCE SINGAPORE PTE LTD..
Anti – Interference and Stable Operation

The mutual interference reduction function allows up to 2 units to work simultaneously when alternate frequencies are set, avoiding signal crosstalk. The IP65/IP67 – rated housing and wide temperature range (- 20 to + 50 °C) ensure reliable performance in dusty, wet, or temperature – varying industrial settingsKEYENCE SINGAPORE PTE LTD..
Easy Integration and Configuration

The M12 4 – pin connector enables quick connection to industrial networks, and NPN/PNP, NO/NC output selection supports seamless integration with PLCs and automation systems. It requires minimal setup time, reducing operational complexity and improving work efficiency.

Technical Features

Feature	Details
Sensor Type	Small/dual – spot self – contained full – spectrum photoelectric sensor, M12 4 – pin connector typeKEYENCE SINGAPORE PTE LTD.
Light Source	White LEDKEYENCE SINGAPORE PTE LTD.
Detecting Distance	30–70 mmKEYENCE SINGAPORE PTE LTD.
Minimum Spot Diameter	Approx. 1.6 × 2.9 mm at 50 mmKEYENCE SINGAPORE PTE LTD.
Output Configuration	NPN/PNP open collector selectable; NO/NC switchable; Max 30 VDC, 50 mA, residual voltage ≤ 2 V
Response Time	1 – Spot Mode: 200 µs, 1 ms, 10 ms, 100 ms, 500 ms 2 – Spot Difference Monitoring: 500 µs, 2.5 ms, 20 ms, 200 ms, 999 ms 2 – Spot 2 – Point Matching: 400 µs, 2 ms, 20 ms, 200 ms, 999 msKEYENCE SINGAPORE PTE LTD.
Power Supply	10–30 VDC; Current consumption: ≤ 60 mA (24 VDC), ≤ 110 mA (12 VDC)
Environmental Resistance	Operating temp: – 20–+50 °C; Storage temp: – 30–+60 °C Relative humidity: 35–85 % RH (no condensation) Vibration resistance: 10–55 Hz, 1.5 mm double amplitude, X/Y/Z axes for 2 hours each Shock resistance: 1000 m/s², 6 times in 6 directions Protection rating: IP65/IP67KEYENCE DEUTSCHLAND GmbH
Material	Case: Zinc die cast (nickel – chrome plating); Indicator cover: PPSU; Buttons: PES; Lens cover/display: PMMA (scratch – resistant coating); Connector ring: PMP; Connector socket: PEIKEYENCE DEUTSCHLAND GmbH

Product Dimensions and Weight

Item	Details
Overall Dimensions	30 mm (W) × 30 mm (H) × 52 mm (D) (typical for LR – W70C)
Connector	M12 4 – pin type (cable sold separately)KEYENCE SINGAPORE PTE LTD.
Weight	Approximately 75 g (sensor head only)KEYENCE DEUTSCHLAND GmbH
Mounting Method	M3 screw mounting; compatible with standard photoelectric sensor mounting brackets
Indicator Lights	Red LED (output ON), Green LED (stable operation), Orange LED (setting mode)
