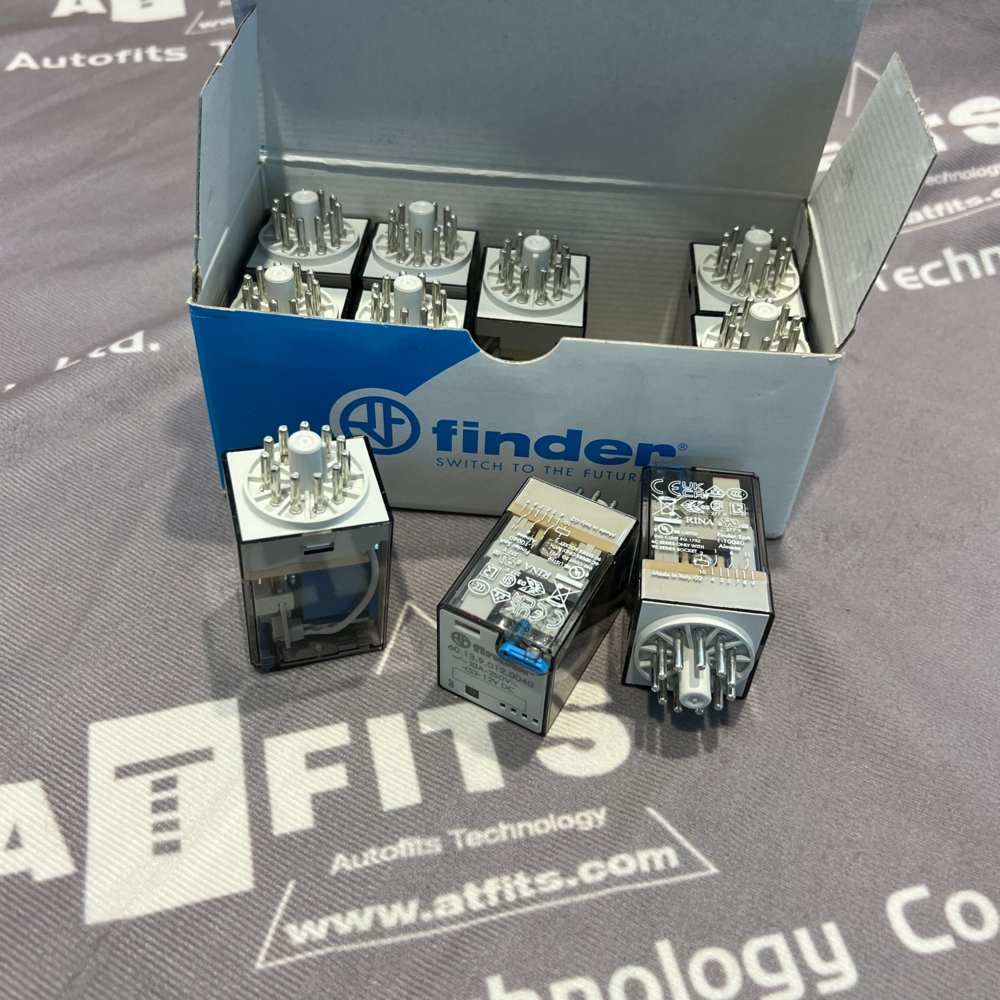

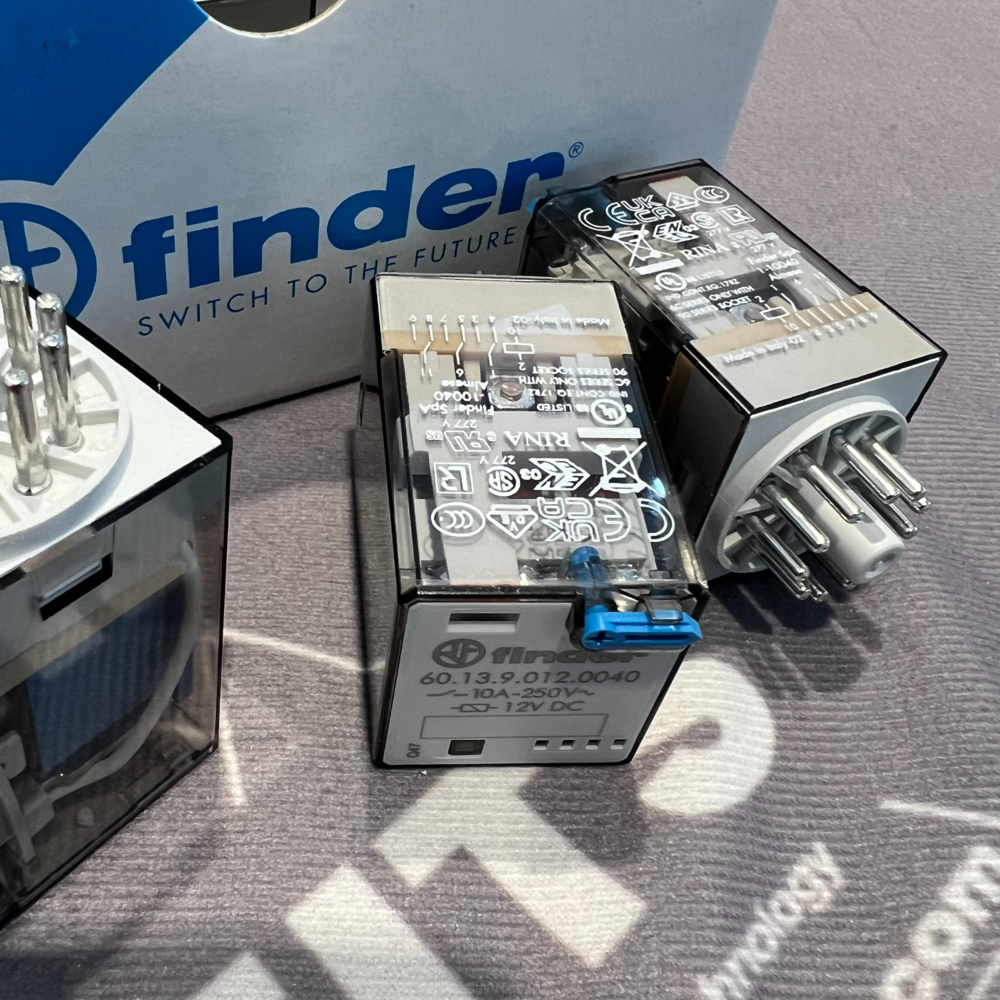

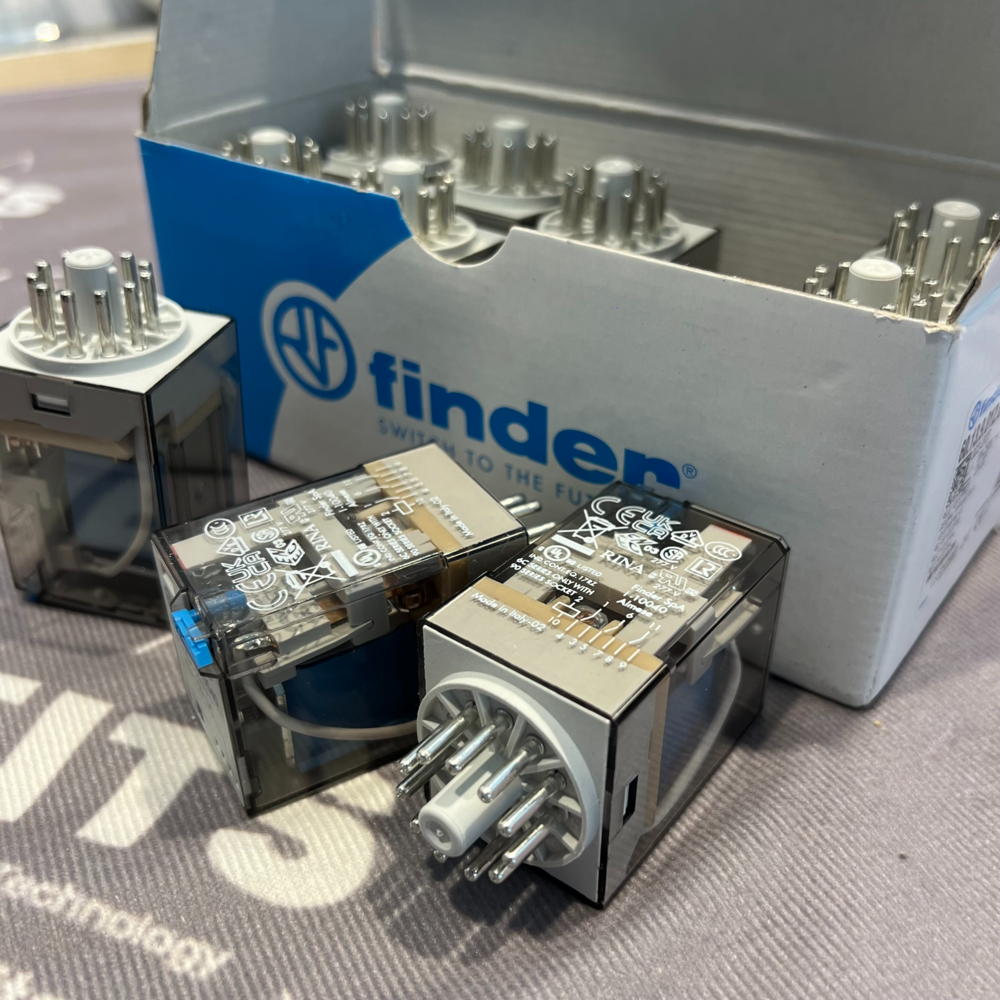

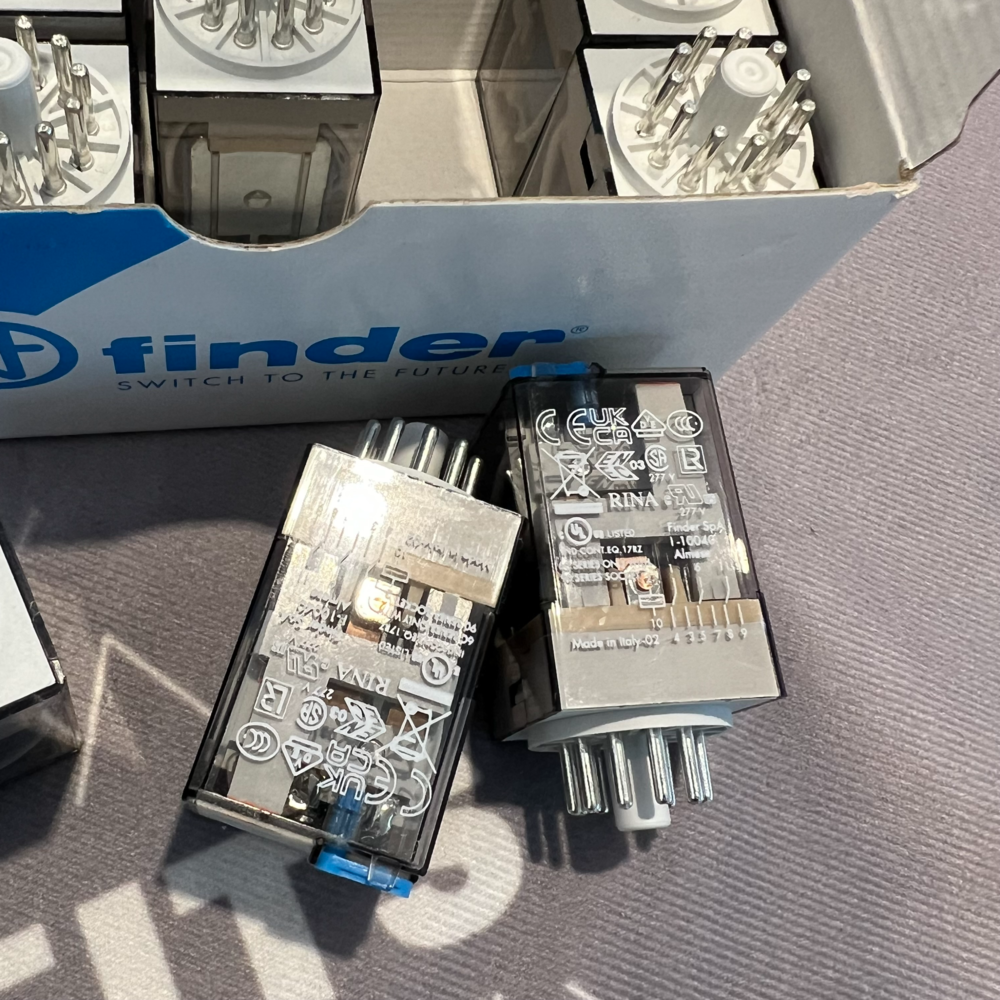

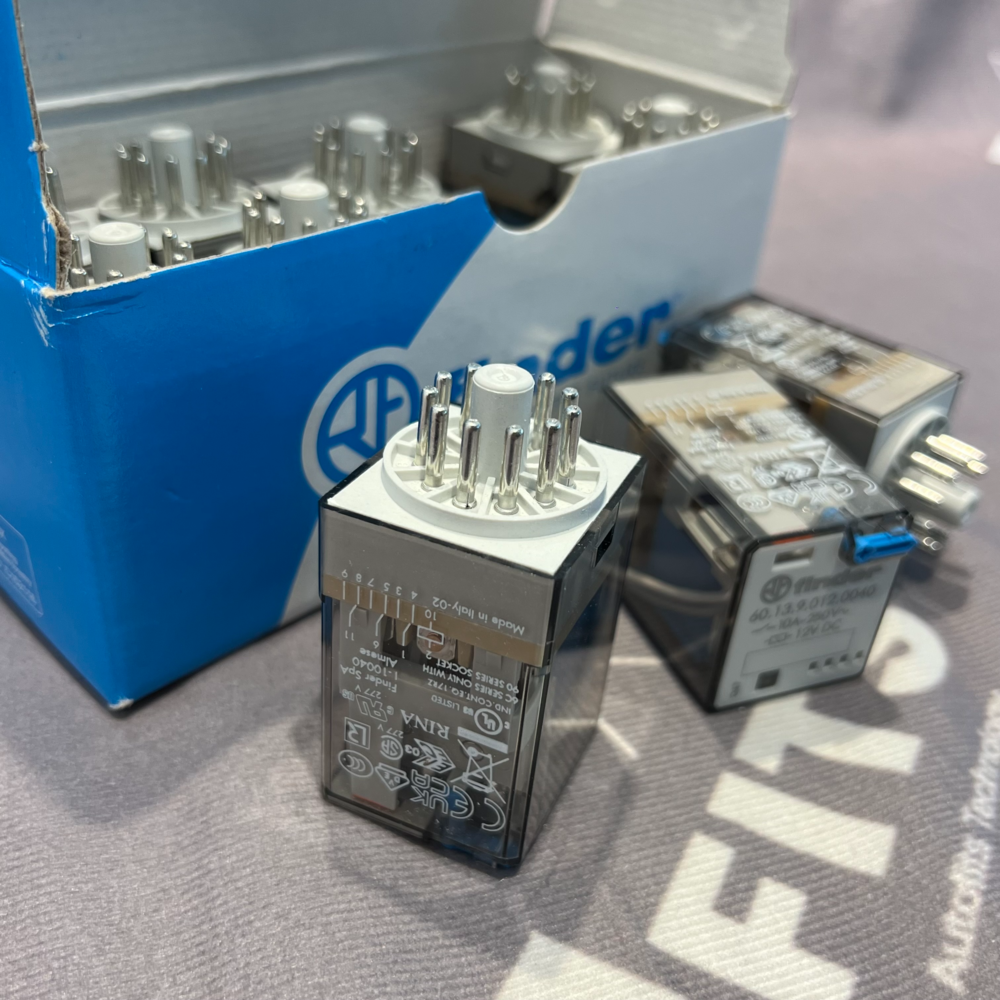

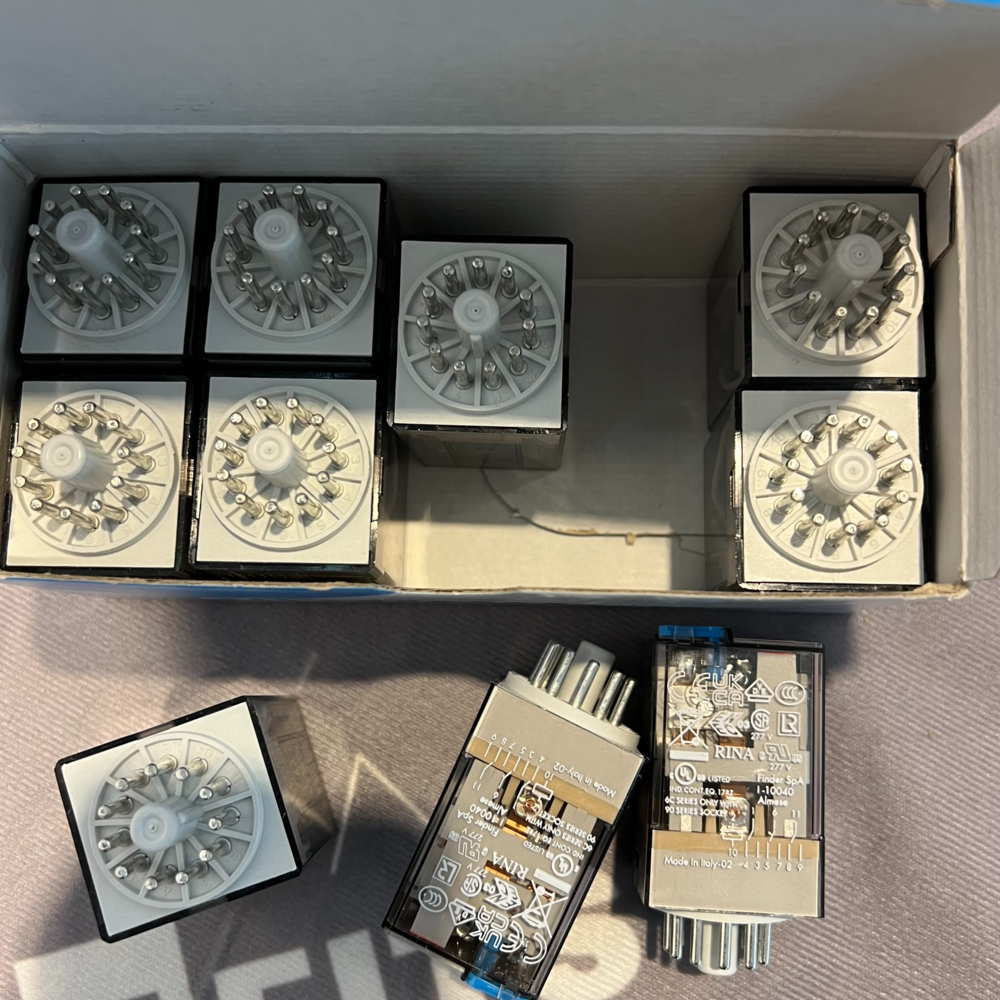

Finder 60.13.9.012.0040 Power Relay

Product Overview

The Finder 60.13.9.012.0040 is a heavy‑duty industrial power relay designed for high‑current switching applications, featuring a 12 V DC control coil and a rated load capacity of up to 20 A. As part of Finder’s 60 series, it is engineered for durability, high performance, and stable operation in demanding environments such as industrial automation, motor control, HVAC systems, power distribution, and electrical control panels.

This relay combines robust contact construction, high dielectric strength, and strong resistance to shock and vibration, making it suitable for continuous heavy‑duty use. Its compact form factor allows efficient use of cabinet space while maintaining reliable switching performance. Fast shipping is available to support urgent maintenance, replacement, and project requirements.

Main Functions

High‑Current Load Switching

Safely switches loads up to 20 A, ideal for controlling motors, heaters, compressors, lighting systems, solenoid valves, and other high‑power industrial equipment.
Galvanic Isolation

Provides full electrical separation between the low‑voltage control circuit and high‑power load circuit to protect PLCs, logic controllers, and sensitive electronic components.
Single‑Pole Reliable Control

Features a 1 Form A (SPST NO) contact arrangement for clean, stable ON/OFF control.
Socket & Panel Mount Flexibility

Supports standard relay socket installation as well as direct panel mounting for versatile assembly in control cabinets.
Signal Amplification

Converts low‑power control signals into high‑power switching actions for industrial actuation systems.
Wide Application Compatibility

Used in automation systems, pump and fan control, welding equipment, automotive auxiliary systems, and building management.

Technical Features

表格

Parameter	Specification
Part Number	60.13.9.012.0040
Series	Finder 60 Series
Contact Configuration	1 Form A (SPST, Normally Open)
Control Coil Voltage	12 V DC
Rated Contact Current	20 A at 250 V AC
Max. Switching Voltage	250 V AC / 220 V DC
Contact Material	High‑grade silver alloy for arc resistance and long life
Coil Power Consumption	Approx. 1.8 W
Mechanical Life	≥ 10,000,000 operations
Electrical Life	≥ 100,000 operations at rated load
Dielectric Strength	5 kV AC between coil and contacts
Operating Temperature Range	-40 °C to +60 °C
Insulation Resistance	≥ 100 MΩ
Approvals	CE, UL, CSA, VDE, RoHS compliant

Product Dimensions and Weight

表格

Dimension	Value
Length	32.0 mm
Width	27.5 mm
Height	19.5 mm
Pin Layout	Standard industrial power relay pin configuration
Net Weight	Approximately 0.040 kg
