Finder 40.52.9.024.0000 PCB Mount Power Relay
Product Overview

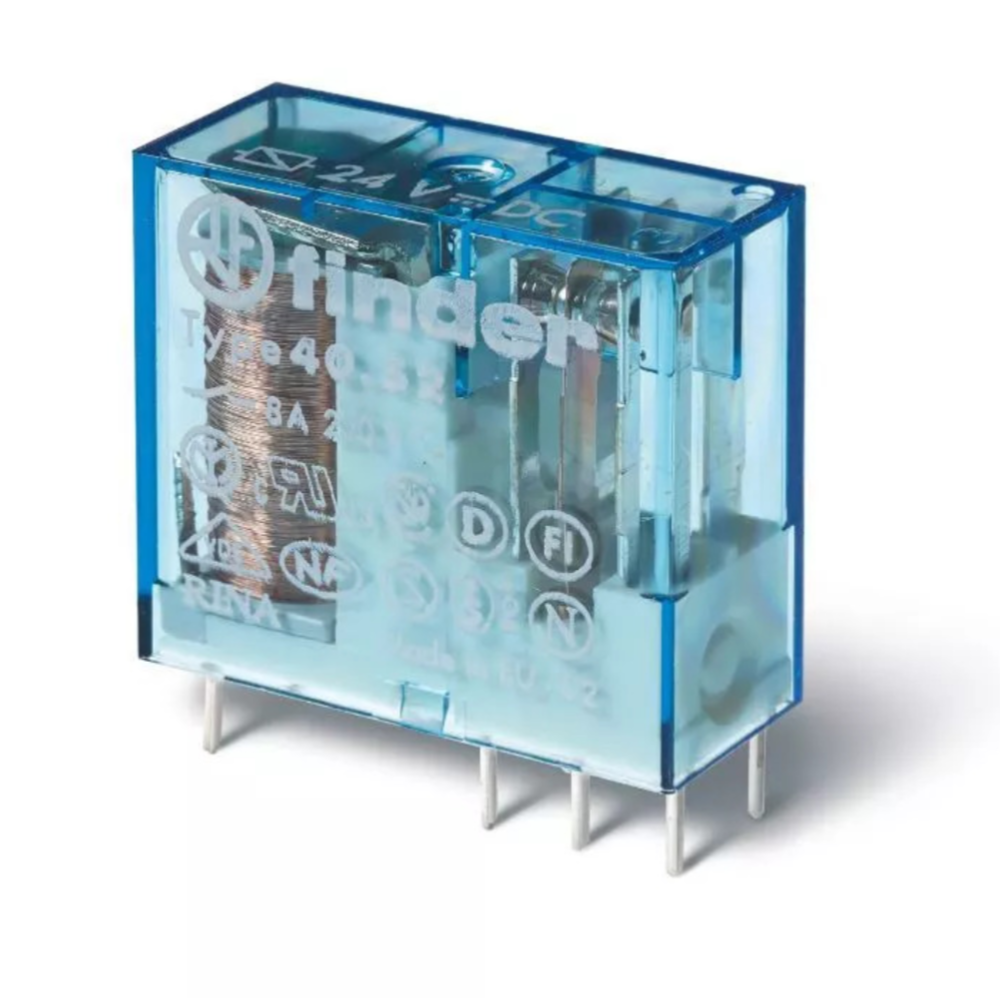

The Finder 40.52.9.024.0000 is a compact, high-performance miniature power relay designed for printed circuit board (PCB) mounting. It belongs to Finder’s 40 series, a globally recognized line known for stable performance, long mechanical and electrical life, and high compatibility in industrial and building automation applications. This relay features a double-pole normally open contact arrangement and is driven by a 24 V DC coil, making it ideal for switching small to medium loads in control systems, PLC modules, smart devices, and electrical panels. Its space-saving design supports high-density PCB assembly while maintaining strong isolation and reliable switching under continuous duty. Fast shipping is available to support urgent production, equipment maintenance, and replacement demands.
Main Functions
- Dual Circuit Switching
Provides two independent normally open (NO) contact circuits, allowing simultaneous control of two separate load circuits with a single relay.
- Galvanic Isolation
Delivers full electrical isolation between the low-power control coil and high-power load circuits to protect logic components and reduce electromagnetic interference.
- PCB Mount Operation
Designed for through-hole PCB mounting, compatible with automated soldering and compact control panel layouts.
- Load Driving Capability
Suitable for switching solenoid valves, indicator lamps, small contactors, fan motors, heating elements, and auxiliary control circuits.
- Signal Transfer & Amplification
Converts low-power control signals from PLCs, microcontrollers, or logic boards into higher-power switching actions.
- Wide Application Flexibility
Used in industrial automation, HVAC systems, security systems, vending machines, home appliances, and building management equipment.
Technical Features
表格
| Parameter | Specification |
|---|---|
| Part Number | 40.52.9.024.0000 |
| Series | Finder 40 Series |
| Contact Configuration | 2 Form A (Double Pole, Normally Open) |
| Coil Voltage | 24 V DC |
| Coil Power | 0.6 W |
| Rated Contact Current | 8 A at 250 V AC per pole |
| Maximum Switching Voltage | 250 V AC / 30 V DC |
| Contact Material | Silver alloy for high conductivity and wear resistance |
| Mechanical Life | ≥ 10,000,000 operations |
| Electrical Life | ≥ 100,000 operations at rated load |
| Dielectric Strength | 5 kV AC between coil and contacts |
| Insulation Resistance | ≥ 100 MΩ |
| Operating Temperature | -40 °C to +70 °C |
| Mounting Style | Through-hole PCB mount |
| Approvals | UL, CSA, VDE, CE, RoHS compliant |
| Protection Class | IP40 |
Product Dimensions and Weight
表格
| Dimension | Value |
|---|---|
| Length | 15.7 mm |
| Width | 10.3 mm |
| Height | 12.0 mm |
| Pin Pitch | Standard industrial PCB relay grid |
| Net Weight | Approx. 0.008 kg |
