Festo 8076363 ADN-S-32-5-I-P-A Compact Cylinder
Product Overview

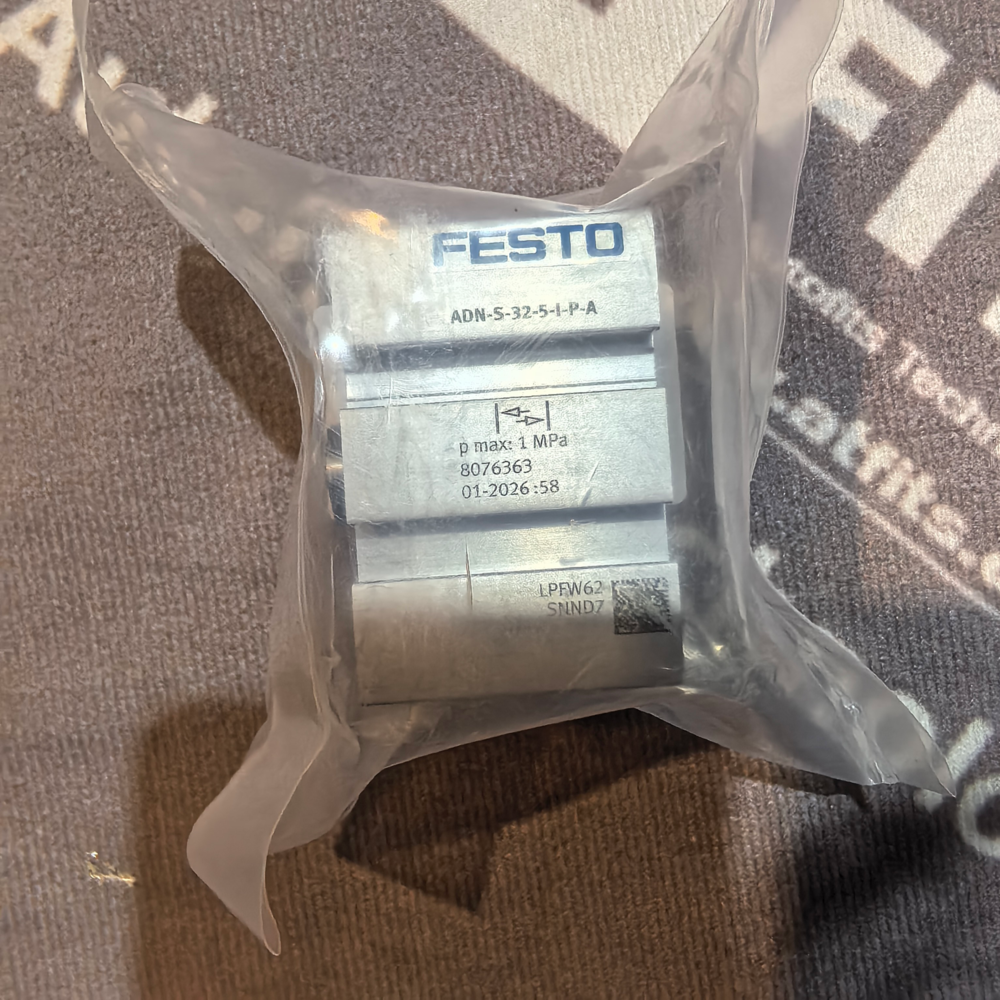

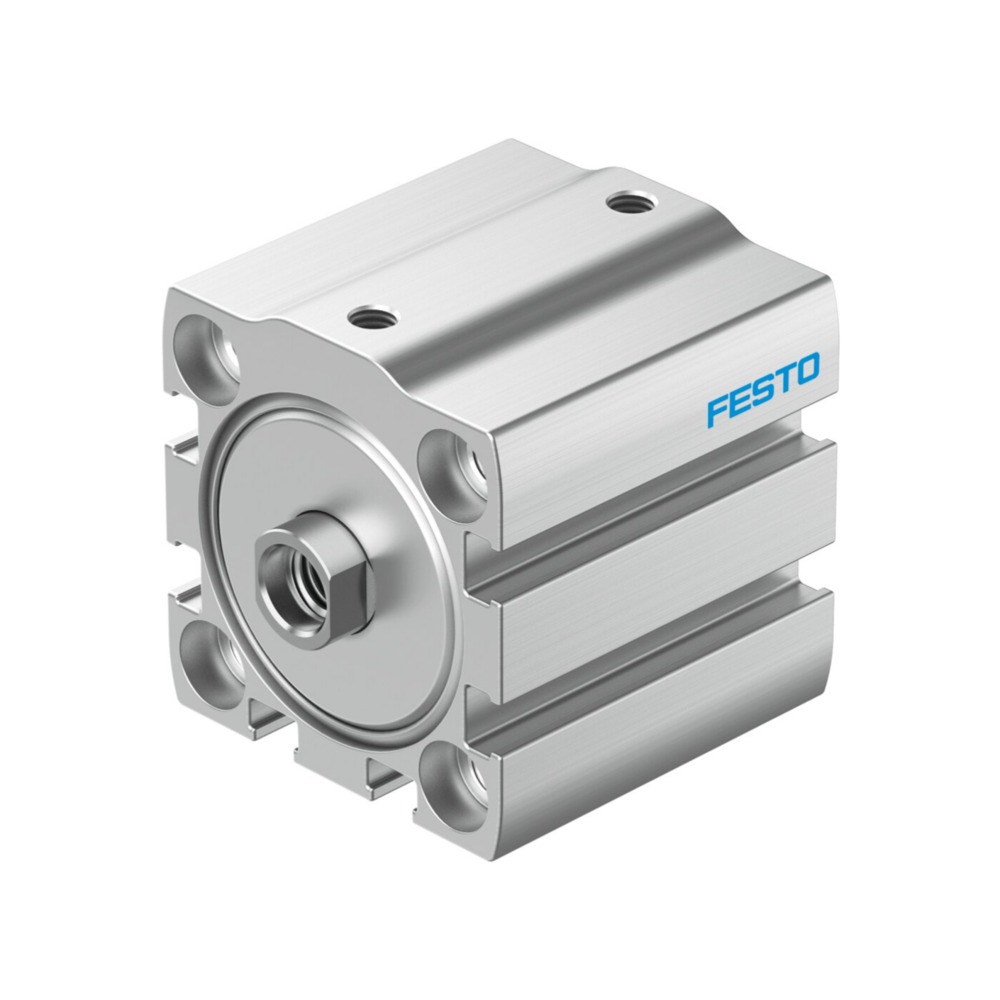

The Festo 8076363 (model ADN-S-32-5-I-P-A) is a high-performance, double‑acting compact pneumatic cylinder from Festo’s ADN‑S series. Designed for space‑constrained industrial automation environments, it delivers precise linear motion with a 32 mm piston bore and 5 mm stroke, optimized for short‑stroke, high‑frequency actuation tasks. Built to the ISO 21287 standard, this cylinder features an integrated magnetic piston for position sensing, elastic end‑position cushioning, and a robust anodized aluminum construction. The “‑S” designation signifies a slim, space‑saving design, while “‑I‑P‑A” denotes an internal piston rod thread, position sensing capability, and elastic cushioning at both ends. It is ideal for compact machinery, assembly lines, pick‑and‑place systems, and precision handling applications where minimal footprint and reliable performance are critical.
Main Functions
表格
| Function | Description |
|---|---|
| Double‑Acting Linear Motion | Driven by compressed air on both piston sides for controlled extension and retraction of the piston rod, enabling bidirectional force application. |
| Position Sensing | Equipped with an internal magnetic piston, compatible with Festo proximity sensors (e.g., SME‑8 series) for non‑contact end‑position detection and automation feedback. |
| Elastic End‑Position Cushioning | Integrated elastic cushion rings at both ends absorb kinetic energy at stroke endpoints, reducing mechanical shock, noise, and wear during high‑speed cycling. |
| Compact Installation | Slim profile and multiple mounting options (through‑holes, threaded interfaces) enable flexible, space‑efficient mounting in tight control panels and machinery. |
| Precision Actuation | Low‑friction sealing system ensures smooth, consistent movement with minimal hysteresis, supporting high‑precision positioning tasks. |
| Versatile Media Compatibility | Operates on filtered, lubricated or non‑lubricated compressed air, conforming to ISO 8573‑1:2010 [7:4:4] quality standards. |
| Corrosion Resistance | Anodized aluminum barrel and stainless‑steel piston rod provide good resistance to industrial contaminants and mild environmental conditions. |
Technical Features
表格
| Characteristic | Specification |
|---|---|
| Order Code | 8076363 |
| Model | ADN‑S‑32‑5‑I‑P‑A |
| Series | ADN‑S (Compact Cylinder) |
| Design Standard | ISO 21287 |
| Operating Principle | Double‑acting |
| Piston Diameter | 32 mm |
| Nominal Stroke | 5 mm |
| Piston Rod Thread | Internal (female) thread |
| Cushion Type | Elastic cushion rings at both ends (P‑type) |
| Position Sensing | Magnetic piston for proximity switch mounting |
| Operating Pressure Range | 0.4 bar to 10 bar (0.04 MPa to 1 MPa) |
| Theoretical Force (at 6 bar) | Advance: ~483 N; Retract: ~483 N |
| Operating Temperature | −20 °C to +80 °C |
| Piston Rod Material | Stainless steel |
| Barrel Material | Anodized aluminum alloy |
| Seals | Nitrile rubber (NBR) – standard; optional FKM for high‑temp applications |
| Port Connection | M5 pneumatic ports |
| Mounting Options | Through‑holes, front/end threaded interfaces, foot mounting |
| Corrosion Resistance Class | CRC 1 (low corrosion resistance) |
| Mechanical Life | ≥ 20 million cycles |
| Electrical Safety | Non‑sparking design for standard industrial environments |
Product Dimensions (mm)
表格
| Dimension | Value |
|---|---|
| Cylinder Width (across flats) | 35.5 |
| Cylinder Height | 35.5 |
| Total Length (stroke = 5 mm) | 52.5 |
| Piston Rod Diameter | 12 |
| Piston Rod Thread | M12 × 1.25 (internal) |
| Port Size | M5 × 0.8 |
| Mounting Hole Pitch | Standard for ISO 21287 compact cylinders |
Weight
表格
| Item | Typical Weight |
|---|---|
| Complete Cylinder (ADN‑S‑32‑5‑I‑P‑A) | 185 g (0.185 kg) |
| Moving Mass (piston + rod assembly) | 45 g |
Material Specifications
表格
| Component | Material | Key Properties |
|---|---|---|
| Cylinder Barrel | Anodized aluminum | Lightweight, high rigidity, corrosion resistance, good thermal conductivity |
| Piston Rod | Stainless steel | High strength, wear resistance, corrosion resistance, smooth surface for low friction |
| Piston | High‑performance polymer | Low friction, chemical resistance, dimensional stability |
| Seals | Nitrile rubber (NBR) | Excellent oil resistance, good elasticity, suitable for −20 °C to +100 °C |
| End Caps | Die‑cast aluminum | Structural rigidity, easy machining, compatibility with mounting accessories |
| Internal Magnets | Rare‑earth magnet | High magnetic flux density for reliable sensor detection |
Typical Applications
- Compact assembly and handling machinery
- Pick‑and‑place systems in electronics manufacturing
- Short‑stroke clamping and positioning units
- Packaging machinery (labeling, sealing, cutting)
- Medical and laboratory automation equipment
- Robotics and small‑scale automation grippers
- Space‑constrained industrial control panels
