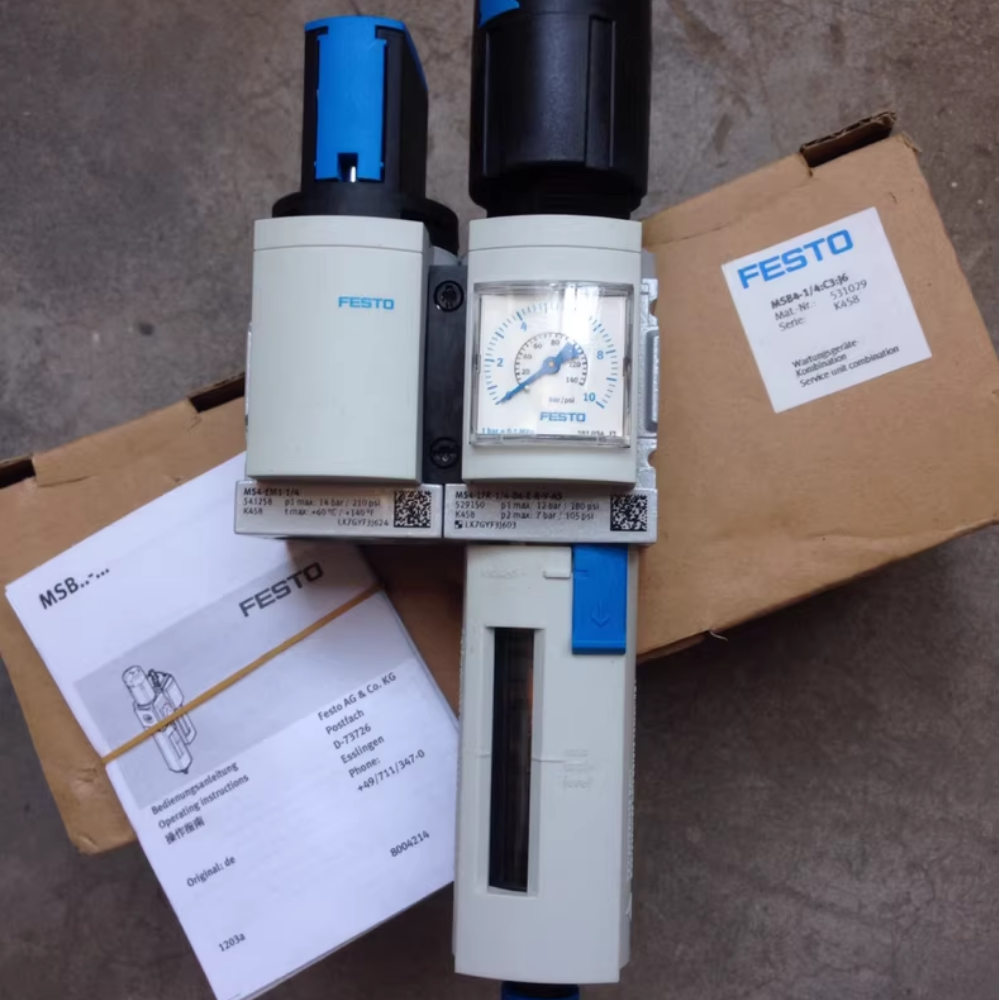

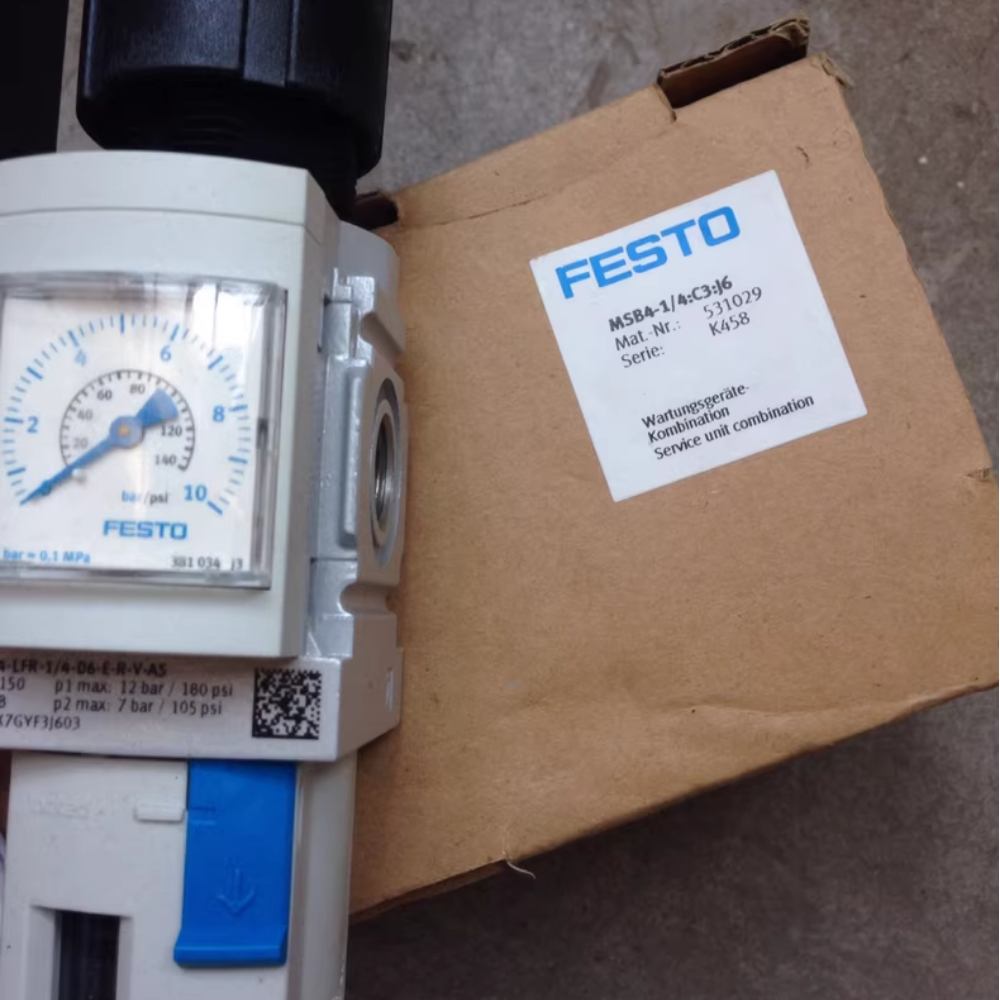

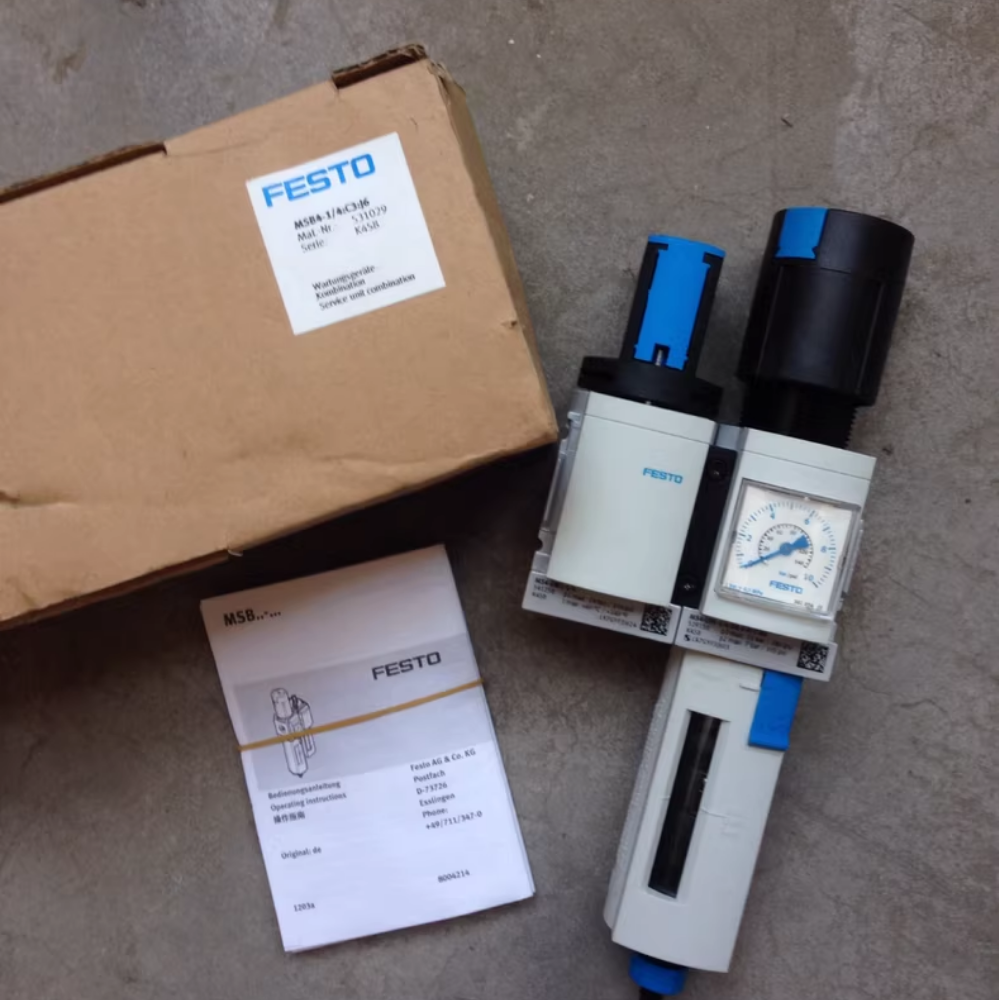

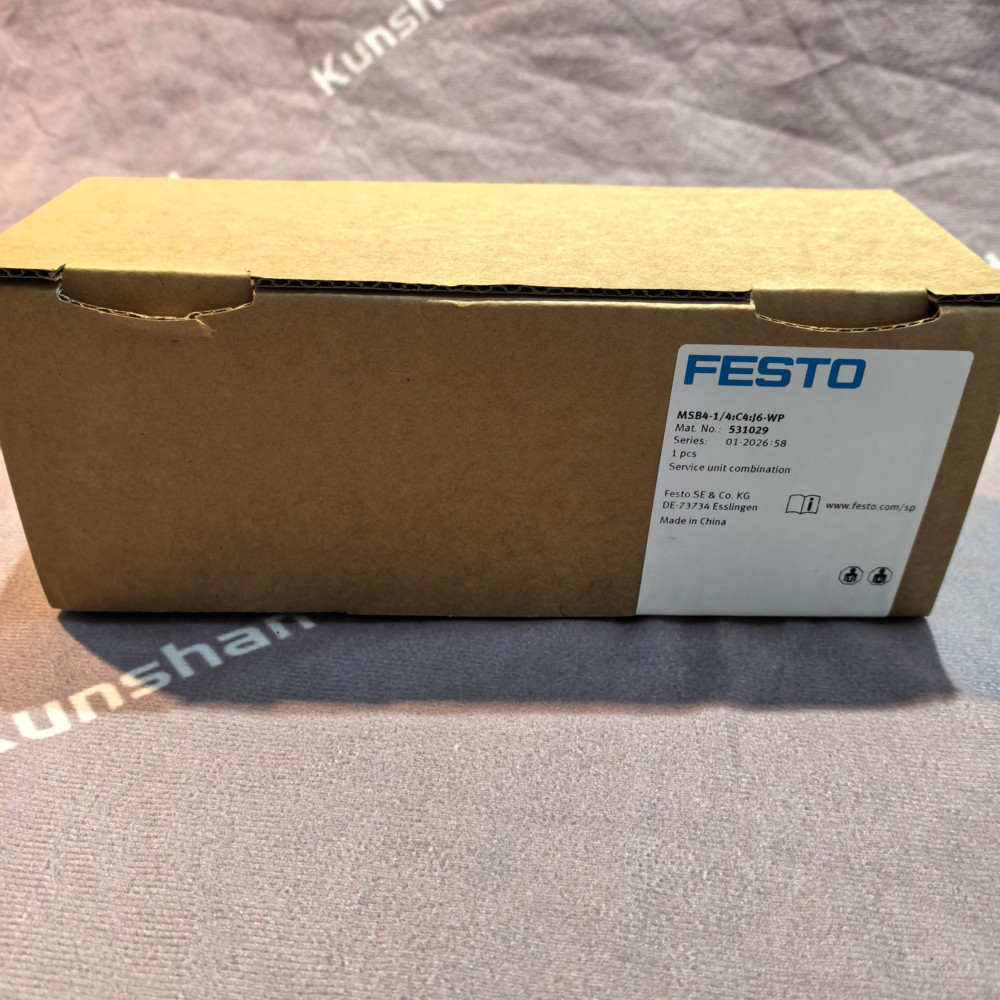

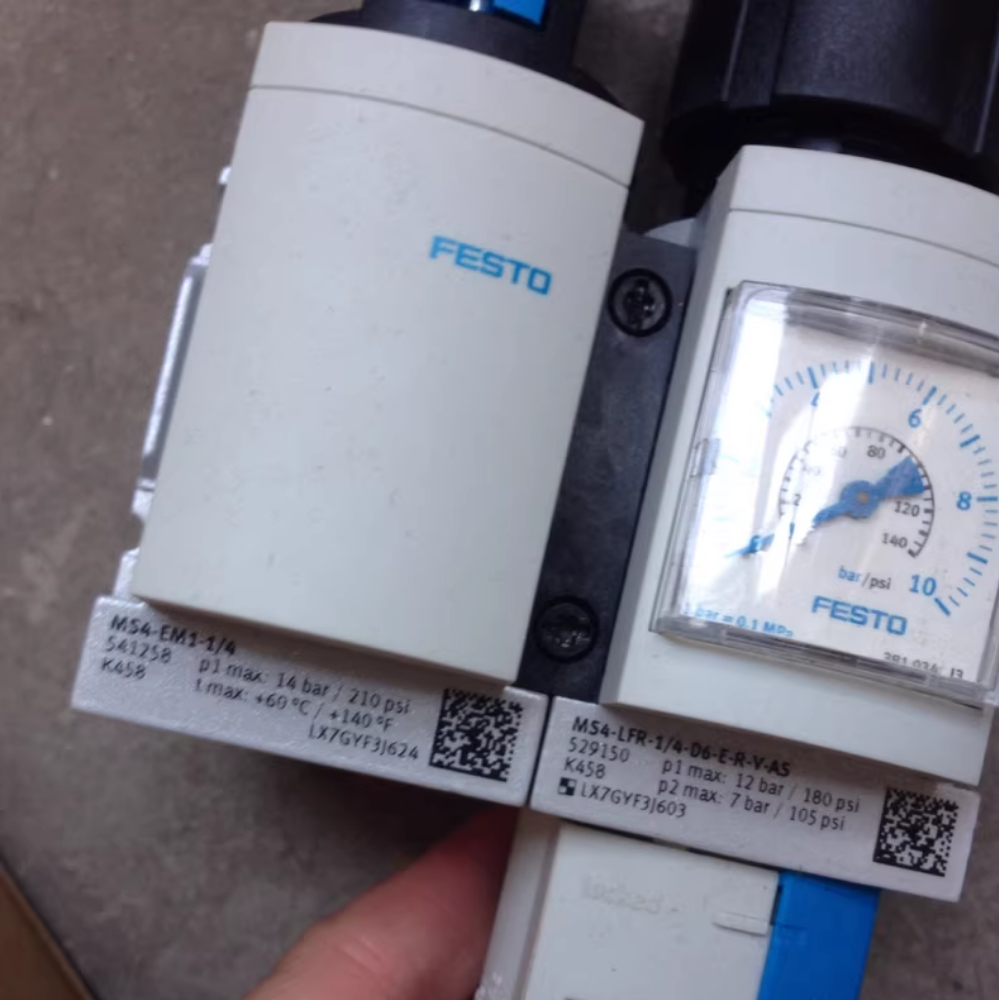

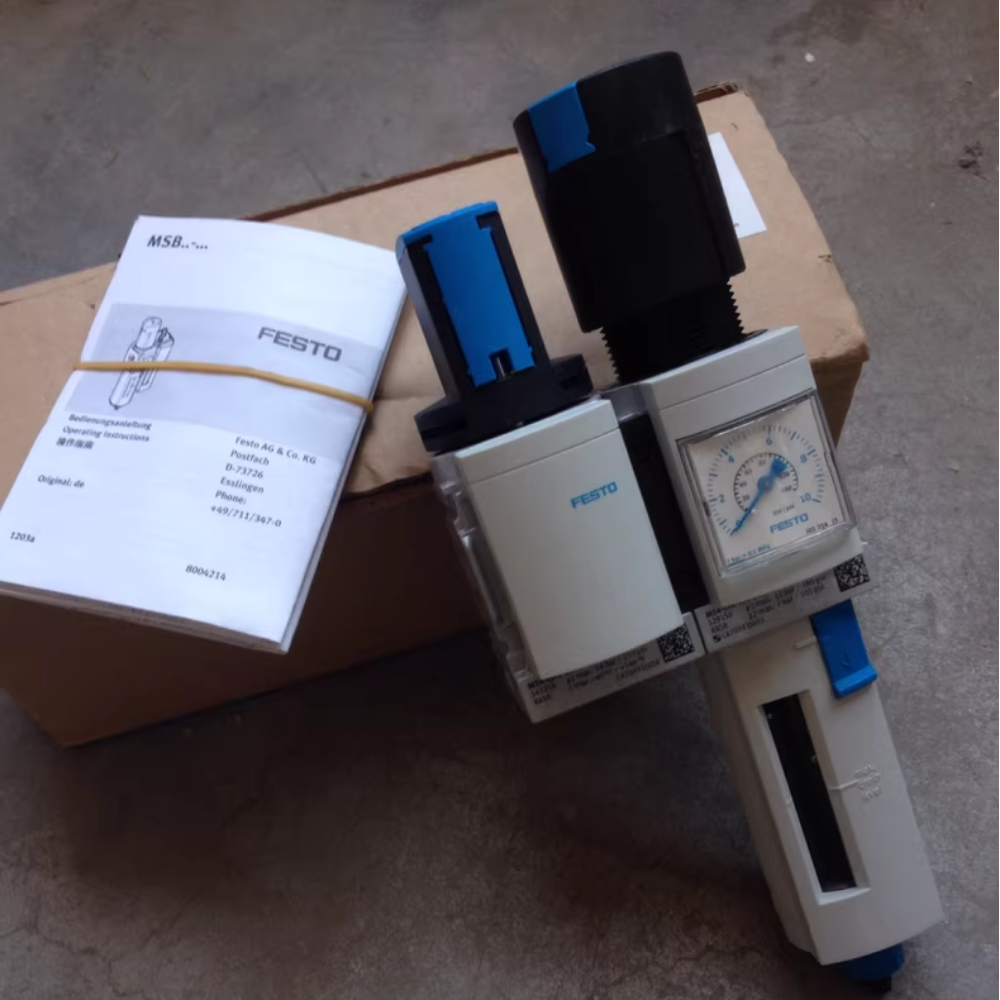

531029 MSB4 Service Unit Combination
Product Overview
The 531029 MSB4 is a modular compressed air preparation service unit combination manufactured by Festo, belonging to the MS series (Size 4). It is a pre-assembled, all-in-one pneumatic system designed to filter, regulate, lubricate, and safely control compressed air for industrial automation applications. This unit integrates core air treatment functions into a compact, space-saving assembly, ensuring clean, stable, and properly conditioned air supply to pneumatic actuators, valves, and tools. It is suitable for both standard industrial environments and applications requiring high reliability and safety compliance.
Main Functions
- Air Filtration: Removes solid particles, water, and oil aerosols from compressed air, with filtration grades ranging from 0.01 µm to 40 µm to meet different air quality requirements.
- Pressure Regulation: Provides infinitely adjustable output pressure within a wide range, maintaining a constant stable pressure for downstream pneumatic components.
- Air Lubrication: Equipped with an oil mist lubricator to add precise amounts of lubricant to the air stream, reducing wear and extending the service life of pneumatic equipmentFesto.
- System Control & Safety: Integrates on/off valves and optional soft-start valves for safe system startup/shutdown and pressure control. Features an integrated lockable rotary knob for actuation safety.
- Condensate Management: Supports manual rotary, semi-automatic, and fully automatic condensate drainage to efficiently remove accumulated moisture.
- Modular Expansion: Allows combination with additional modules (e.g., membrane dryers, activated carbon filters, branching modules) for customized air treatment solutionsFesto.
Technical Features
表格
| Parameter | Specification |
|---|---|
| Part Number | 531029 |
| Series/Size | MS Series, Size 4 (Grid dimension: 40 mm) |
| Operating Pressure | 1.5 bar – 14 bar |
| Pressure Regulation Range | 1 bar – 12 bar |
| Standard Nominal Flow Rate | 800 l/min – 1400 l/min (per DIN 1343) |
| Filtration Grade | 0.01 µm – 40 µm (configurable) |
| Actuation Type | Electrical, Manual, Pneumatic; with lockable rotary knob |
| Condensate Drain | Manual rotary, semi-automatic, fully automatic |
| Operating Temperature | -10°C – 60°C |
| Pneumatic Connection | G1/4 female thread (standard) |
| Mounting Position | Vertical (±5°) or any optional position |
| Certifications | c UL us Recognized, CE, ATEX (for hazardous areas) |
| Bowl Guard | Plastic protective bowl guard |
Product Dimensions (Standard Configuration)
表格
| Dimension | Value (mm) |
|---|---|
| Width (B1) | 80.4 |
| Depth (B2) | 40.2 |
| Total Length (L1) | 201 |
| Height (L2) | 87 |
| Thread Size (D1) | G1/4 |
Weight
- Net Weight: Approximately 1.8 kg (varies slightly based on specific module configuration)
