Festo 188399 DPA-100-16 Pressure Booster
Product Overview

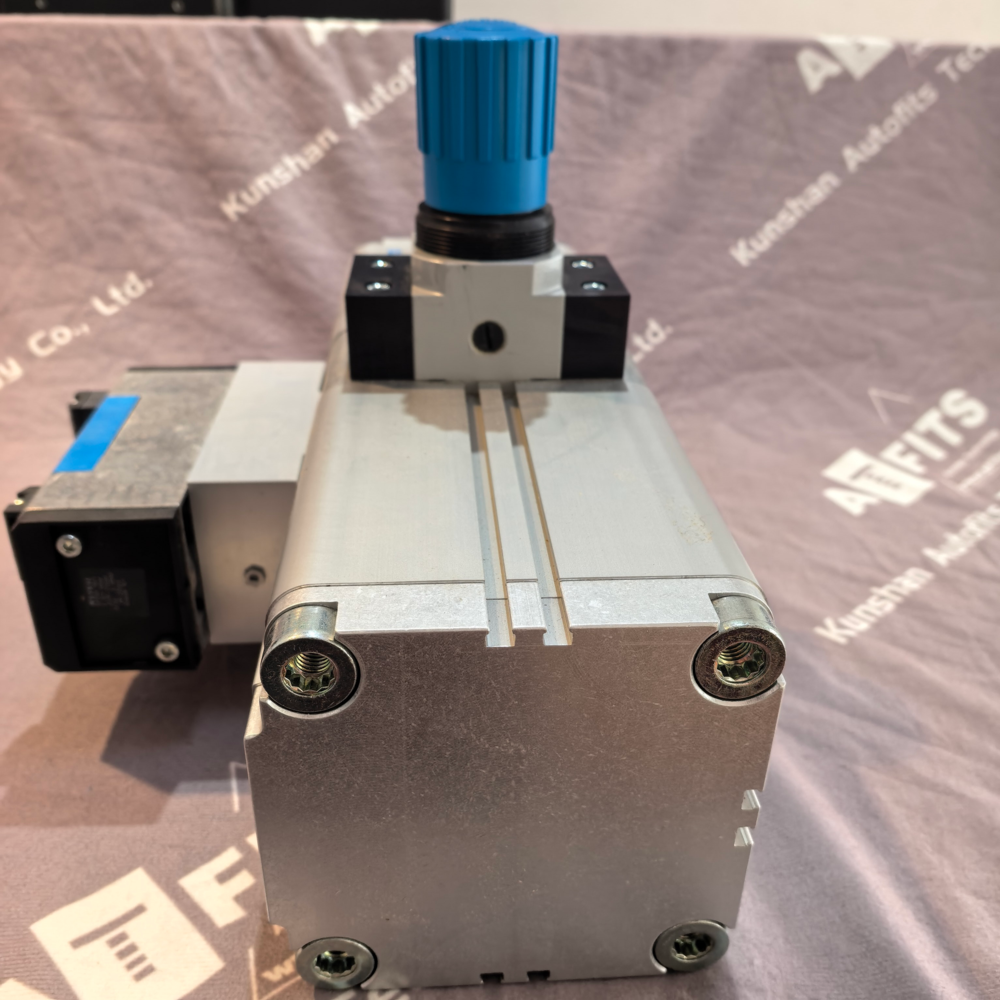

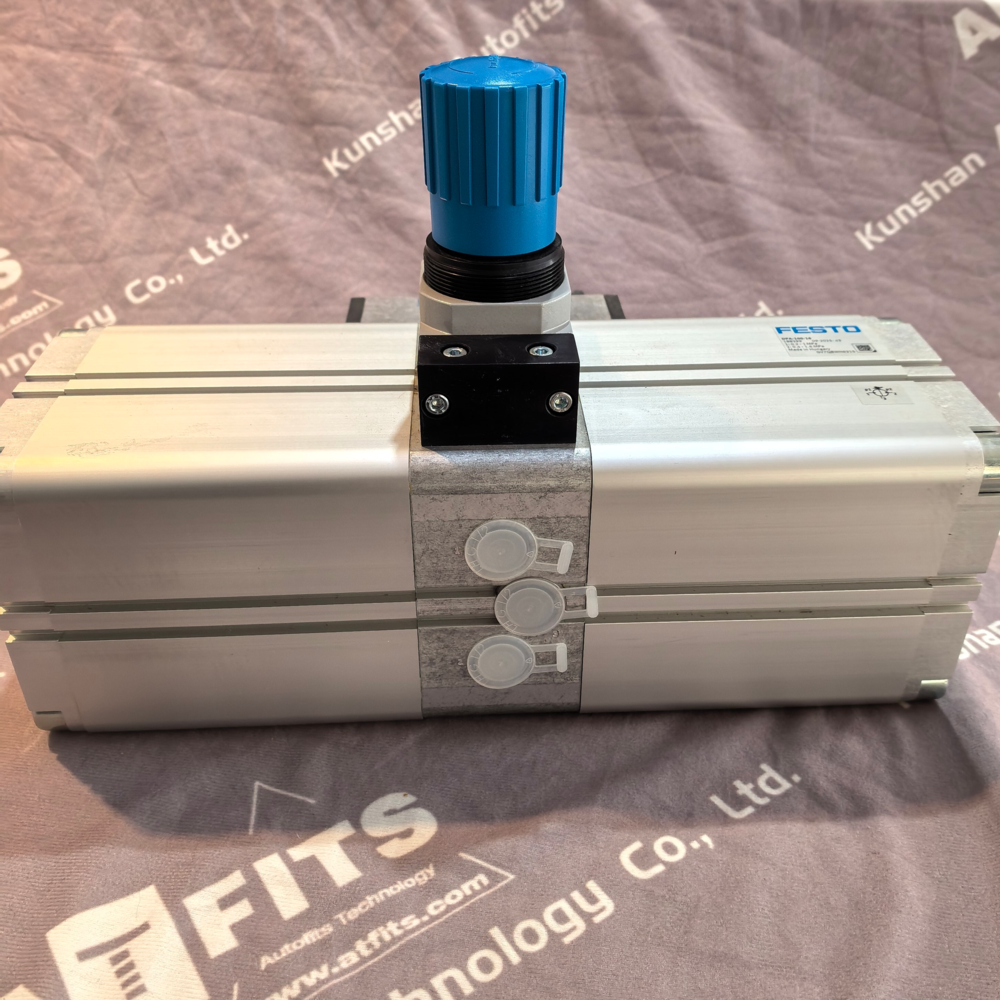

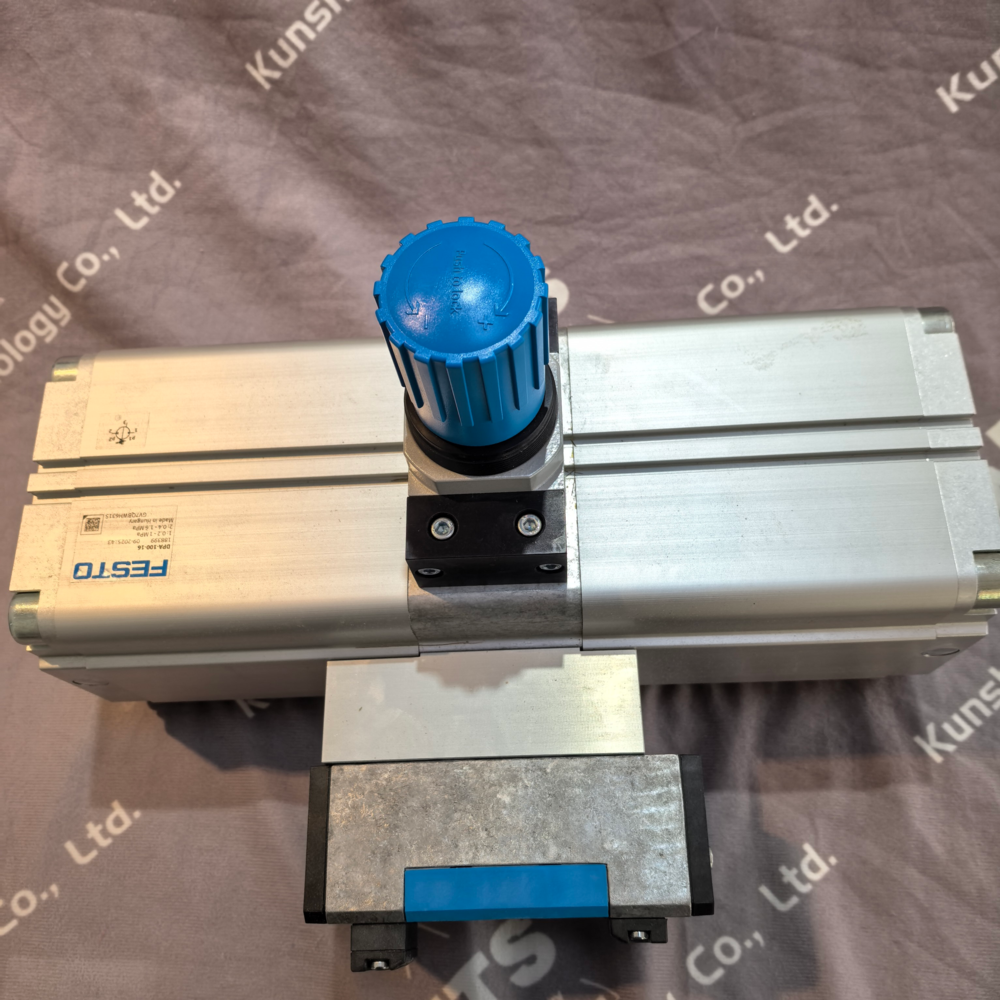

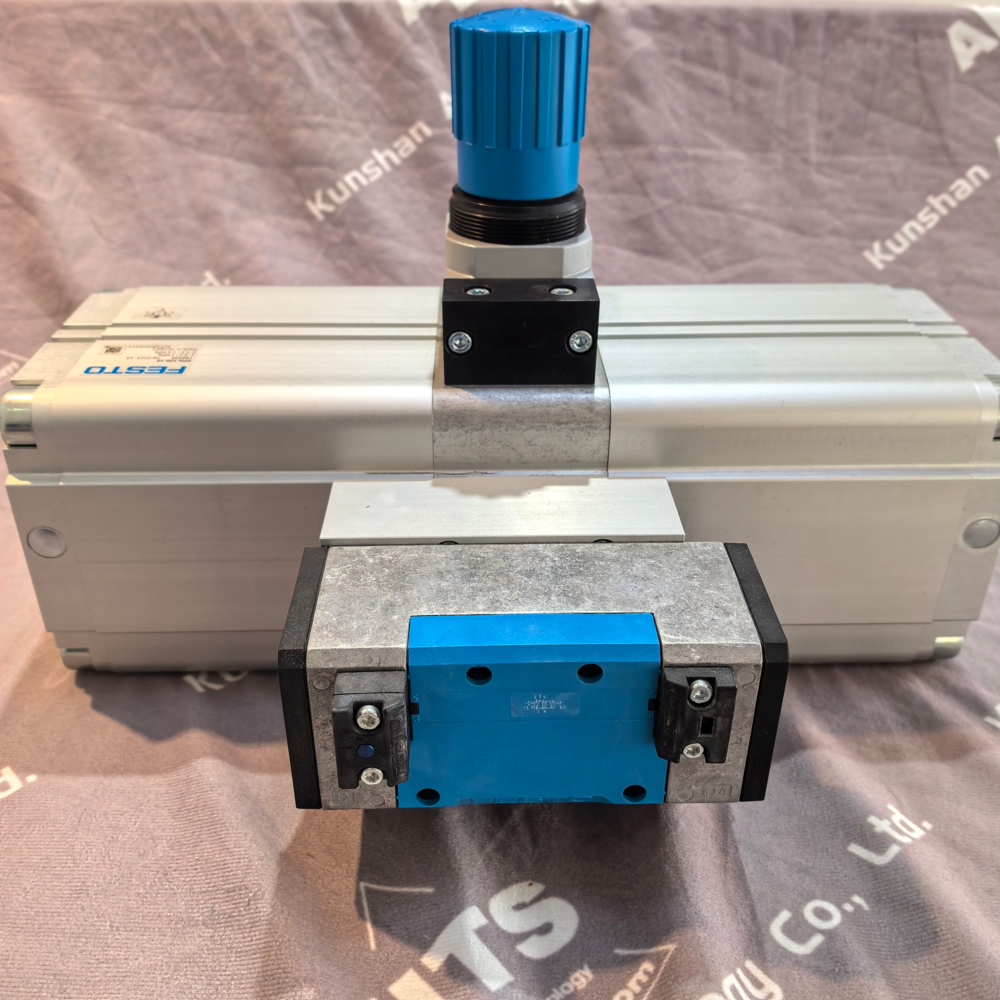

The Festo 188399 DPA-100-16 is a high-performance, double-piston pneumatic pressure booster designed to increase compressed air pressure in industrial automation systemsFesto. It operates on a 1:2 pressure ratio principle, automatically boosting input pressure up to twice its value, with a maximum output pressure of 16 bar. Featuring a 100 mm piston diameter and integrated check valves for efficient secondary-side pressurization, this unit delivers stable, high-pressure air supply for applications requiring elevated pneumatic force. It supports flexible installation in any orientation, includes a pre-configured G1/4″ port for pressure gauge mounting, and is engineered for low air consumption, long service life, and reliable operation in demanding industrial environments.
Main Functions
- Pneumatic Pressure Amplification: Automatically increases input compressed air pressure by a factor of 2, providing output pressures from 4 bar up to 16 bar to meet high-pressure pneumatic system requirements.
- Automatic Operation & Energy Saving: Activates automatically when output pressure falls below the setpoint and switches to energy-saving idle mode once the target pressure is reached, minimizing air usage.

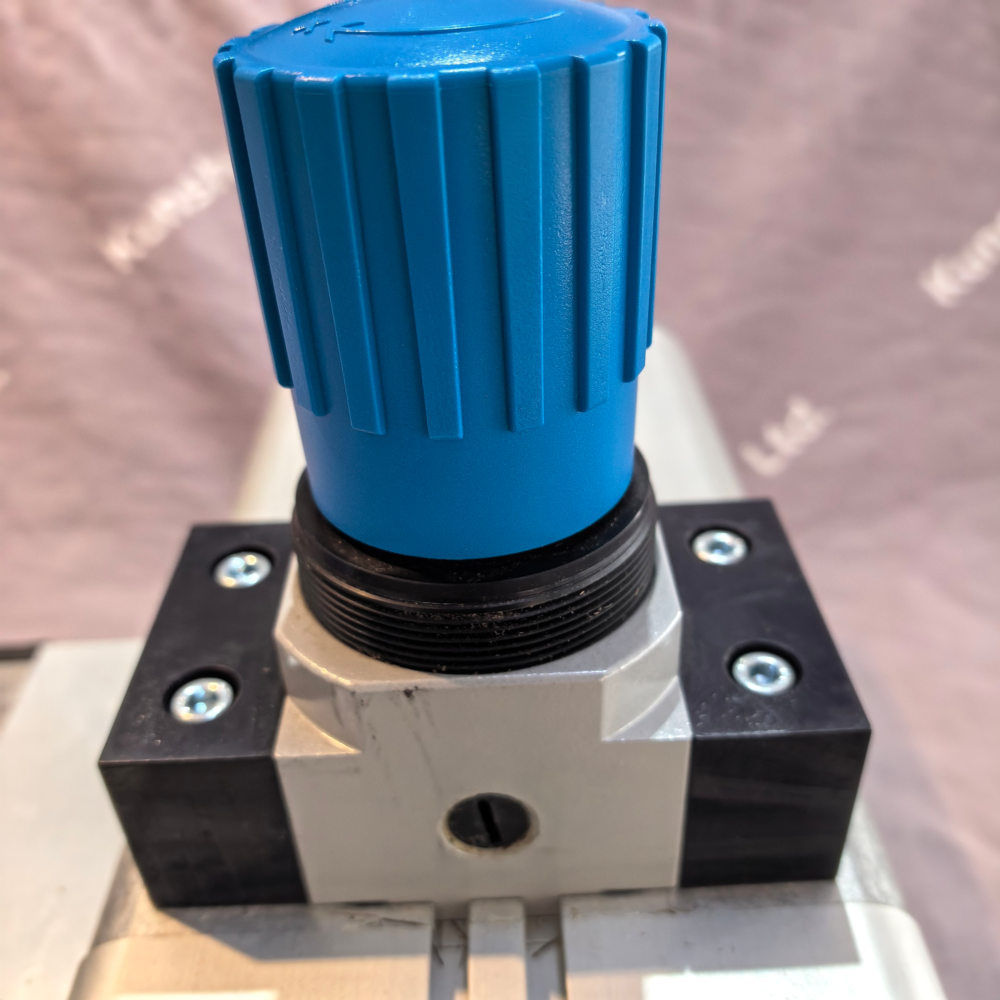

- Adjustable Output Pressure: Allows precise setting of the desired output pressure via an integrated manual pressure regulator, ensuring adaptability to various process needsFesto.
- Efficient Pressurization: Equipped with internal check valves that accelerate secondary-side pressure buildup, reducing pre-charging time and improving system responsiveness.
- Flexible Installation: Can be mounted in any orientation, facilitating seamless integration into diverse pneumatic system layouts and space-constrained setups.
- Pressure Monitoring Compatibility: Features a dedicated G1/4″ port for installing analog pressure gauges or digital pressure displays, enabling real-time output pressure monitoring.
- Lifecycle Monitoring Support: Compatible with external proximity sensors and counters to track piston strokes, facilitating predictive maintenance and service life managementFesto.
Technical Characteristics
表格
| Technical Parameter | Specification |
|---|---|
| Order Number | 188399 |
| Product Type | Double-piston pneumatic pressure booster |
| Pressure Ratio | 1:2 (Output pressure = 2 × Input pressure) |
| Piston Diameter | 100 mm |
| Input Pressure Range (p1) | 2 bar – 10 bar |
| Output Pressure Range (p2) | 4 bar – 16 bar (adjustable) |
| Maximum Overload Pressure | 24 bar |
| Operating Medium | Compressed air, ISO 8573-1:2010 [7:3:4]; lubricated operation not permitted |
| Ambient Temperature Range | 5 °C – 60 °C |
| Storage Temperature Range | 5 °C – 60 °C |
| Pneumatic Connection Ports | G1/2 female thread (inlet/outlet) |
| Pressure Gauge Port | G1/4 female thread (pre-configured) |
| Corrosion Resistance Class | CRC 2 (moderate corrosion stress) |
| Compliance | VDMA 24364-B1/B2-L (PWIS), CE, UKCA |
| Mounting Type | Internal thread mounting |
| Design Features | Integrated check valves, double-piston structure, adjustable pressure regulation |
Product Dimensions & Weight
表格
| Parameter | Metric | Imperial |
|---|---|---|
| Net Weight | 13,000 g (13 kg) | 28.66 lbs |
| Piston Diameter | 100 mm | 3.94 in |
| Pneumatic Port Size | G1/2 | G1/2 |
| Pressure Gauge Port Size | G1/4 | G1/4 |
| Mounting Style | Internal threaded mounting | Internal threaded mounting |
| Installation Orientation | Any | Any |
Structural & Performance Highlights
- Double-Piston Design: The dual-piston configuration ensures balanced force transmission, stable pressure output, and reduced vibration during operation, enhancing overall durabilityFesto.
- High-Efficiency Check Valves: Internal non-return valves optimize air flow and pressure buildup, significantly shortening system pre-charging time and improving operational efficiency.
- Robust Construction: Built with high-quality materials to withstand industrial wear, offering a long service life and consistent performance under continuous operation.
- Compact & Space-Saving: Despite its high-pressure capability, the unit features a compact form factor, making it suitable for integration into space-limited pneumatic control panels.
- Maintenance-Friendly: Designed for easy servicing, with accessible components and compatibility with lifecycle monitoring tools to support proactive maintenanceFesto.
- Wide Operational Compatibility: Adheres to international industrial standards, ensuring seamless integration with Festo and third-party pneumatic components, and compliance with global safety regulations.
