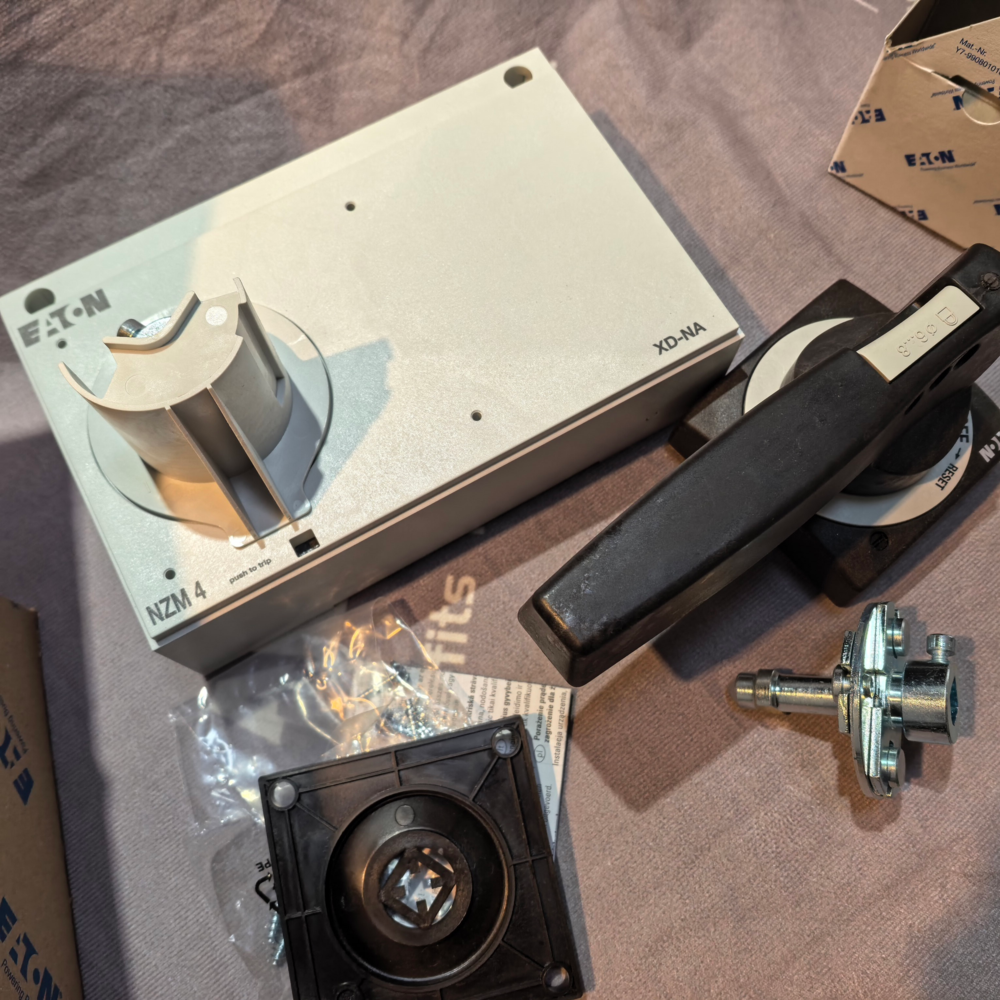

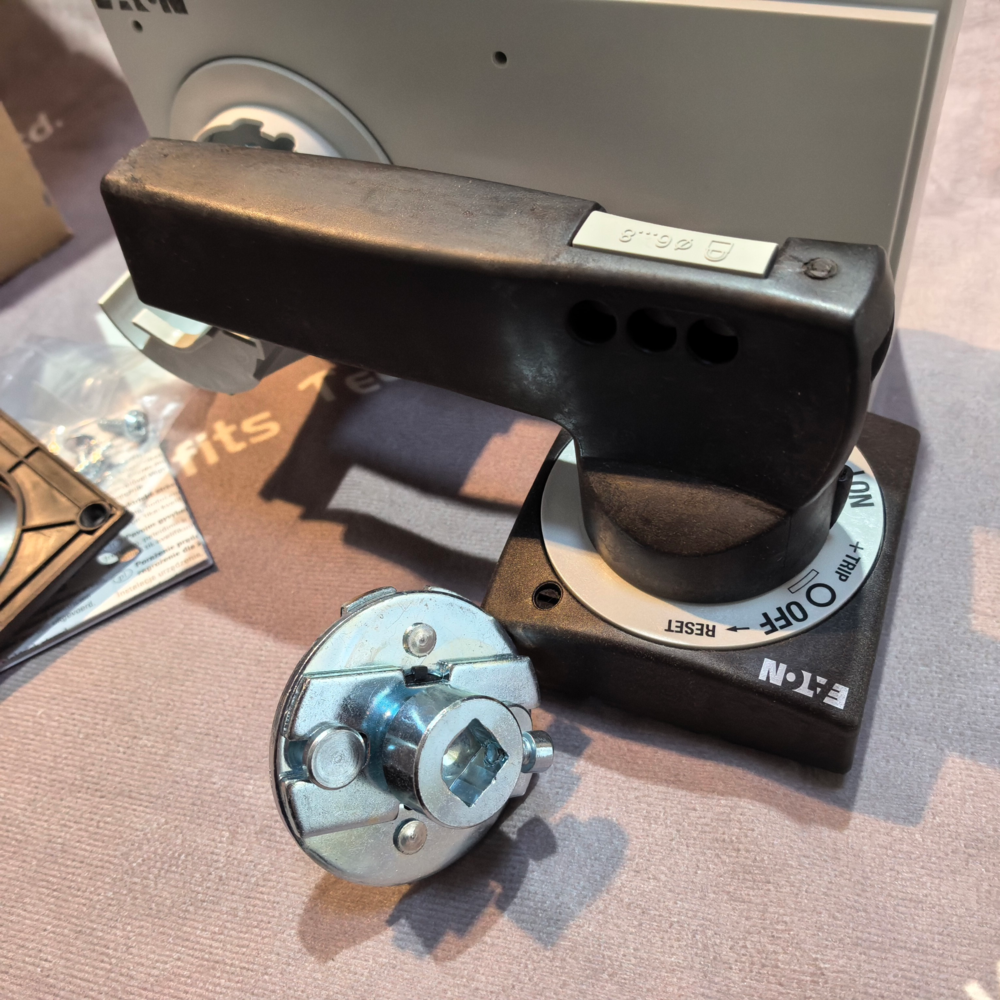

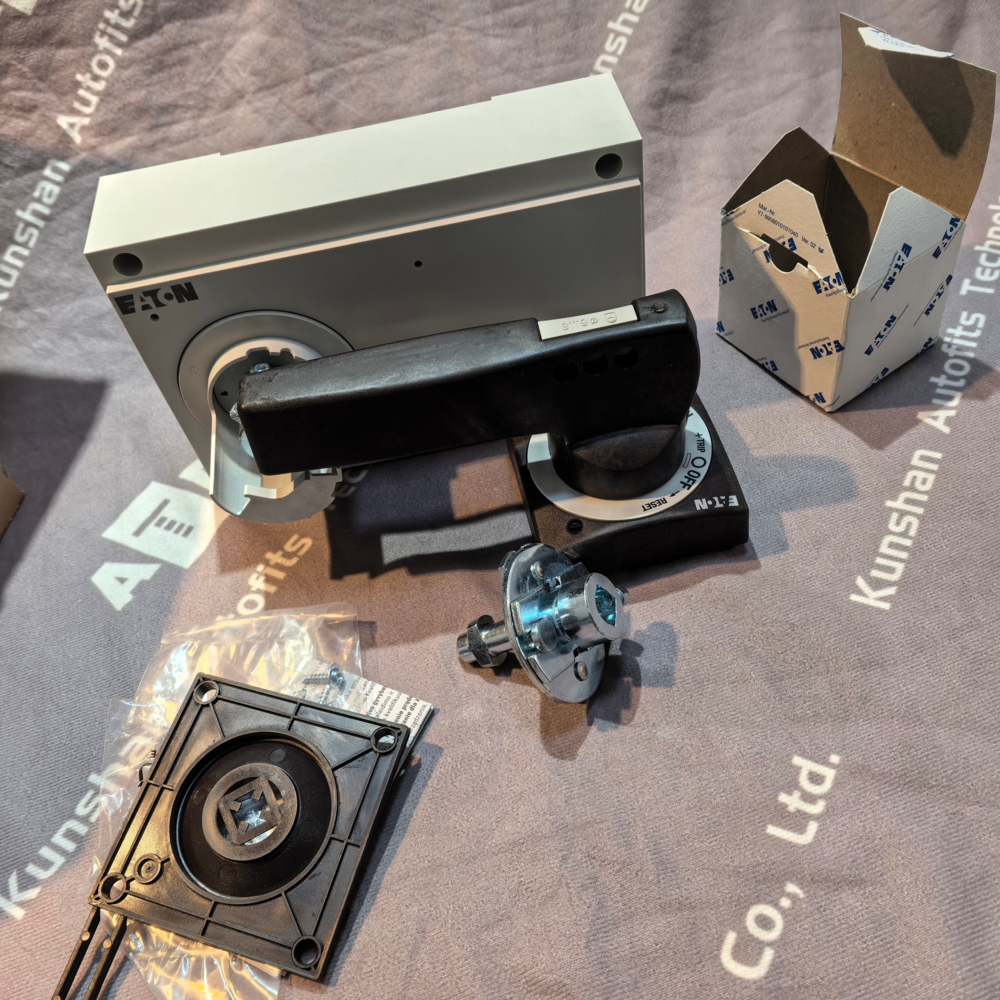

EATON NZM4‑XTVD‑NA Door Coupling Rotary Handle (286644)
Product Overview
The EATON NZM4‑XTVD‑NA (Part No. 286644) is a heavy‑duty, door‑mounted rotary operating assembly engineered for direct mechanical coupling with EATON Moeller NZM4‑series molded‑case circuit breakers (MCCBs). It provides safe, external ON/OFF and manual reset control of the breaker from the exterior of an electrical enclosure, eliminating the need to open the cabinet for routine operation. This unit features a robust mechanical linkage and integrated safety interlocking, ensuring the breaker can only be actuated when the enclosure door is fully closed. Designed for high‑power industrial applications, it delivers reliable performance in power distribution systems, motor control centers, switchgear assemblies, and heavy machinery control panels, meeting stringent safety and durability requirements.
Main Functions
- External Breaker Actuation: Enables ON, OFF, and manual reset operations of NZM4‑series MCCBs from outside the enclosure, preventing exposure to live components.
- Door‑Interlocked Safety: Integrates a mechanical interlock that blocks handle operation unless the cabinet door is securely closed, complying with industrial safety standards.
- Precise Mechanical Coupling: Provides a rigid, direct shaft connection to the breaker’s operating mechanism for consistent, responsive actuation and positive position feedback.
- Visual Status Indication: Clearly displays the breaker’s operating state (ON/OFF/TRIPPED) via the rotary handle’s position for quick system monitoring.
- Heavy‑Duty Compatibility: Optimized for NZM4‑series breakers, supporting high‑current industrial power distribution applications.
- Retrofit & New Installation: Suitable for both new panel builds and retrofitting existing enclosures with NZM4‑series MCCBs.
Technical Features
表格
| Parameter | Specification |
|---|---|
| Part Number | NZM4‑XTVD‑NA (286644) |
| Compatible Breakers | EATON Moeller NZM4‑series molded‑case circuit breakers |
| Operation Type | 3‑position rotary handle: ON / OFF / TRIPPED |
| Interlock Function | Integrated door safety interlock |
| Mounting Style | Door‑mounted, direct mechanical shaft coupling |
| Handle Material | High‑strength, impact‑resistant reinforced thermoplastic |
| Protection Rating | IP55 (when installed in a properly sealed enclosure) |
| Operating Temperature | -25 °C to +60 °C |
| Mechanical Life | ≥ 10,000 operating cycles |
| Standards Compliance | IEC 60947‑2, EN 60947‑2, CE, UL, CSA |
| Connection | Rigid mechanical shaft linkage (no electrical wiring required) |
Product Dimensions and Weight
表格
| Dimension | Value |
|---|---|
| Recommended Mounting Cutout | Round, diameter 50 mm |
| Handle Diameter | 70 mm |
| Protrusion from Door Surface | Approximately 95 mm |
| Overall Module Width | 65 mm |
| Net Weight | Approximately 0.75 kg |
Additional Characteristics
- Extreme Durability: Built to withstand heavy industrial use, vibration, shock, and harsh environmental conditions.
- Easy Installation: Tool‑friendly mechanical mounting and direct shaft coupling minimize installation time.
- Low Maintenance: Wear‑resistant components ensure long service life with minimal upkeep.
- Global Safety Compliance: Meets international standards for low‑voltage switchgear and industrial safety.
- Ergonomic Operation: Smooth rotary action with clear detents for precise positioning and reliable actuation.
