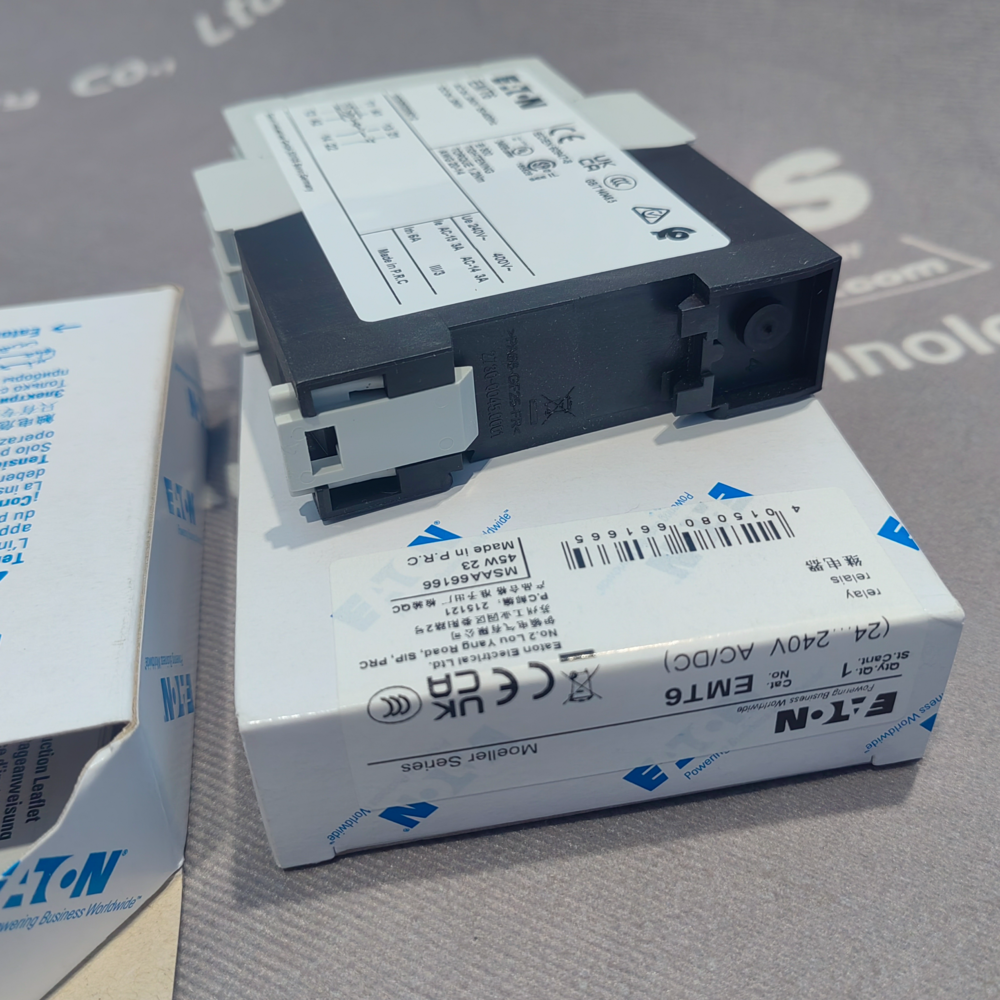

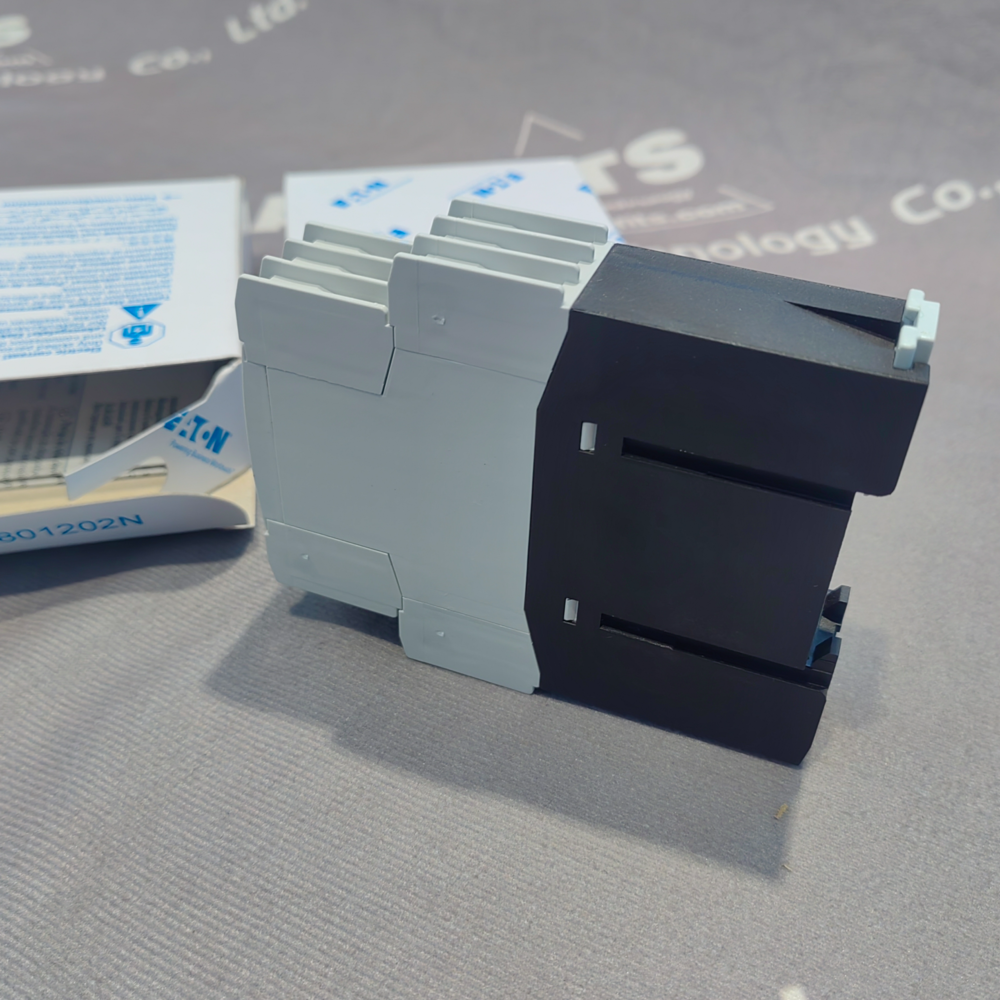

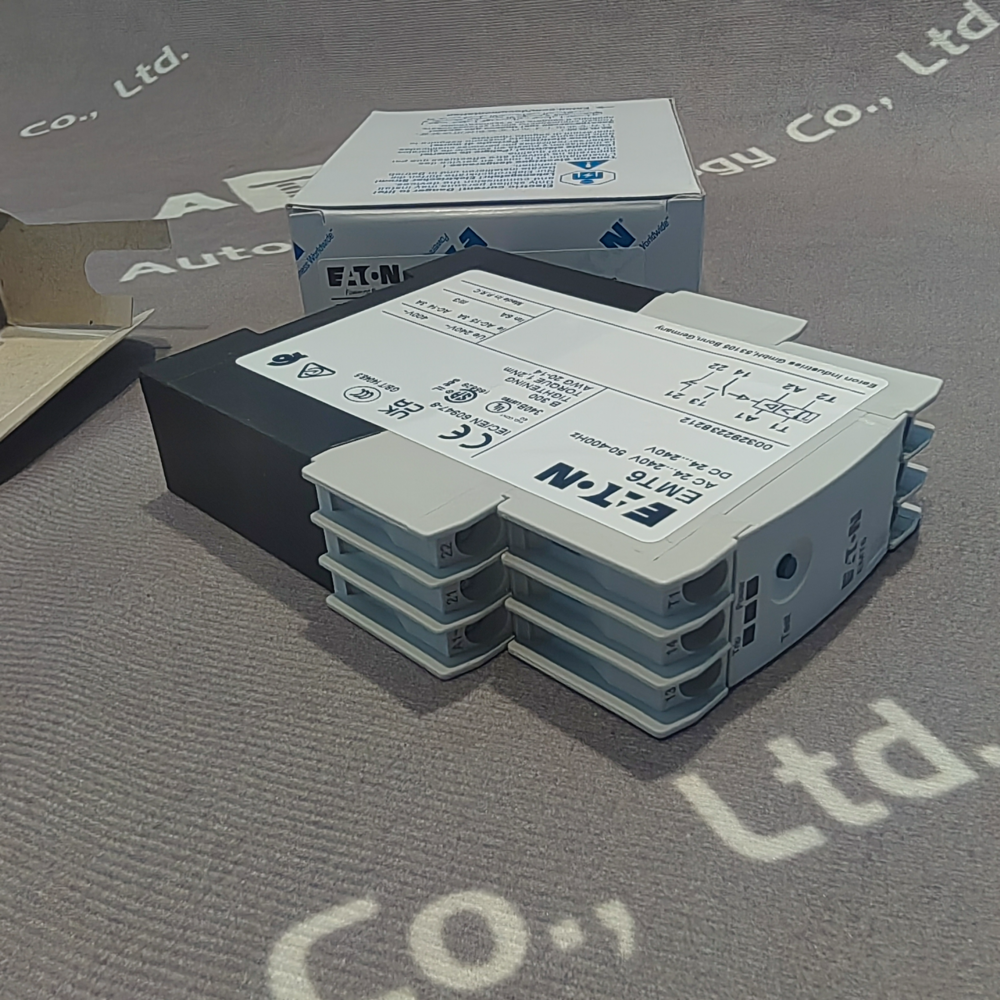

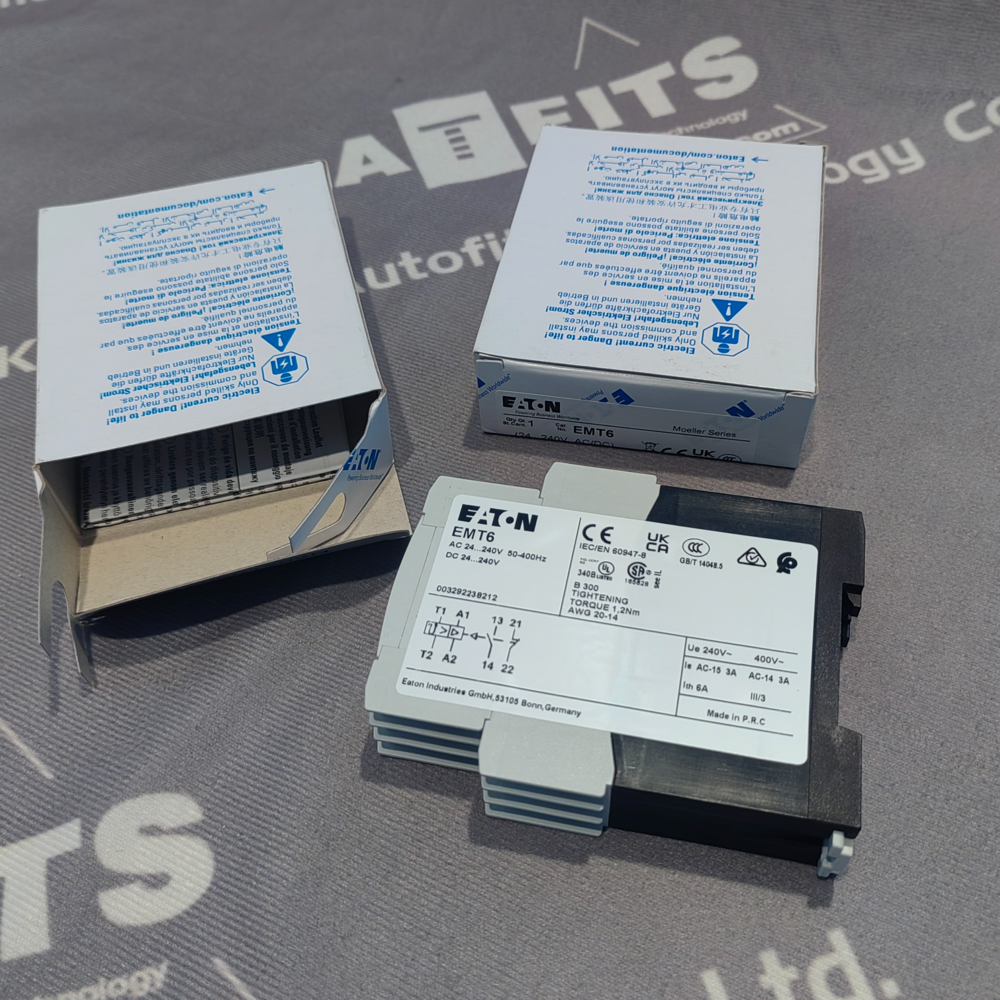

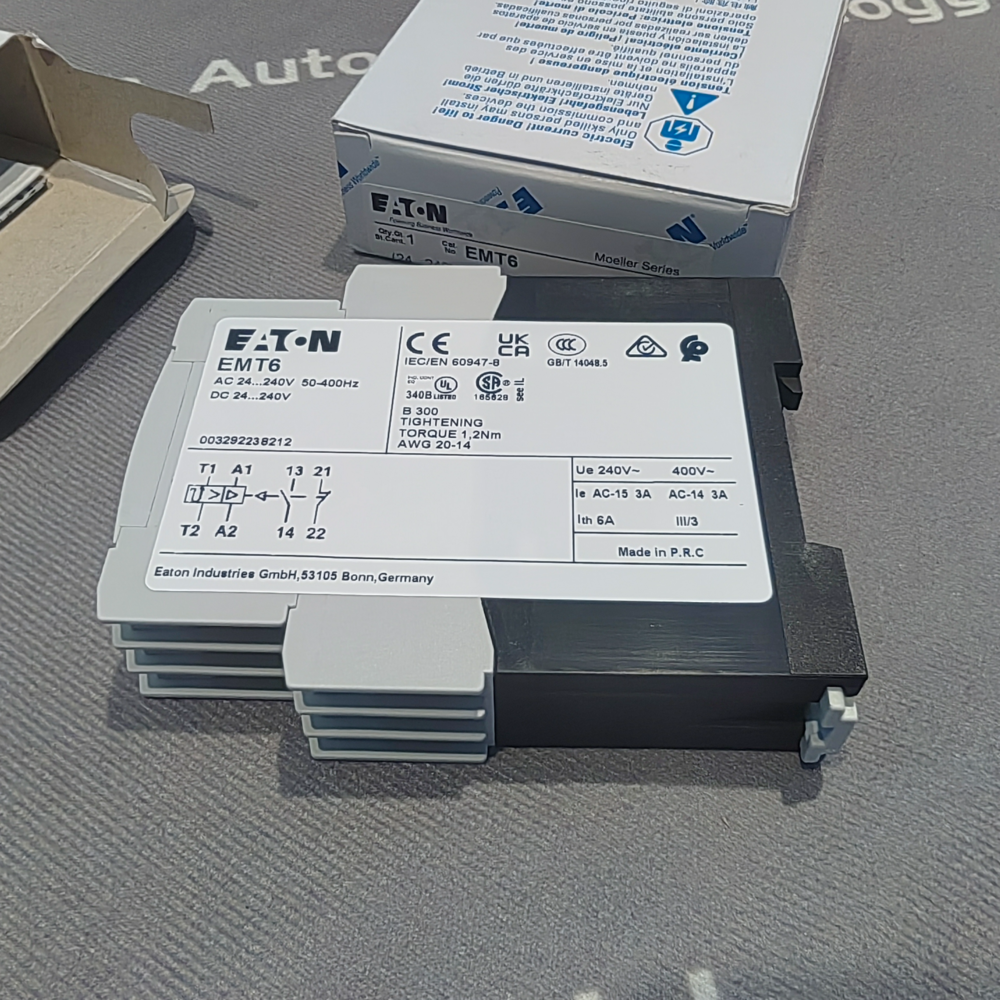

EATON EMT6 Thermistor Motor Protection Relay (EM t6)
Product Overview
The EATON EMT6 (also referred to as EM t6) is a dedicated thermistor‑based motor protection relay from EATON’s Moeller series, designed for precise, direct temperature monitoring and overheating protection of electric motors and industrial machinery. Unlike conventional thermal overload relays that infer temperature from motor current, the EMT6 utilizes Positive Temperature Coefficient (PTC) thermistor sensors embedded directly in motor windings, bearings, gearboxes, oil, or coolant systems to detect overtemperature conditions with high accuracy. It provides reliable protection against damage caused by heavy starting duties, braking, voltage fluctuations, high switching frequencies, and locked‑rotor scenarios. Certified for global use (UL, CSA, CE, CCC, ATEX for K‑type variants), the EMT6 is ideal for industrial automation, HVAC, pumps, fans, compressors, and general motor control applications, offering robust performance in harsh environments. Fast shipping is available to support urgent project and maintenance requirements.
Main Functions
- Direct Temperature Monitoring: Monitors real‑time temperature via PTC thermistors embedded in critical motor components (windings, bearings) and auxiliary systems (oil, coolant), enabling early detection of abnormal heating.
- Overtemperature Protection: Triggers an immediate output trip when PTC sensor resistance spikes (indicating overheating), disconnecting the motor from the power supply to prevent insulation breakdown, burnout, or catastrophic failure.
- Dual Sensor Circuit Monitoring: Select models feature two independent sensor circuits, allowing simultaneous monitoring of two separate temperature points (e.g., motor winding and bearing) and supporting early‑warning systems.

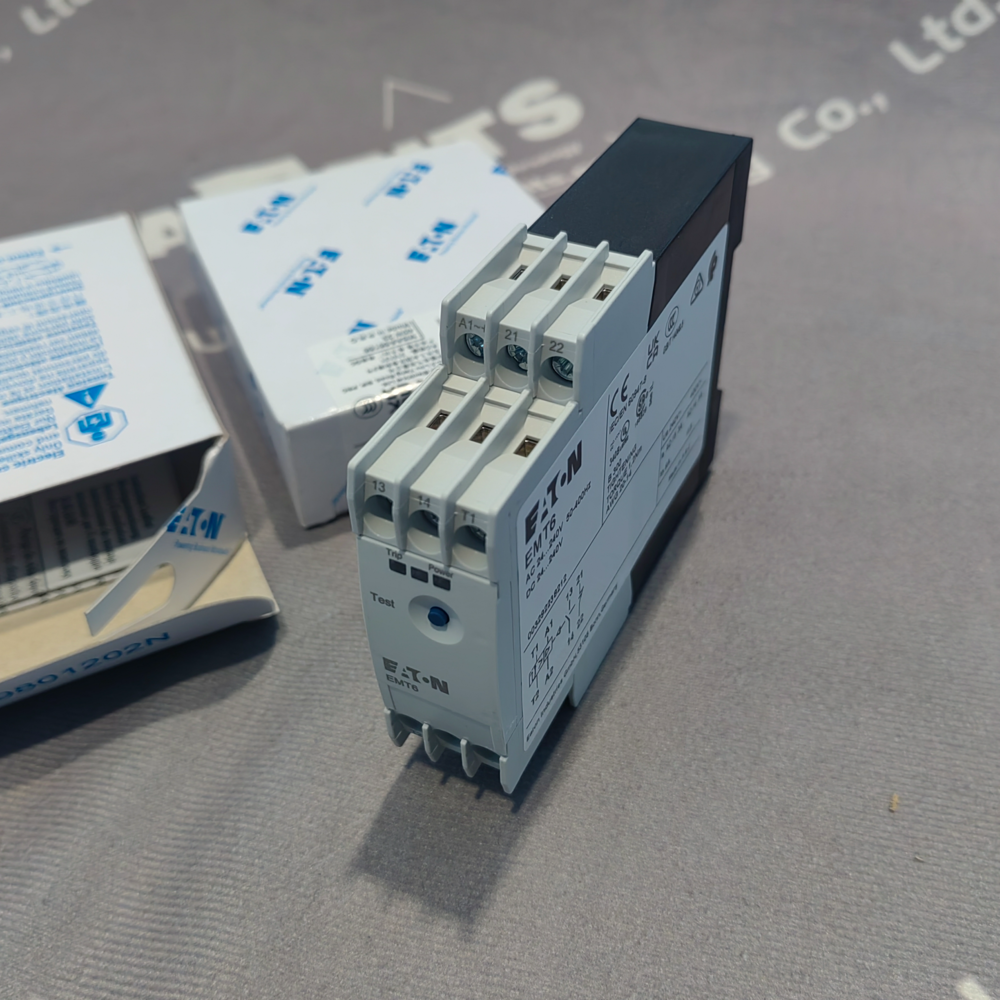

- Integrated Function Test: Equipped with a built‑in test button to simulate fault conditions, simplifying commissioning, routine maintenance, and verification of relay functionality.
- Flexible Reset Options: Supports both manual and automatic reset modes (model‑dependent) for system restart after fault clearance and sensor cooling.
- Status Indication: Features LED indicators to clearly display operational status (normal, fault, test mode) for quick diagnostics.
- DIN‑Rail Mounting: Designed for standard DIN‑rail installation, enabling quick, space‑saving integration into electrical control panels.
- Wide Voltage Compatibility: Operates with a broad control supply voltage range (24–240 V AC/DC), ensuring adaptability to global electrical systems.
Technical Features
表格
| Parameter | Specification |
|---|---|
| Sensor Type | PTC thermistor (positive temperature coefficient) |
| Sensor Circuits | 1 or 2 independent monitoring circuits (model‑dependent) |
| Output Contact Configuration | Single‑pole (SP) changeover contact (1 NO + 1 NC) |
| Contact Rating | 3 A (AC‑15, DC‑13) |
| Control Supply Voltage | 24–240 V AC/DC (50/60 Hz) |
| Response Temperature | Typically 130°C (PTC sensor trigger threshold) |
| Operating Temperature | -25°C to +60°C |
| Degree of Protection | IP20 (enclosure) |
| Standards Compliance | IEC/EN 60947‑4‑1, UL 508, CSA C22.2 No. 14, CE, CCC, ATEX (K‑type) |
| Mechanical Life | ≥ 10 million operations |
| Electrical Life | ≥ 1 million operations (AC‑15 duty) |
| Terminal Type | Screw terminals (M3) for secure wiring |
| Mounting | 35 mm standard DIN‑rail |
Product Dimensions & Weight
表格
| Dimension | Value |
|---|---|
| Width (W) | 22.5 mm |
| Height (H) | 78 mm |
| Depth (D) | 102 mm |
| Net Weight | Approximately 0.18 kg |
Additional Key Advantages
- High Accuracy: Direct temperature sensing eliminates inaccuracies associated with current‑based protection, ensuring precise monitoring of actual component temperatures.
- Compact Design: Slim 22.5 mm width minimizes control panel space usage, ideal for dense industrial installations.
- Global Applicability: Multi‑standard certification and wide voltage range support deployment across North America, Europe, Asia, and other global markets.
- Easy Installation & Maintenance: DIN‑rail mounting, screw terminals, and integrated test button reduce setup time and simplify ongoing maintenance.
- Versatile Protection: Protects not only motor windings but also bearings, gearboxes, and fluid systems, extending equipment lifespan.
- Fast Shipping: Prompt dispatch available to minimize downtime for industrial projects and emergency repairs.
