152617 VPEV-W-S-LED-GH Vacuum switch
"*" señala los campos obligatorios

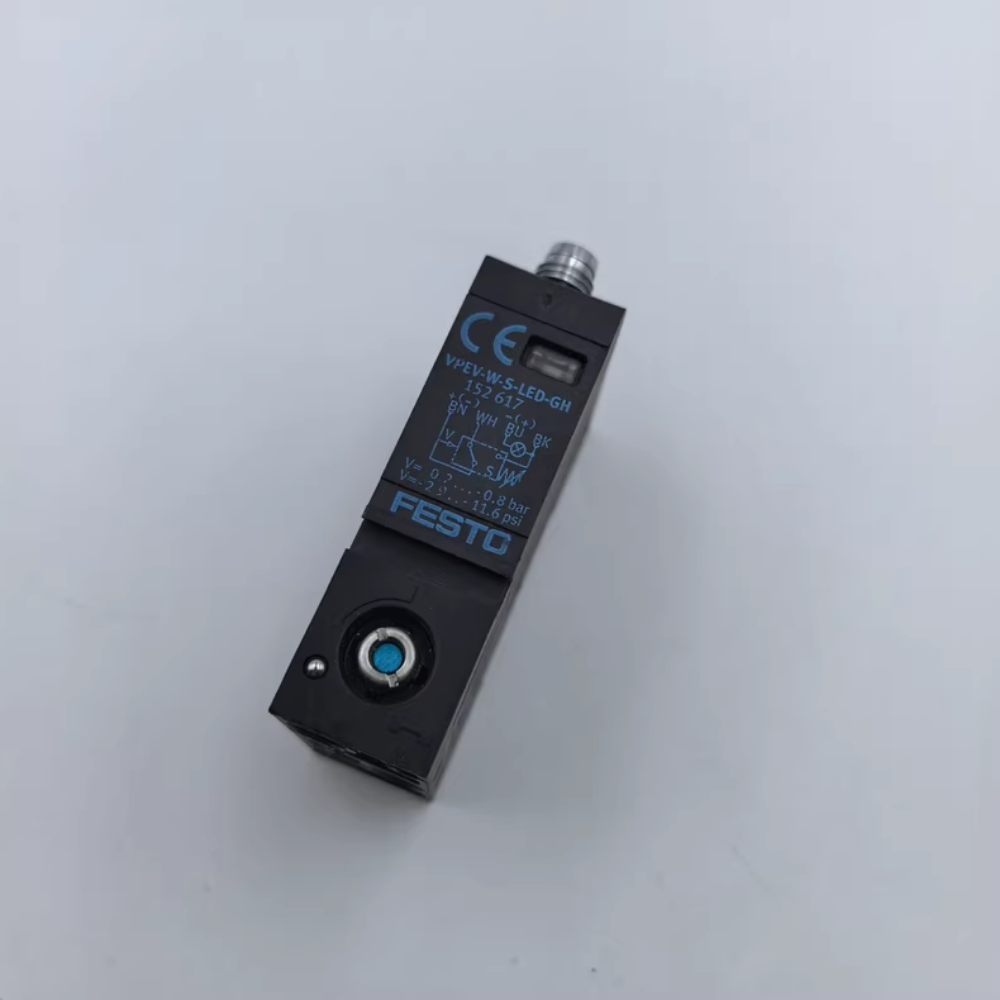

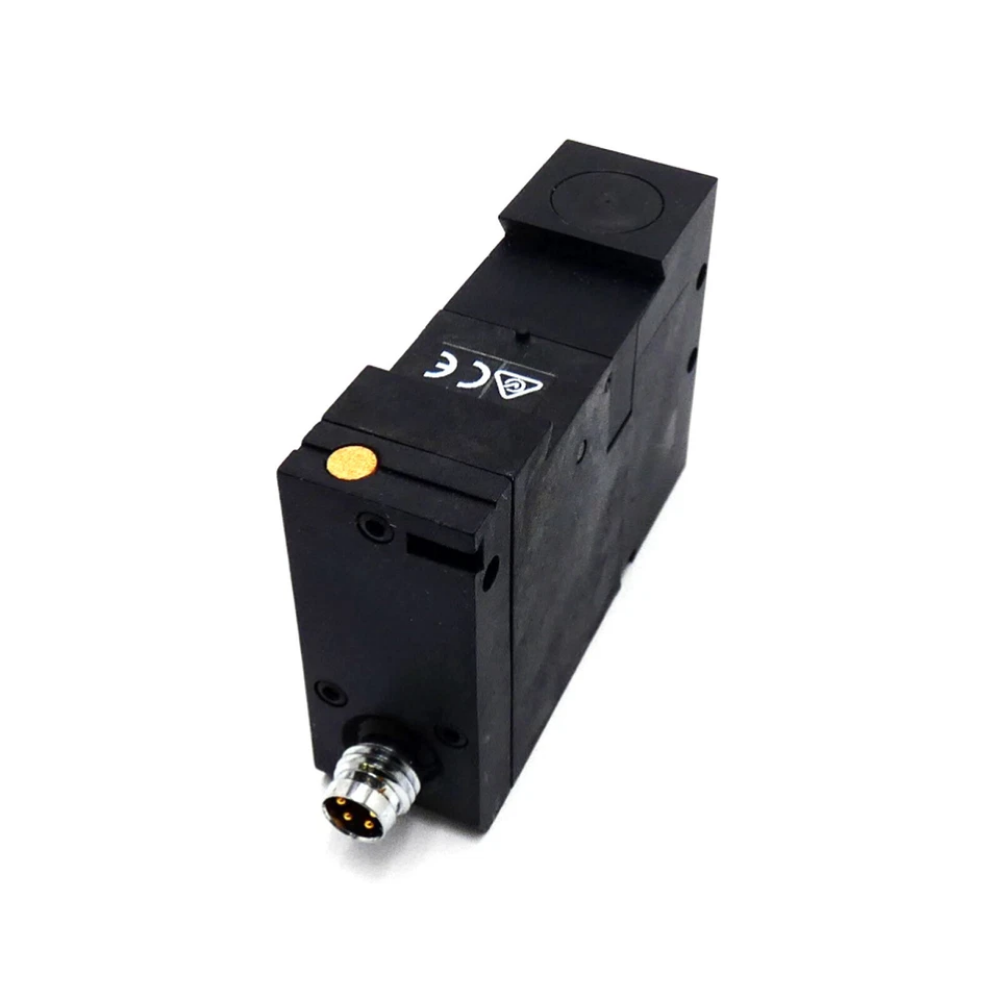

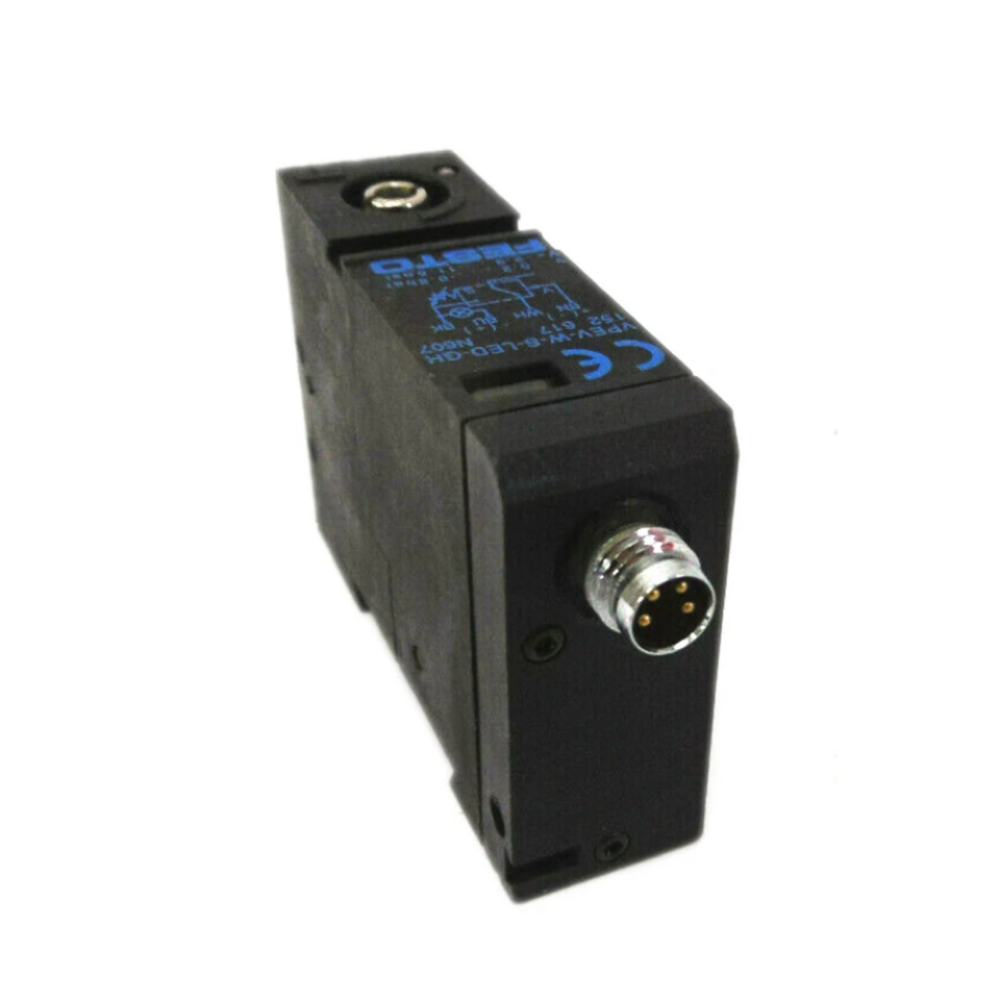

Festo 152617 VPEV-W-S-LED-GH Vacuum Switch
Product Overview
The Festo 152617 VPEV-W-S-LED-GH is a robust, mechanical vacuum switch designed for reliable vacuum pressure monitoring and switching in industrial pneumatic systems. It operates as a pneumatic-to-electrical transducer, converting vacuum pressure changes into electrical switching signals. Equipped with an integrated yellow LED for clear status indication and an M8x1 A‑coded electrical connector for quick wiring, this switch features an adjustable switching point and hysteresis, making it highly adaptable to diverse vacuum control applications. It is engineered for compatibility with standard industrial vacuum systems, offering IP65 protection and compliance with CE and RoHS directives, ensuring stable performance in harsh industrial environmentsFestoFesto.
Main Functions
- Vacuum Pressure Sensing & Switching: Detects relative vacuum pressure and triggers electrical switching actions when the set vacuum threshold is reached, enabling automated control of vacuum‑based processesFestoFesto.
- Adjustable Switching Parameters: Allows precise adjustment of the vacuum switching point and hysteresis via an adjustment screw, accommodating varying process requirements.
- Visual Status Indication: Features a bright yellow LED that illuminates to clearly indicate the switch’s active/triggered state, simplifying on‑site diagnostics and monitoringFestoFesto.
- Flexible Electrical Connection: Uses a 4‑pin M8x1 A‑coded plug connector (per EN 61076‑2‑104) for secure, fast, and standardized electrical integration with control systems.
- Versatile Mounting: Supports multiple installation methods, including direct through‑hole mounting and mounting on standard H‑type DIN rails (DIN EN 50022), ensuring adaptability to different system layoutsFesto.
- Harsh Environment Operation: With an IP65 protection rating, it resists dust ingress and low‑pressure water jets, suitable for industrial settings with challenging environmental conditionsFesto.
- Reliable Pneumatic Interface: Features an M5 pneumatic connection for straightforward integration into vacuum circuits, compatible with standard pneumatic fittingsFesto.
Technical Characteristics
表格
| Technical Parameter | Specification |
|---|---|
| Order Number | 152617 |
| Product Type | Mechanical vacuum switch (pneumatic‑electric transducer) |
| Measured Variable | Relative vacuum pressure |
| Vacuum Measuring Range | -0.8 bar … -0.25 bar |
| Operating Pressure Range | -1 bar … 0 bar |
| Maximum Overload Pressure | 8 bar |
| Switching Element Function | Changeover (CO) switch |
| Hysteresis Range | 0.08 bar … 0.25 bar (adjustable) |
| Maximum Switching Frequency | 3 Hz |
| Maximum Output Current | 2500 mA |
| Operating Voltage Range | 10 V DC … 30 V DC |
| Electrical Connection | 4‑pin M8x1, A‑coded plug (EN 61076‑2‑104) |
| Pneumatic Connection | M5 female thread |
| Protection Rating | IP65 (IEC 60529) |
| Operating Medium | Compressed air (ISO 8573‑1:2010 [7:-:-]); lubricated operation possible |
| Medium Temperature | 0 °C … 60 °C |
| Ambient Temperature | 0 °C … 60 °C |
| Housing Material | PET/POM engineering plastic |
| Diaphragm Material | NBR (Nitrile Butadiene Rubber) |
| Status Indicator | Yellow LED |
| Mounting Options | Through‑hole mounting; H‑type DIN rail mounting (DIN EN 50022) |
| Certifications | CE, RoHS compliant |
| Net Weight | 56 g |
Product Dimensions & Weight
表格
| Parameter | Metric | Imperial |
|---|---|---|
| Net Weight (Switch Only) | 56 g | 0.123 lbs |
| Pneumatic Port | M5 thread | M5 thread |
| Electrical Connector | M8x1 (4‑pin, A‑coded) | M8x1 (4‑pin, A‑coded) |
| Housing Material | PET/POM | PET/POM |
| Diaphragm Material | NBR | NBR |
| Mounting Compatibility | DIN EN 50022 (H‑rail) | DIN EN 50022 (H‑rail) |
Structural & Performance Highlights
- Adjustable Switching & Hysteresis: Precision adjustment screw enables fine‑tuning of vacuum trigger points and hysteresis, ensuring accurate and stable switching under varying process conditions.
- Robust Mechanical Design: NBR diaphragm and PET/POM housing provide excellent chemical resistance and mechanical durability, extending service life in industrial environmentsFestoFesto.
- Clear Visual Feedback: Integrated yellow LED offers immediate, at‑a‑glance status indication, reducing troubleshooting time and improving operational visibilityFestoFesto.
- Standardized Connectivity: M8x1 A‑coded electrical plug ensures compatibility with standard industrial control wiring and quick, tool‑free connection/disconnection.
- Flexible Installation: Multiple mounting options (direct mounting + DIN rail) allow seamless integration into new or existing pneumatic systems, optimizing space utilizationFesto.
- Wide Operating Range: Operates reliably across a broad temperature and pressure range, maintaining performance in demanding industrial vacuum applicationsFestoFesto.
